• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

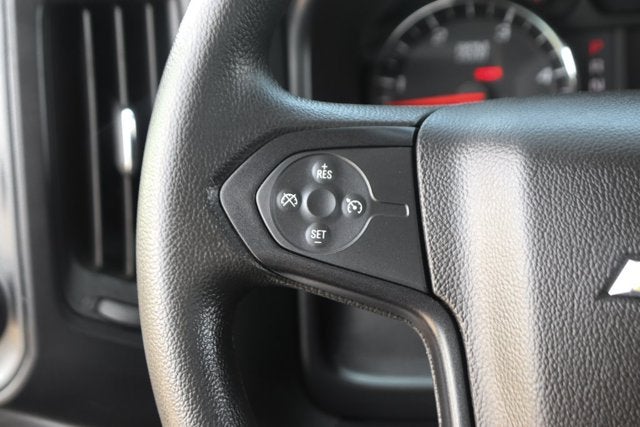

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel

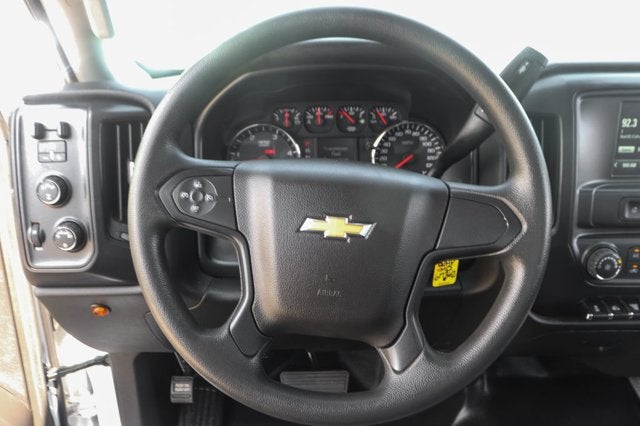

• Steering wheel, urethane

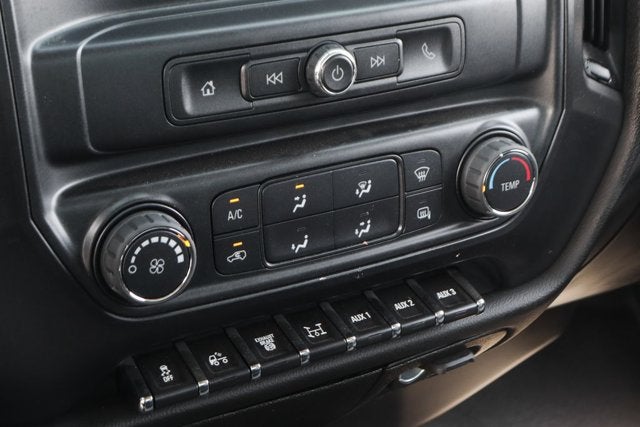

• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Visors, driver and front passenger, vinyl
• Windows, manual driver and front passenger

• Alternator, 150 amps
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165" or (ER2) 189". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, Open rear axle, non-locking rear
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill
• Emissions, USA 50 State certified
• Exhaust brake
• Exhaust system, rear exit
• Four wheel drive
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lb. (7484 kg) (Silverado 4500 HD 4WD models require one of the following combinations: (1) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and (GR4) 13.5k rear suspension or (FU7) 15.5k rear suspension. (3) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (J27) 15.5k rear axle and one of the following rear suspensions: (91B) 13.5k LiquidSpring prep single volume rear suspension, (91C) 13.5k LiquidSpring prep stacked volume rear suspension, (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)
• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear suspension, 11,000 lb. (4,990 kg) multi-leaf, vari-rate
• Steering, power (Bosch S2 8014 Plus)
• Trailer brake controller, integrated
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension or (FU7) 15,500 lb. rear suspension.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete

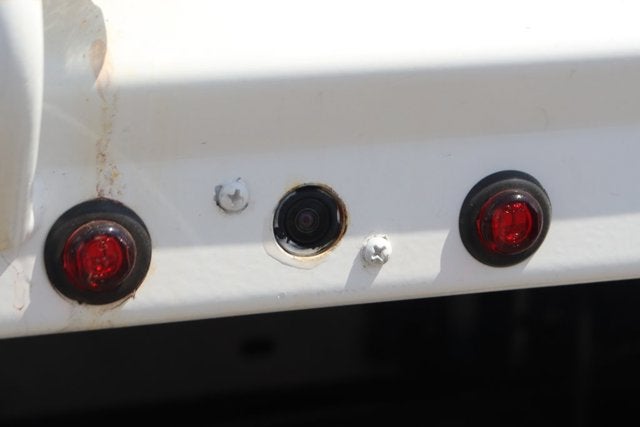

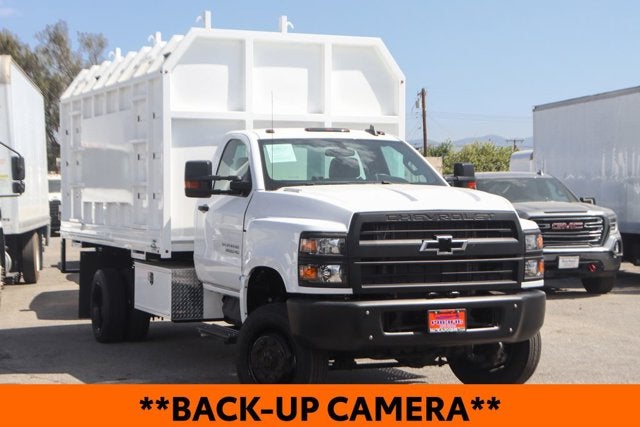

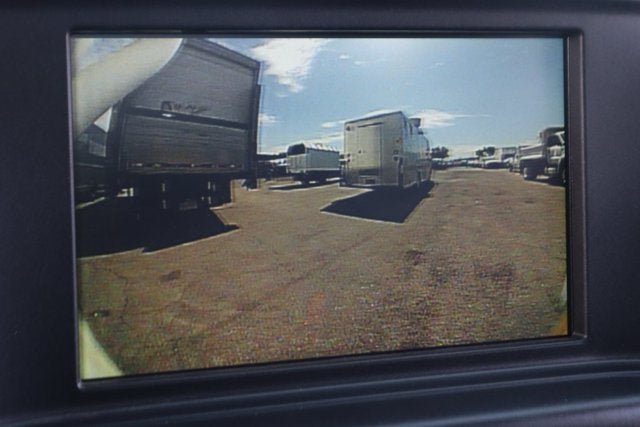

• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Traction control

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

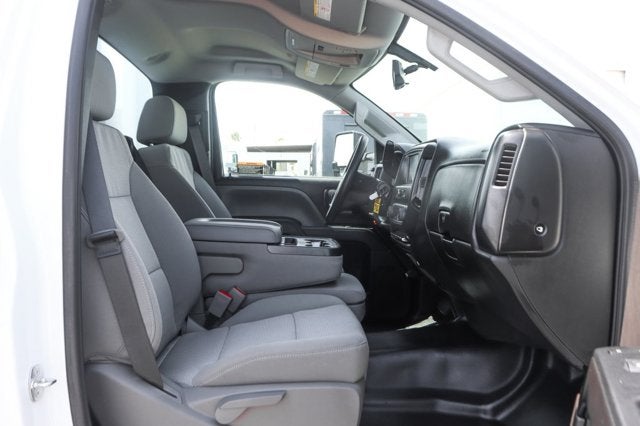

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb.

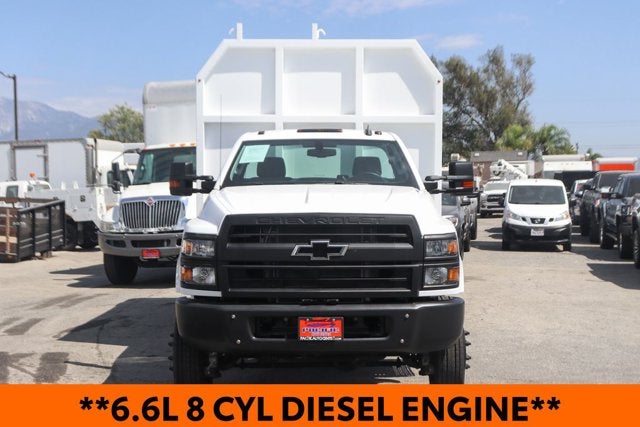

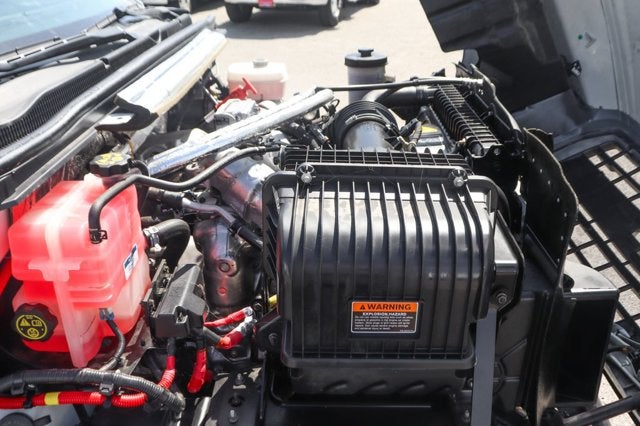

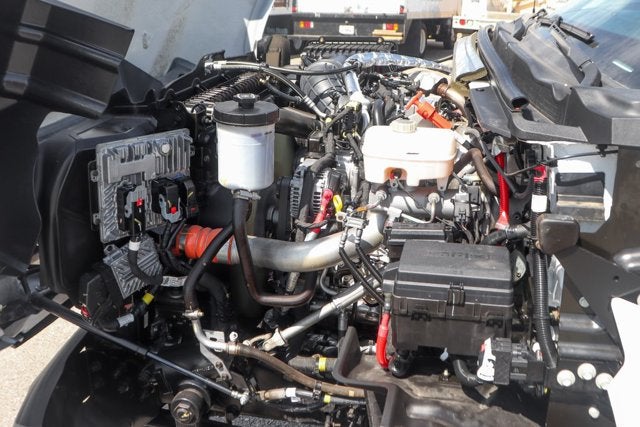

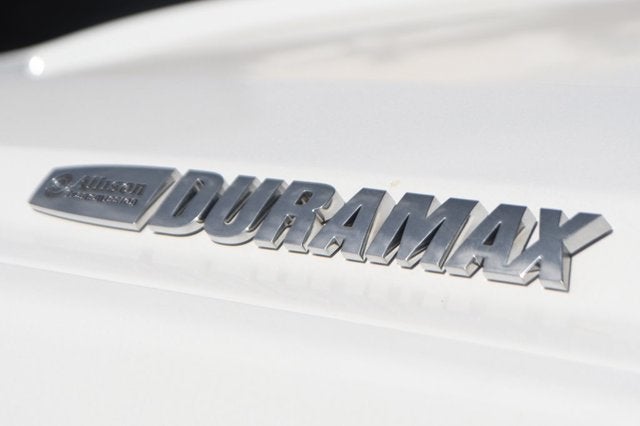

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb.

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

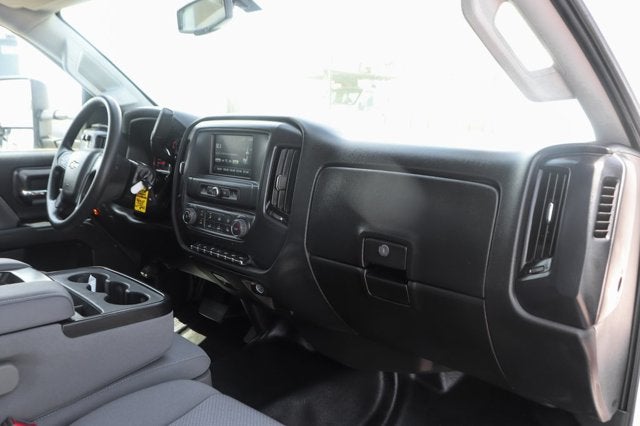

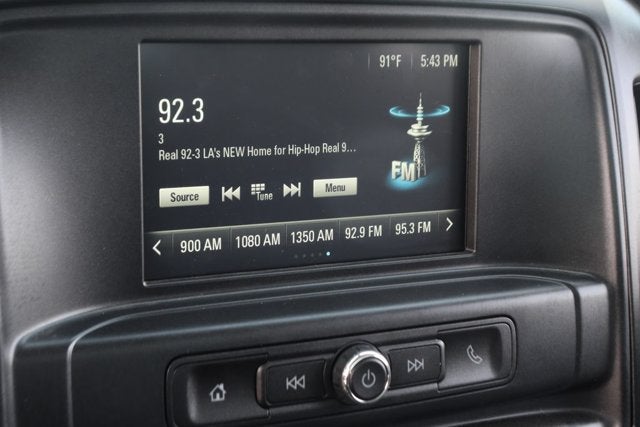

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

BATTERIES, HEAVY-DUTY TRIPLE 2250 COLD-CRANKING AMPS

• temporarily mounted behind cab
• no battery box included

DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS, CLOTH SEAT TRIM

• includes manually adjustable driver lumbar

• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• FRONT STABILIZER BAR
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• 30 000 LB. GCWR (13 607 KG)
• WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SUMMIT WHITE
• PAINT SCHEME STYLE 1
• GVWR 19 500 LB. (8845 KG)
• ALTERNATORS DUAL 150 AMPS AND 220 AMPS EACH
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lb.
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• 6-SPEAKER AUDIO SYSTEM
• 4G LTE WI-FI HOTSPOT CAPABLE
• REAR SUSPENSION 13 500 LB. (6 123 KG) MULTI-LEAF VARI-RATE
• TIRE VALVE CAP (ALLIGARO V2B) FLO-THRU
• KEY SYSTEM 2 SPARE KEYS
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lb.

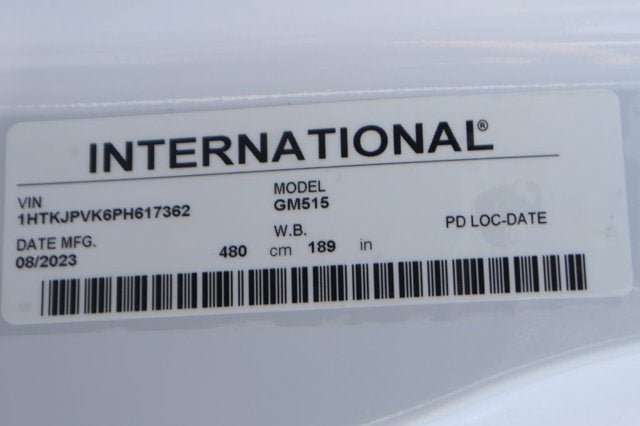

• WHEELBASE 189 (480.1 CM) 108 CA
• SPARE TIRE DELETE (STD)
• AIR DRYER HEATED
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• HORN DUAL-NOTE
• PAINT SOLID
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• AIR COMPRESSOR ACCESSORY DRIVE
• FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• ADDITIONAL FUEL 20 GALLONS

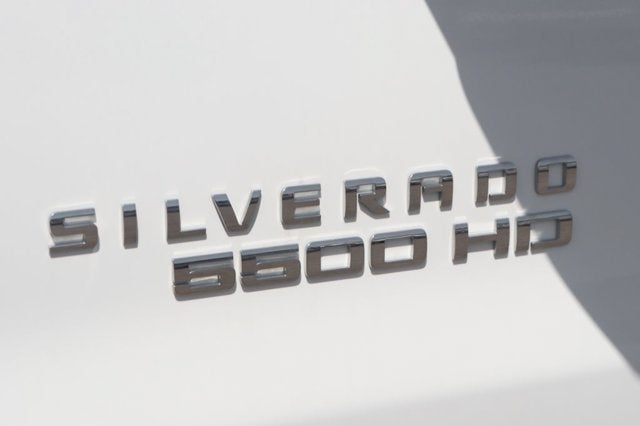

• 5500 HD SERIES
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• OIL SEAL FOR FRONT HUB CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS
• BATTERIES HEAVY-DUTY TRIPLE 2250 COLD-CRANKING AMPS temporarily mounted behind cab no battery box included
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM includes manually adjustable driver lumbar

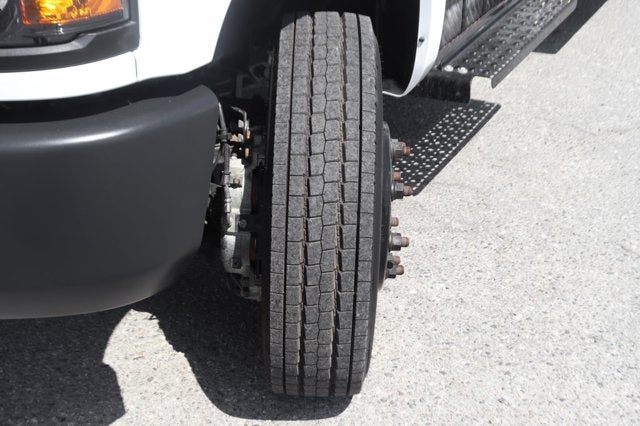

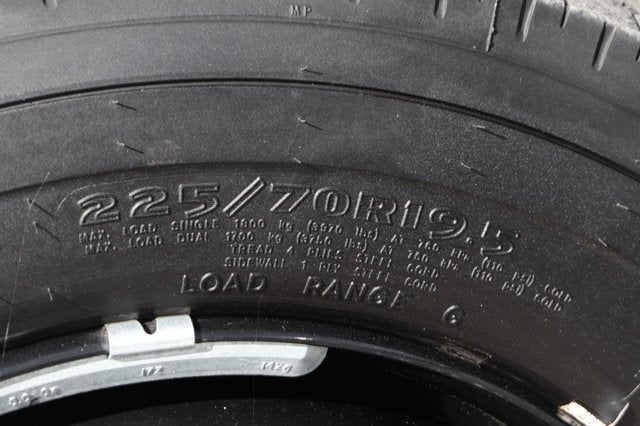

• Tires: Front 225/70R19.5G Highway Blackwall Goodyear
• Tires: Rear 225/70R19.5G Highway Blackwall Goodyear

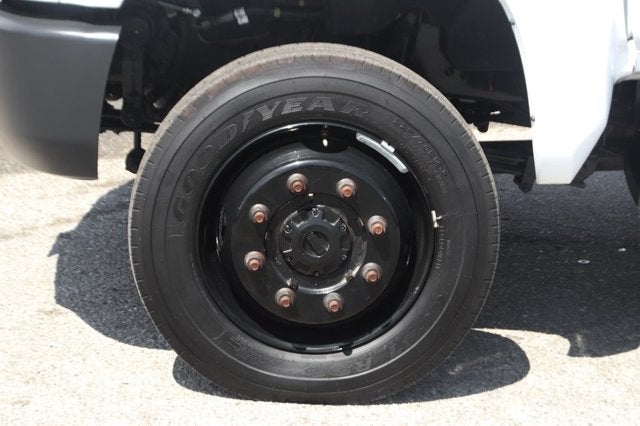

• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• 65 Gallon Total Front & Rear Fuel Tank
• Dual 150 Amps & 220 Amps Each Alternators
• Heavy-Duty Triple 2250 Cold-Cranking Amps Batteries
• Black Power-Adjustable Heated Outside Vertical Trailering Mirrors

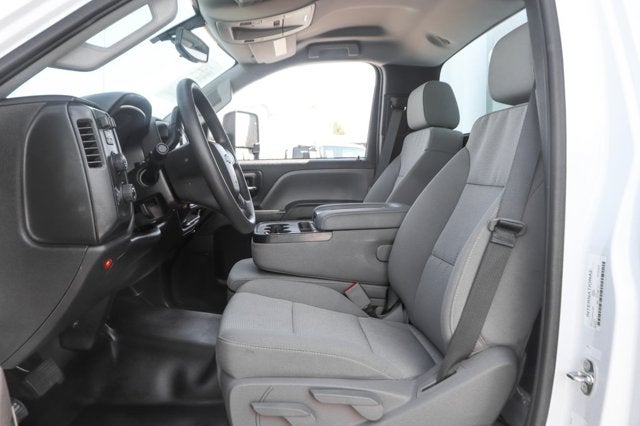

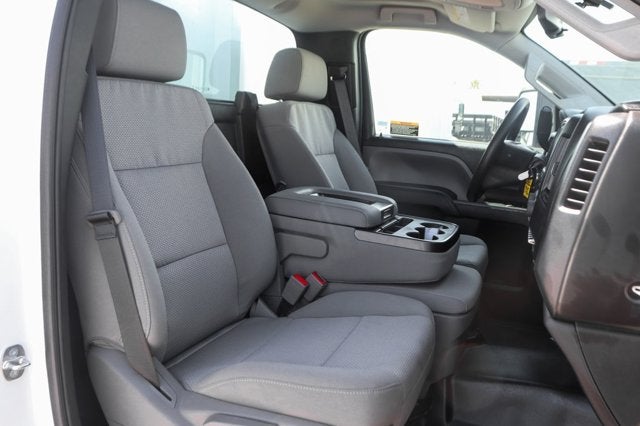

• 40/20/40 Front 3-Passenger Split Bench Seat
• Cloth Seat Trim
• Single-Slot CD/MP3 Player
• SiriusXM Radio
• Single-Zone Air Conditioning
• Remote Keyless Entry
• OnStar & Chevrolet Connected Services Capable
• 2 Spare Keys Key System
• 110-Volt AC Power Outlet
• Upfitter Electrical Provisions In Rear Of Frame
• Dual-Note Horn
• Front License Plate Kit
• Air Compressor Accessory Drive
• Heated Air Dryer
• Manual Regeneration Diesel Particulate Filter DPF
• 20 Gallons Additional Fuel
• 30
• 000 lbs. GCWR (13
• 607 kg)
• 4.30 Rear Axle Ratio
• 7
• 500 lbs Dana Spicer 60-256 Single-Reduction Driving Front Axle
• Front Stabilizer Bar
• Nitrile For Oil Lubricated Wheel Bearings Chicago Rawhide Front Hub Oil Seal
• Dana Spicer S16-130 Single Reduction 15
• 500 lb. Rear Axle (7
• 031 kg)
• Heavy-Duty Rear Locking Differential
• 11
• 000 lbs. (4
• 990 kg) Multi-Leaf Vari-Rate Rear Suspension
• 13
• 500 lbs. (6
• 123 kg) Multi-Leaf Vari-Rate Rear Suspension
• Power Take-Off Engine Control Provisions

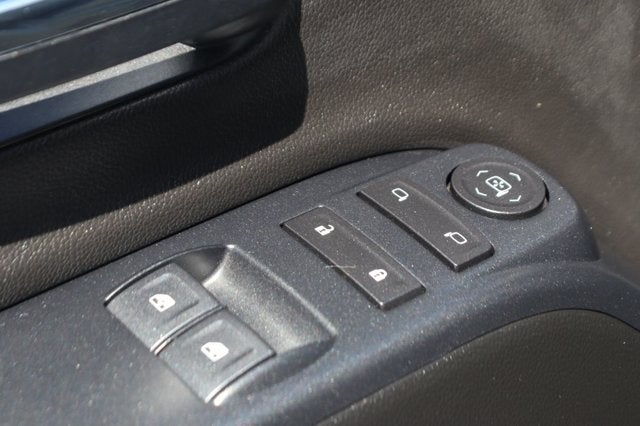

• Power Windows w/Driver Express Up & Down
• 10-Way Power Driver's Seat Adjuster
• Chevrolet Connected Access Capable
• Frontal Passenger-Side Airbag Deactivation Switch
• 6-Speaker Audio System
• Exterior Parking Camera Rear
• Premium audio system: Chevrolet MyLink
• Front Center Armrest w/Storage

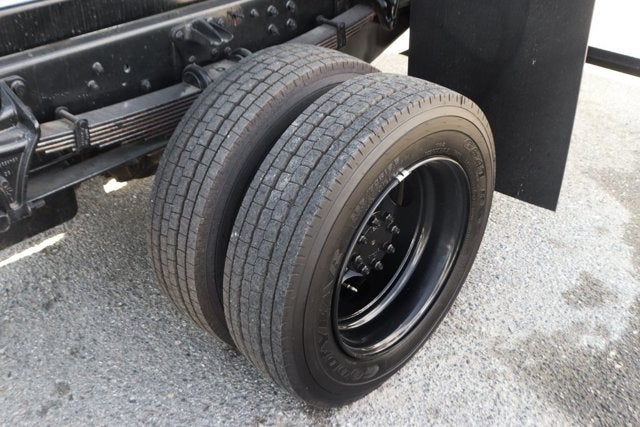

• Dual rear wheels
• Variably intermittent wipers

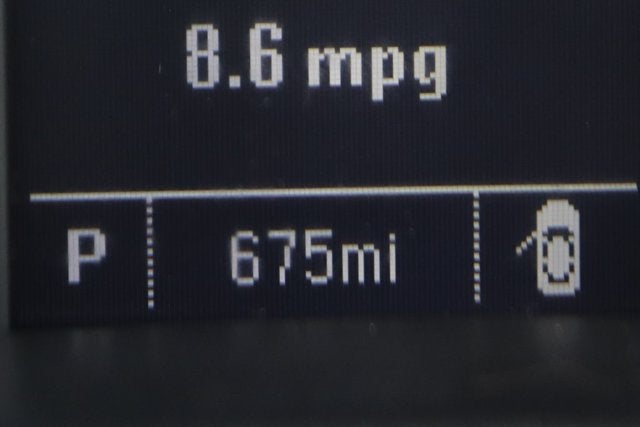

• Trip computer
• Traction control
• Tilt steering wheel
• Speed control
• Power steering
• Passenger door bin
• Passenger cancellable airbag
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Fully automatic headlights
• Front reading lights
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150 & 220
• Exterior Dimensions
• Cab to Axle (in): 107.87
• Cab to End of Frame (in): 157.1
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Height, Overall (in): 86.4
• Length, Overall (in): 248.5
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 189
• Width, Max w/o mirrors (in): 92.7
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 58.7
• Turning Diameter - Wall to Wall (ft): 60.3
• Summary
• Body Style: Regular Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: Dana Spicer Single Reduction
• Axle Type - Rear: Dana Spicer Single Reduction
• Shock Absorber Diameter - Front (mm): 50.8
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 13500
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAL
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 5246
• Curb Weight - Rear (lbs): 3021
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Combined Wt Rating (lbs): 30000

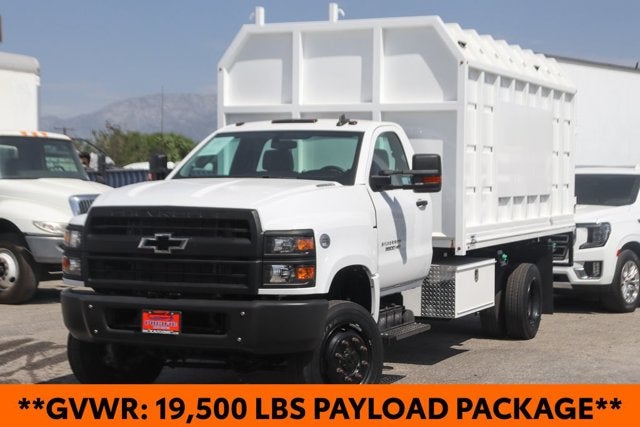

• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
