• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

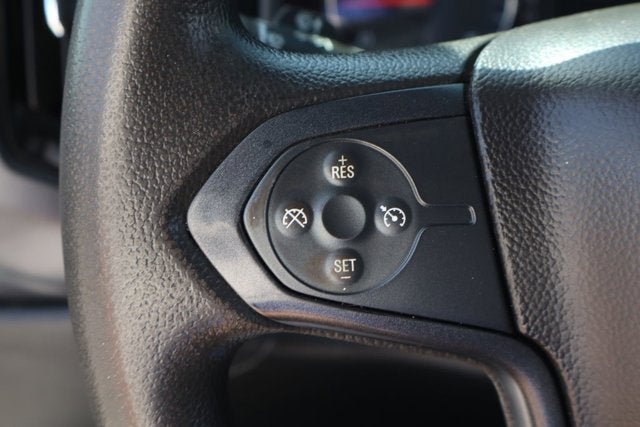

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black

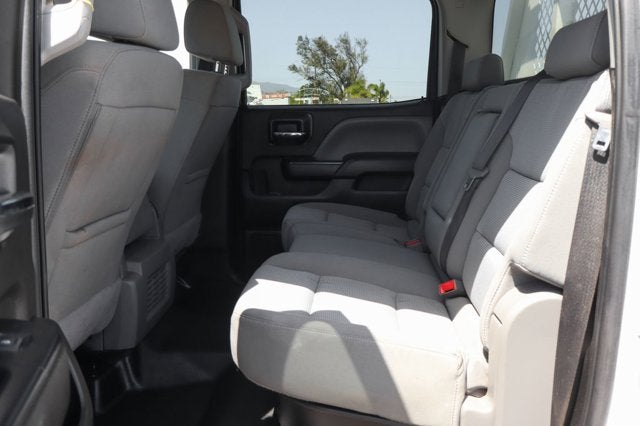

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

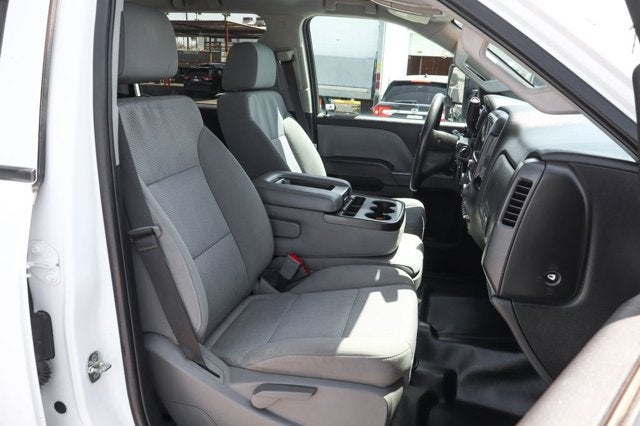

• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers

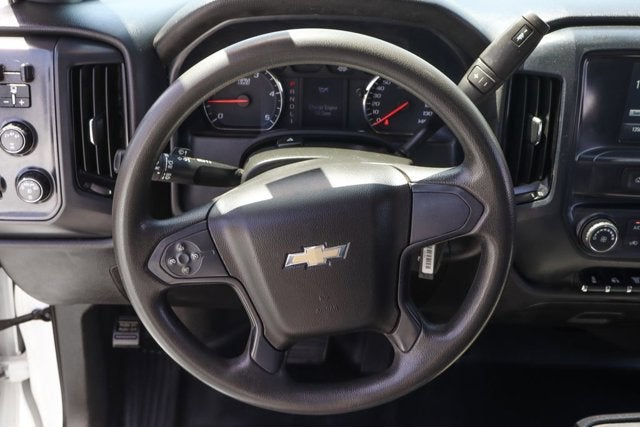

• Steering column, manual Tilt-Wheel

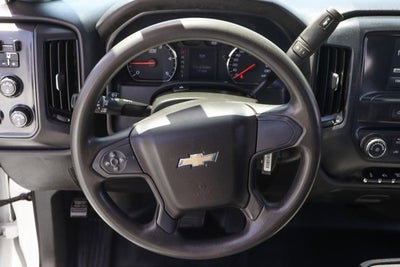

• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Visors, driver and front passenger, vinyl

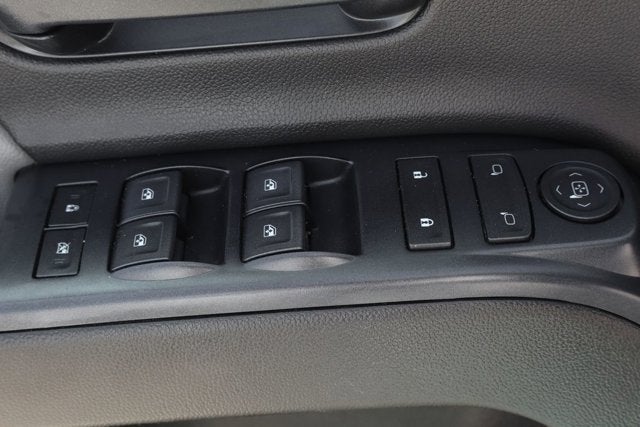

• Windows, power with driver express up and down and express down on all other windows

• Alternator, 150 amps
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, Open rear axle, non-locking rear
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill

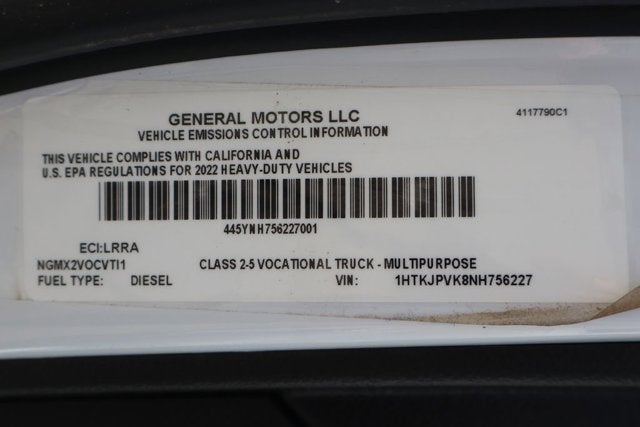

• Emissions, USA 50 State certified
• Exhaust brake
• Exhaust system, rear exit
• Four wheel drive
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lb. (7484 kg) (Silverado 4500 HD 4WD models require one of the following combinations: (1) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension, (FU7) 15.5k rear suspension, (91B) 13.5k LiquidSpring prep single volume rear suspension, (91C) 13.5k LiquidSpring prep stacked volume rear suspension, (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)

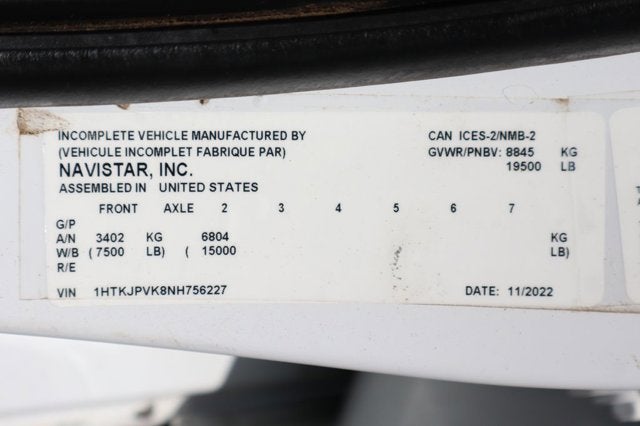

• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate
• Steering, power (Bosch S2 8014 Plus)

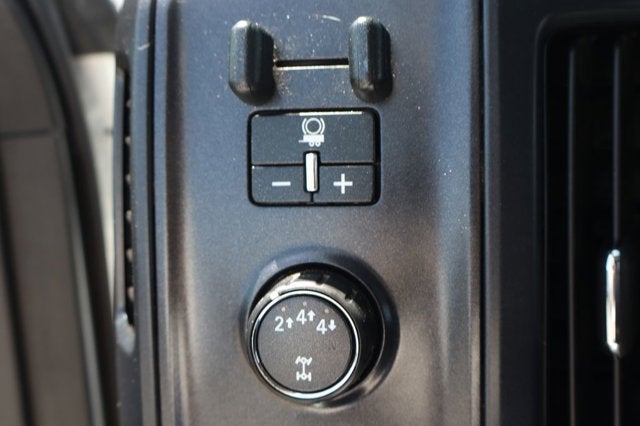

• Trailer brake controller, integrated
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12,000 lb., (GP1) 13,500 lb. or (GP8) 15,500 lb. rear air suspension, or (NPK) Exhaust System.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Horn, single-note
• OnStar, delete

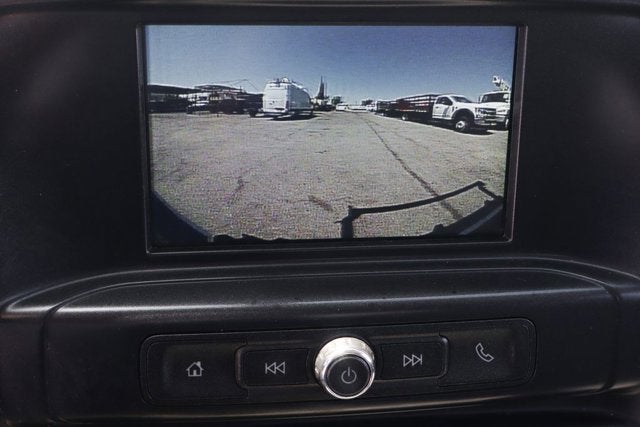

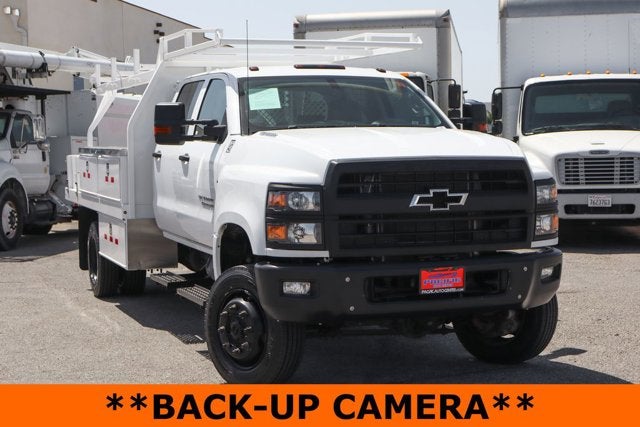

• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• Traction control

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

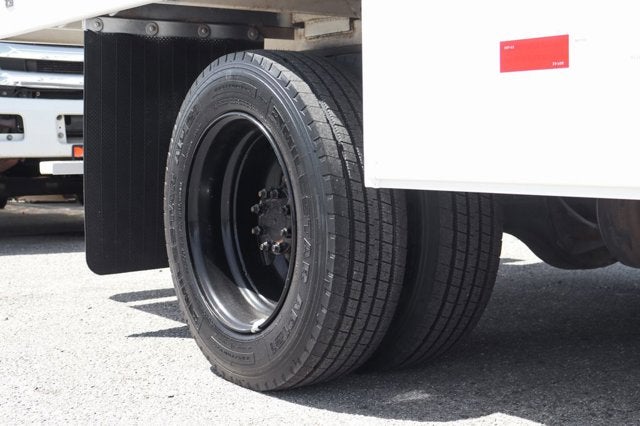

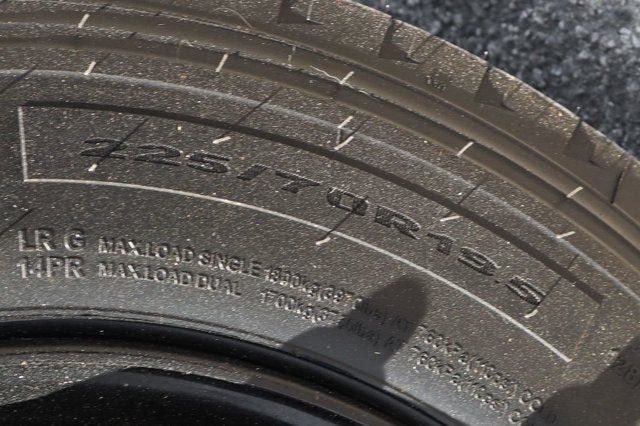

TIRES, FRONT 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL

• Max Axle Load: 7
• 940 lb.

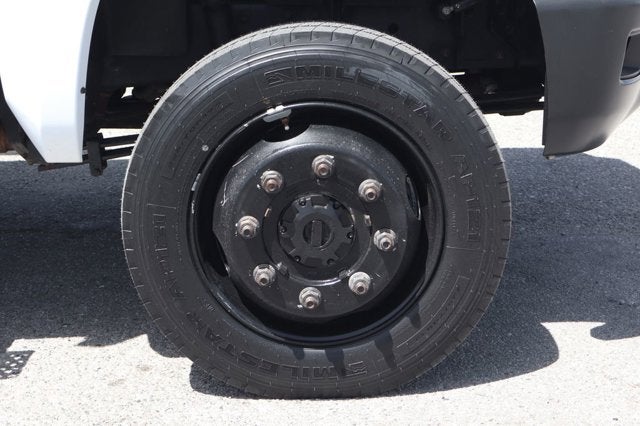

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

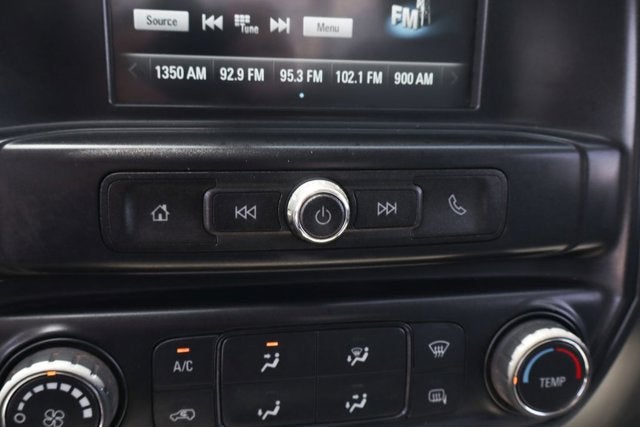

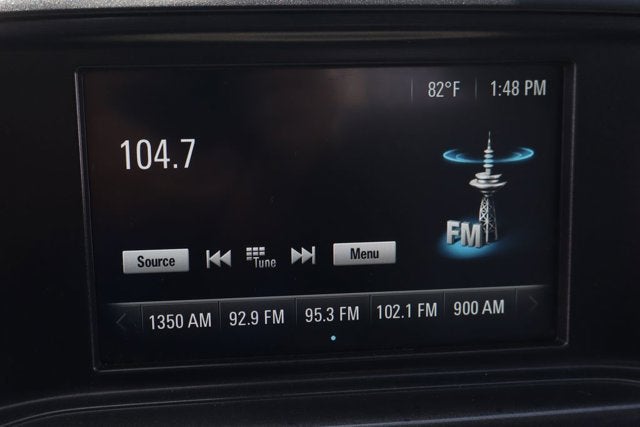

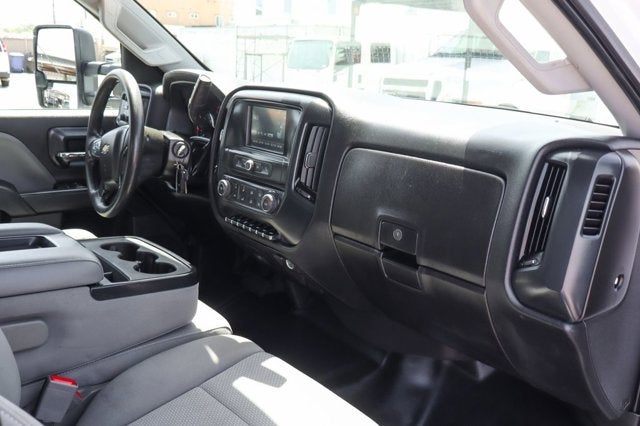

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

TIRE, SPARE 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL

• Includes (V33) Rim Wrench and handle only tool kit.)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, REAR 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL

• Max Axle Load: 15
• 000 lb.

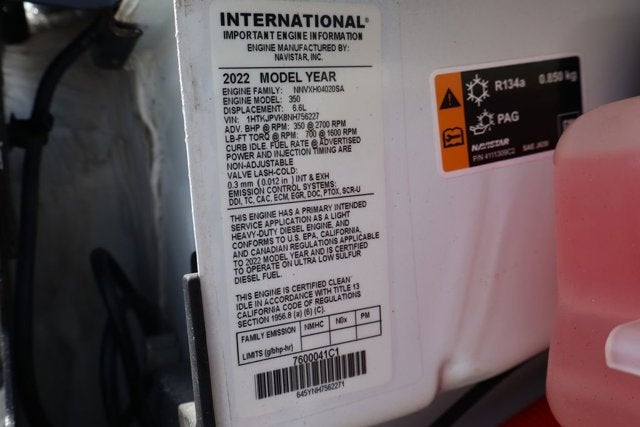

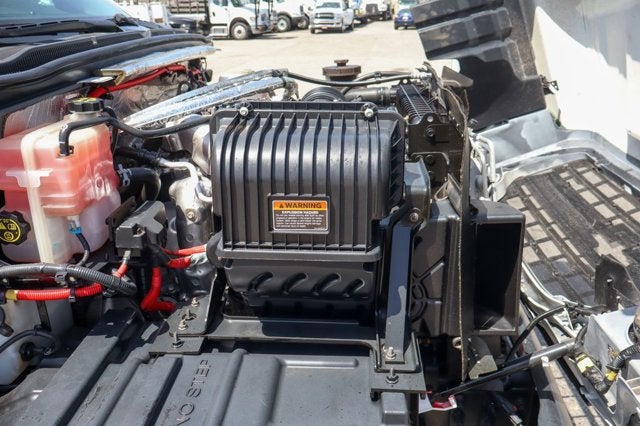

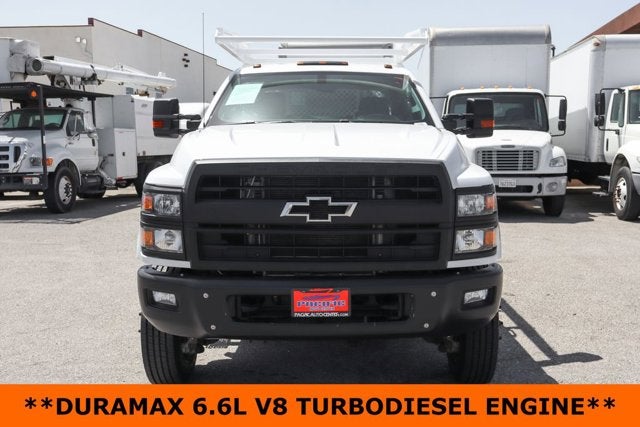

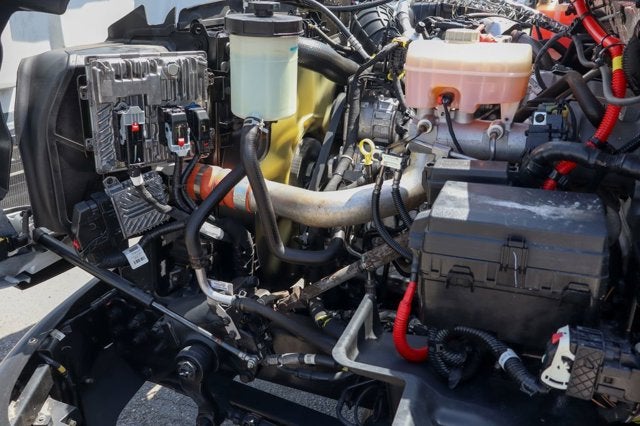

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

WHEEL, 19.5" X 6.75", SPARE, STEEL, BLACK, 8-HOLES

• temporary mounted on frame
• hub piloted

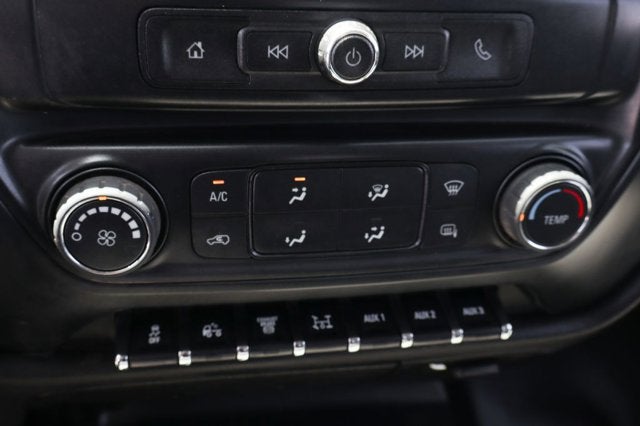

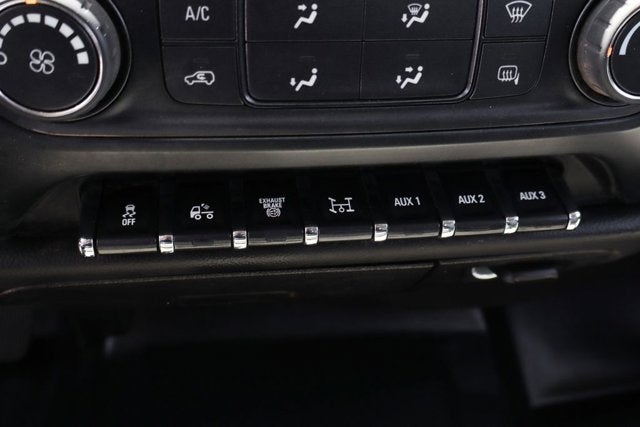

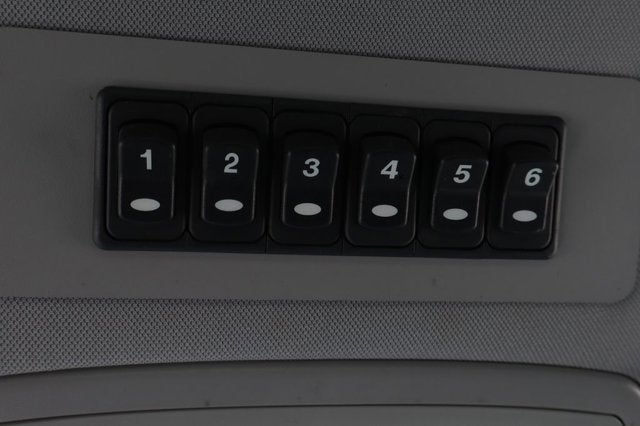

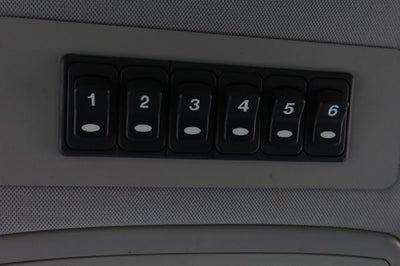

PROVISIONS FOR ELECTRICAL SWITCH BANK

• consists of (6) two position
• latching
• rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

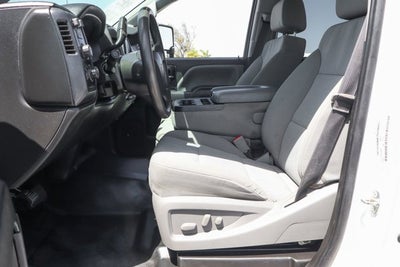

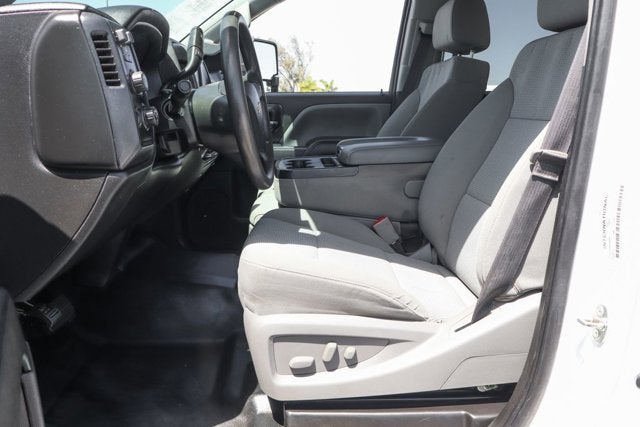

SEATS, FRONT 40/20/40 SPLIT-BENCH, CLOTH OR VINYL 3-PASSENGER.

• Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)

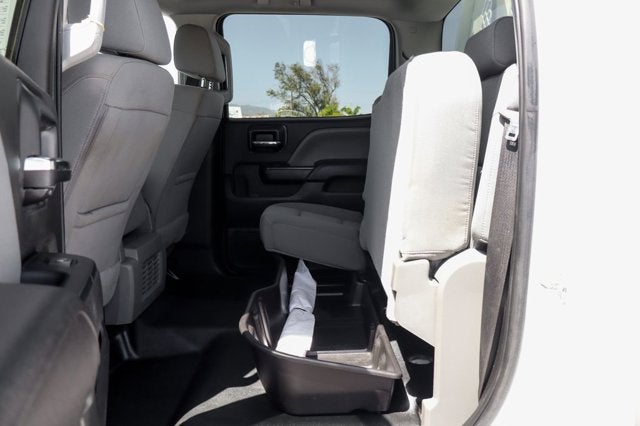

LPO, REAR UNDERSEAT STORAGE, COMPOSITE STORAGE BIN

• Crew Cab includes lockable lid
• (dealer-installed)

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS, CLOTH SEAT TRIM

• includes manually adjustable driver lumbar

TAIL LAMP WIRING HARNESS PROVISIONS

• includes wiring for standard left and right taillamps
• separate 8 feet of extra cable wiring for left and right body-mounted tail lights

• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• TIRES FRONT 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL Max Axle Load: 7 940 lb.
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• GLASS DEEP-TINTED
• REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
• SUMMIT WHITE

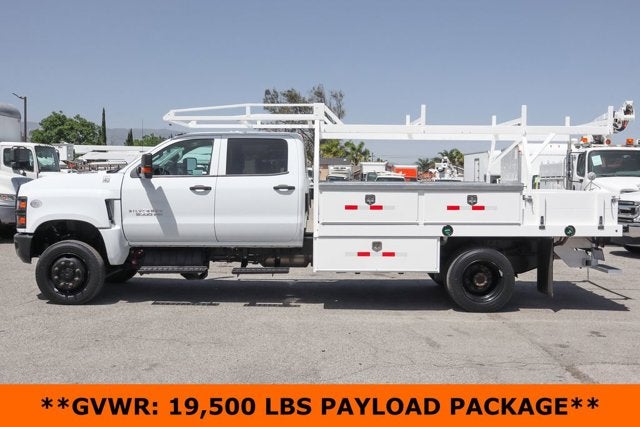

• GVWR 19 500 LB. (8845 KG)
• 34 000 LB. GCWR (15 422 KG)
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• TIRE SPARE 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL Includes (V33) Rim Wrench and handle only tool kit.)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES REAR 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL Max Axle Load: 15 000 lb.
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)

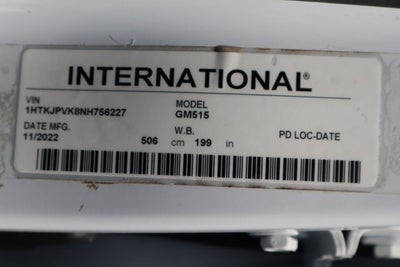

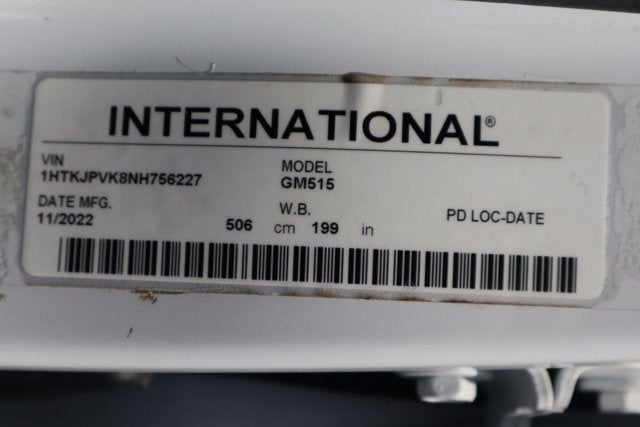

• WHEELBASE 199 (505.5 CM) 84 CA
• ALTERNATOR 220 AMPS
• WHEEL 19.5 X 6.75 SPARE STEEL BLACK 8-HOLES temporary mounted on frame hub piloted
• PROVISIONS FOR ELECTRICAL SWITCH BANK consists of (6) two position latching rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• HORN DUAL-NOTE
• SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
• PAINT SOLID

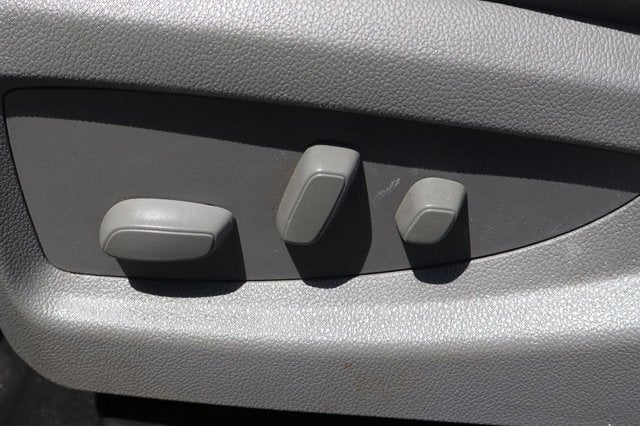

• SEAT ADJUSTER DRIVER 10-WAY POWER
• TOOL KIT RIM WRENCH AND HANDLE ONLY
• LPO REAR UNDERSEAT STORAGE COMPOSITE STORAGE BIN Crew Cab includes lockable lid (dealer-installed)
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

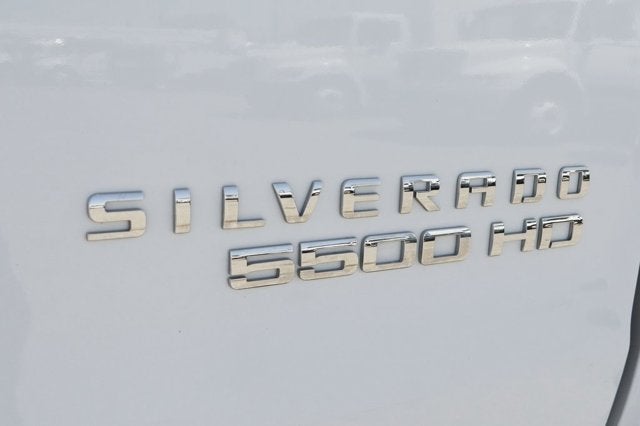

• 5500 HD SERIES
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM includes manually adjustable driver lumbar
• FOG LAMPS FRONT HALOGEN
• TAIL LAMP WIRING HARNESS PROVISIONS includes wiring for standard left and right taillamps separate 8 feet of extra cable wiring for left and right body-mounted tail lights
• Tires: Front 225/70R19.5G Traction Blackwall Continental (XHD)
• Tires: Rear 225/70R19.5G Traction Blackwall Continental (YHD)
• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• 65 Gallon Total Front & Rear Fuel Tank
• 220 Amps Alternator
• Heavy-Duty Dual 1300 Cold-Cranking Amps Batteries
• Top Post Threaded Battery Jump Start Stud
• Black Power-Adjustable Heated Outside Vertical Trailering Mirrors
• 40/20/40 Front 3-Passenger Split Bench Seat
• Cloth Seat Trim
• Single-Slot CD/MP3 Player
• SiriusXM Radio
• Single-Zone Air Conditioning
• Remote Keyless Entry
• OnStar & Chevrolet Connected Services Capable
• 110-Volt AC Power Outlet
• Rear Under-Seat Storage (LPO)
• Backup Alarm
• Upfitter Electrical Provisions In Rear Of Frame

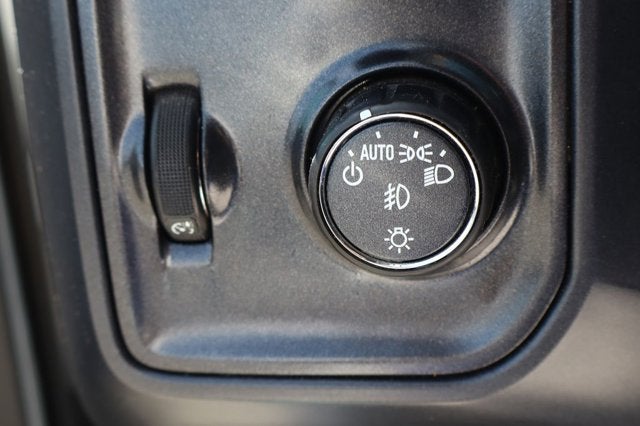

• Front Halogen Fog Lamps
• Deep-Tinted Glass
• Tail Lamp Wiring Harness Provisions
• Dual-Note Horn
• Front License Plate Kit
• Black Frame-Mounted Front Recovery Hooks
• Tool Kit w/Rim Wrench & Handle Only
• Manual Regeneration Diesel Particulate Filter DPF
• 34
• 000 lbs. GCWR (15
• 422 kg)
• 4.30 Rear Axle Ratio
• 7
• 500 lbs Dana Spicer 60-256 Single-Reduction Driving Front Axle
• Dana Spicer S16-130 Single Reduction 15
• 500 lb. Rear Axle (7
• 031 kg)
• Heavy-Duty Rear Locking Differential
• 11
• 000 lbs. (4
• 990 kg) Multi-Leaf Vari-Rate Rear Suspension
• 15
• 500 lbs. (7
• 031 kg) Multi-Leaf Vari-Rate Rear Suspension
• Power Take-Off Engine Control Provisions
• Steel Frame-Mounted Skid Plate
• Power Windows w/Driver Express Up & Down
• 10-Way Power Driver's Seat Adjuster
• Chevrolet Connected Access Capable
• Frontal Passenger-Side Airbag Deactivation Switch
• 6-Speaker Audio System
• 4G LTE Wi-Fi Hotspot Capable
• 6 Speakers
• Exterior Parking Camera Rear
• Premium audio system: Chevrolet MyLink
• Front Center Armrest w/Storage
• Dual rear wheels
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Rear seat center armrest
• Rear reading lights
• Power windows
• Power steering
• Passenger door bin
• Passenger cancellable airbag
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Fully automatic headlights
• Front reading lights
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Cab to Axle (in): 84
• Cab to End of Frame (in): 133.4
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Height, Overall (in): 86.22
• Length, Overall (in): 282.8
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 199
• Width, Max w/o mirrors (in): 92.7
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 61.5
• Turning Diameter - Wall to Wall (ft): 63.1
• Summary
• Body Style: Crew Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: Single Reduction
• Axle Type - Rear: Single Reduction
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 15500
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XHD
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YHD
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 7940
• Spare Tire Order Code: ZHD
• Spare Tire Size: 225/70R19.5G
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5649
• Curb Weight - Rear (lbs): 3279
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Combined Wt Rating (lbs): 34000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• # of Bolt Holes - Spare: 8
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
• Spare Bolt Pattern: 8 Hole JIS 10.83"
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 19.5 x 6.75
