• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

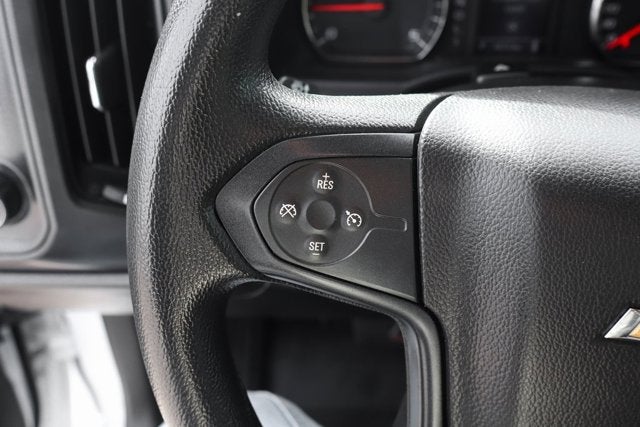

• Cruise control, steering wheel-mounted
• Door locks, power

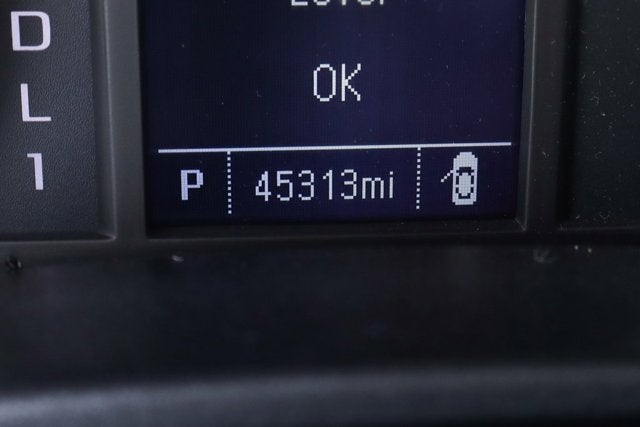

• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black

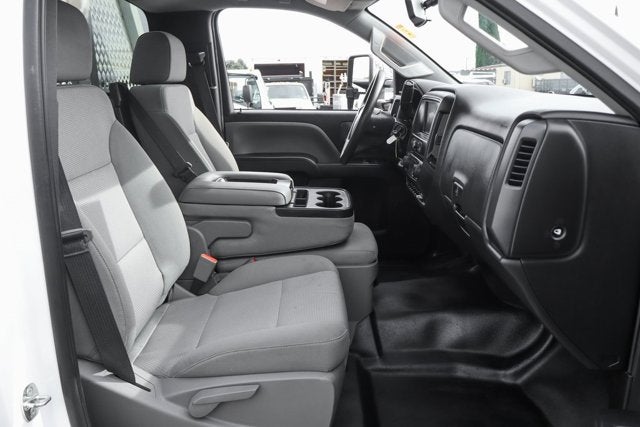

• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel

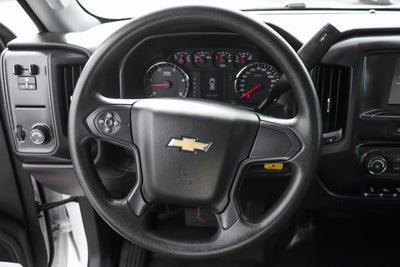

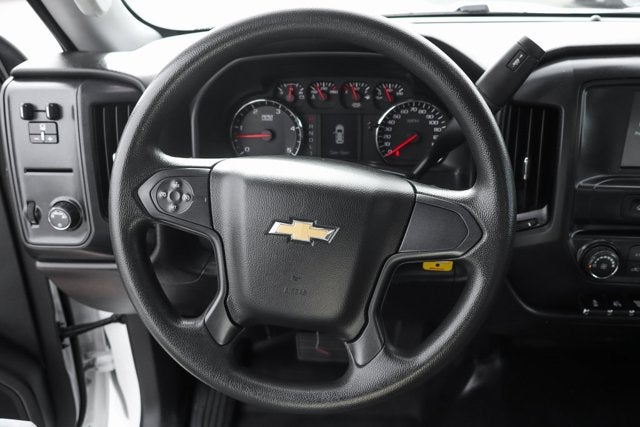

• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Visors, driver and front passenger, vinyl
• Windows, manual driver and front passenger

• 4500 HD Series (Included and only available with (C7Y) 14,001 lb. GVWR, (C5B) 15,000 lb. GVWR, (C7P) 16,000 lb. GVWR or (C7R) 16,500 lb. GVWR.)
• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165", (ER2) 189" or (FQT) 141". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, Open rear axle, non-locking rear
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)

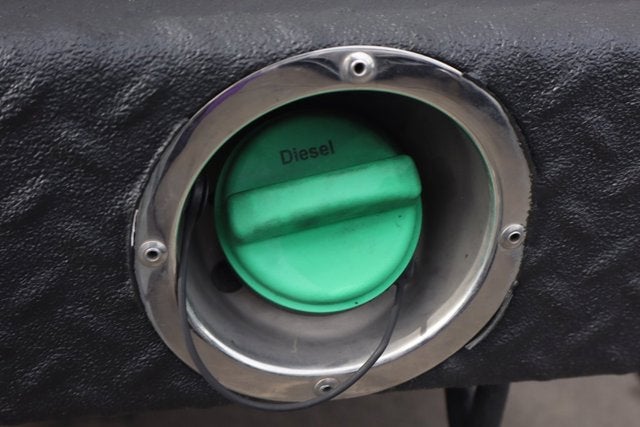

• Capped Fuel Fill

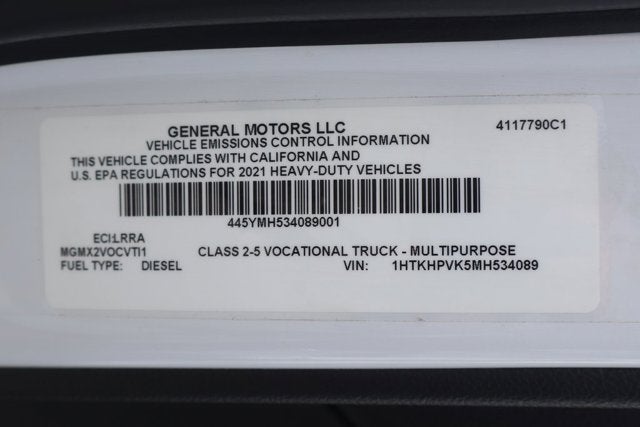

• Emissions, USA 50 State certified
• Exhaust brake
• Exhaust system, right side exit, behind rear wheels (Requires (FQT) 141" wheelbase.)
• Front axle, 6,250 lb. (2,835 kg), Dana Spicer D800-N, "I"-beam, non-driving (Requires (FTW) 6,250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
• Front suspension, 6,250 lb. (2,835 kg) multi-leaf, includes shock absorbers (Not available with rear air suspensions.)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lb. (7484 kg) (Silverado 4500 HD 2WD Regular Cab models require one of the following combinations: (1) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and one of the following rear axles: (HD2) 13.5k rear axle, (HD1) 15k rear axle or (J27) 15.5k rear axle and (GR4) 13.5k rear suspension. (3) (FTA) 7k front axle and (FK6) 7k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension or (G40) 12K Rear air suspension. (4) (FTA) 7k front axle and (FK6) 7k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension, (FU7) 15.5k rear suspension, (GP1) 13.5K rear air suspension, (GP8) 15.5k rear air suspension, (91B) 13.5k LiquidSpring prep single volume rear suspension, (91C) 13.5k LiquidSpring prep stacked volume rear suspension, (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)
• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.10 ratio Max road speed: 79 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
• Rear wheel drive
• Shock Absorbers, rear (Included with (FTC) 6,250 lb. front axle.)
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 141" (358.1 cm), 60" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) exhaust. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension and/or (FU7) 15,500 lb. rear suspension. Not available with rear air suspensions or (91B), (91C), (91D) or (91E) prep for LiquidSpring rear suspension.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Horn, single-note
• OnStar, delete
• Traction control

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

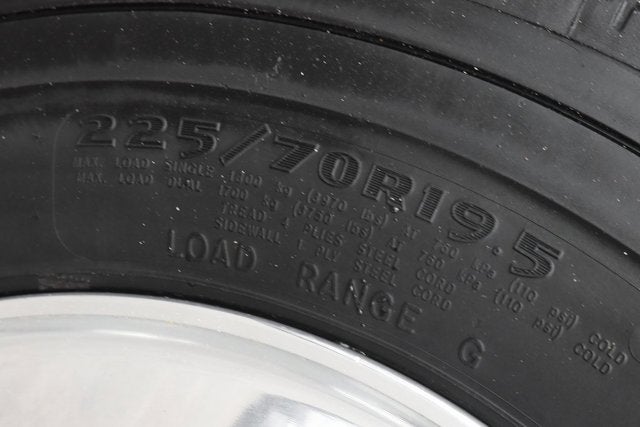

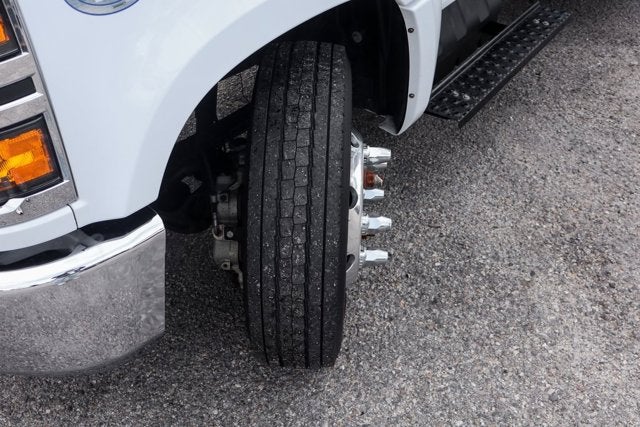

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb. (STD)

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE

• Allows the selection of 7
• 000 lb.
• 8
• 000 lb.
• front axles and/or 15
• 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies
• Aerial Lift/Bucket bodies
• Front Plow/Rear Spreader Applications
• and Landscape Dump Bodies.

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb. (STD)

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

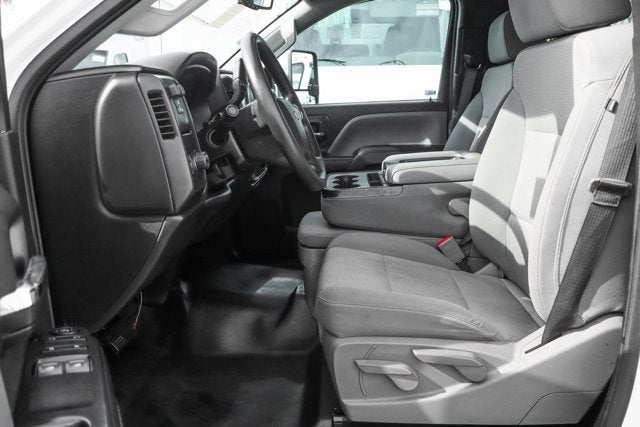

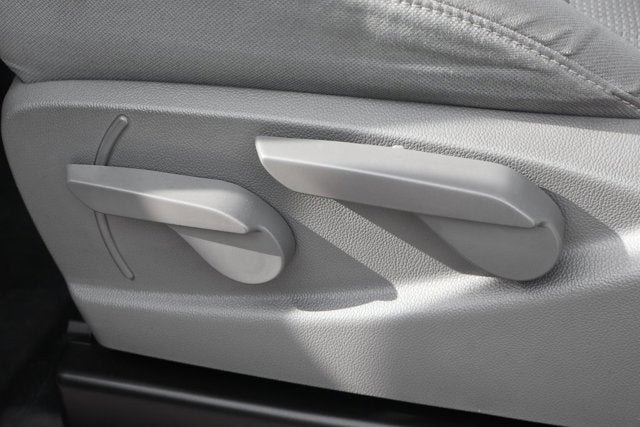

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

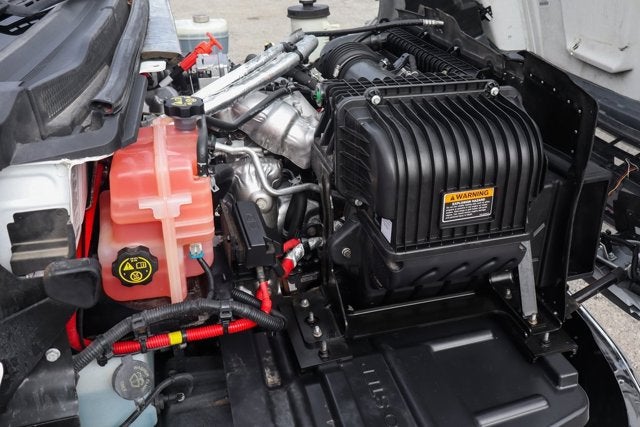

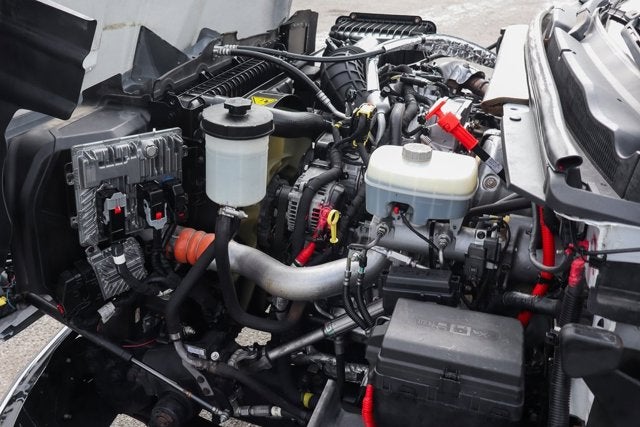

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

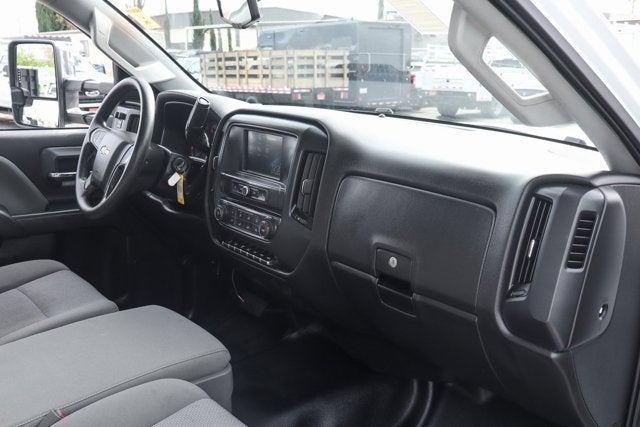

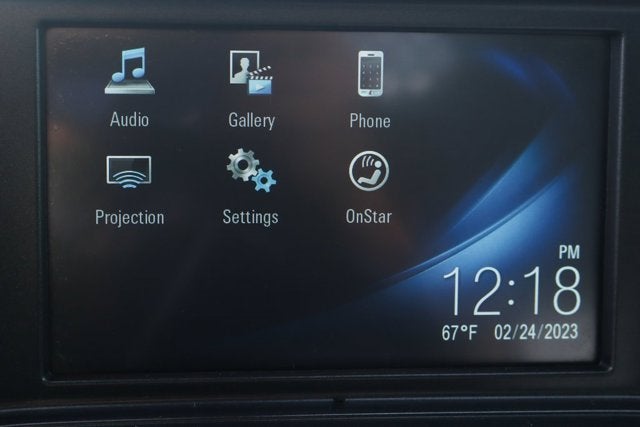

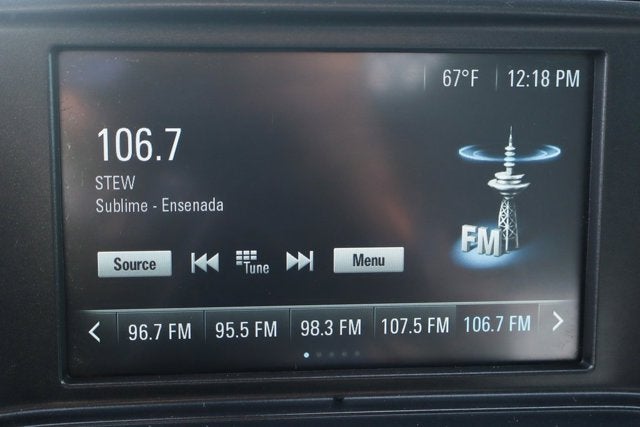

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

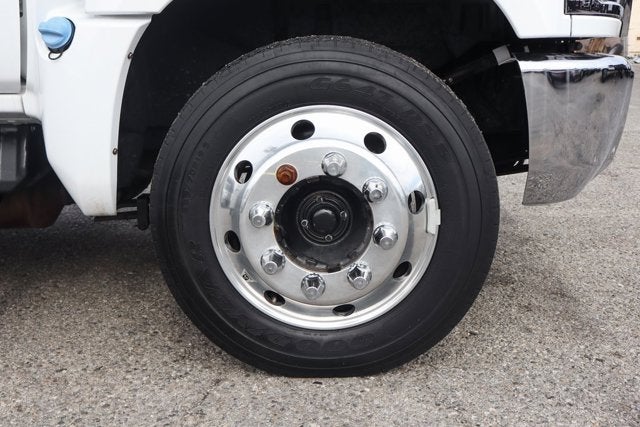

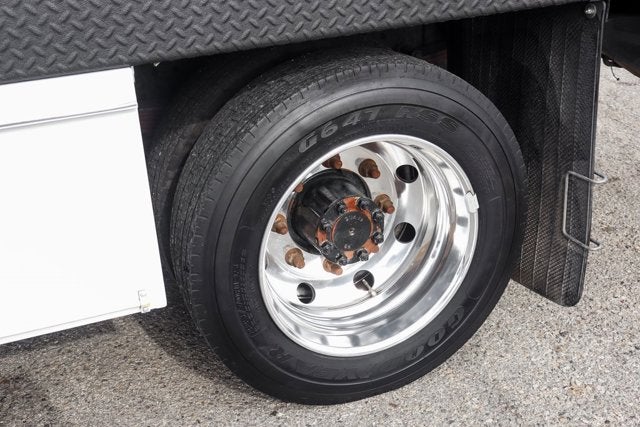

WHEELS, 19.5" X 6.75", ALUMINUM, 8-HOLES, HUB PILOTED

• Dura-Bright finish is on the outside of the wheel

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

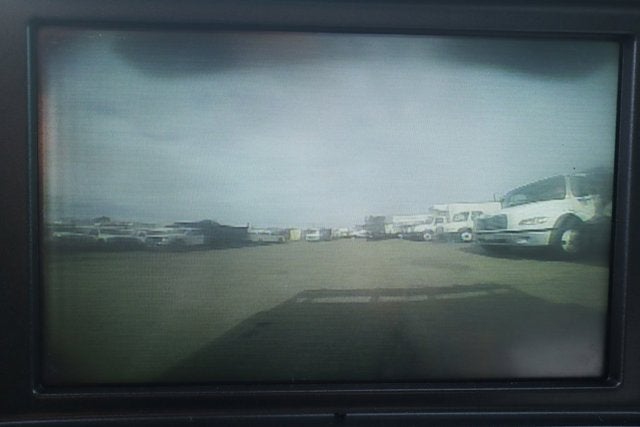

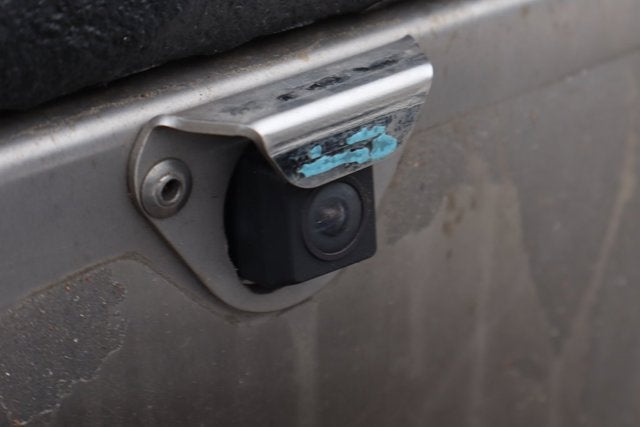

REAR VISION CAMERA, DISPLAY INTEGRATED INTO RADIO

• (Shipped loose in cab for upfitter installation.)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

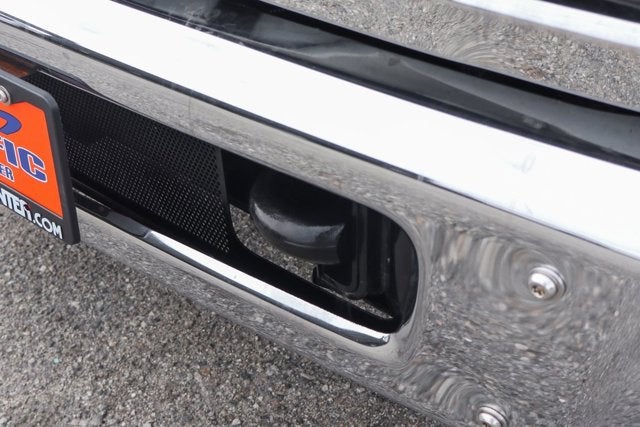

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

TAIL LAMP WIRING HARNESS PROVISIONS

• includes wiring for standard left and right taillamps
• separate 8 feet of extra cable wiring for left and right body-mounted tail lights

• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• GLASS DEEP-TINTED
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SUMMIT WHITE

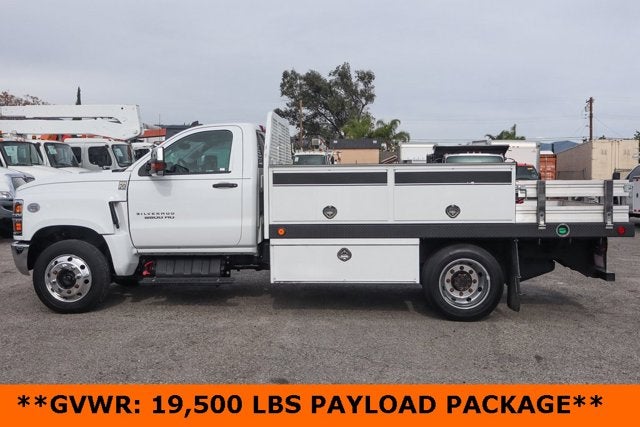

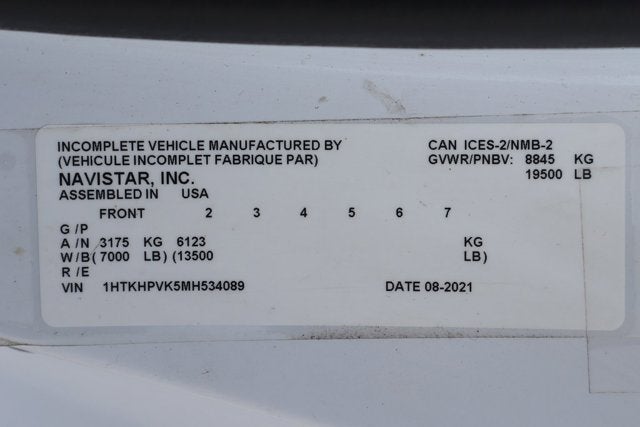

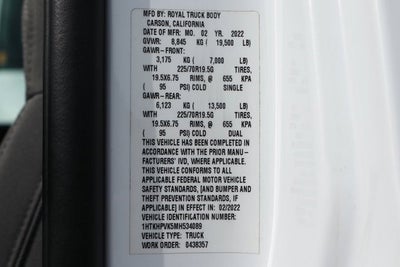

• GVWR 19 500 LB. (8845 KG)
• 34 000 LB. GCWR (15 422 KG)
• GRILLE CHROME
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lb. (STD)
• BUMPER FRONT CHROME
• ALTERNATORS DUAL 150 AMPS AND 220 AMPS EACH
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE Allows the selection of 7 000 lb. 8 000 lb. front axles and/or 15 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lb. (STD)
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• 6-SPEAKER AUDIO SYSTEM
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
• 4G LTE WI-FI HOTSPOT CAPABLE
• REAR SUSPENSION 13 500 LB. (6 123 KG) MULTI-LEAF VARI-RATE

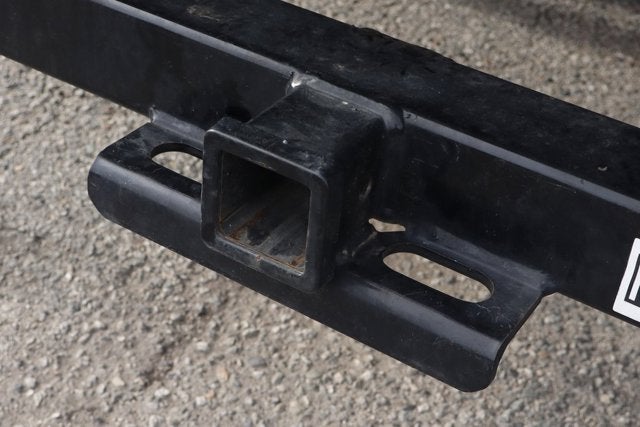

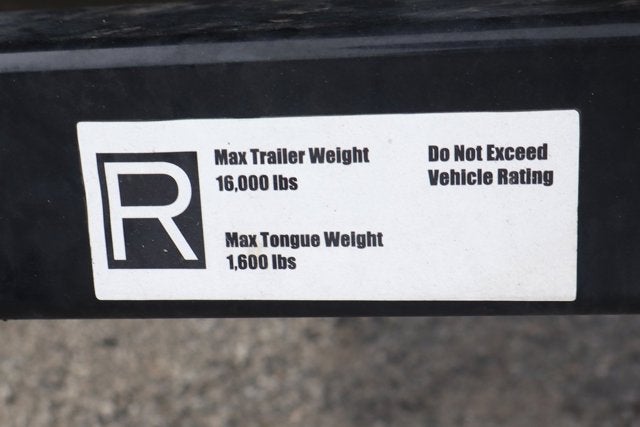

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.

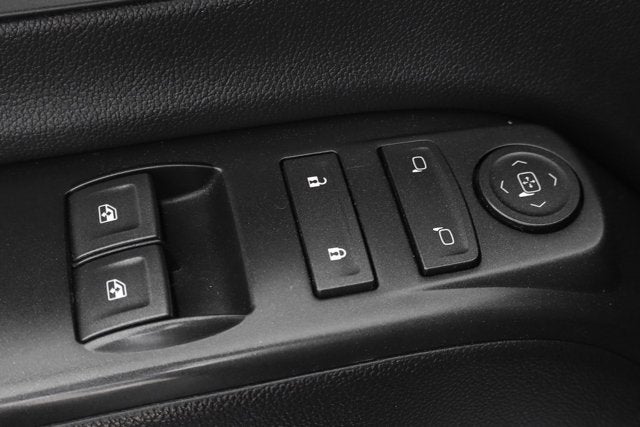

• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• WHEELS 19.5 X 6.75 ALUMINUM 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel
• SPARE TIRE DELETE (STD)
• FRONT SUSPENSION 7 000 LB. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• HORN DUAL-NOTE
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• WHEELBASE 165 (419.1 CM) 84 CA
• SHOCK ABSORBERS REAR
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• TIRE VALVE CAP HALTEC FLOW-THRU
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP

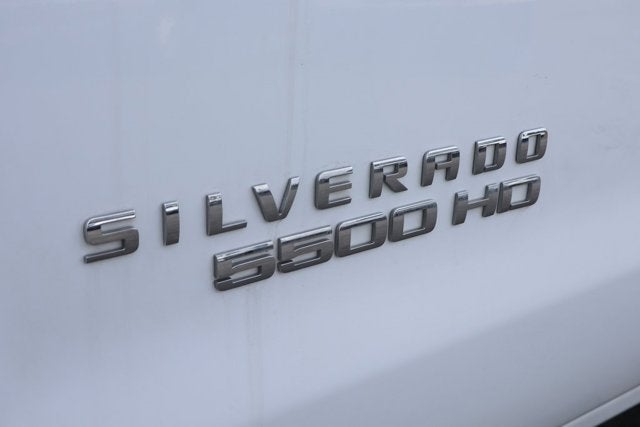

• 5500 HD SERIES
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO (Shipped loose in cab for upfitter installation.)
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ADDITIONAL FUEL 5 GALLONS
• FRONT AXLE 7 000 LB. DANA SPICER D800-N I -BEAM NON-DRIVING
• GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
• EXHAUST SYSTEM REAR EXIT
• TAIL LAMP WIRING HARNESS PROVISIONS includes wiring for standard left and right taillamps separate 8 feet of extra cable wiring for left and right body-mounted tail lights
• Vocational Specific Heavy Suspension Package
• 6-Speaker Audio System
• Premium audio system: Chevrolet MyLink
• Single-Slot CD/MP3 Player
• SiriusXM Radio

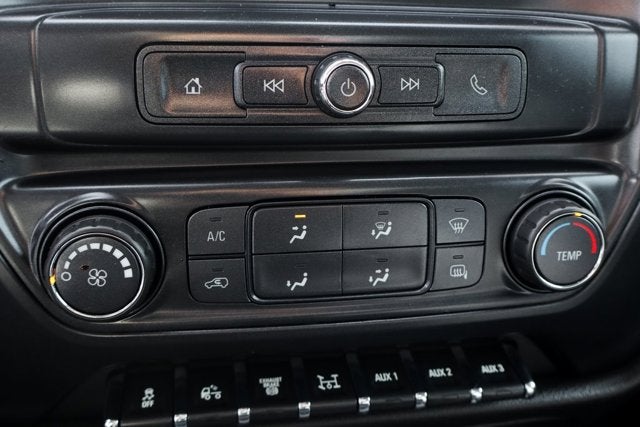

• Air Conditioning
• Single-Zone Air Conditioning
• 110-Volt AC Power Outlet
• Power steering
• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• Rear Shock Absorbers
• Traction control
• ABS brakes
• Chrome Front Bumper
• Dual front impact airbags
• Dual front side impact airbags
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Electronic Stability Control
• Rear Vision Camera
• Delay-off headlights

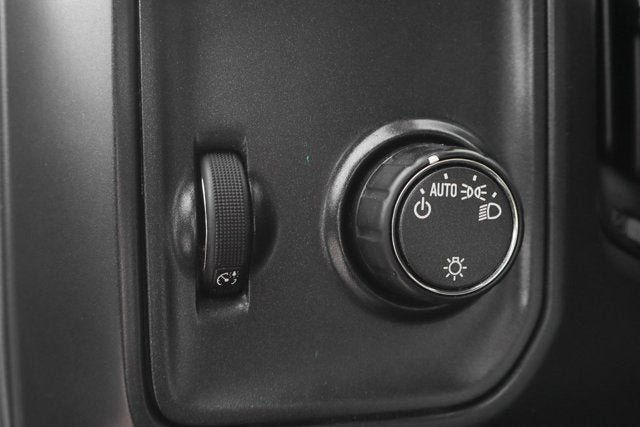

• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Speed control
• Dual rear wheels
• Limited-Slip Axle
• Body Color Painted Front Fender Extension
• Chrome Grille
• Dual-Note Horn
• Front License Plate Kit
• Power Take-Off Engine Control Provisions
• Stone Protection Grille Guard Screen
• Top Post Threaded Battery Jump Start Stud
• 40/20/40 Front 3-Passenger Split-Bench Seat (A52)
• 4G LTE Wi-Fi Hotspot Capable
• Backup Alarm
• Chevrolet Connected Access Capable
• Cloth Seat Trim

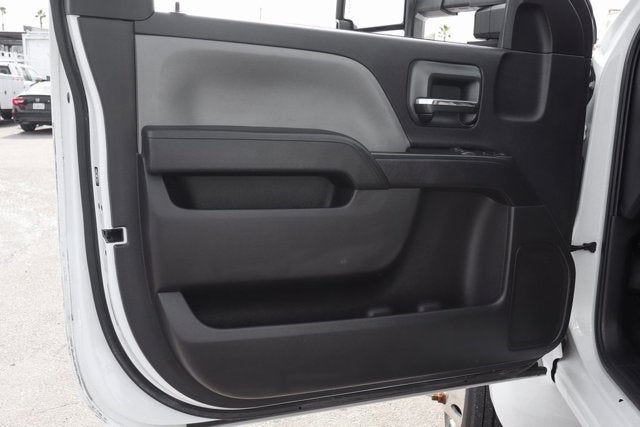

• Driver door bin
• Front reading lights
• OnStar & Chevrolet Connected Services Capable
• Overhead console
• Tachometer
• Tail Lamp Wiring Harness Provisions
• Tilt steering wheel
• Trip computer
• Upfitter Electrical Provisions In Rear Of Frame
• Voltmeter
• 10-Way Power Driver's Seat Adjuster
• 5 Gallons Additional Fuel
• Manual Regeneration Diesel Particulate Filter DPF
• Front Center Armrest w/Storage
• Passenger door bin
• 34
• 000 lbs. GCWR (15
• 422 kg)
• Black Frame-Mounted Front Recovery Hooks

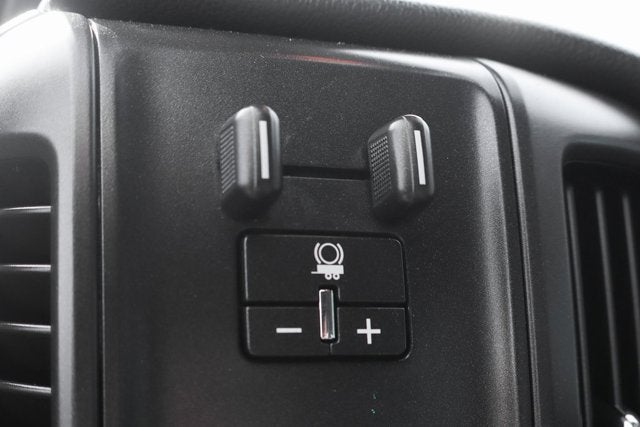

• Integrated Trailer Brake Controller
• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Wheels: 19.5 x 6.75 Hub Piloted Aluminum w/8-Holes
• Deep-Tinted Glass
• Variably intermittent wipers
• **CLEAN ONE OWNER CARFAX**

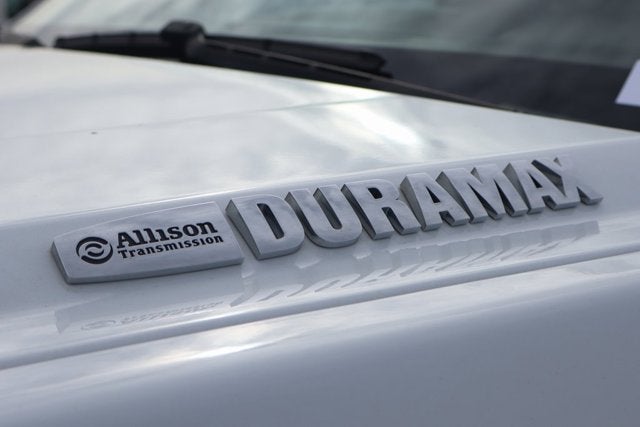

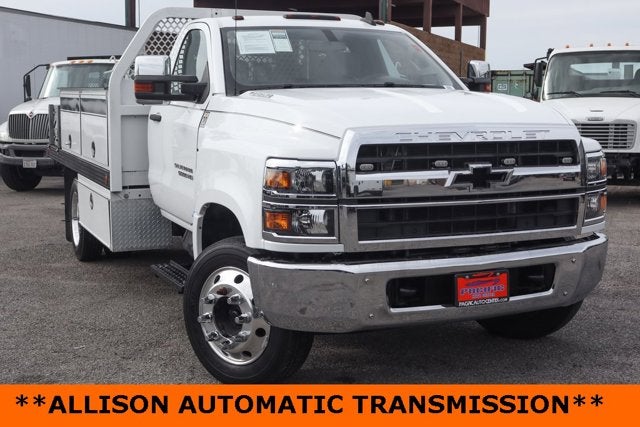

• **ALLISON TRANSMISSION**

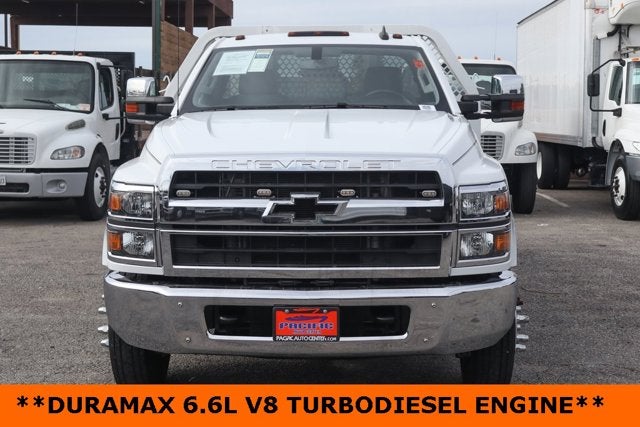

• **DURAMAX 6.6L V8 TURBO-DIESEL**
• **RWD**
• **STANDARD CAB**
• **LONG BED**
• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

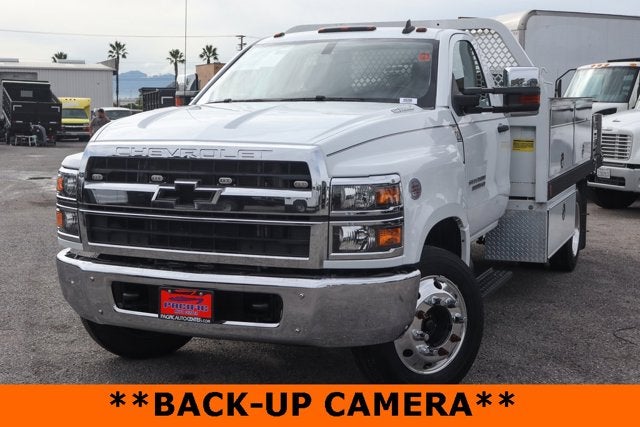

• **BACK-UP CAMERA**
• **TOW PACKAGE**
• **UTILITY/SERVICE TRUCK**
• **TRAILER BRAKE CONTROL**
• **EXHAUST BRAKE**

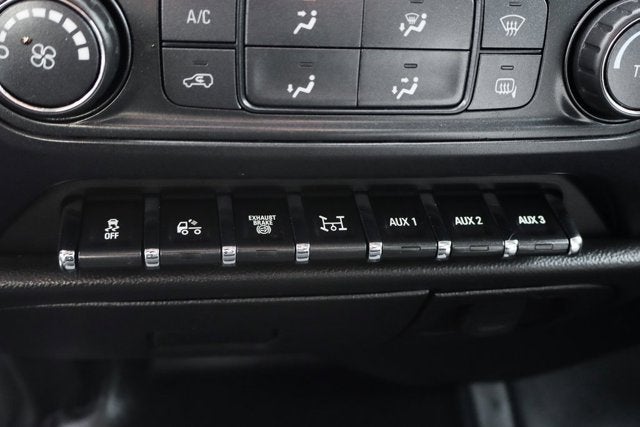

• **UPFITTER SWITCHES**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150 & 220
• Exterior Dimensions
• Cab to Axle (in): 83.86
• Cab to End of Frame (in): 133.1
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Ground to Top of Load Floor (in): 29.7 Front/32.2 Rear
• Height, Overall (in): 82.81
• Length, Overall (in): 224.5
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 165
• Width, Max w/o mirrors (in): 84.0
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Behind Rear Axle
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): 48.8
• Summary
• Body Style: Regular Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single Reduction
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 49
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 13500
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAL
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4735
• Curb Weight - Rear (lbs): 2863
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Combined Wt Rating (lbs): 34000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 19.5 x 6.75
