• Air conditioning, single-zone manual, integral in-dash mounted
• Audio system feature, 2 speakers

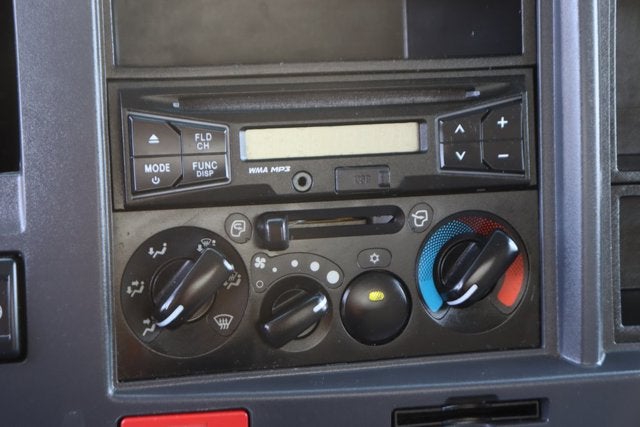

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
• Cruise control, electronic, automatic
• Cup holders
• Door locks, power
• Floor mats
• Lighting, interior dome
• Seat trim, Cloth

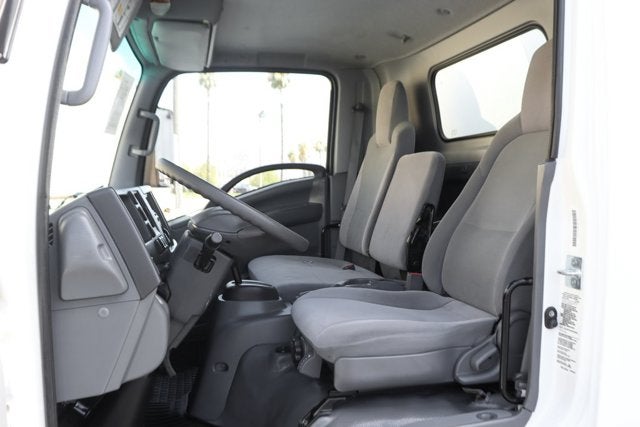

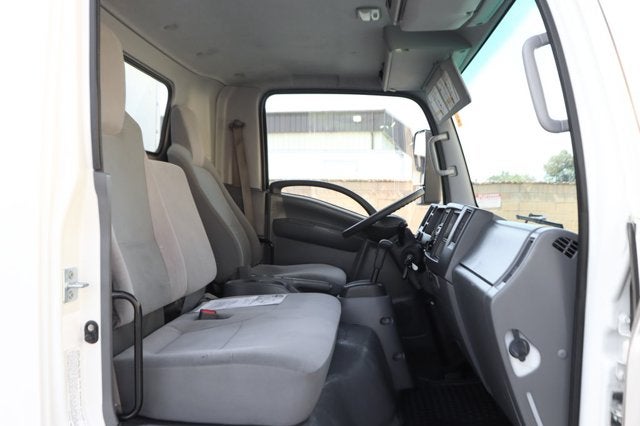

• Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat

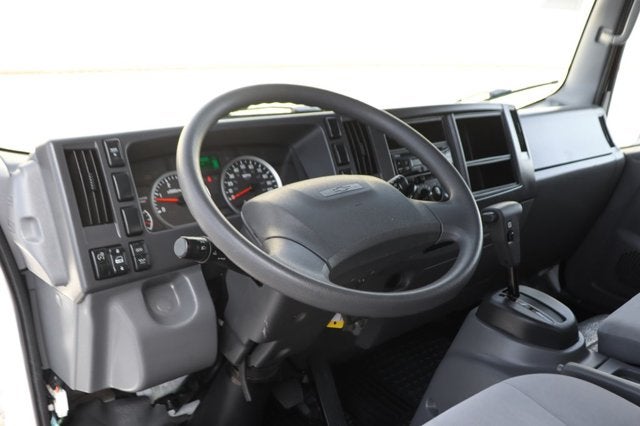

• Steering wheel, tilt and telescopic
• Steering wheel, urethane

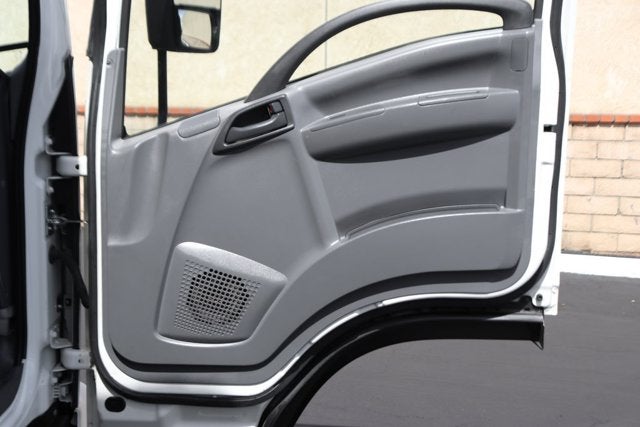

• Storage, door pockets
• Storage, seatback pockets
• Windows, power
• Windshield washer bottle access on passenger side dash when passenger-side door is open

• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Alternator, 140 amps
• Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
• Drivetrain, rear-wheel drive
• Exhaust brake
• Exhaust, single horizontal outlet
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
• Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
• Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
• GVWR, 14,500 lbs. (6577 kg)

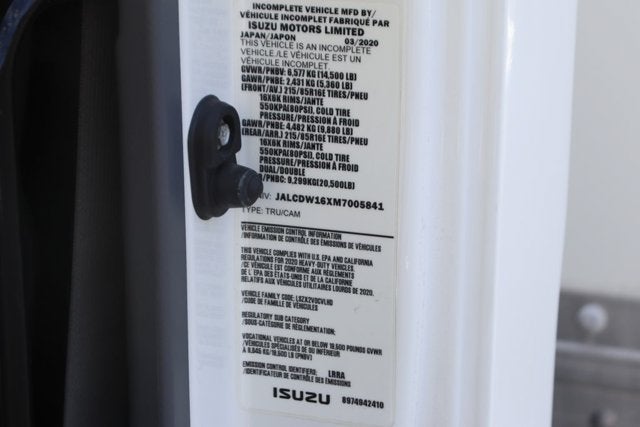

• Incomplete vehicle certification
• Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
• Rear axle, 4.56 ratio
• Rear Suspension, 9,880 lbs. (4481kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
• Vehicle Application Truck
• Wheelbase, 150" (381.0 cm)

• Daytime Running Lamps

PIO, SEAT, HIGH BACK DRIVER ONLY TORSION-BAR WITH FOAM PADS SUSPENSION SYSTEM AND FIXED PASSENGER SEAT

• (Port Installed Option)

PIO, BACK UP ALARM

• (Port Installed Option)

PIO, ENHANCED COLD WEATHER PACKAGE WITH RECEPTACLE

• includes an Engine Block heater
• Heated Fuel Filter and Engine Oil Pan Heater (Port Installed Option)

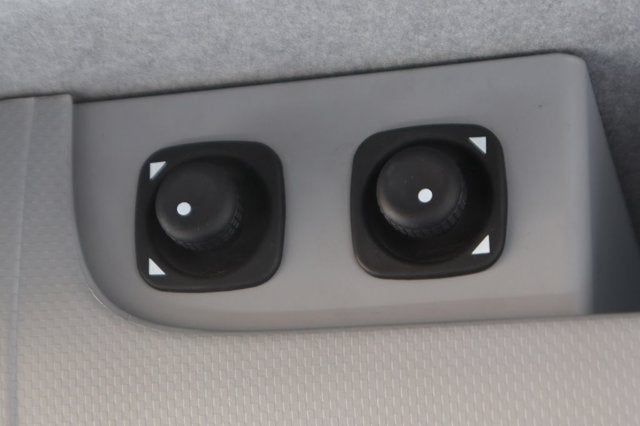

PIO, MIRROR, OUTSIDE LEFT HAND AND RIGHT HAND HEATED DUAL REMOTE 17" HEADS

• (Port Installed Option)

PIO, AUDIO SYSTEM, ENHANCED AUDIO SYSTEM

• with 7" diagonal color touchscreen
• AM/FM stereo with seek-and-scan and digital clock. Additional features for compatible phones include: Bluetooth® audio streaming
• SiriusXM Radio with customer subscription
• Apple CarPlay
• Android Auto capable
• navigation using Apple Carplay or Android Auto and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera
• PIO.).

TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION

• with fifth and sixth gear overdrive with lock up in 2nd
• 3rd
• 4th
• 5th and 6th
• PTO capability automatic torque converter lockup in stationary PTO mode. (STD)

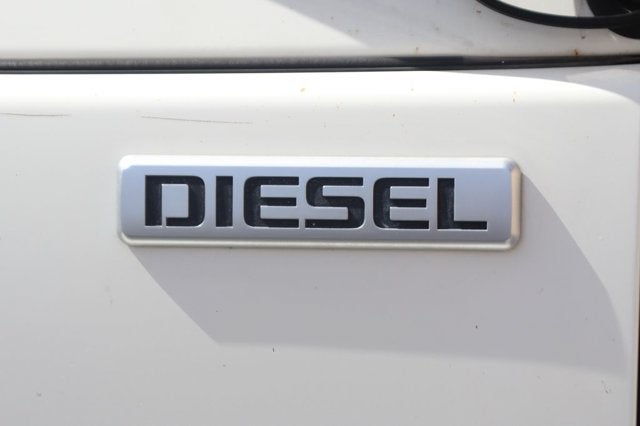

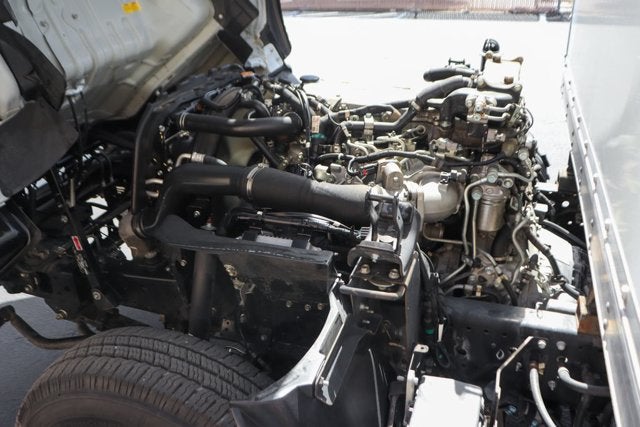

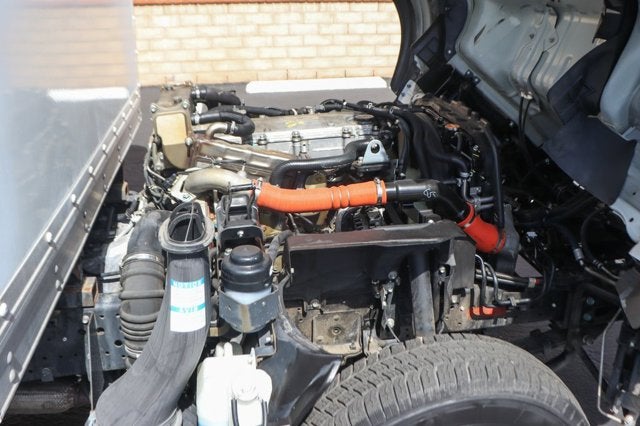

ENGINE, DIESEL 5.2L 4 CYLINDER

• 215 hp [160.3 kW] @2500 rpm
• 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
• four cycle
• chain-driven dual overhead camshaft valve train
• a cast iron cylinder block
• and a cast aluminum cylinder head. Turbocharged
• inter-cooled
• water cooled EGR
• direct injection
• electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

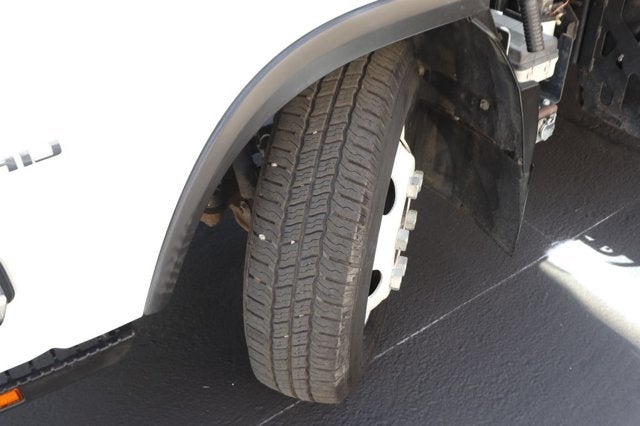

TIRES, FRONT, LT215/85R16 E 115/112 L BW ALS VAR1

• (STD)

PREFERRED EQUIPMENT GROUP

• includes standard equipment

PIO, GRILLE, CHROME

• (Port Installed Option)

TIRES, REAR, LT215/85R16 E 115/112 L BW ALS VAR1

• (STD)

PIO, REAR DOME AND BODY LAMP SWITCH

• (Port Installed Option)

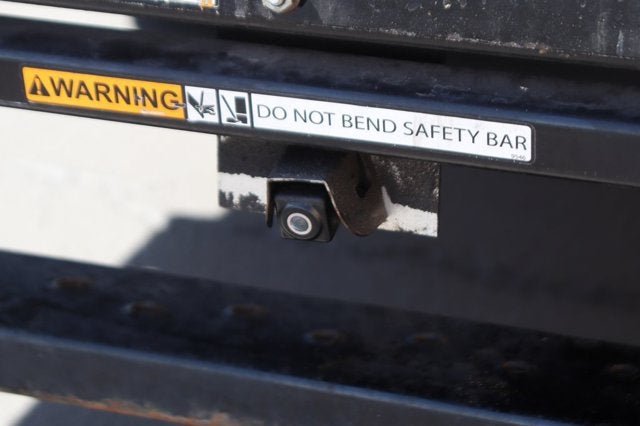

PIO, REAR VISION CAMERA

• (Port Installed Option)

PIO, REMOTE KEYLESS ENTRY

• (Port Installed Option)

• ARC WHITE
• PIO SEAT HIGH BACK DRIVER ONLY TORSION-BAR WITH FOAM PADS SUSPENSION SYSTEM AND FIXED PASSENGER SEAT (Port Installed Option)
• PIO BACK UP ALARM (Port Installed Option)
• PIO ENHANCED COLD WEATHER PACKAGE WITH RECEPTACLE includes an Engine Block heater Heated Fuel Filter and Engine Oil Pan Heater (Port Installed Option)
• PIO MIRROR OUTSIDE LEFT HAND AND RIGHT HAND HEATED DUAL REMOTE 17 HEADS (Port Installed Option)
• PIO AUDIO SYSTEM ENHANCED AUDIO SYSTEM with 7 diagonal color touchscreen AM/FM stereo with seek-and-scan and digital clock. Additional features for compatible phones include: Bluetooth® audio streaming SiriusXM Radio with customer subscription Apple CarPlay Android Auto capable navigation using Apple Carplay or Android Auto and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera PIO.).
• VERY DARK PEWTER CLOTH SEAT TRIM
• TRANSMISSION 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION with fifth and sixth gear overdrive with lock up in 2nd 3rd 4th 5th and 6th PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
• REAR AXLE 4.56 RATIO
• ENGINE DIESEL 5.2L 4 CYLINDER 215 hp [160.3 kW] @2500 rpm 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve four cycle chain-driven dual overhead camshaft valve train a cast iron cylinder block and a cast aluminum cylinder head. Turbocharged inter-cooled water cooled EGR direct injection electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure high coolant temperature and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
• TIRES FRONT LT215/85R16 E 115/112 L BW ALS VAR1 (STD)
• PREFERRED EQUIPMENT GROUP includes standard equipment
• PIO GRILLE CHROME (Port Installed Option)
• TIRES REAR LT215/85R16 E 115/112 L BW ALS VAR1 (STD)
• PIO REAR DOME AND BODY LAMP SWITCH (Port Installed Option)
• PIO REAR VISION CAMERA (Port Installed Option)
• PIO REMOTE KEYLESS ENTRY (Port Installed Option)
• Enhanced Cold Weather Package w/Receptacle
• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• AM/FM Stereo w/Seek & Scan
• CD player
• Radio: AM/FM Stereo w/CD Player & Bluetooth®
• Air Conditioning
• Single Zone Manual Air Conditioning
• Power steering

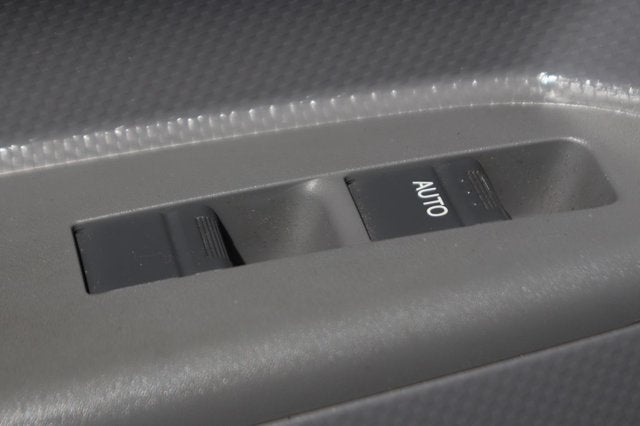

• Power windows
• Remote Keyless Entry
• ABS brakes
• Front anti-roll bar
• Rear Vision Camera
• Speed control

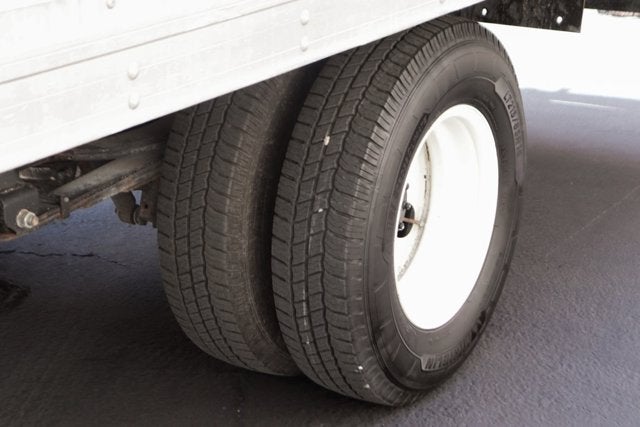

• Dual rear wheels
• Bumpers: body-color
• Chrome Grille
• Back Up Alarm
• Driver door bin
• High Back Bucket Torsion-Bar Suspension Seat
• Overhead console

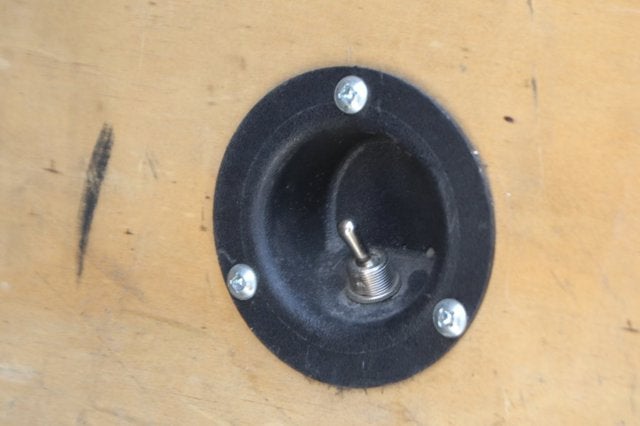

• Rear Dome & Body Lamp Switch
• Tachometer

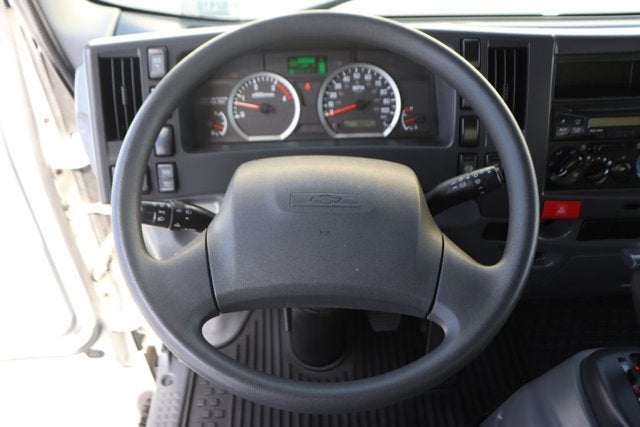

• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Front Bucket Seats
• Front Center Armrest
• Front High Back Bucket Seats
• Tricoat Cloth Seat Trim

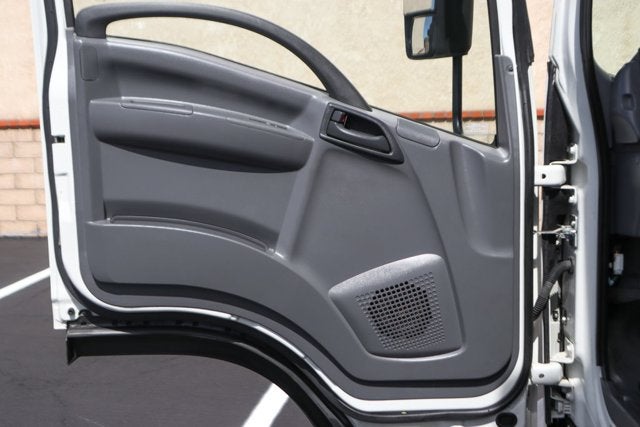

• Passenger door bin
• Wheels: 16 x 6.0 K Steel
• **RWD**
• **STANDARD CAB**
• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

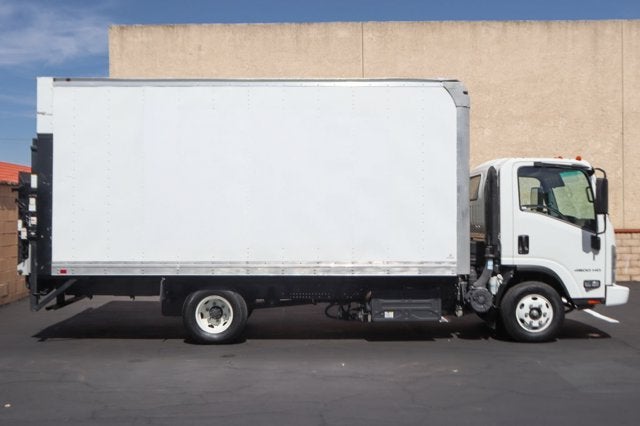

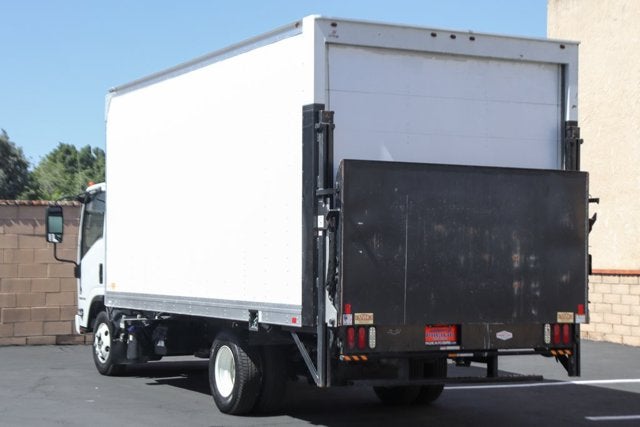

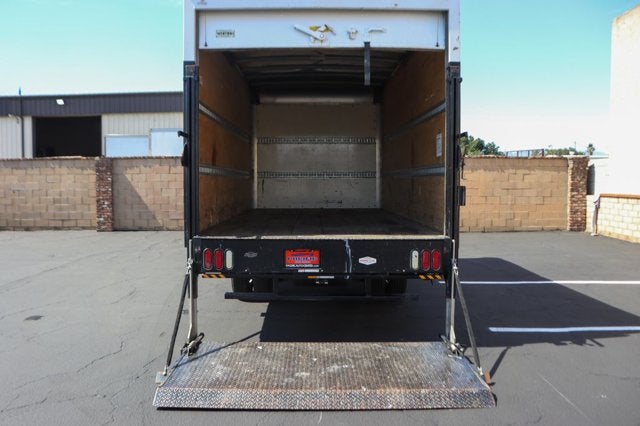

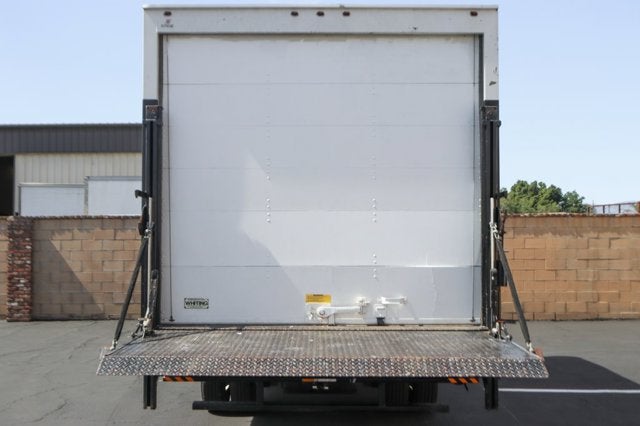

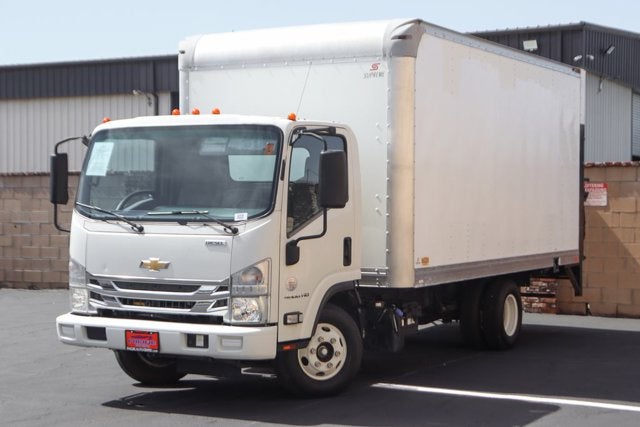

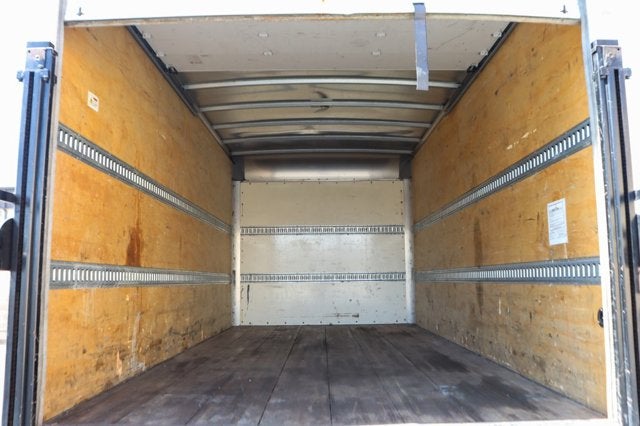

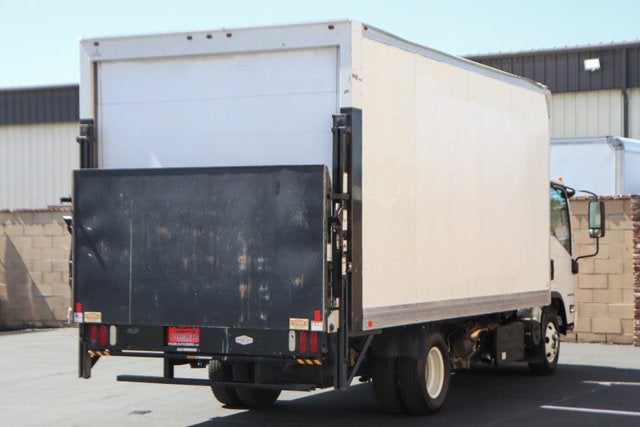

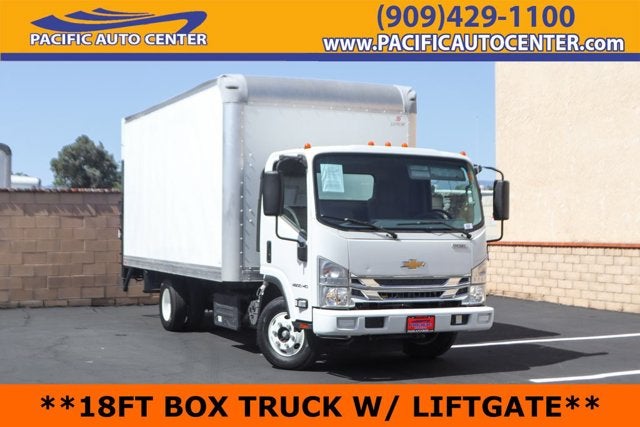

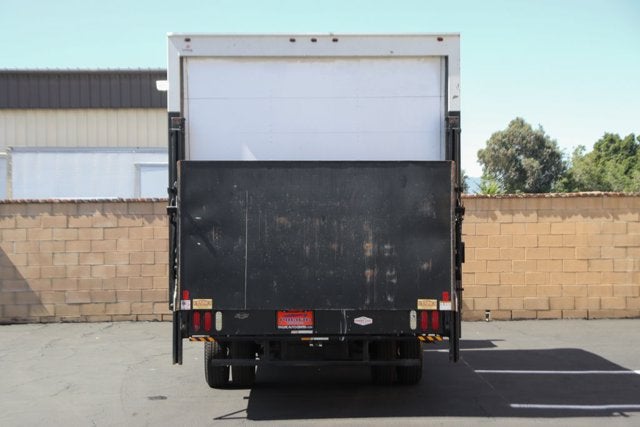

• **BOX TRUCK**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x 9.4
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Cooling System
• Total Cooling System Capacity (qts): 20.8
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 140
• Exterior Dimensions
• Cab to Axle (in): 127.5
• Cab to End of Frame (in): 170.6
• Frame Width, Rear (in): 33.5
• Front Bumper to Back of Cab (in): 70.7
• Ground Clearance, Front (in): 7.5
• Ground Clearance, Rear (in): 7.5
• Ground to Top of Frame (in): 31.1
• Height, Overall (in): 90.80
• Length, Overall w/o rear bumper (in): 241.5
• Overhang, Front (in): 48.40
• Overhang, Rear w/o bumper (in): 43.10
• Wheelbase (in): 150.0
• Width, Max w/o mirrors (in): 81.30
• Frame
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 x 2.76 x 0.24
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Interior Dimensions
• Front Head Room (in): 38.40
• Front Hip Room (in): 67.70
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Passenger Capacity: 3
• Medium Duty Performance
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.7639
• Steering
• Steering Ratio (:1), At Lock: 18.8-20.9
• Steering Ratio (:1), On Center: 18.8-20.9
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 42.7
• Turning Diameter - Wall to Wall (ft): 48.9
• Summary
• Body Style: Regular Cab Chassis Cab

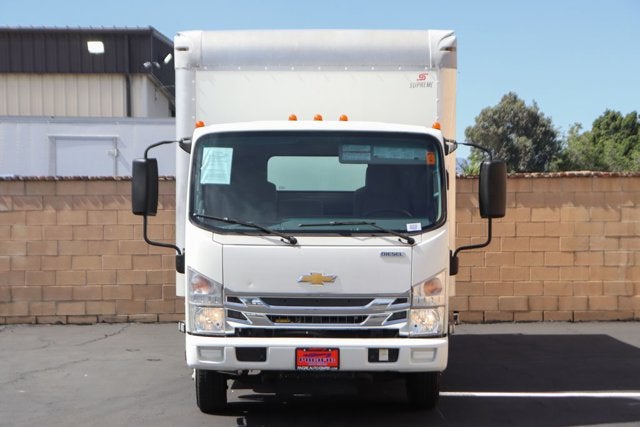

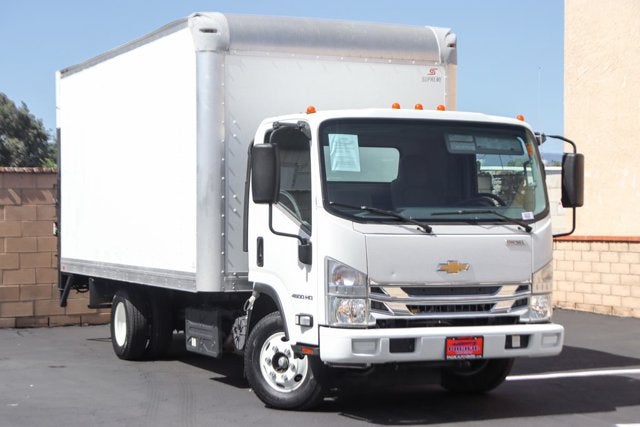

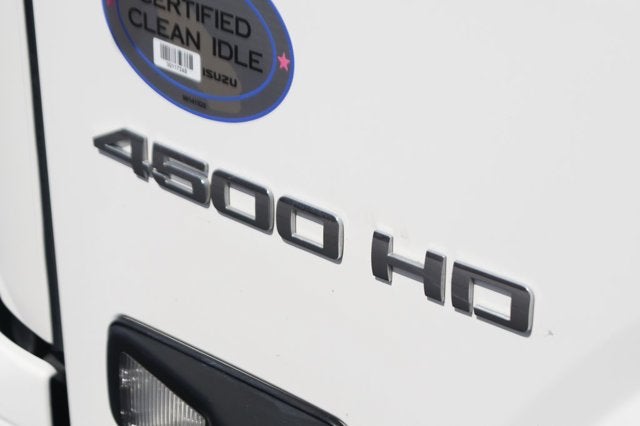

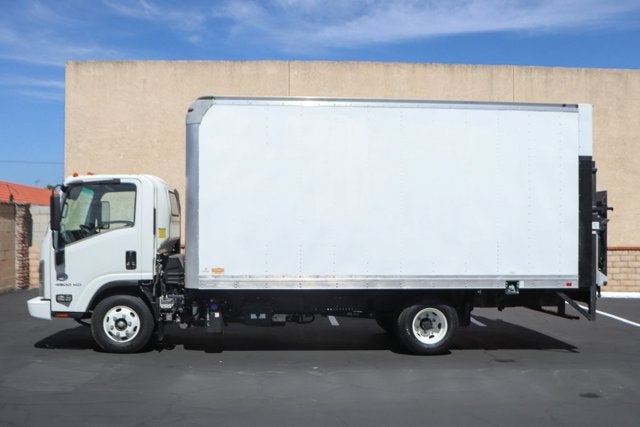

• Vehicle Name: Chevrolet 4500HD LCF Diesel
• Suspension
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.555
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 9880
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Independent w/Tapered Leaf Springs
• Suspension Type - Rear: Independent w/Multi-Leaf Springs
• Tires
• Front Tire Capacity (lbs): 2680
• Front Tire Order Code: 2TA

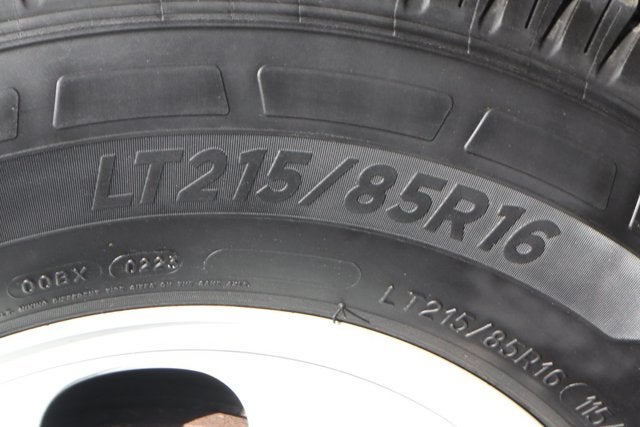

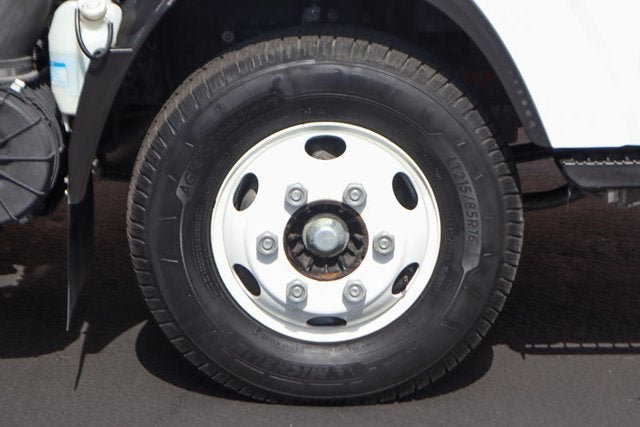

• Front Tire Size: LT215/85R16
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 2470
• Rear Tire Order Code: 3TA
• Rear Tire Size: LT215/85R16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2

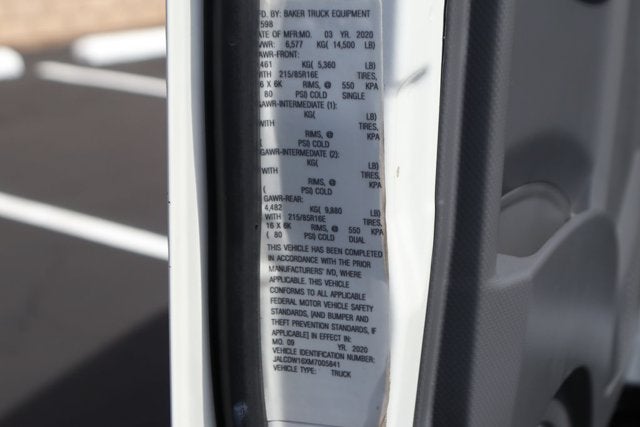

• Weight Information
• Curb Weight - Front (lbs): 4061
• Curb Weight - Rear (lbs): 2034
• Gross Axle Wt Rating - Front (lbs): 5360
• Gross Axle Wt Rating - Rear (lbs): 9880
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127
• Front Wheel Size (in): 16 x 6
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127
• Rear Wheel Size (in): 16 x 6
