• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

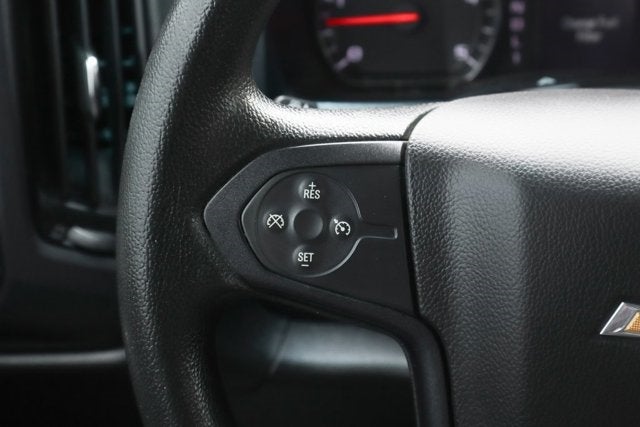

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seat trim, Vinyl

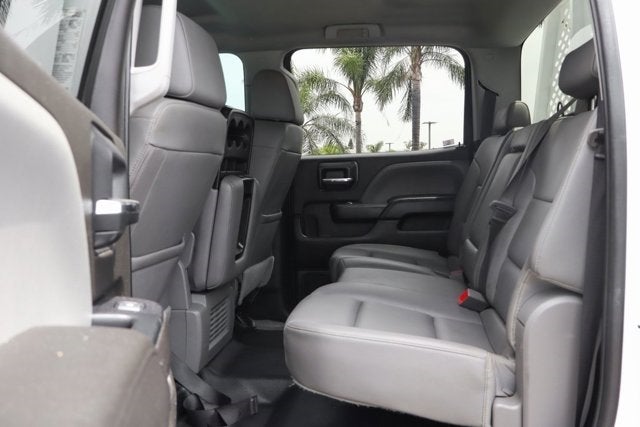

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

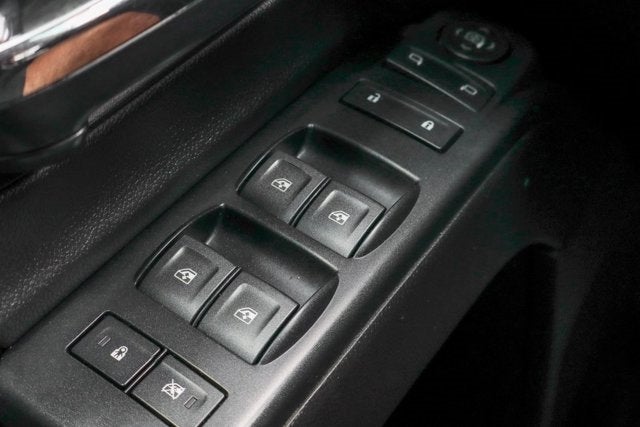

• Windows, power with driver express up and down and express down on all other windows

• 4500 HD Series (Included and only available with (C7Y) 14,001 lbs. GVWR, (C5B) 15,000 lbs. GVWR, (C7P) 16,000 lbs. GVWR or (C7R) 16,500 lbs. GVWR.)
• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip (Not standard when (G80) Heavy-duty locking rear differential is ordered.)
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill
• Emissions, USA 50 State certified
• Exhaust system, rear exit
• Front axle, 7,000 lbs., Dana Spicer D800-N, "I"-beam, non-driving (Requires (FK6) 7,000 lbs. (3,175 kg) front suspension.)
• Front suspension, 7,000 lbs. (3,175 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lbs. (7484 kg) (Silverado 4500 HD Crew Cab 2WD models requires one of the following combinations: (1) (FTA) and (FK6) and (FN1) or (GL4) and (GR3) or (G40). (2) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4), (FU7), (GP1) or (GP8).)
• Incomplete vehicle
• Rear axle, 10,000 lbs. (4,536 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.10 ratio Max road speed: 79 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
• Rear wheel drive
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12,000 lbs., (GP1) 13,500 lbs. or (GP8) 15,500 lbs. rear air suspension.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

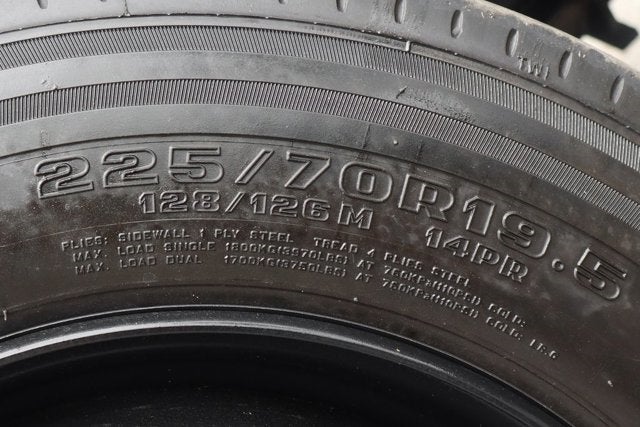

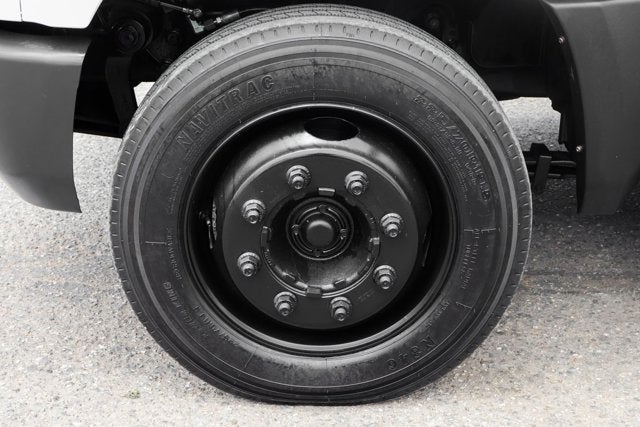

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL

• Max Axle Load: 7
• 940 lbs.

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A2700RDS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Rugged Duty Series
• 26K GVW & 26K GCW Max.

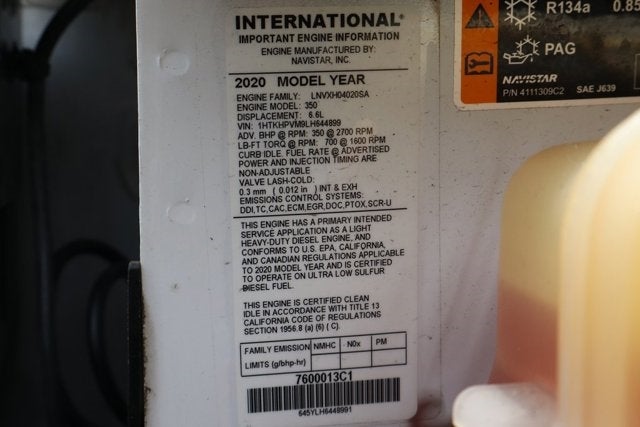

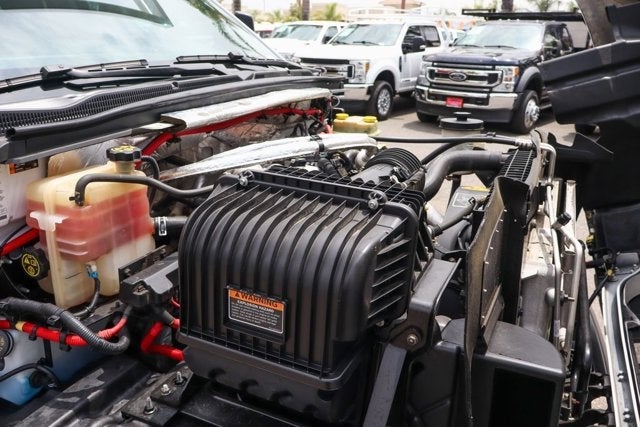

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

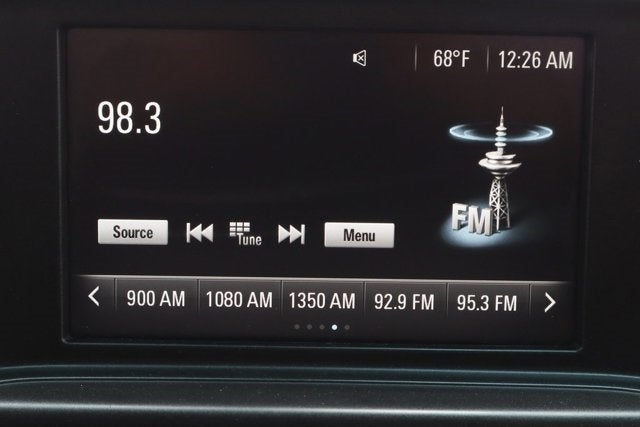

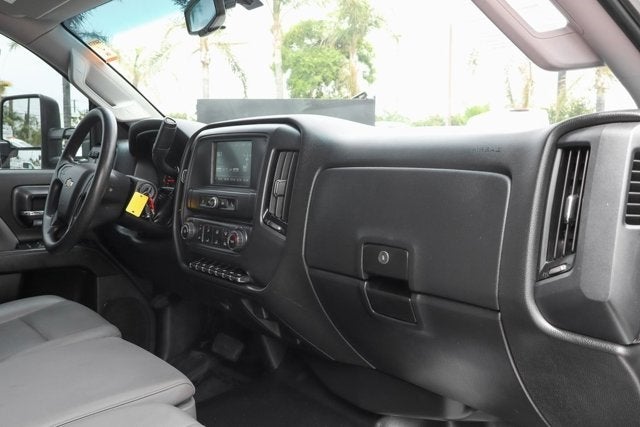

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

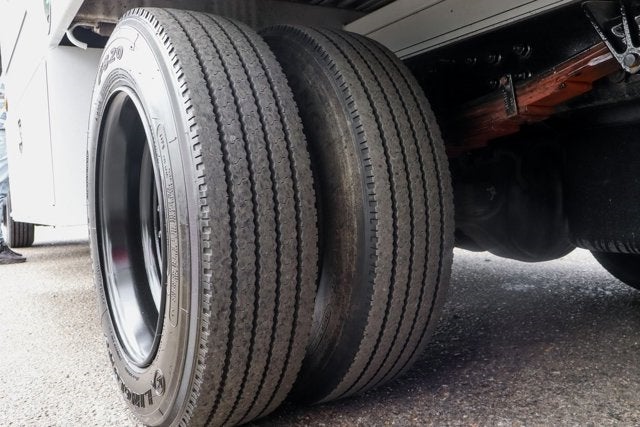

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL

• Max Axle Load: 15
• 000 lbs.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

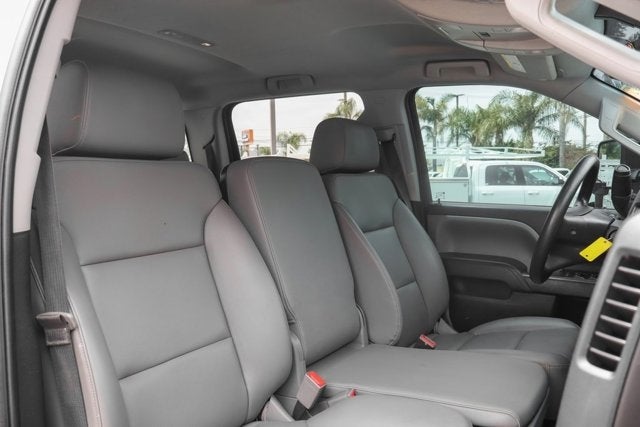

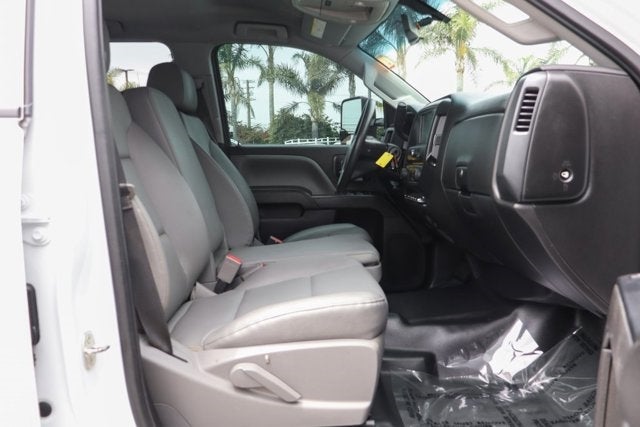

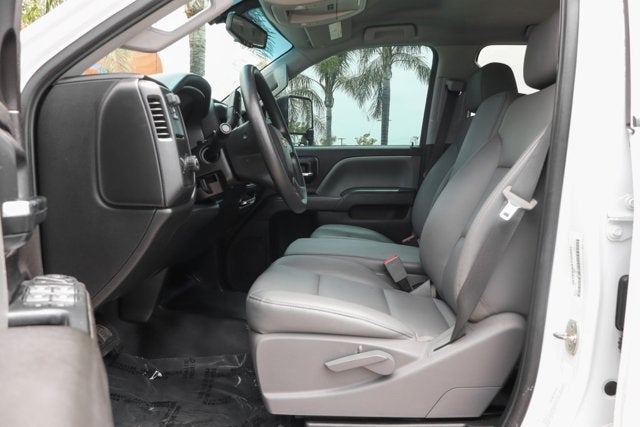

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left hand and right hand side

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.10 RATIO

• Max road speed: 79 MPH

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

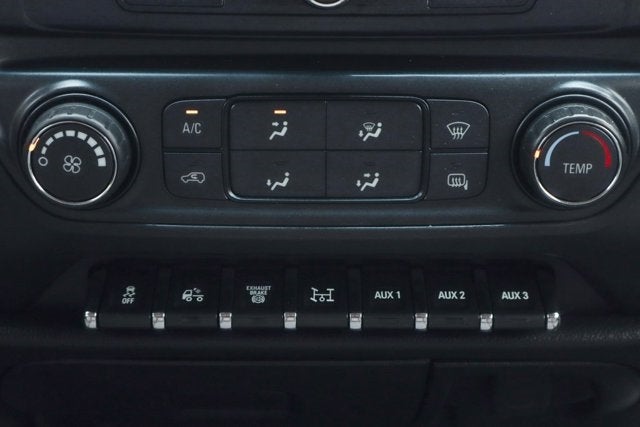

UPFITTER SWITCHES

• provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

AIR CONDITIONING, SINGLE-ZONE

• (STD)

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7 940 lbs.
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• GLASS DEEP-TINTED
• GVWR 22 940 LBS. (10 405 KG)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SUMMIT WHITE
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 26K GVW & 26K GCW Max.
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• ENGINE BLOCK HEATER
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.

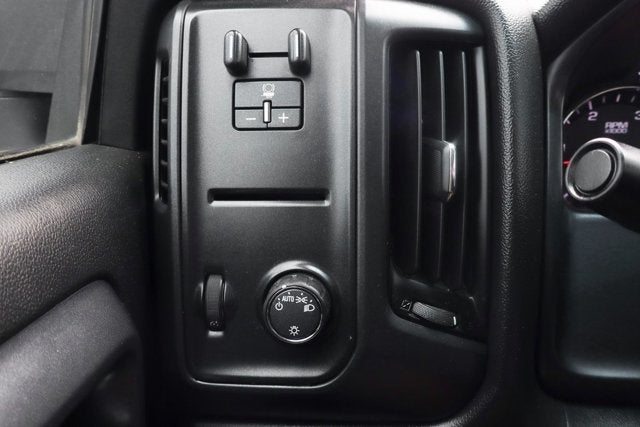

• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• BACK-UP ALARM CALIBRATION
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 15 000 lbs.
• POWER OUTLET 110-VOLT AC
• FRONT AXLE 8 000 LBS. DANA/SPICER D800-N I -BEAM NON-DRIVING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left hand and right hand side
• 4G LTE WI-FI HOTSPOT CAPABLE
• WHEELBASE 199 (505.5 CM) 84 CA

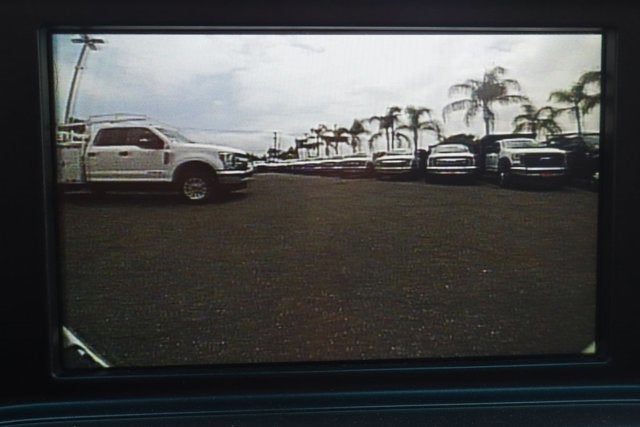

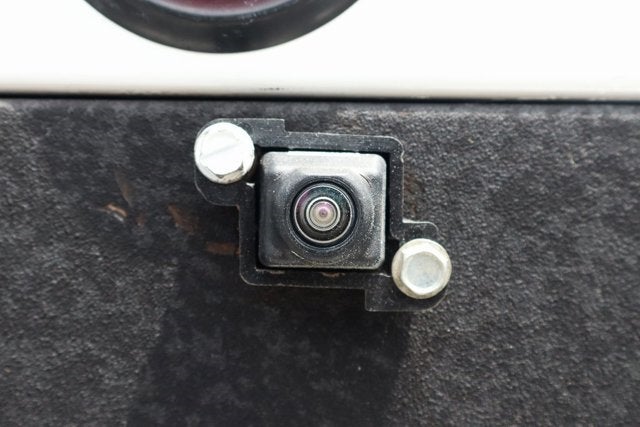

• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• KEY SYSTEM 2 SPARE KEYS
• SPARE TIRE DELETE (STD)
• ALTERNATOR 220 AMPS
• PAINT SOLID
• 6500 HD SERIES
• REAR AXLE 4.10 RATIO Max road speed: 79 MPH
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• TIRE VALVE CAP HALTEC FLOW-THRU
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• REAR AXLE 15 000 LBS. (6 804 KG) DANA SPICER S16-130 SINGLE REDUCTION
• ADDITIONAL FUEL 5 GALLONS
• UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• AIR CONDITIONING SINGLE-ZONE (STD)
• GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
• EXHAUST BRAKE
• FRONT SUSPENSION 8 000 LBS. (3 629 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• REAR SUSPENSION 15 500 LBS. (7 031 KG) MULTI-LEAF VARI-RATE
• 26 000 LBS. GCWR (11 793 KG)
• Premium audio system: Chevrolet MyLink
• Air Conditioning
• Single-Zone Air Conditioning
• Power steering
• Traction control
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Delay-off headlights
• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Speed control
• Dual rear wheels
• Driver door bin
• Front reading lights
• Overhead console
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• Front Center Armrest w/Storage
• Passenger door bin
• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Variably intermittent wipers
• 4.10 Rear Axle Ratio

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Cab to Axle (in): 84.09
• Cab to End of Frame (in): 133.3
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Ground to Top of Load Floor (in): 29.4 front/32.1 rear
• Height, Overall (in): 88.0
• Length, Overall (in): 282.8
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 199
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 79
• Static Loaded Radius (in): 14.9
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Wall to Wall (ft): 57.3
• Summary
• Body Style: Crew Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7940
• Axle Capacity - Rear (lbs): 15000
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 8000
• Spring Capacity - Rear (lbs): 15500
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDL
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAM
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5178
• Curb Weight - Rear (lbs): 3187
• Gross Axle Wt Rating - Front (lbs): 7940
• Gross Axle Wt Rating - Rear (lbs): 15000
• Gross Combined Wt Rating (lbs): 26000
• Gross Vehicle Weight Rating Cap (lbs): 22940
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
