• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

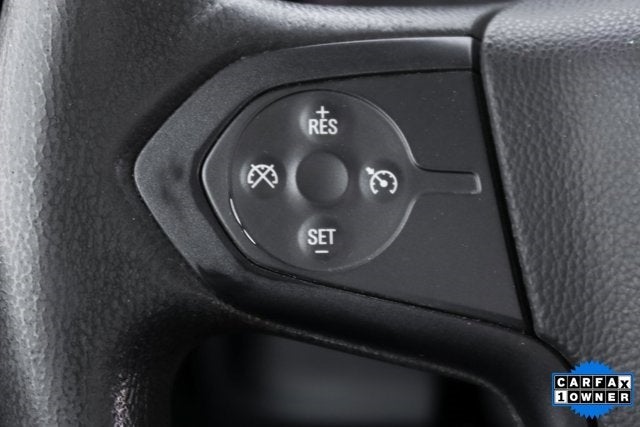

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl
• Windows, manual driver and front passenger

• 4500 HD Series (Included and only available with (C7Y) 14,001 lbs. GVWR, (C5B) 15,000 lbs. GVWR, (C7P) 16,000 lbs. GVWR or (C7R) 16,500 lbs. GVWR.)
• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165", (ER2) 189" or (FQT) 141". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip (Not standard when (G80) Heavy-duty locking rear differential is ordered.)
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill

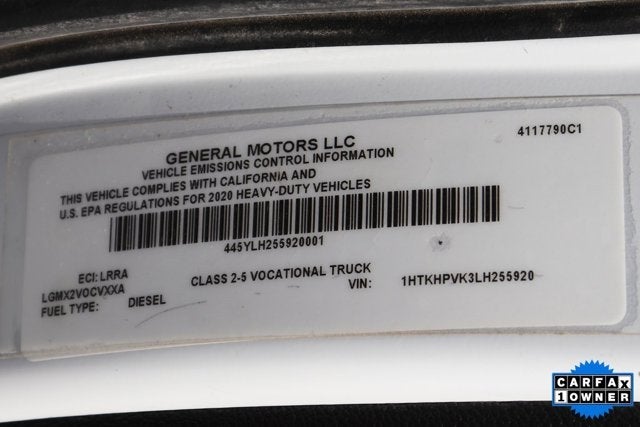

• Emissions, USA 50 State certified
• Exhaust system, right side exit, behind rear wheel (Requires (FQT) 141" wheelbase.)
• Front axle, 6,250 lb. (2,835 kg), Dana Spicer D800-N, "I"-beam, non-driving (Requires (FTW) 6,250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
• Front suspension, 6,250 lbs. (2,835 kg) multi-leaf, includes shock absorbers (Not available with rear air suspensions.)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lbs. (7484 kg) (Silverado 4500 HD models with (FQT) requires one of the following combinations: (1) (FTC) and (FTW) and (GL4) and (GR3). Requires (G68). (2) (FTC) and (FTW) and (HD2) and (GR4). Requires (G68). (3) (FTC) and (FTW) and (HD1) or (J27) and (GR4). Requires (G68). (4) (FTA) and (FK6) and (FN1) or (GL4) and (GR3). Requires (PCJ). (5) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4) or (FU7). Requires (PCJ). Silverado 4500 HD models without (FQT) requires one of the following combinations: (1) (FTC) and (FTW) and (GL4) and (GR3) and (G68). (2) (FTC) and (FTW) and (HD2) and (GR4) and (G68). (3) (FTC) and (FTW) and (HD1) or (J27) and (GR4) and (G68). (4) (FTA) and (FK6) and (FN1) or (GL4) and (GR3) or (G40). (5) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4), (FU7), (GP1) or (GP8).)
• Incomplete vehicle
• Rear axle, 11,000 lbs. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.10 ratio Max road speed: 79 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
• Rear wheel drive
• Shock Absorbers, rear (Included with (FTC) 6,250 lb. front axle.)
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 141" (358.1 cm), 60" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) exhaust. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lbs. Front axle/(FK6) 7,000 lbs. Front suspension or (FTL) 8,000 lbs. Front axle/(FSN) 8,000 lbs. Front suspension and/or (FU7) 15,500 lbs. rear suspension. Not available with rear air suspensions.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

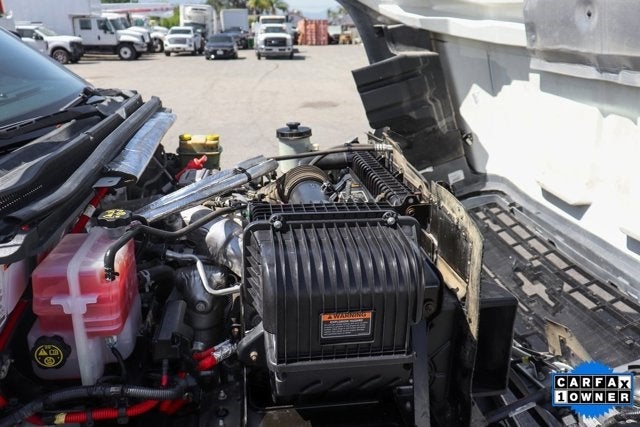

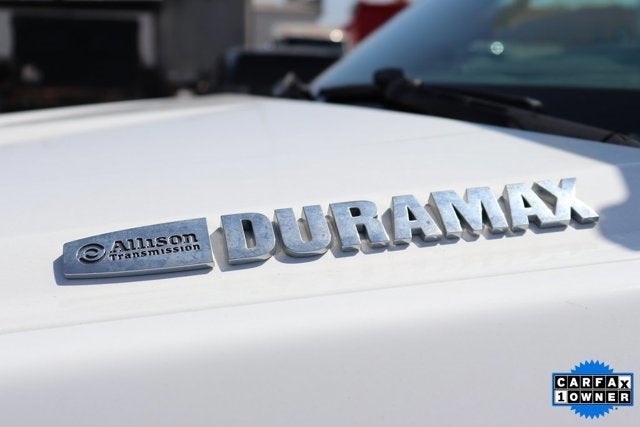

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

REAR SUSPENSION, 11,000 (4,990 KG) MULTI-LEAF, VARI-RATE

• (STD)

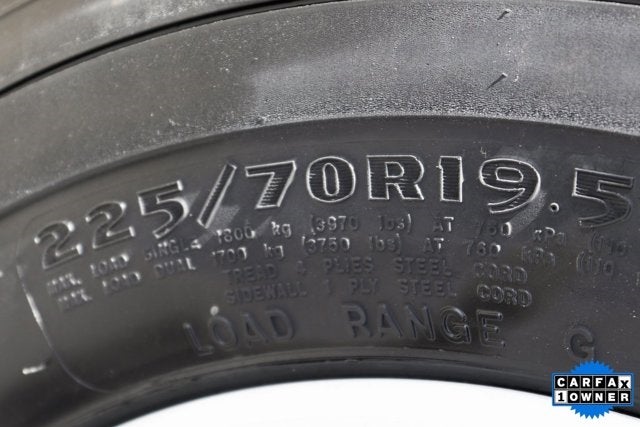

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lbs. (STD)

TIRE, SPARE 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Includes (V33) Rim Wrench and handle only tool kit.)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700RDS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Rugged Duty Series
• 19.5K GVW & 26K GCW Max.

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left hand and right hand side

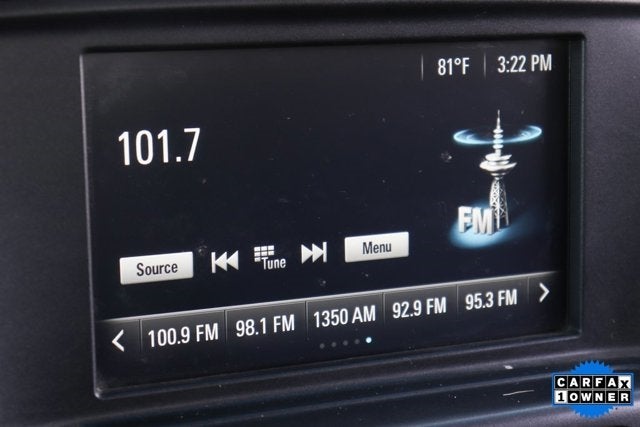

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

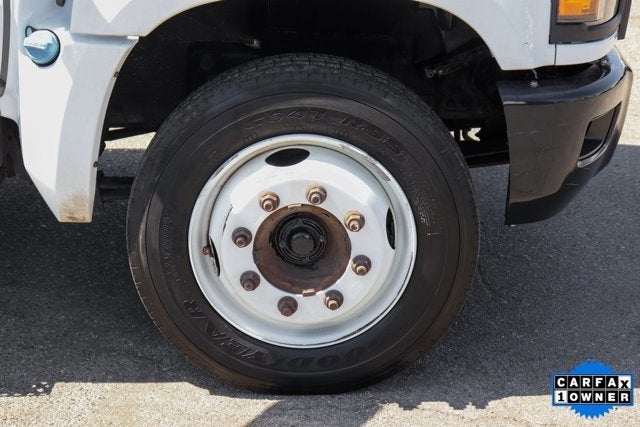

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lbs. (STD)

WHEEL, 19.5" X 6.75", SPARE, STEEL, BLACK, 8-HOLES

• temporary mounted on frame
• hub piloted

GVWR, 16,500 LBS. (7484 KG)

• (STD)

REAR AXLE, 4.10 RATIO

• Max road speed: 79 MPH

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

UPFITTER SWITCHES

• provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

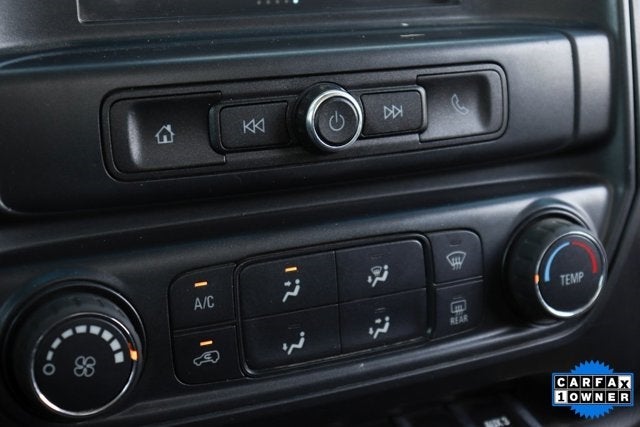

AIR CONDITIONING, SINGLE-ZONE

• (STD)

TAIL LAMP WIRING HARNESS PROVISIONS

• includes wiring for standard left and right taillamps
• separate 8 feet of extra cable wiring for left and right body-mounted tail lights

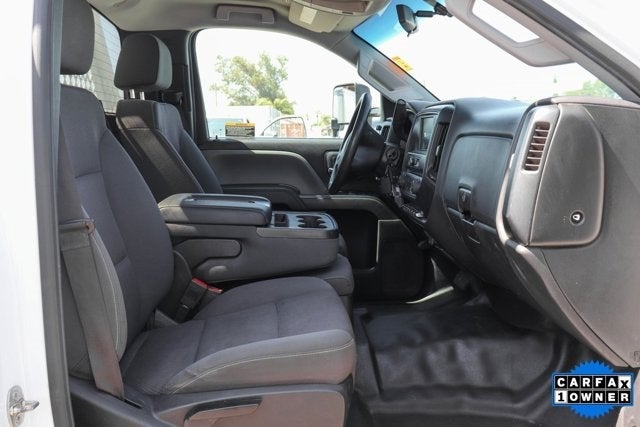

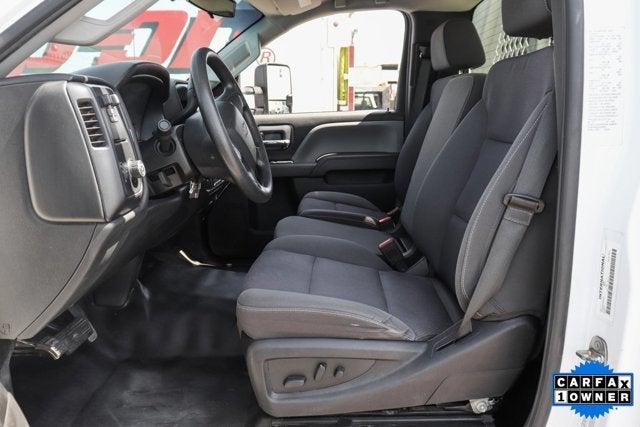

SEATS, FRONT 40/20/40 SPLIT-BENCH, CLOTH 3-PASSENGER.

• Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar
• lockable storage compartment in seat cushion
• and storage pockets. Includes (AG1) 10-way power seat.)

• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• FRONT STABILIZER BAR
• FRONT SUSPENSION 7 000 LBS. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• REAR AXLE 11 000 LBS. (4 999 KG) DANA SPICER S14-110 SINGLE REDUCTION
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• GLASS DEEP-TINTED
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SUMMIT WHITE
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• DEFOGGER REAR-WINDOW ELECTRIC
• WHEELS 19.5 X 6.75 STEEL WHITE PAINTED 8-HOLES HUB PILOTED
• REAR SUSPENSION 11 000 (4 990 KG) MULTI-LEAF VARI-RATE (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lbs. (STD)
• LICENSE PLATE KIT FRONT
• TIRE SPARE 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Includes (V33) Rim Wrench and handle only tool kit.)
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 19.5K GVW & 26K GCW Max.
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left hand and right hand side
• 6-SPEAKER AUDIO SYSTEM
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO

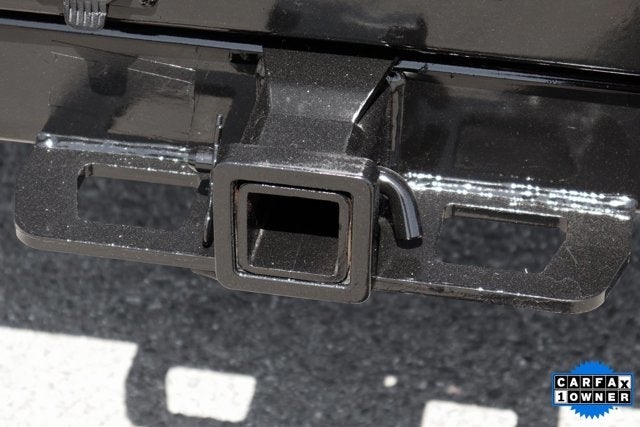

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• KEY SYSTEM 2 SPARE KEYS
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• AXLE TO END OF FRAME 63
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lbs. (STD)
• WHEEL 19.5 X 6.75 SPARE STEEL BLACK 8-HOLES temporary mounted on frame hub piloted
• HORN DUAL-NOTE
• FRONT AXLE 7 000 LBS. DANA SPICER D800-N I -BEAM NON-DRIVING
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• WHEELBASE 165 (419.1 CM) 84 CA
• SHOCK ABSORBERS REAR
• TOOL KIT RIM WRENCH AND HANDLE ONLY
• GVWR 16 500 LBS. (7484 KG) (STD)
• REAR AXLE 4.10 RATIO Max road speed: 79 MPH

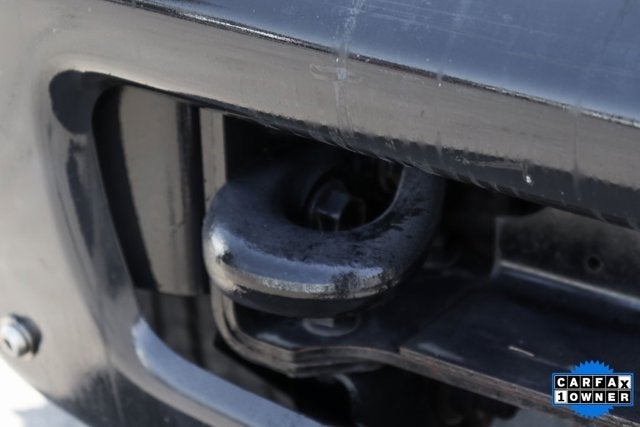

• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• LABEL INFORMATION CLEAN IDLE DOOR LOCATION
• JET BLACK CLOTH SEAT TRIM
• ADDITIONAL FUEL 5 GALLONS
• UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• FOG LAMPS FRONT HALOGEN
• AIR CONDITIONING SINGLE-ZONE (STD)
• EXHAUST BRAKE
• EXHAUST SYSTEM REAR EXIT
• TAIL LAMP WIRING HARNESS PROVISIONS includes wiring for standard left and right taillamps separate 8 feet of extra cable wiring for left and right body-mounted tail lights
• SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. Includes (AG1) 10-way power seat.)
• 26 000 LBS. GCWR (11 793 KG)
• Preferred Equipment Group 1WT
• 4 Speakers
• 4-Speaker Audio System
• 6-Speaker Audio System
• AM/FM radio
• Premium audio system: Chevrolet MyLink
• Radio: AM/FM Stereo w/4.2 Diagonal Color Display
• Radio: AM/FM Stereo w/7 Diagonal Color Touch Screen
• Air Conditioning
• Rear-Window Electric Defogger
• Single-Zone Air Conditioning
• 110-Volt AC Power Outlet
• Bluetooth® For Phone
• Power steering
• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• Rear Shock Absorbers
• Traction control
• 2 Spare Keys Key System
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Exhaust Brake
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag

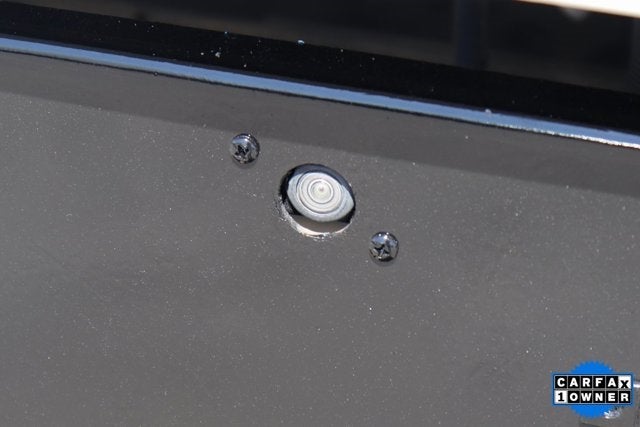

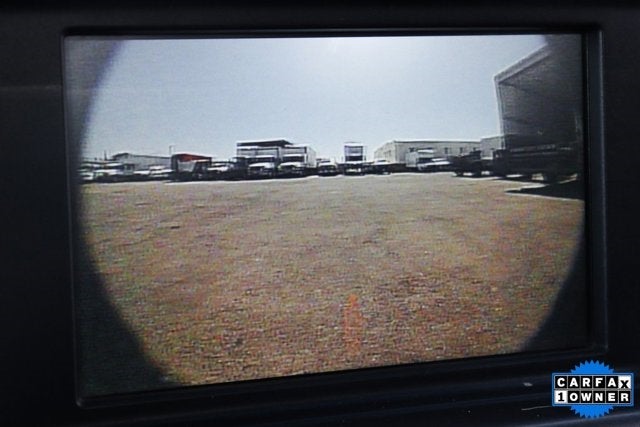

• Rear Vision Camera
• Delay-off headlights
• Front Halogen Fog Lamps
• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Tool Kit w/Rim Wrench & Handle Only
• Speed control
• Dual rear wheels
• 63 Axle To End Of Frame
• Body Color Painted Front Fender Extension
• Dual-Note Horn
• Front License Plate Kit
• Front Stabilizer Bar
• Power Take-Off Engine Control Provisions
• 40/20/40 Front 3-Passenger Split-Bench Seat w/Lockable Storage
• Backup Alarm
• Clean Idle Label Information
• Door Location

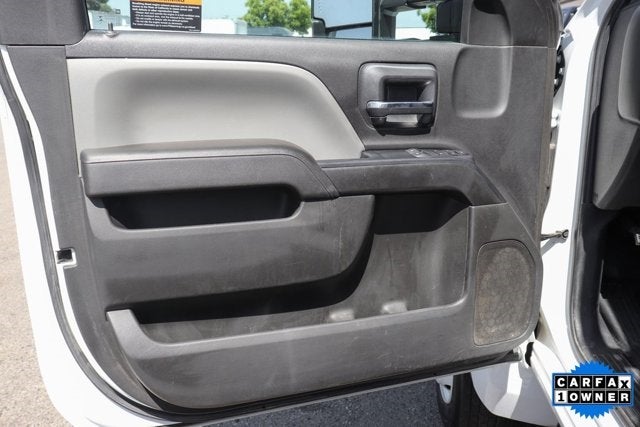

• Driver door bin
• Front reading lights
• Overhead console
• Passenger vanity mirror
• Tachometer
• Tail Lamp Wiring Harness Provisions
• Tilt steering wheel
• Trip computer

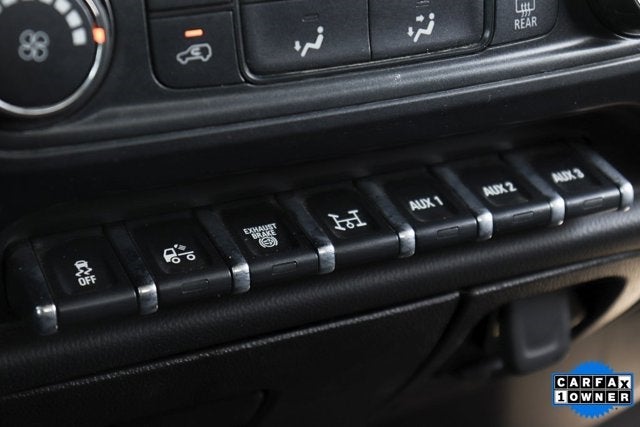

• Upfitter Switches
• Voltmeter
• 10-Way Power Driver's Seat Adjuster
• Vinyl Seat Trim
• 5 Gallons Additional Fuel
• Manual Regeneration Diesel Particulate Filter DPF
• Front Center Armrest w/Storage

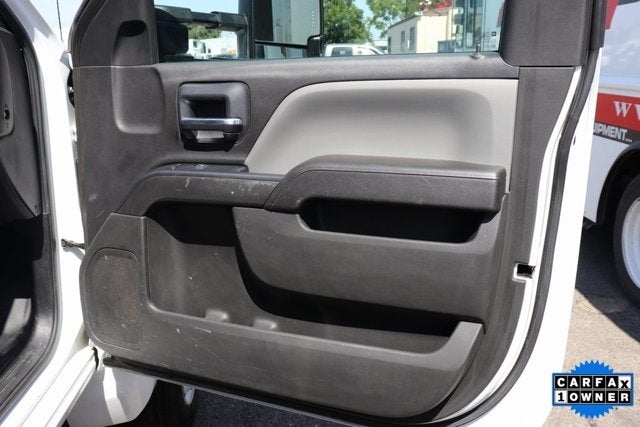

• Passenger door bin
• 26
• 000 lbs. GCWR (11
• 793 kg)
• Black Frame-Mounted Front Recovery Hooks

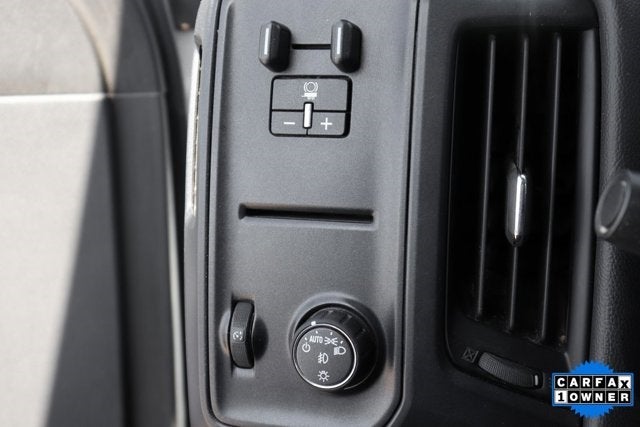

• Integrated Trailer Brake Controller
• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Wheels: 19.5 x 6.75 White Painted Hub Piloted Steel w/8-Holes
• Deep-Tinted Glass
• Variably intermittent wipers
• 4.10 Rear Axle Ratio
• **CLEAN CARFAX**
• **ONE OWNER CARFAX**

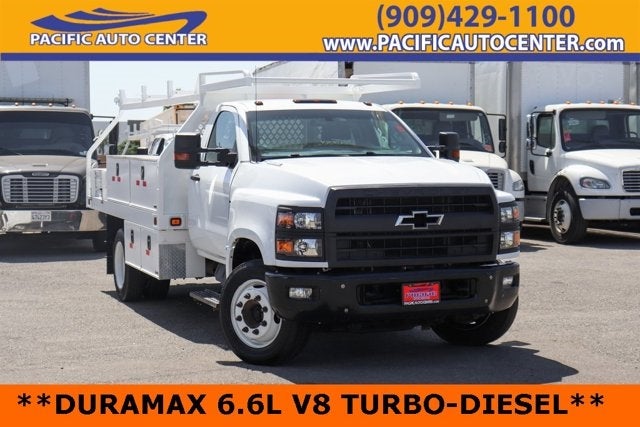

• **DURAMAX 6.6L V8 TURBO-DIESEL**
• **RWD**
• **POWER WINDOWS**
• **POWER SEATS**
• **POWER DOOR LOCKS**
• **TOW PACKAGE**
• **TRAILER BRAKE CONTROL**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Exterior Dimensions
• Body Length Default Value (ft): 11
• Cab to Axle (in): 83.86
• Cab to End of Frame (in): 133.0
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Ground to Top of Load Floor (in): 29.7 front/32.2 rear
• Height, Overall (in): 88.0
• Length, Overall (in): 262.3
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 63
• Wheelbase (in): 165
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 79
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): 48.8
• Summary
• Body Style: Regular Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 49
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 11000
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAL
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 15000
• Spare Tire Order Code: ZBK
• Spare Tire Size: 225/70R19.5G
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4723
• Curb Weight - Rear (lbs): 2845
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 11000
• Gross Combined Wt Rating (lbs): 26000
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• # of Bolt Holes - Spare: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
• Spare Bolt Pattern: 8 hole JIS 10.83"
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 19.5 x 6.75
