• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

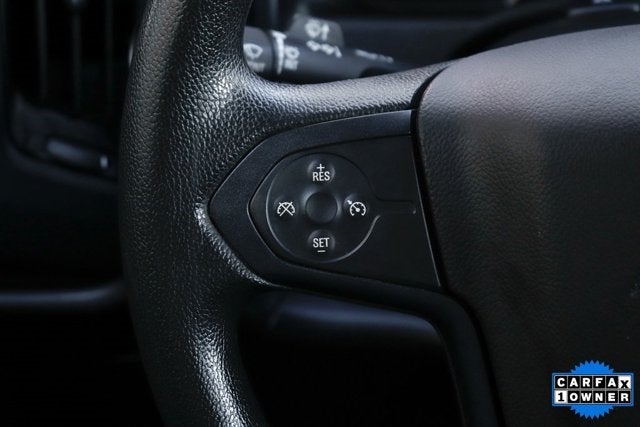

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seat trim, Vinyl

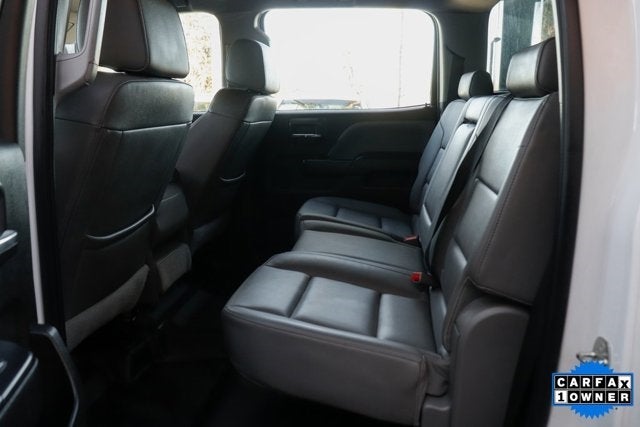

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete

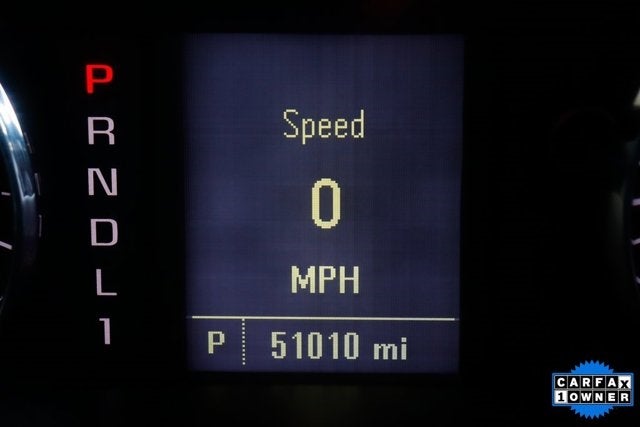

• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

• Alternator, 150 amps
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Batteries, heavy-duty dual 1100 cold-cranking amps, includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)

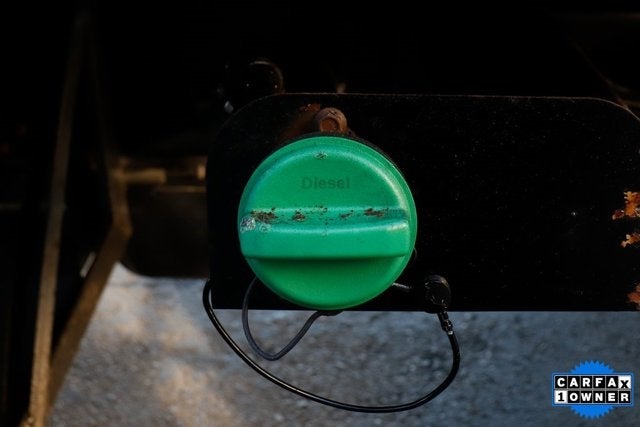

• Capped Fuel Fill

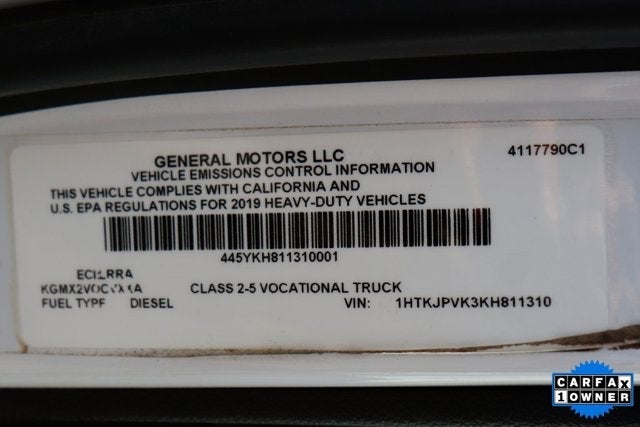

• Emissions, USA 50 State certified
• Exhaust system, rear exit
• Four wheel drive
• Front axle, 7,500 lbs., Dana Spicer 60-256, single-reduction, front driving
• Front suspension, 7,500 lbs. (3,402 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon, mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lbs. (7484 kg) (Silverado 4500HD Requires (FTB) 7,500 lb. front axle/(FTV) suspension and (FN1) 10,000 lb. rear axle or (GL4) 11,000 lb. rear axle and (GR3) 11,000 lb. rear suspension, or (FTB) 7,500 lb. front axle/(FTV) front suspension and (FU7) 15,500 lb. rear suspension and (HD1) 15,000 lb. rear axle.)
• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12,000lbs., (GP1) 13,500 lbs. or (GP8) 15,500 lbs. rear air suspension.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AK5) frontal, driver and right front passenger airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

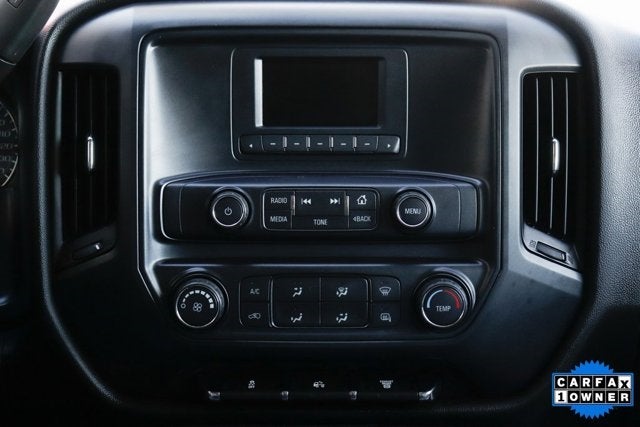

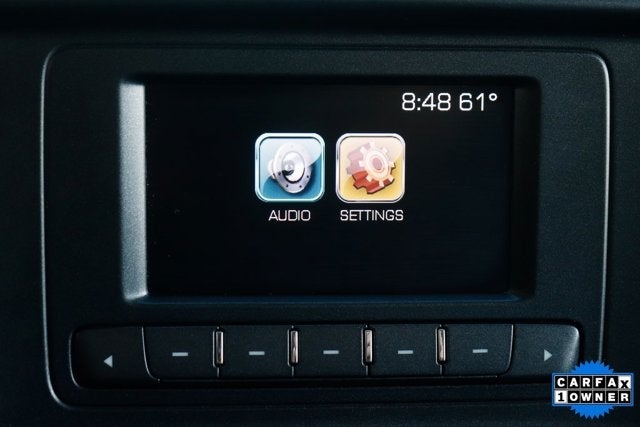

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY

• AM/FM stereo with USB port and auxiliary jack (STD)

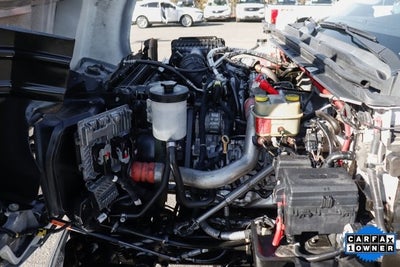

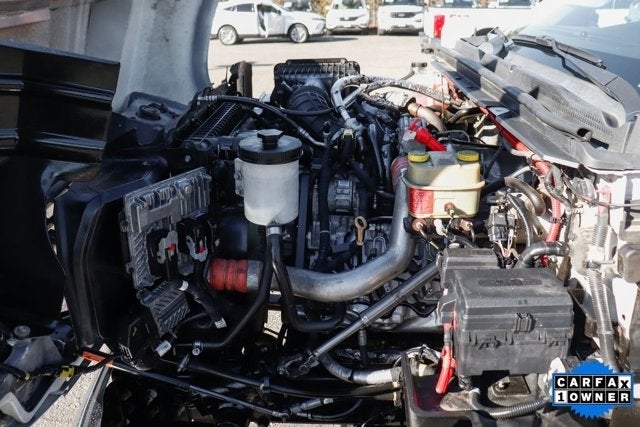

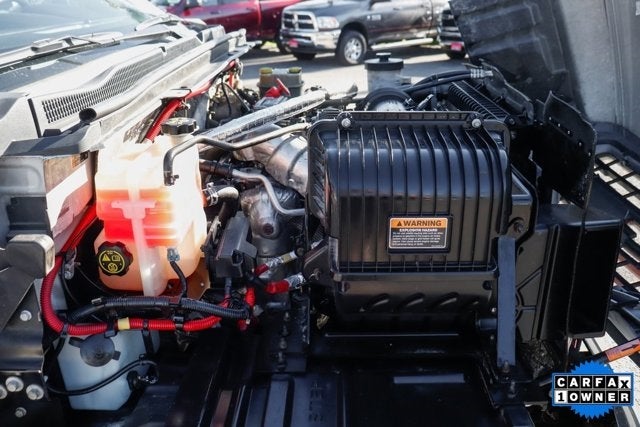

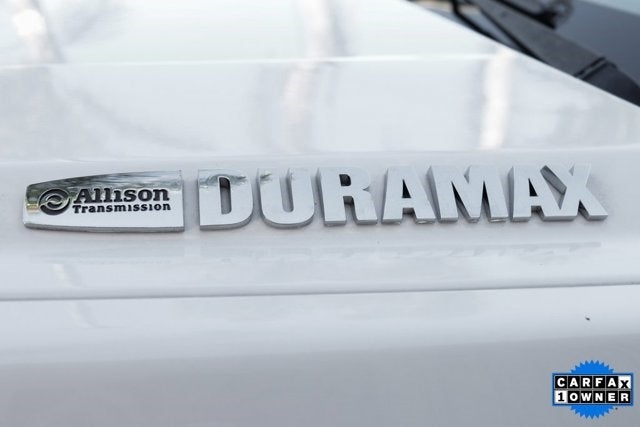

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

TIRES, REAR 225/70R19.5G TRACTION BLACKWALL CONTINENTAL

• Max Axle Load: 15
• 000 lbs.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

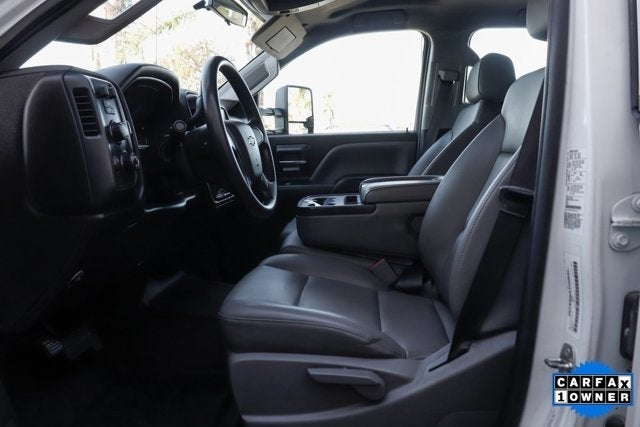

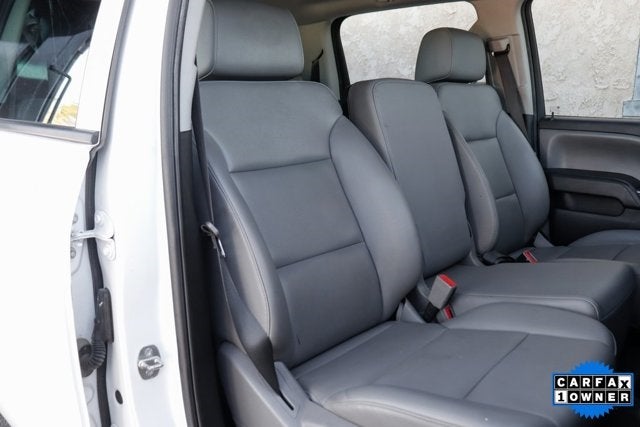

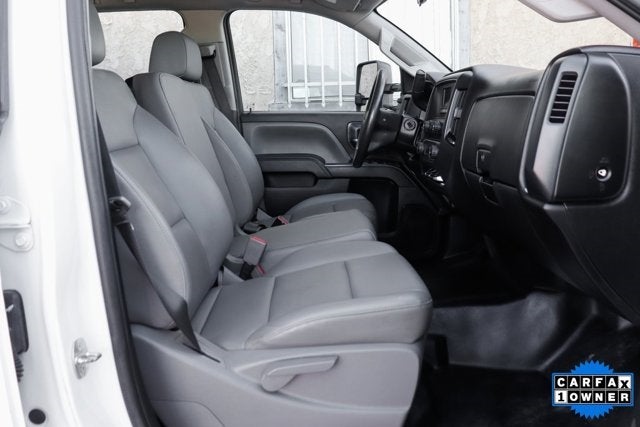

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

HIGHWAY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700HS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Highway Series
• 19.5K GVW & 26K GCW Max.
• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

SNOW PLOW PREP PACKAGE

• includes (UNL) auxiliary harness for headlamps and turn signals
• (KW5) 220-amp alternator
• forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

AIR CONDITIONING, SINGLE-ZONE

• (STD)

• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7 940 lbs.
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
• AUDIO SYSTEM 4.2 DIAGONAL COLOR DISPLAY AM/FM stereo with USB port and auxiliary jack (STD)
• SUMMIT WHITE
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• GRILLE CHROME
• BACKUP ALARM

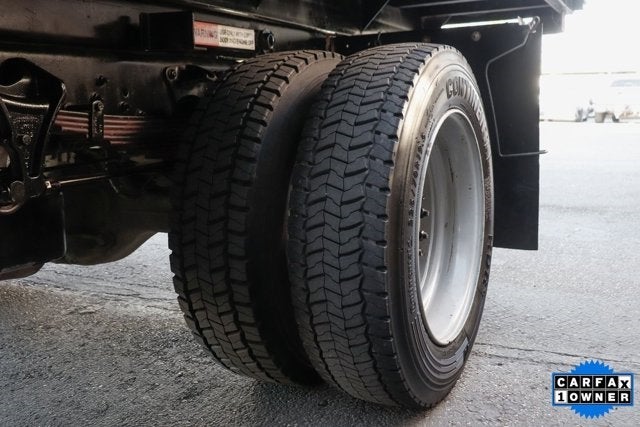

• TIRES REAR 225/70R19.5G TRACTION BLACKWALL CONTINENTAL Max Axle Load: 15 000 lbs.
• FRONT AXLE 7 500 LBS. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
• BUMPER FRONT CHROME
• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT

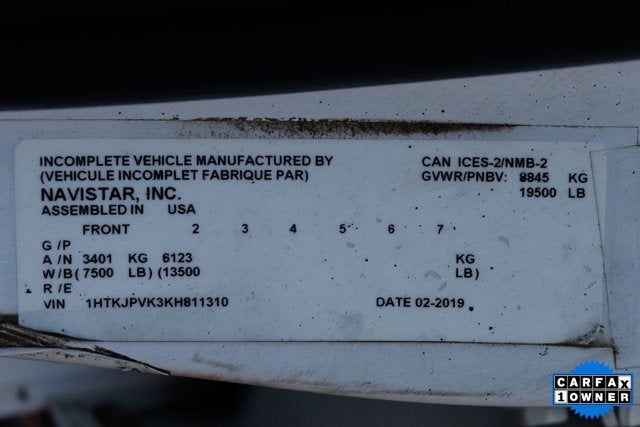

• GVWR 19 500 LBS. (8845 KG)
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• REMOTE KEYLESS ENTRY
• WHEELS 19.5 X 6.75 STEEL GREY PAINTED 8-HOLES HUB PILOTED
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• REAR SUSPENSION 13 500 LBS. (6 123 KG) MULTI-LEAF VARI-RATE
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)

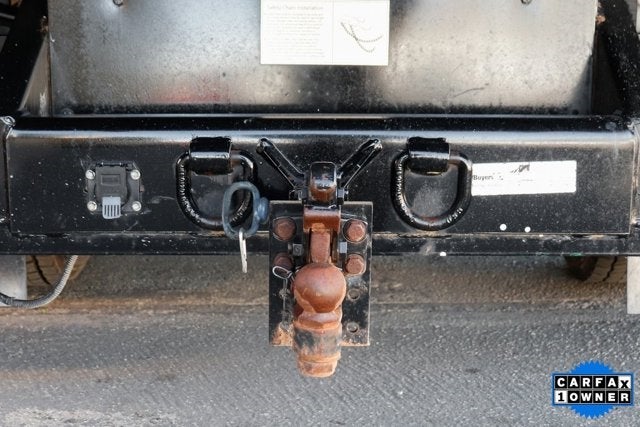

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• SPARE TIRE DELETE (STD)
• REAR AXLE 13 500 LB. (6 124 KG) DANA SPICER S14-110 SINGLE REDUCTION
• HIGHWAY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700HS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Highway Series 19.5K GVW & 26K GCW Max. (STD)
• ALTERNATOR 220 AMPS
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

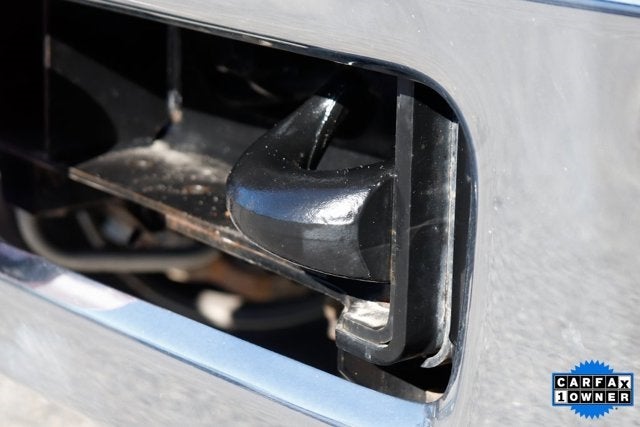

• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• POWER TAKE-OFF (PTO) NOT INSTALLED
• WHEELBASE 235 (596.9 CM) 120 CA
• ADDITIONAL FUEL 5 GALLONS
• AXLE TO END OF FRAME 75
• AIR CONDITIONING SINGLE-ZONE (STD)
• EXHAUST BRAKE
• 26 000 LBS. GCWR (11 793 KG)
• Premium audio system: Chevrolet MyLink
• Air Conditioning
• Single-Zone Air Conditioning
• Power steering
• ABS brakes
• Dual front impact airbags
• Occupant sensing airbag
• Passenger cancellable airbag
• Delay-off headlights
• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Speed control
• Dual rear wheels
• Driver door bin
• Front reading lights
• Overhead console
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• Front Center Armrest w/Storage
• Passenger door bin
• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Variably intermittent wipers
• 4.30 Rear Axle Ratio

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Body Length Default Value (ft): 10
• Cab to Axle (in): 119.92
• Cab to End of Frame (in): 194.7
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Ground to Top of Load Floor (in): 32.0 front/34.6 rear
• Height, Overall (in): 89.8
• Length, Overall (in): 344.2
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 75
• Wheelbase (in): 235
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 71.5
• Turning Diameter - Wall to Wall (ft): 73.1
• Summary
• Body Style: Crew Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 13500
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: Single-reduction
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 13500
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf

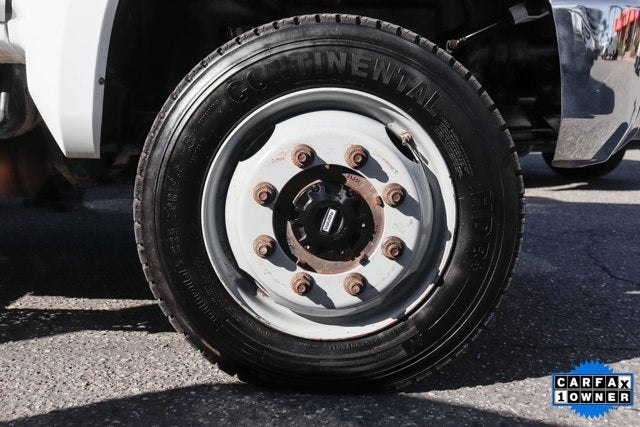

• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDL

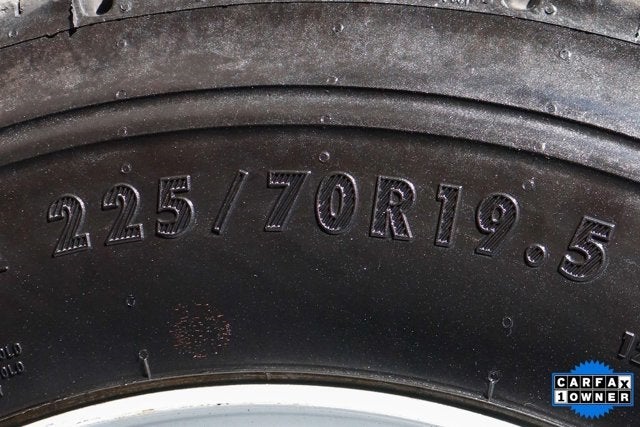

• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAN
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5714
• Curb Weight - Rear (lbs): 3351
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 13500
• Gross Combined Wt Rating (lbs): 26000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
