• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

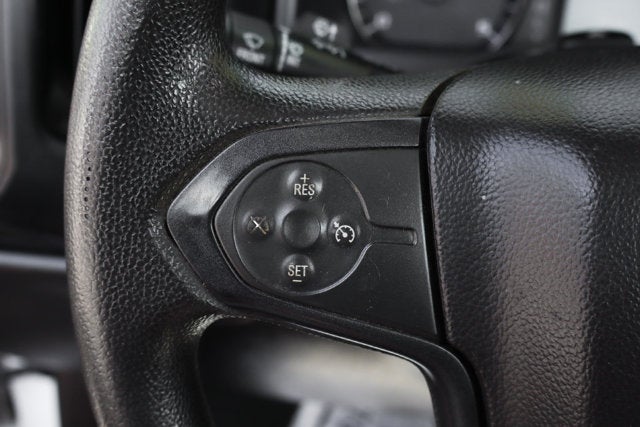

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

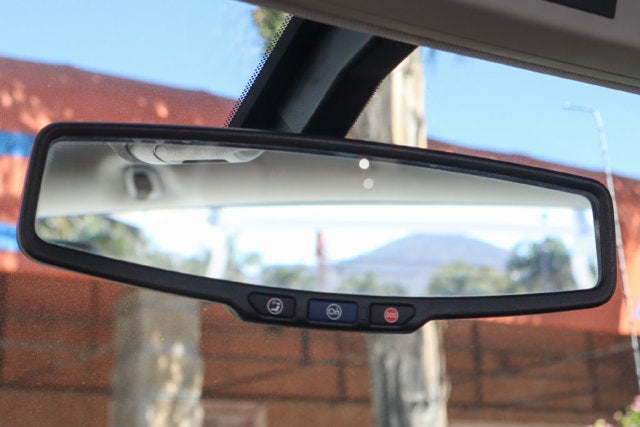

• Mirror, inside rearview manual day/night
• Seat Belt, Black

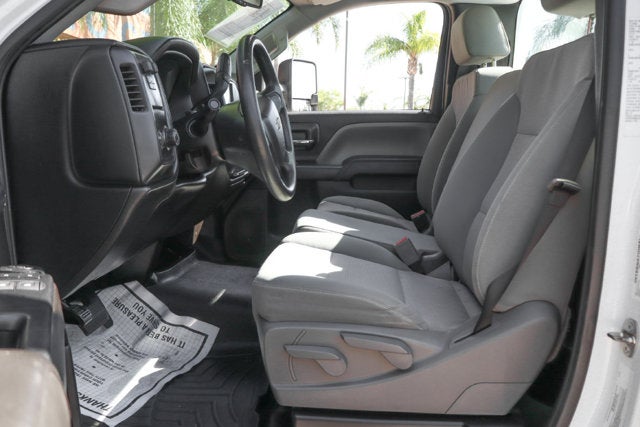

• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165", (ER2) 189" or (FQT) 141". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Batteries, heavy-duty dual 1100 cold-cranking amps, includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill

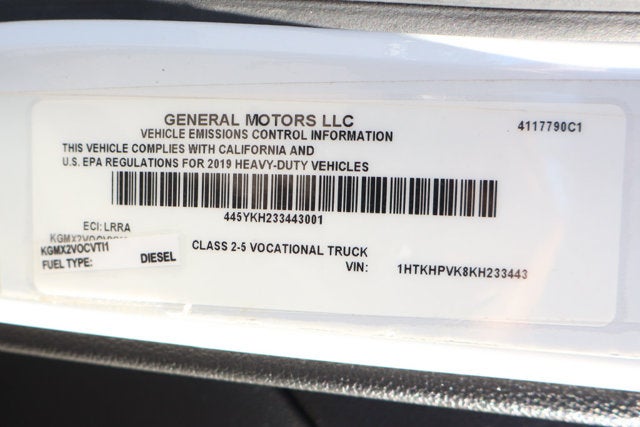

• Emissions, USA 50 State certified
• Exhaust system, right side exit, behind rear wheel (Requires (FQT) 141" wheelbase.)
• Front axle, 7,000 lbs., Dana Spicer D800-N, "I"-beam, non-driving (Requires (FK6) 7,000 lb. (3,175 kg) front suspension.)
• Front suspension, 7,000 lbs. (3,175 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon, mounted between frame side rails and behind rear axle
• Fuel, diesel B20

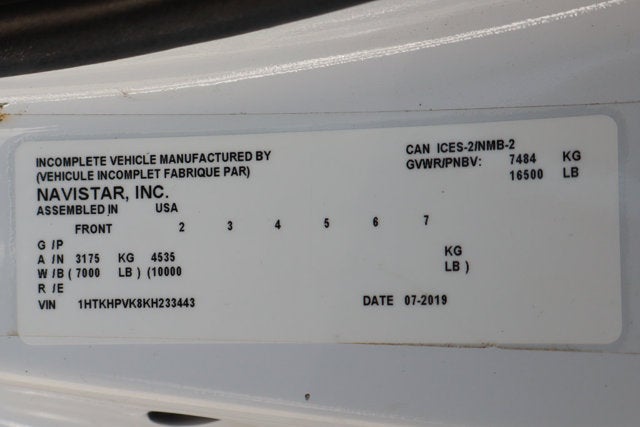

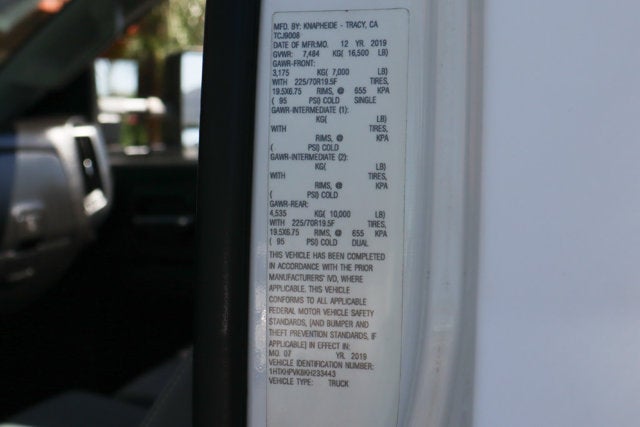

• GVWR, 16,500 lbs. (7484 kg) (Silverado 4500HD Requires (FTA) 7,000 lb. front axle/(FK6) suspension and (FN1) 10,000 lb. rear axle and (GR3) 11,000 lb. rear suspension or (G40) 12,000 lb. rear air suspension, or (FTD) 6,000 lb. front axle/(F95) suspension, (GL4) 11,000 lb. rear axle and (GR3) 11,000 lb. or (GR4) 13,500 lb rear suspension, or (G40) 12,000 lb. rear air suspension, or (FTA) 7,000 lb. front axle/(FK6) suspension and (FU7) 15,500 lb. rear suspension or (GP8) 15,500 lb. rear air suspension and (HD1) 15,000 lb. rear axle, or (FTA) 7,000 lb. front axle/(FK6) suspension and (G40) 12,000 lb. rear air suspension or (GP1) 13,500 lb. rear air suspension or (GR3) 11,000 lb. rear suspension or (GR4) 13,500 lb. rear suspension and (GL4) 11,000 lb. rear axle. Not available with rear air suspension when ordered with (FQT) 141" wheelbase.)
• Incomplete vehicle
• Rear axle, 10,000 lb. (4,536 kg) Dana Spicer S14-110, single reduction
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
• Rear wheel drive
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 141" (358.1 cm), 60" CA (Requires (F0C) 49" axle to end of frame and (NPR) exhaust. Not available with rear air suspensions.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AK5) frontal, driver and right front passenger airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

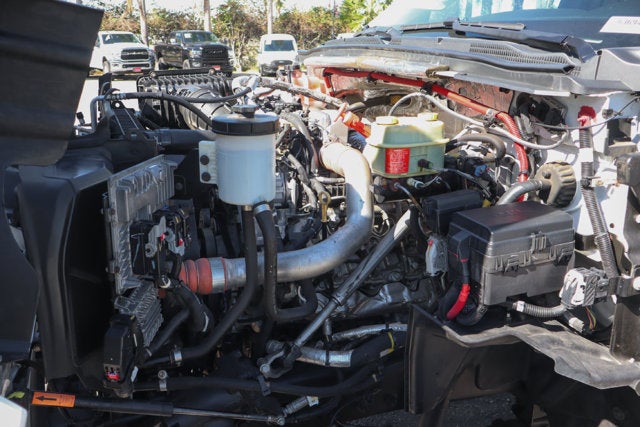

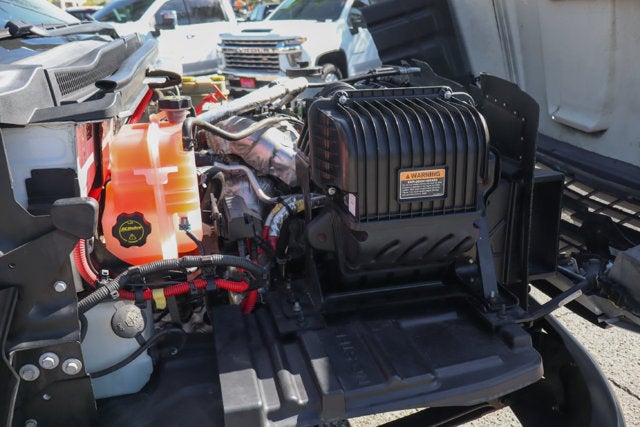

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

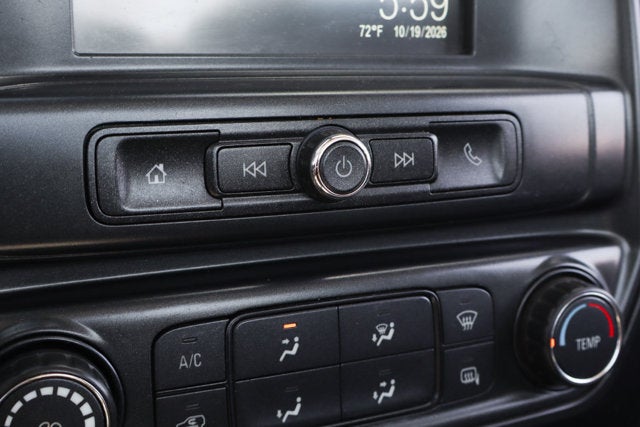

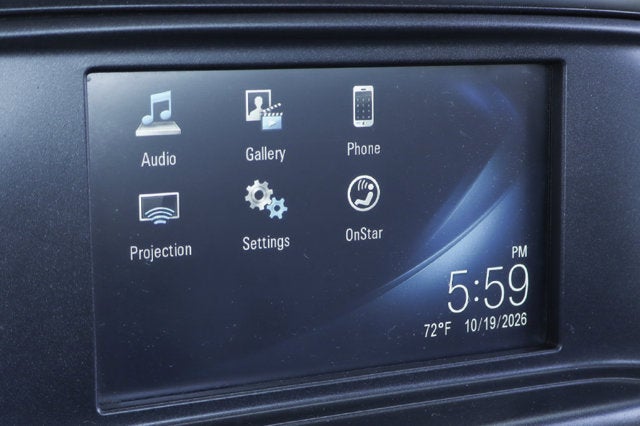

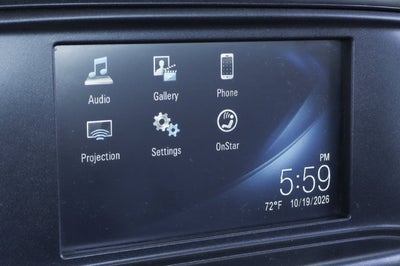

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

REAR SUSPENSION, 11,000 (4,990 KG) MULTI-LEAF, VARI-RATE

• (STD)

FRONT SUSPENSION, 7,000 LBS. (3,175 KG) MULTI-LEAF, INCLUDES SHOCK ABSORBERS

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

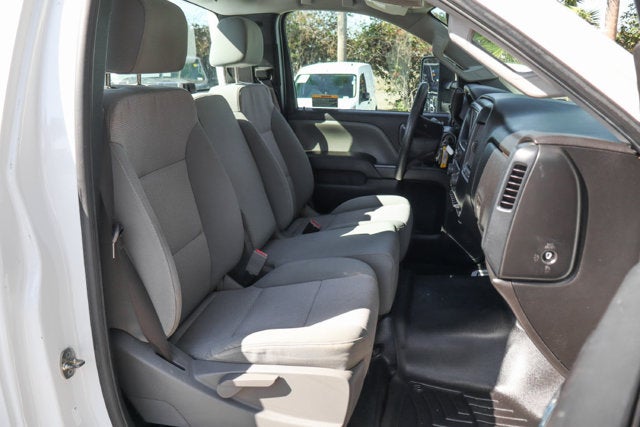

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

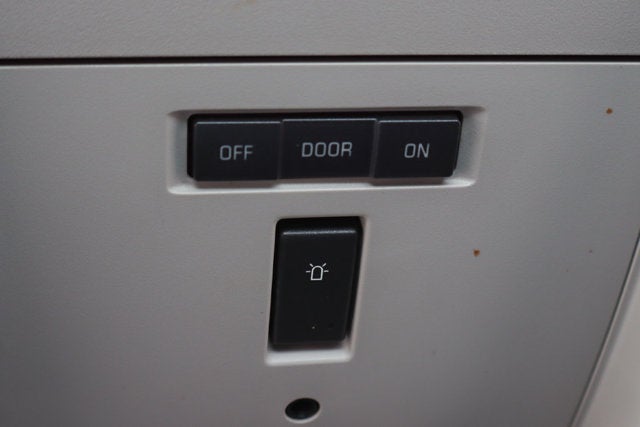

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series
• 19.5K GVW & 30K GCW Max.

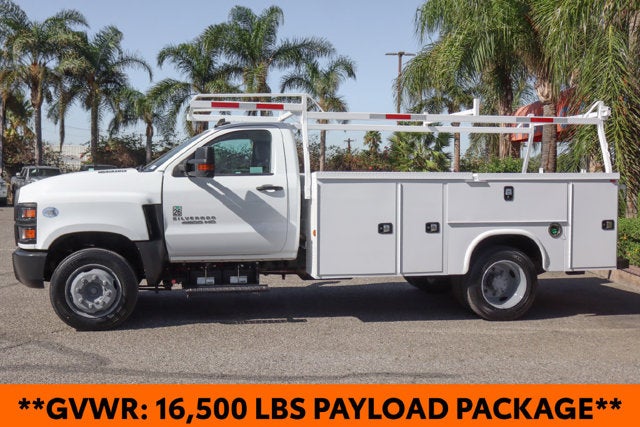

GVWR, 16,500 LBS. (7484 KG)

• (STD)

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

UPFITTER SWITCHES

• provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

CHEVROLET 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT

• offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first)

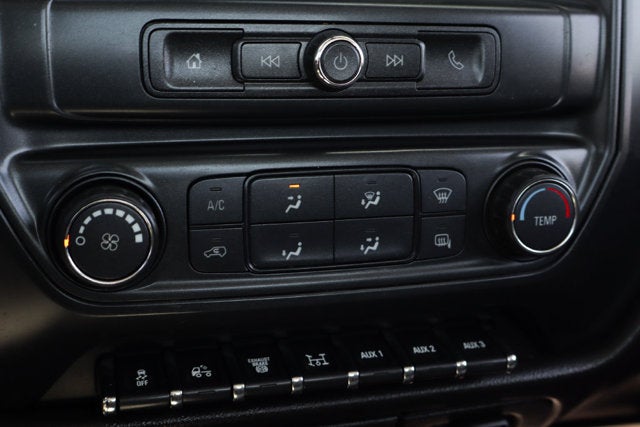

AIR CONDITIONING, SINGLE-ZONE

• (STD)

• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• SUMMIT WHITE
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• BACKUP ALARM
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
• REAR SUSPENSION 11 000 (4 990 KG) MULTI-LEAF VARI-RATE (STD)
• FRONT SUSPENSION 7 000 LBS. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT
• 30 000 LBS. GCWR (13 607 KG)
• REAR AXLE 10 000 LB. (4 536 KG) DANA SPICER S14-110 SINGLE REDUCTION
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• 6-SPEAKER AUDIO SYSTEM
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• POWER TAKE OFF ENGINE CONTROL PROVISIONS
• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• SPARE TIRE DELETE (STD)
• ALTERNATOR 220 AMPS
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series 19.5K GVW & 30K GCW Max.
• FRONT AXLE 7 000 LBS. DANA SPICER D800-N I -BEAM NON-DRIVING
• PAINT SOLID

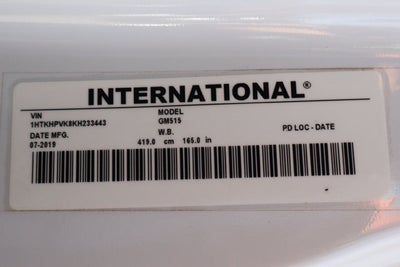

• WHEELBASE 165 (419.1 CM) 84 CA
• GVWR 16 500 LBS. (7484 KG) (STD)
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• CHEVROLET 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first)
• AIR CONDITIONING SINGLE-ZONE (STD)
• EXHAUST BRAKE
• EXHAUST SYSTEM REAR EXIT
• Preferred Equipment Group 1WT
• 4 Speakers
• 4-Speaker Audio System
• 6-Speaker Audio System
• AM/FM radio
• Premium audio system: Chevrolet MyLink
• Radio: AM/FM Stereo w/4.2 Diagonal Color Display
• Radio: AM/FM Stereo w/7 Diagonal Color Touch Screen
• Air Conditioning
• Single-Zone Air Conditioning
• 110-Volt AC Power Outlet
• Bluetooth® For Phone
• Power steering
• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• ABS brakes
• Dual front impact airbags
• Exhaust Brake
• Occupant sensing airbag
• Passenger cancellable airbag
• Delay-off headlights

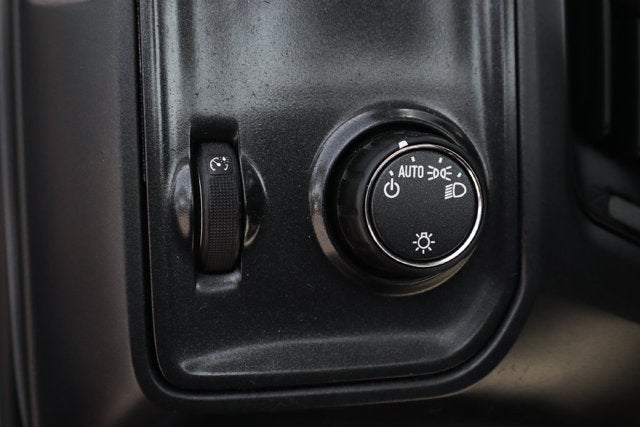

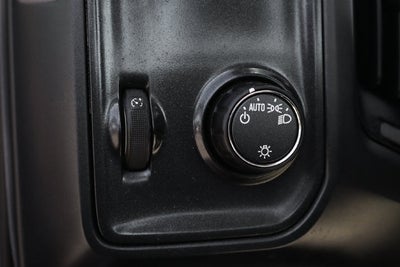

• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Speed control
• Dual rear wheels
• Front License Plate Kit
• Power Take-Off Engine Control Provisions
• Provision For Cab Roof Mounted Lamp/Beacon
• Top Post Threaded Battery Jump Start Stud
• 3' Auxiliary Harness For Headlamps & Turn Signals
• Backup Alarm
• Chevrolet 4G LTE
• Chevrolet Connected Access

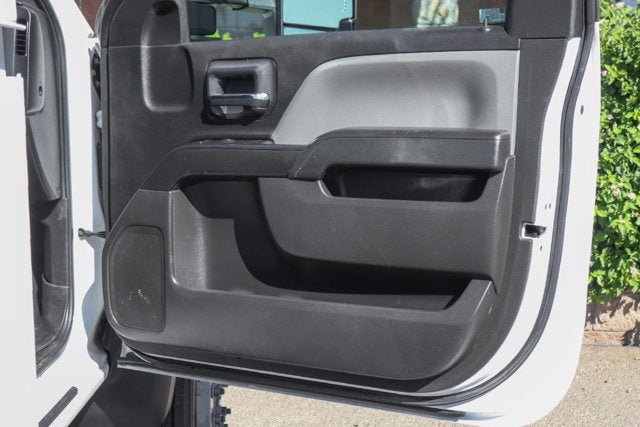

• Driver door bin
• Front reading lights
• OnStar & Chevrolet Connected Services Capable
• Overhead console
• Passenger vanity mirror
• Tachometer
• Tilt steering wheel
• Trip computer
• Upfitter Electrical Provisions In Rear Of Frame
• Upfitter Switches
• Voltmeter
• 40/20/40 Front 3-Passenger Split-Bench Seat
• Vinyl Seat Trim
• Front Center Armrest w/Storage
• Passenger door bin
• 30
• 000 lbs. GCWR (13
• 607 kg)

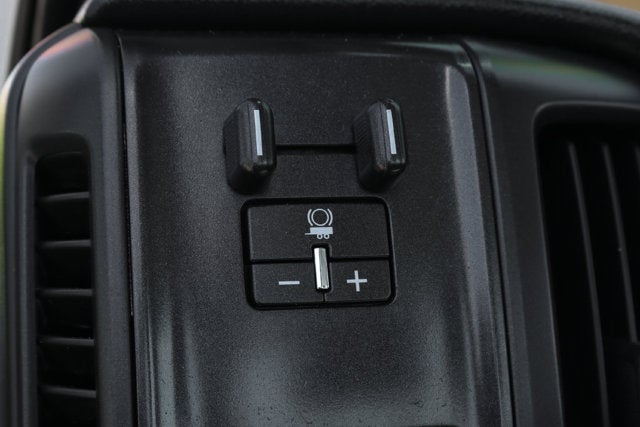

• Integrated Trailer Brake Controller

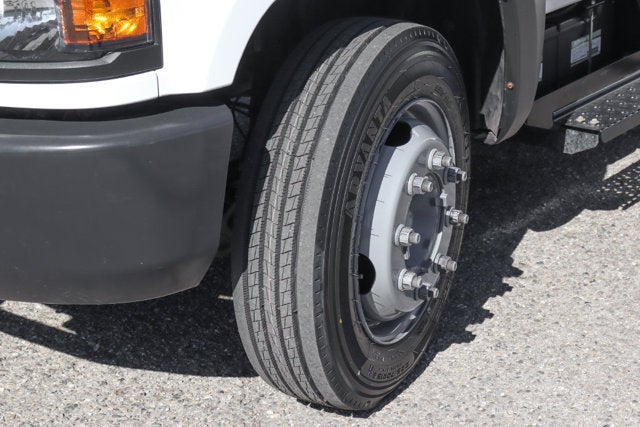

• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Variably intermittent wipers
• **CLEAN ONE OWNER CARFAX**

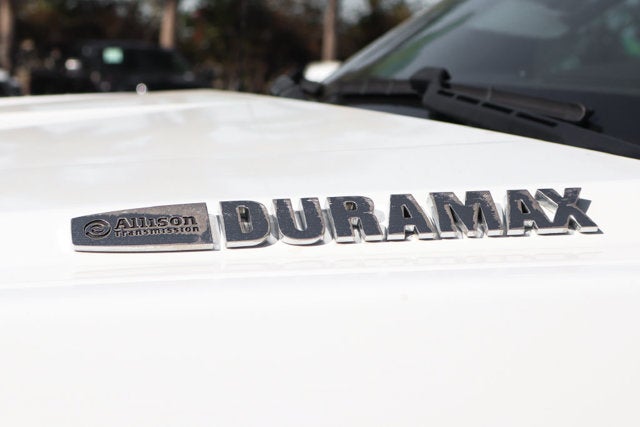

• **ALLISON TRANSMISSION**

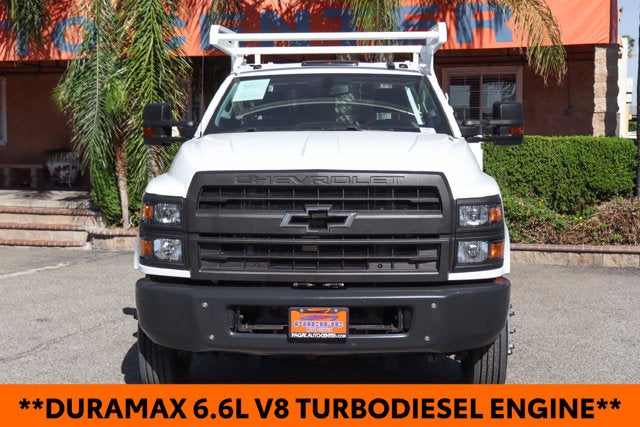

• **DURAMAX 6.6L V8 TURBO-DIESEL**
• **RWD**
• **STANDARD CAB**
• **LONG BED**

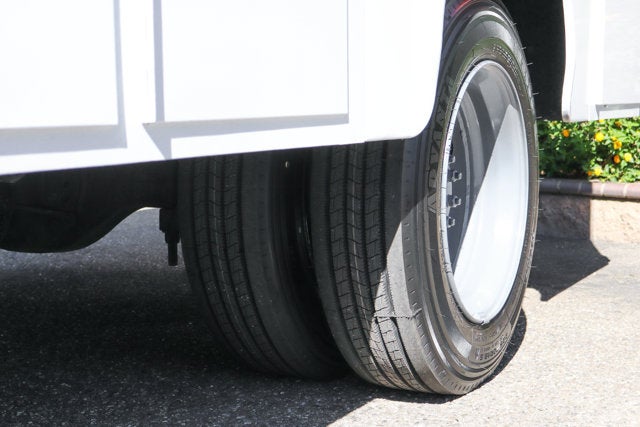

• **DUALLY**

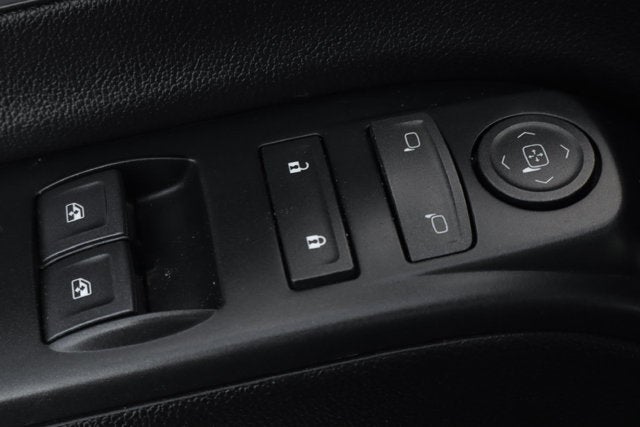

• **POWER WINDOWS**
• **POWER DOOR LOCKS**

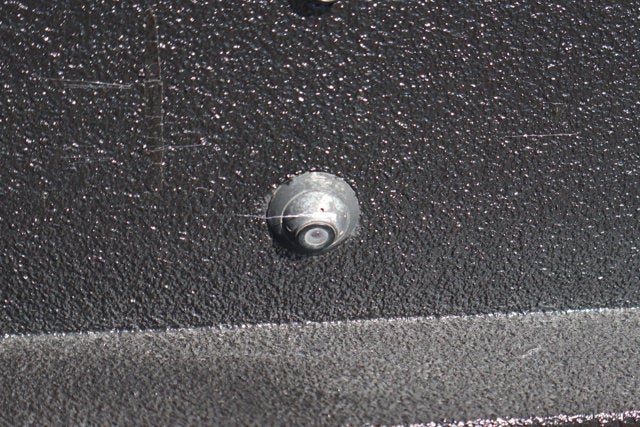

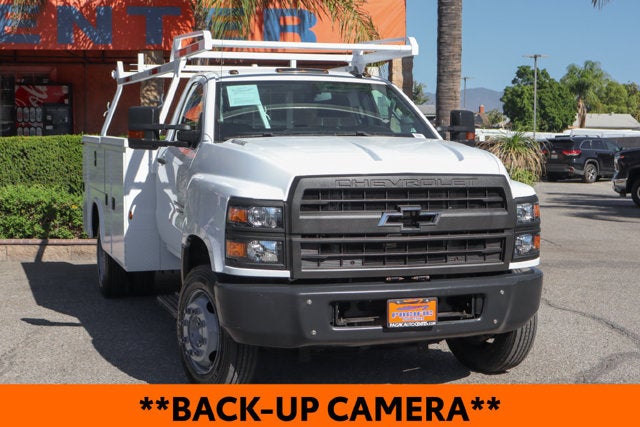

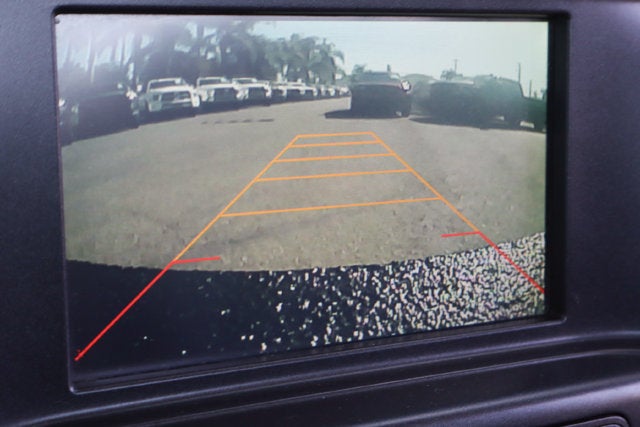

• **BACK-UP CAMERA**

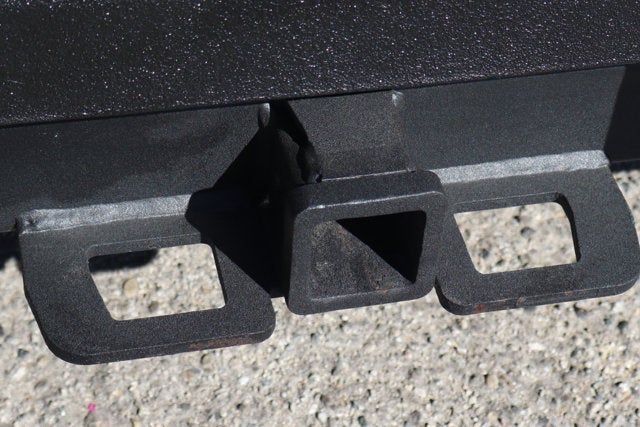

• **TOW PACKAGE**
• **TRAILER BRAKE CONTROL**
• **EXHAUST BRAKE**

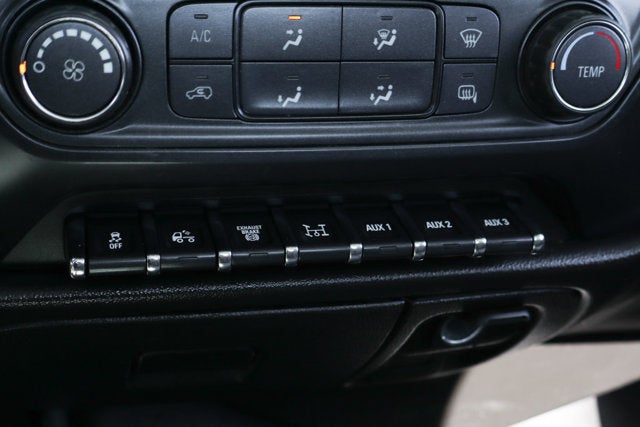

• **UPFITTER SWITCHES**

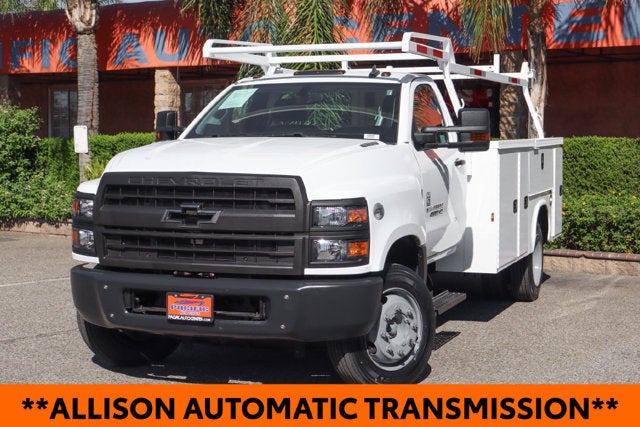

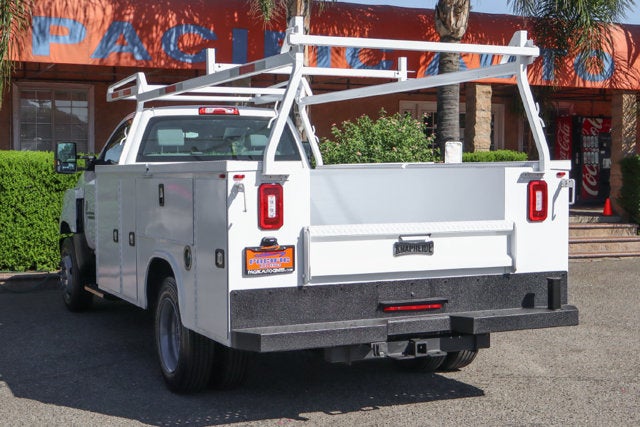

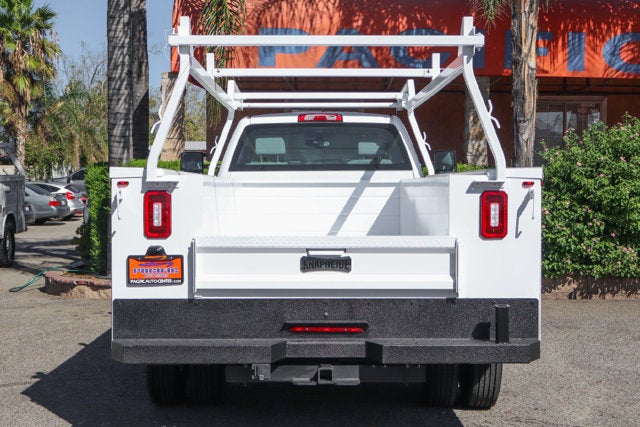

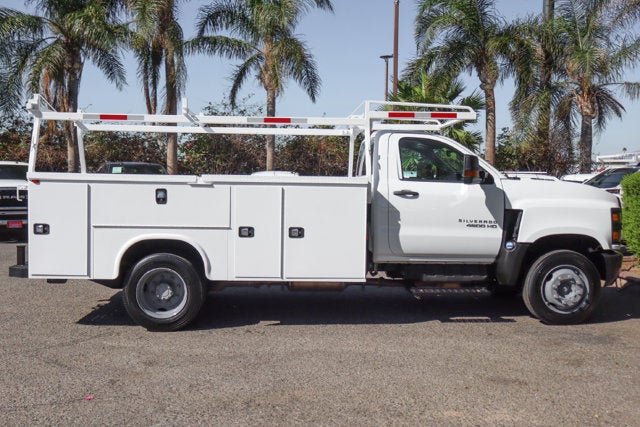

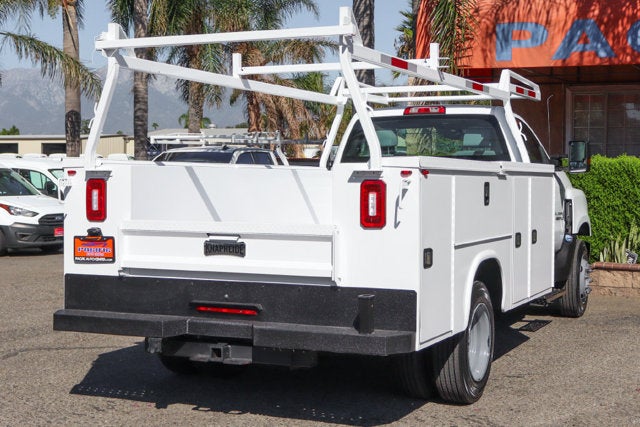

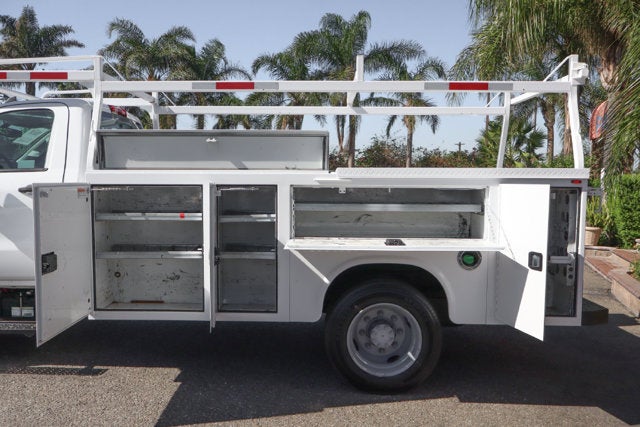

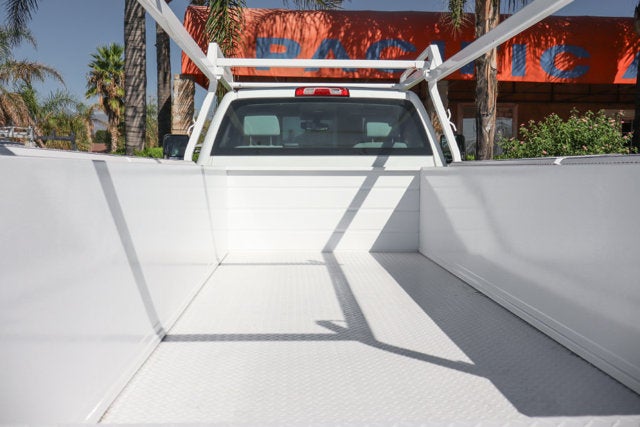

• **UTILITY/SERVICE TRUCK**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Body Length Default Value (ft): 8
• Cab to Axle (in): 83.86
• Cab to End of Frame (in): 133.0
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Ground to Top of Load Floor (in): 29.7 front/32.2 rear
• Height, Overall (in): 88.0
• Length, Overall (in): 248.5
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 49

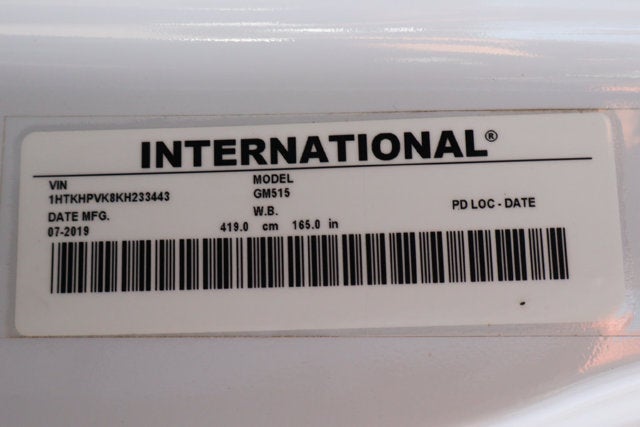

• Wheelbase (in): 165
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Behind Rear Axle
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15.1
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): 48.8
• Summary
• Body Style: Regular Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 10000
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 11000
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDU

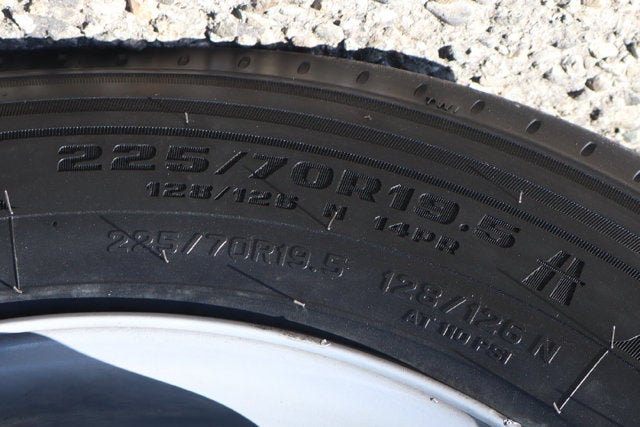

• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAU
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4735
• Curb Weight - Rear (lbs): 2845
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 10000
• Gross Combined Wt Rating (lbs): 30000
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Steel

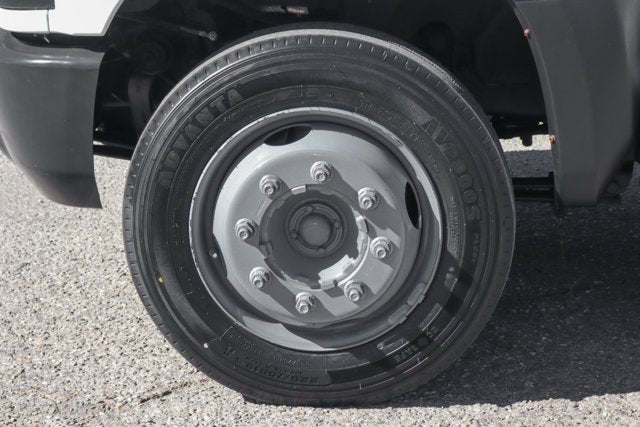

• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
