• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (YF1) RV Package.)
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Power outlet, 120-volt

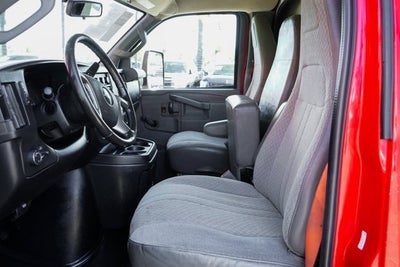

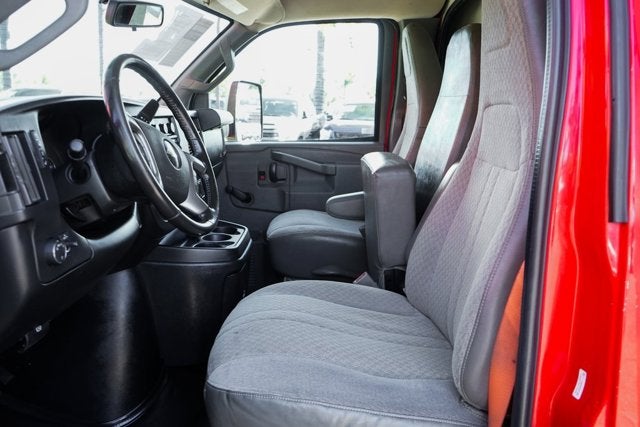

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)

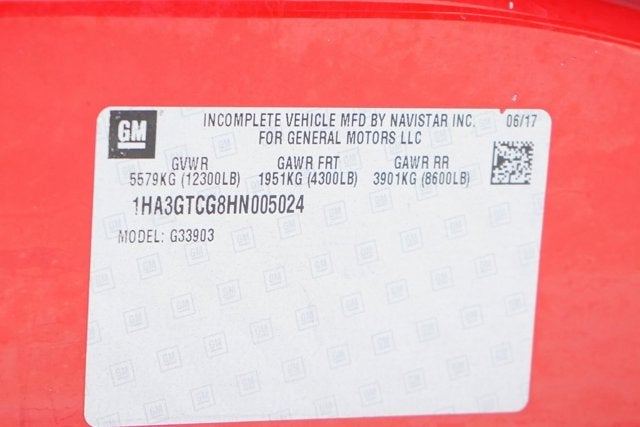

• GVWR, 12,300 lbs. (5579 kg)
• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and the correct child restraints. NOTE: Passenger seat is removed when ordered. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Included with (ZX2) driver and front passenger high-back bucket seats. Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime running lamps

Bluetooth® FOR PHONE

• personal cell phone connectivity to vehicle audio system (subscription to OnStar services not required for operation).

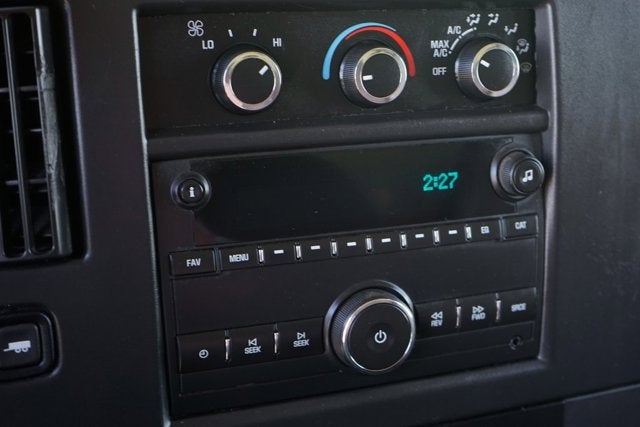

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

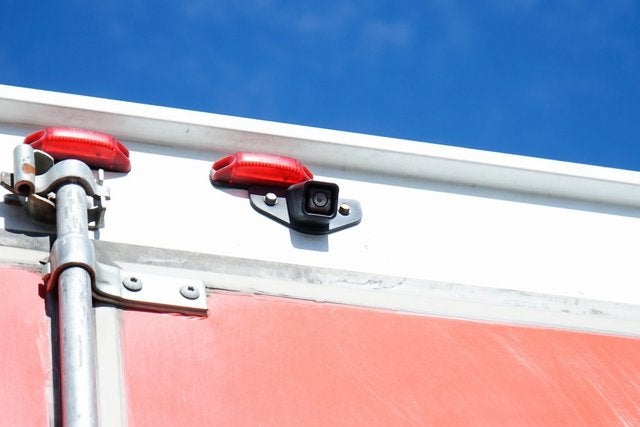

REAR VISION CAMERA

• camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

BODY, STANDARD

• (STD)

BACKUP ALARM, 97 DECIBELS

• Alarm shipped loose to be installed by upfitter

GVWR, 12,300 LBS. (5579 KG)

• (STD)

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

SAFETY BELTS, ORANGE

• provides high visibility front Orange safety belts in lieu of Dark Pewter

CONSOLE, ENGINE COVER

• with swing-out storage bin

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

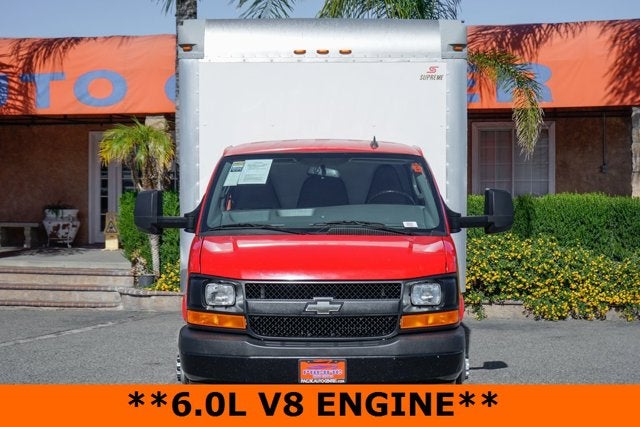

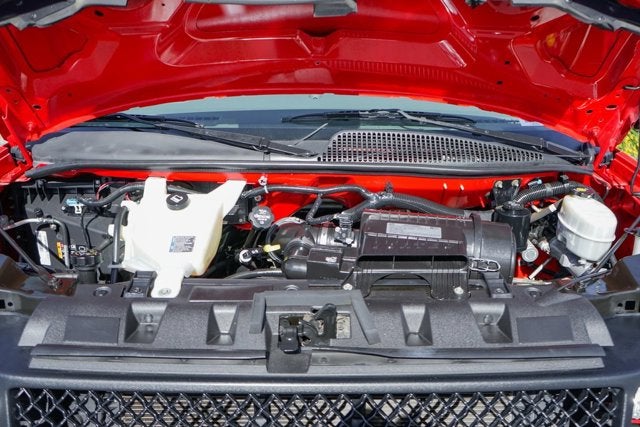

ENGINE, VORTEC 6.0L V8

• (342 hp [255.0 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) (Includes external oil cooler.

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

• MIRROR INSIDE REARVIEW
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system (subscription to OnStar services not required for operation).
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• REAR VISION CAMERA camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• REAR AXLE 3.73 RATIO
• CRUISE CONTROL
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• BODY STANDARD (STD)
• BACKUP ALARM 97 DECIBELS Alarm shipped loose to be installed by upfitter
• GVWR 12 300 LBS. (5579 KG) (STD)
• OnStar Equipped (subscription required)
• OnStar Equipped (subscription required)
• SAFETY BELTS ORANGE provides high visibility front Orange safety belts in lieu of Dark Pewter
• STEERING WHEEL LEATHER WRAPPED
• CONSOLE ENGINE COVER with swing-out storage bin
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• PAINT SOLID

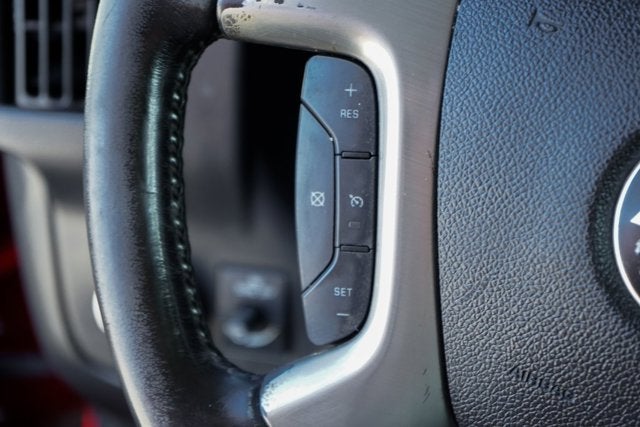

• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• RED HOT
• ENGINE VORTEC 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) (Includes external oil cooler.
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• Convenience Package

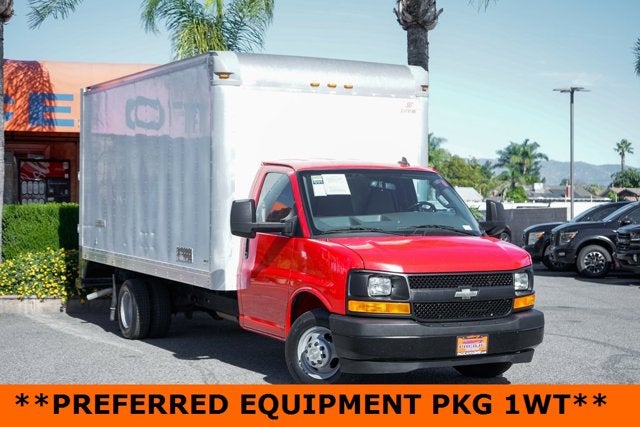

• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• Radio: AM/FM Stereo w/MP3 Player & Digital Clock
• Air Conditioning
• Bluetooth® For Phone
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Occupant sensing airbag
• Passenger cancellable airbag
• Rear Vision Camera

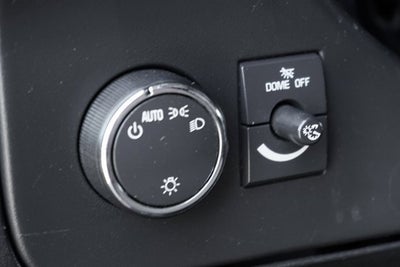

• Delay-off headlights

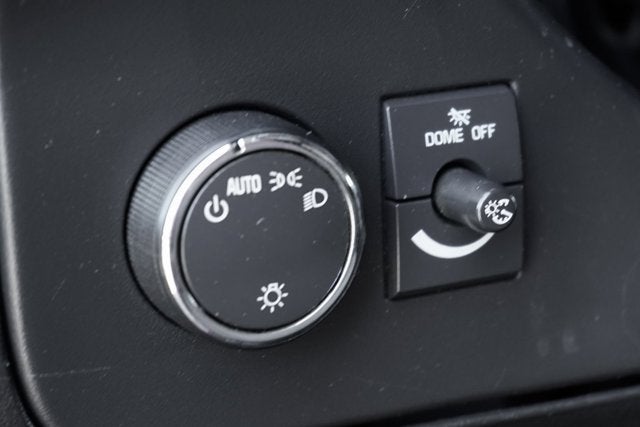

• Fully automatic headlights
• Cruise Control
• Dual rear wheels
• Heavy-Duty Locking Rear Differential
• Body Soft-Mount Donut & Bolt
• Dual Rear Wheel Configuration
• Wide-Stance Sail Panel Mounted Outside Mirrors

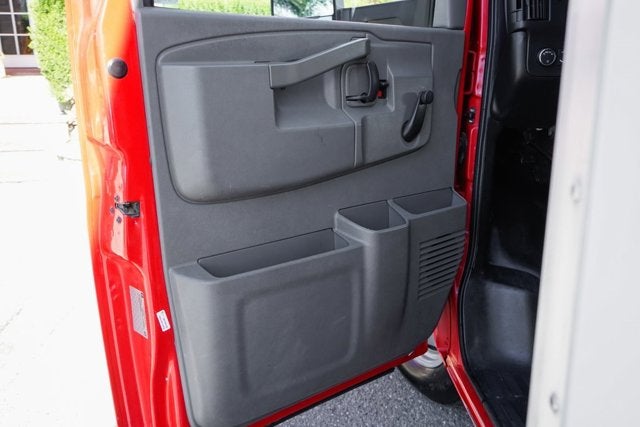

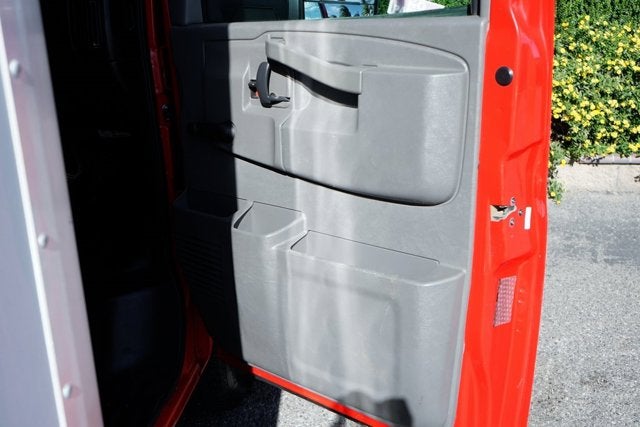

• Driver door bin

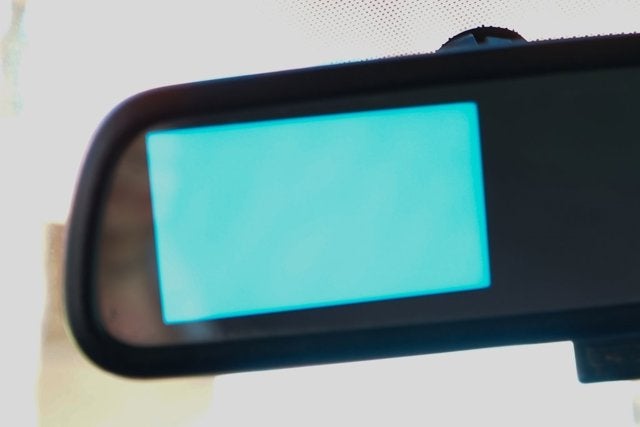

• Inside Rearview Mirror w/Rr Vision Camera Display

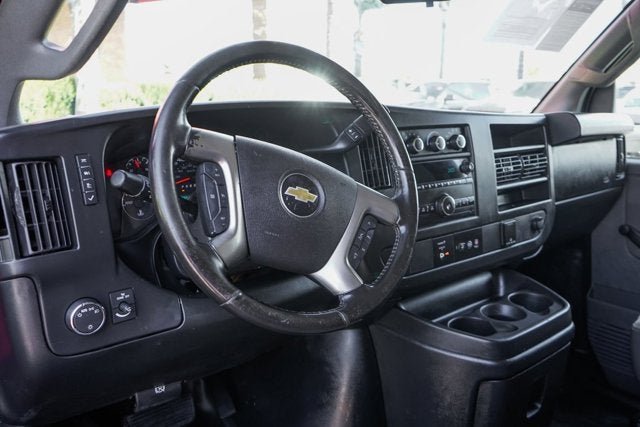

• Leather-Wrapped Steering Wheel
• OnStar 3 Month Guidance Plan
• OnStar 4G LTE
• OnStar Basic Plan For 5 Years
• Passenger seat mounted armrest

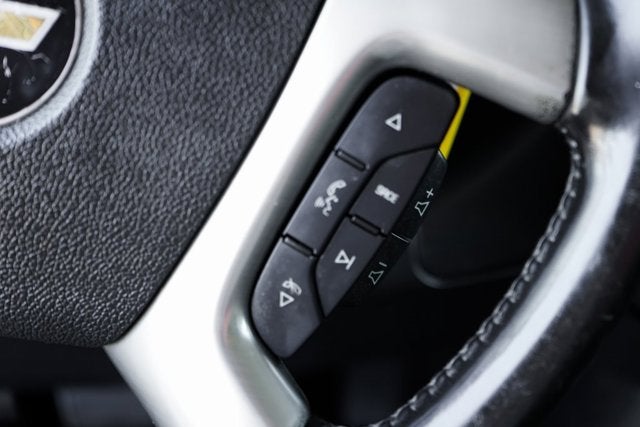

• Steering Wheel Mounted Audio Controls
• Tachometer
• Tilt Steering Wheel
• Trip computer
• Voltmeter

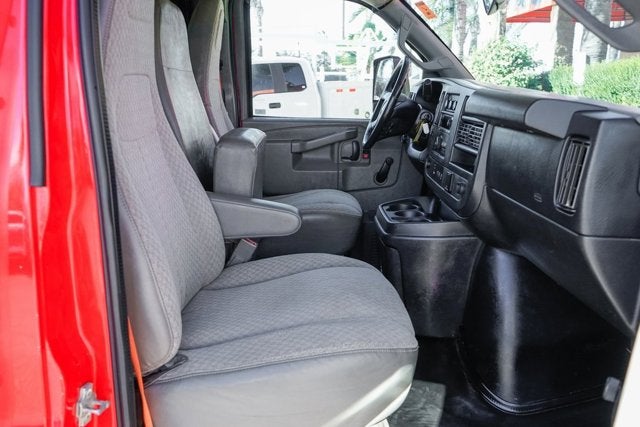

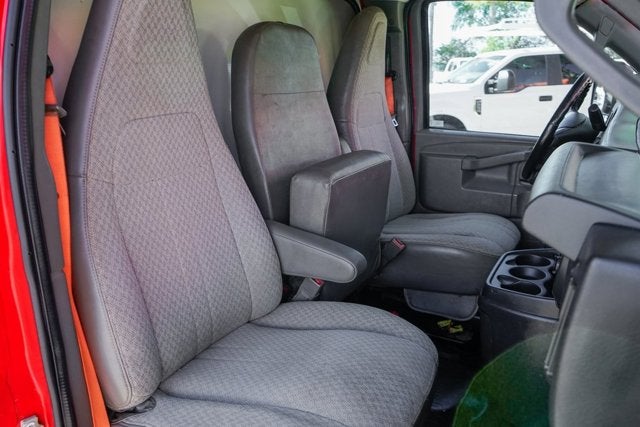

• Driver & Front Passenger High-Back Bucket Seats
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim
• Engine Cover Console w/Swing-Out Storage Bin
• Passenger door bin

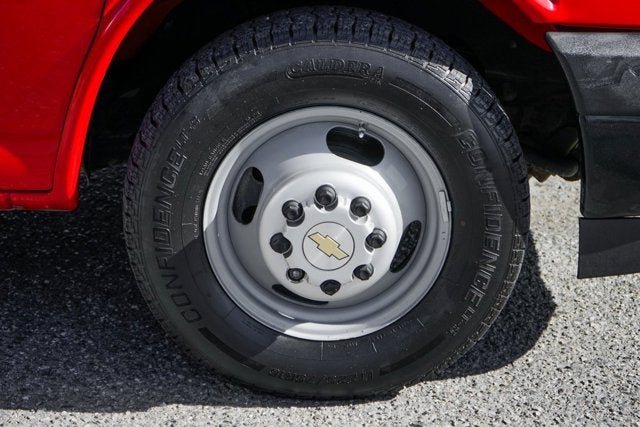

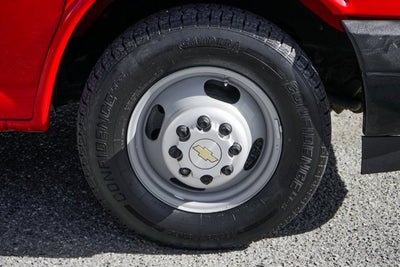

• Wheels: 16 x 6.5 8-Lug Painted Steel HD (6)
• Variably intermittent wipers
• 3.73 Rear Axle Ratio
• **RWD**
• **STANDARD CAB**
• **LONG BED**
• **DUALLY**

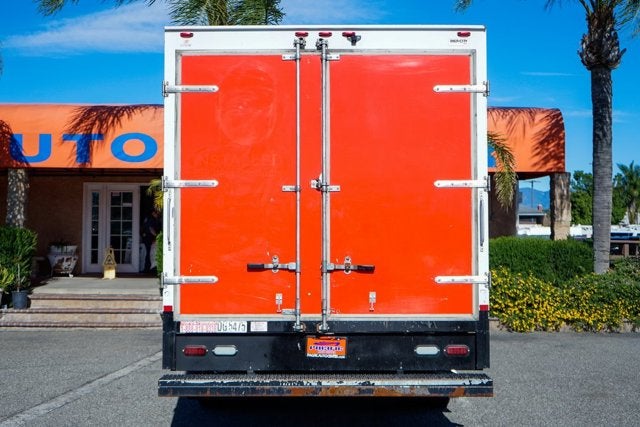

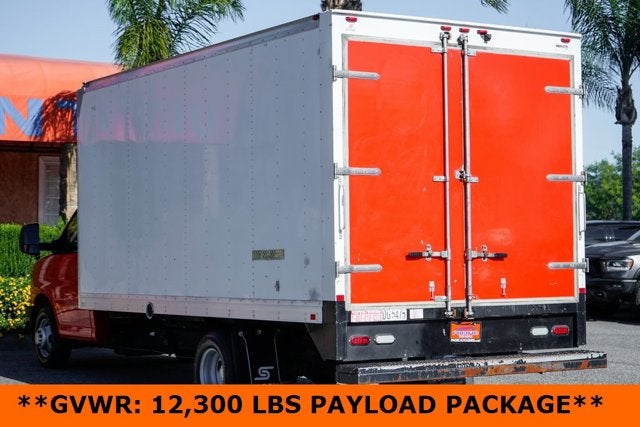

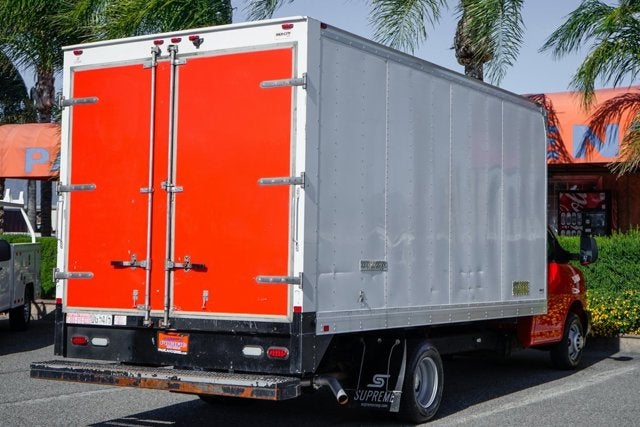

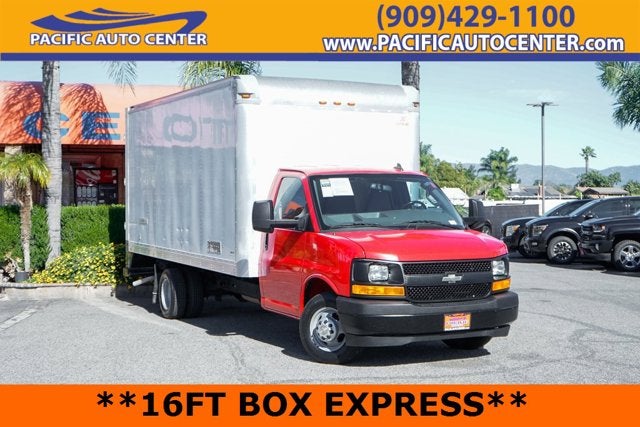

• **BOX TRUCK**
• **BACK-UP CAMERA**

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: N/A
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 118.00
• Cab to End of Frame (in): 186.50
• Frame Width, Rear (in): 34.80
• Front Bumper to Back of Cab (in): 98.70
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Ground to Top of Frame (in): 23.31
• Height, Overall (in): 82.90
• Length, Overall w/o rear bumper (in): 284.80
• Overhang, Front (in): 39.70
• Wheelbase (in): 177.00
• Width, Max w/o mirrors (in): 94.53
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 177.0" WB

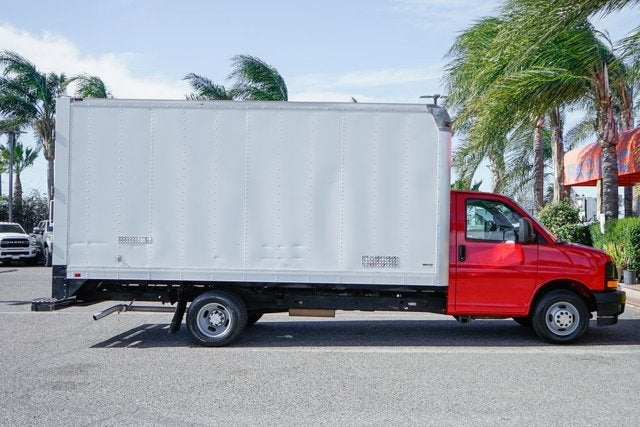

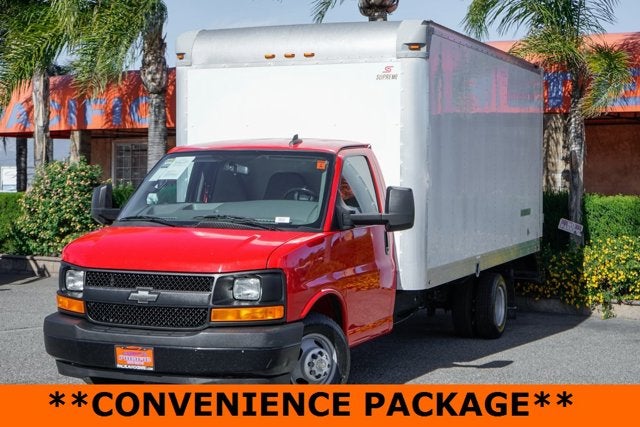

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 8600
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2335
• Front Tire Order Code: XHF

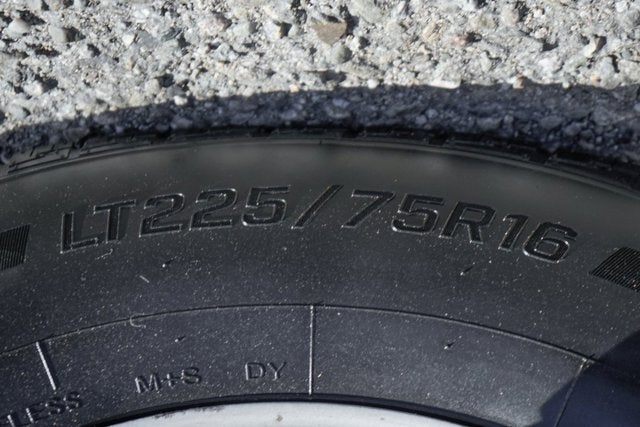

• Front Tire Size: LT225/75R16E
• Rear Tire Capacity (lbs): 2150
• Rear Tire Order Code: YHF
• Rear Tire Size: LT225/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 3146
• Curb Weight - Rear (lbs): 1883
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 8600
• Gross Vehicle Weight Rating Cap (lbs): 12300

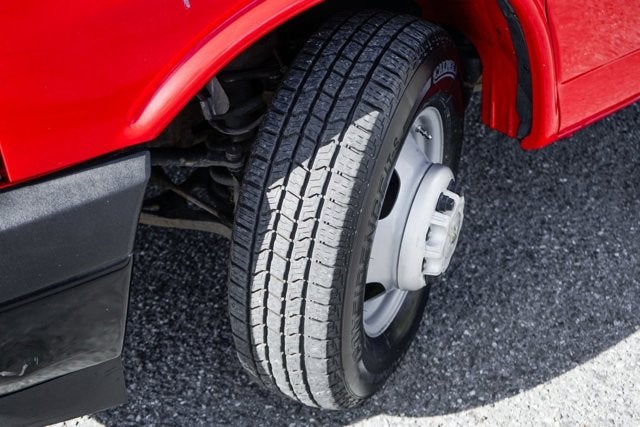

• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
