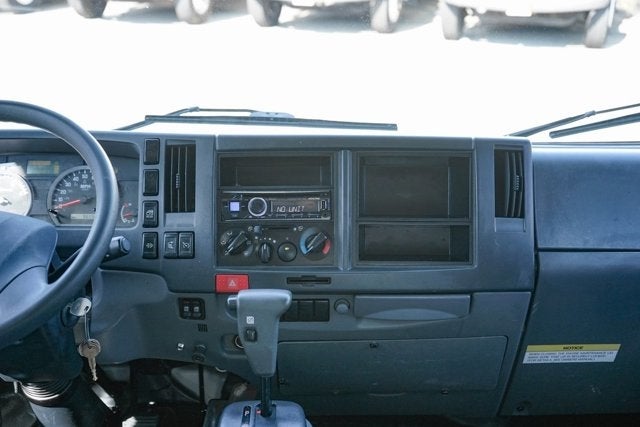

• AM/FM/CD stereo radio
• Cruise control
• Dome light
• Door/seatback map pockets
• Front floor mats
• Overhead storage shelf

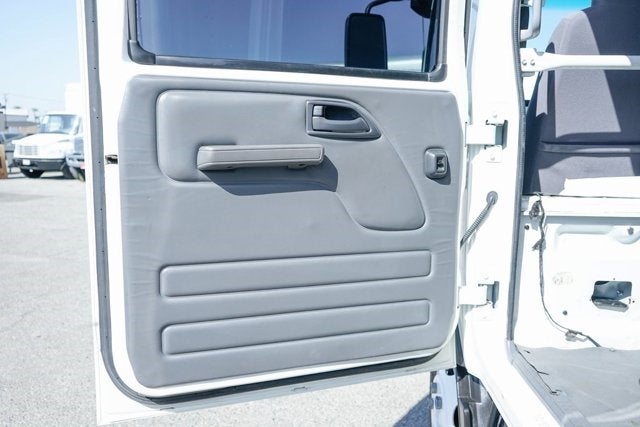

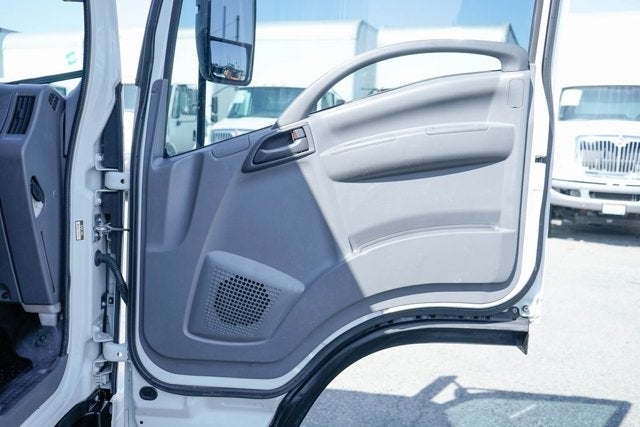

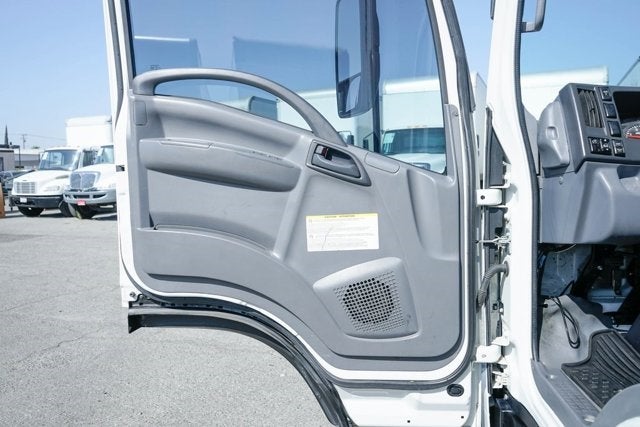

• Power windows & door locks

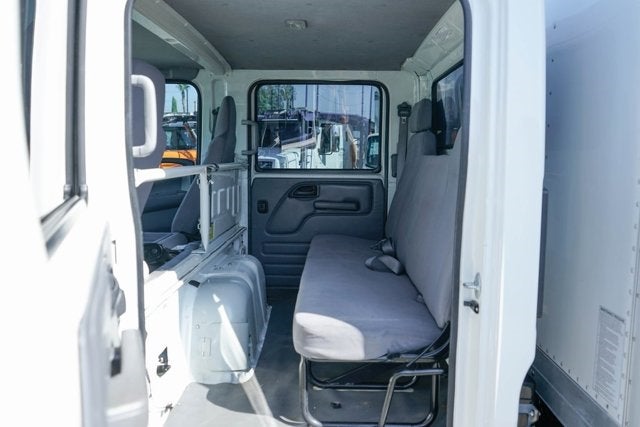

• Seats, Passenger, Four passenger rear bench seat

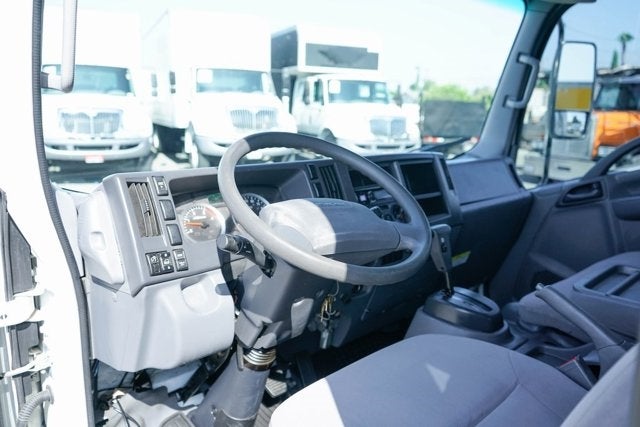

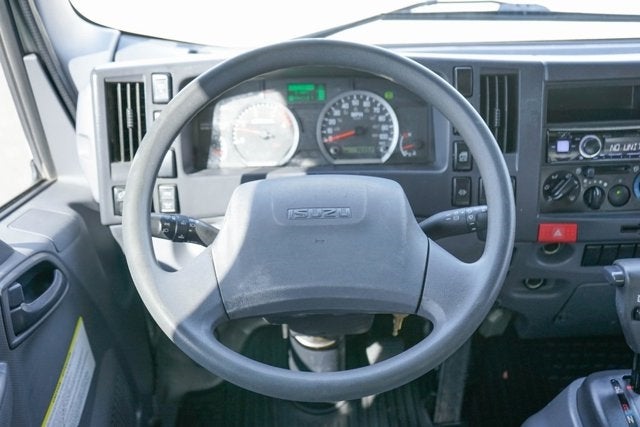

• Tilt and telescoping steering column

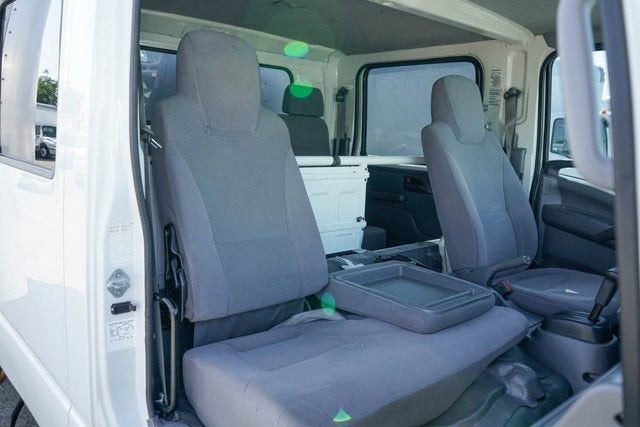

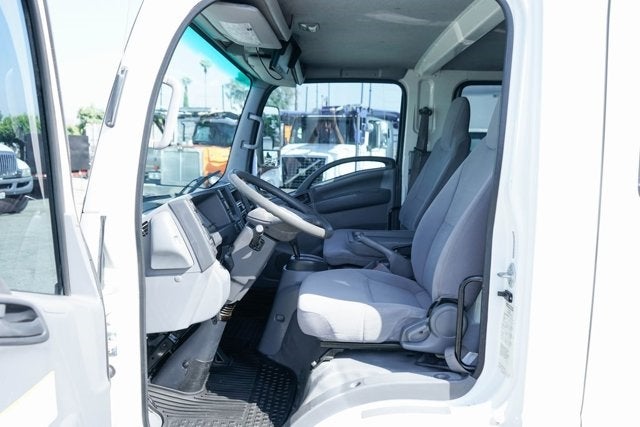

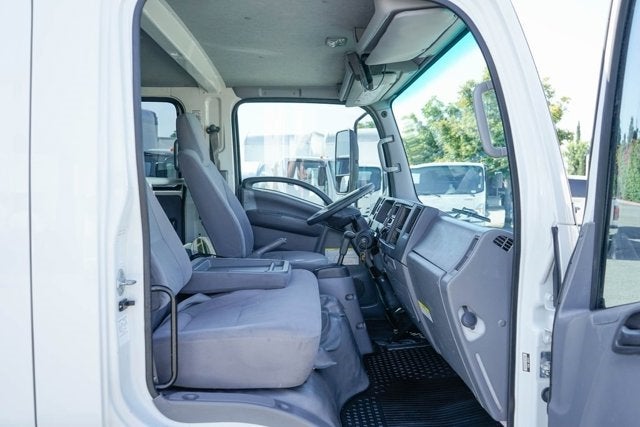

• Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seat

• Air Cleaner, 11 in. diameter Dry Paper single element. (Donaldson brand) Air cleaner canister standard with air restriction gauge. The air cleaner snorkel is incorporated into the back of the cab and incorporates a resonator.
• Alternator, 140 AMP with integral regulator
• Battery, Dual 12-V maintenance free, 750 CCA each
• Exhaust Brake, Butterfly valve type
• Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
• Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
• Front GAWR, 6830 lbs (3098 kg) capacity
• Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.

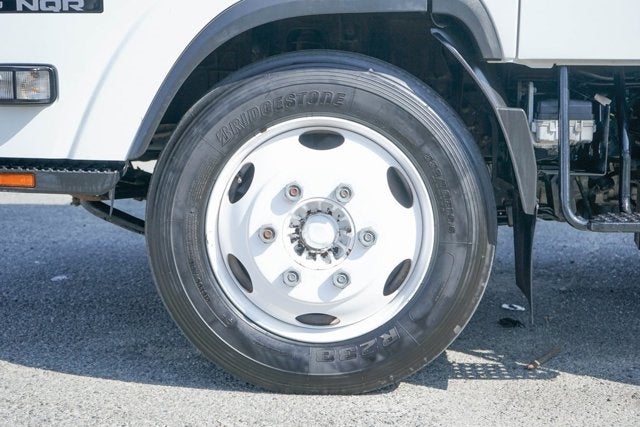

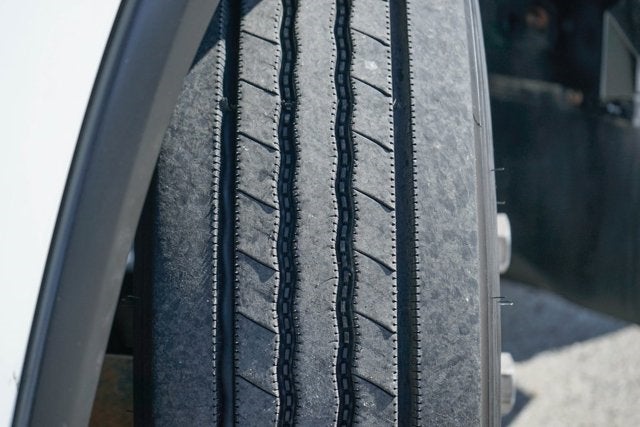

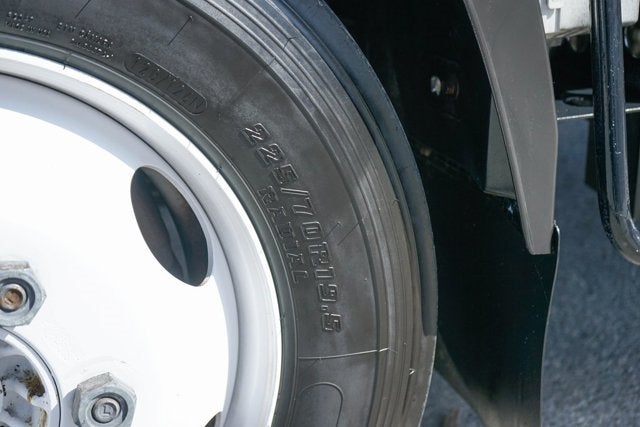

• Front Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
• Front Wheels, 19.5" x 6", 6-hole disc, painted white
• Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
• GVWR, 17950 lbs (8142 kg) capacity
• Rear Axle Ratio, 5.125:1
• Rear Axle, Full-floating single-speed, 14550 lbs. (6600 kg) capacity with oil lubricated rear wheel bearings
• Rear GAWR, 12980 lbs (5888 kg) capacity
• Rear Suspension, 14550 lbs. (6600 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.

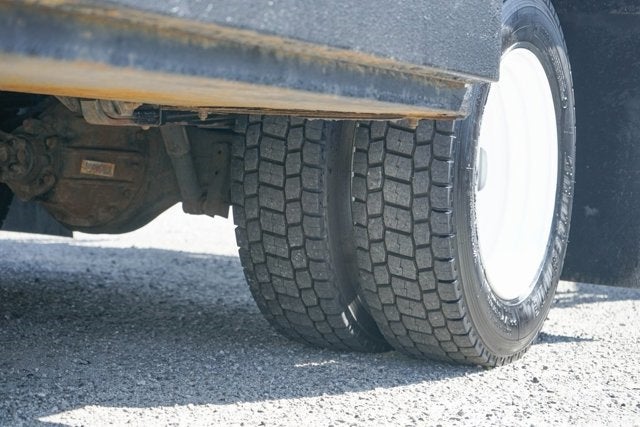

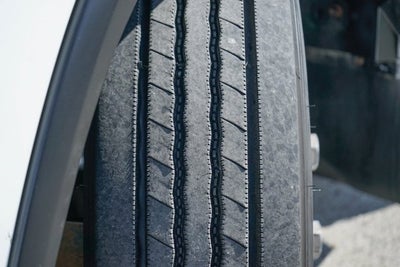

• Rear Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
• Rear wheel drive
• Rear Wheels, 19.5" x 6", 6-hole disc, painted white
• Truck Application
• Wheelbase, 150" (381.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 11.89 cu.in. and RBM 523,160 lb-ft/in per rail.

• 4 channel anti-lock brake system
• Daytime running lamps
• EBD (Electronic Brake Distribution)

4HK1-TC, DIESEL ENGINE 317 CID (5.19L), 215 HP AT 2550 RPM: 452 FT-LB GROSS TORQUE AT 1850 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, OVERHEAD CAM, TURBOCHARGED, INTER-COOLED, WATER COOLED EGR VALVE, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.

• Oil level check switch and light. Engine Warning system with audible warning for low oil pressure
• high coolant temperature
• and low coolant level. Rear engine cover. (STD)

• **CLEAN CARFAX**
• **RWD**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

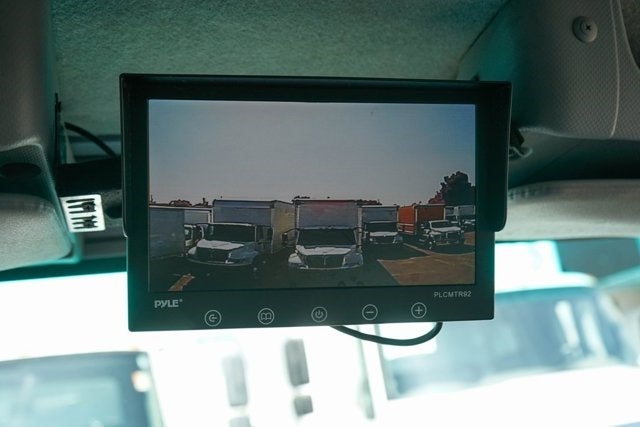

• **BACK-UP CAMERA**

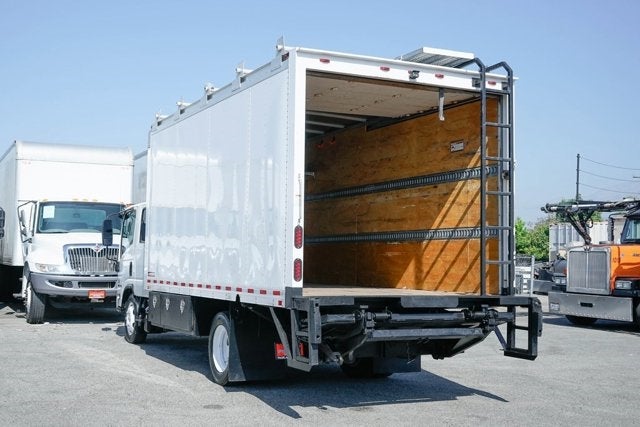

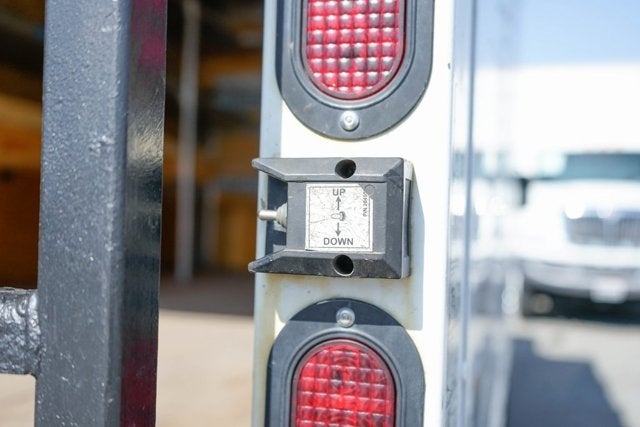

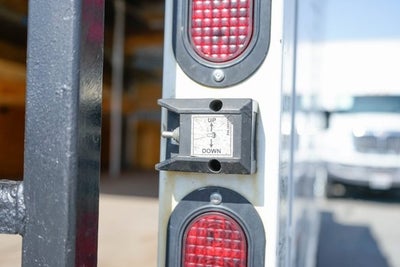

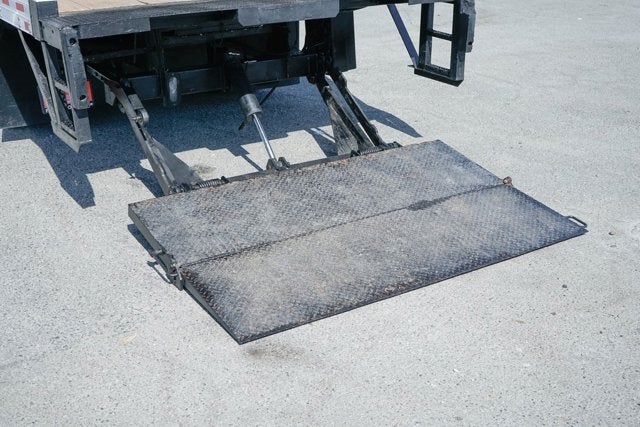

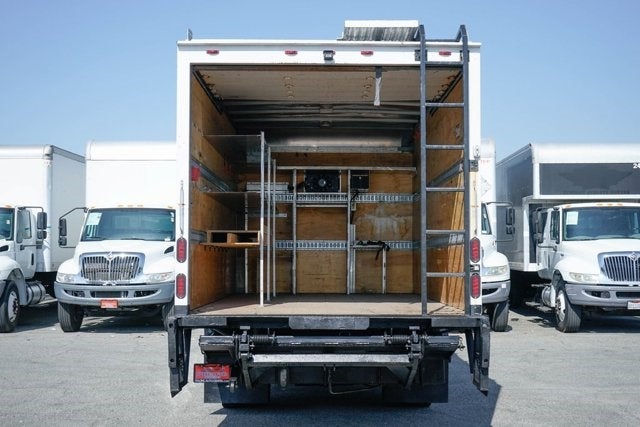

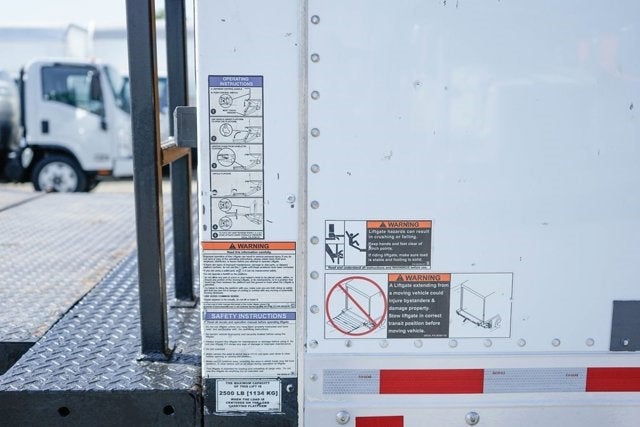

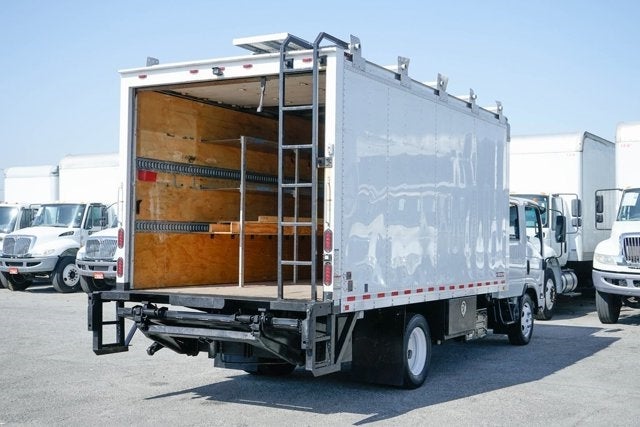

• **LIFTGATE**

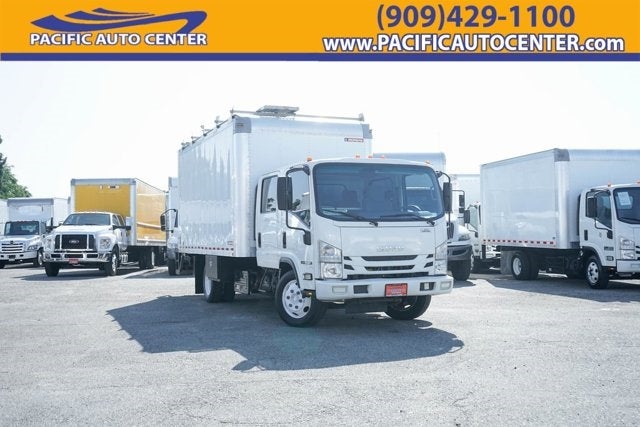

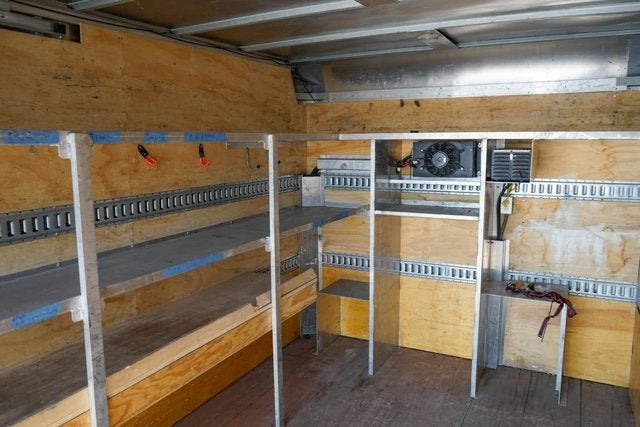

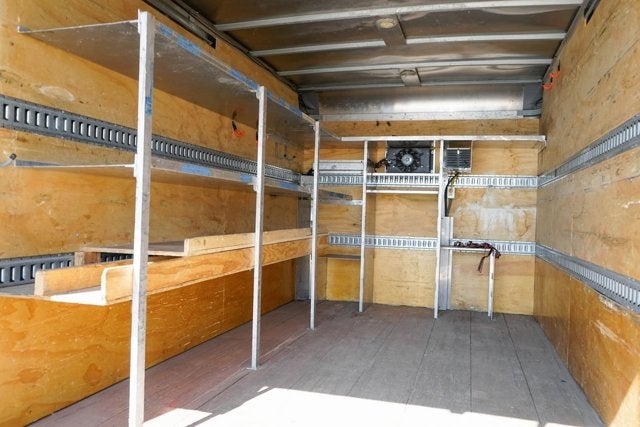

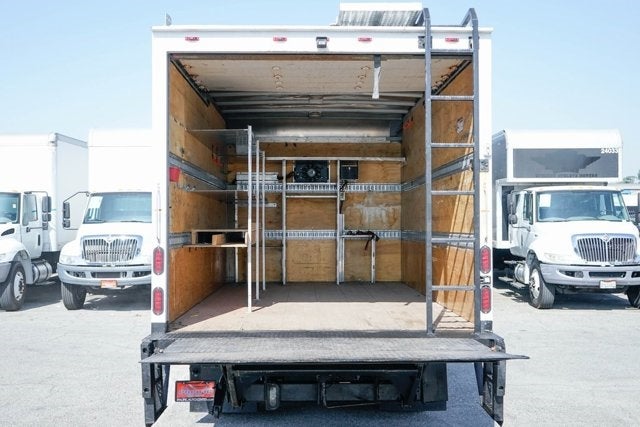

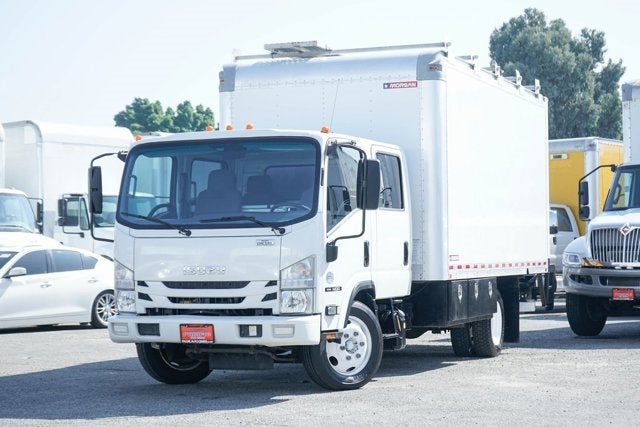

• **BOX TRUCK**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3 x 0.5
• Rear Drum Diam x Width (in): 12.6 x 4.72
• Cooling System
• Total Cooling System Capacity (qts): 19.0
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 140
• Maximum Alternator Watts: 1680
• Exterior Dimensions
• Body Length Default Value (ft): 12
• Cab to Axle (in): 88.5
• Cab to End of Frame (in): 131.6
• Frame Width, Rear (in): 33.5
• Front Bumper to Back of Cab (in): 109.9
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Ground to Top of Frame (in): 33.0
• Height, Overall (in): 92.4
• Length, Overall w/o rear bumper (in): 241.5
• Overhang, Front (in): 48.4
• Overhang, Rear w/o bumper (in): 43.1
• Wheelbase (in): 150.0
• Width, Max w/o mirrors (in): 81.3
• Frame
• Frame RBM (N/A): 523160
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.5 X 2.76 X 0.42
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 11.89
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30
• Fuel Tank Location: In frame rail
• Interior Dimensions
• Front Head Room (in): 38.4
• Front Hip Room (in): 67.7
• Front Leg Room (in): 29.5
• Front Shoulder Room (in): 70.7
• Passenger Capacity: 7
• Second Head Room (in): 37.3
• Second Hip Room (in): 69.3
• Second Leg Room (in): 22.3
• Second Shoulder Room (in): 69.3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 71
• Static Loaded Radius (in): 15.0
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Type: Power
• Turning Diameter - Curb to Curb (ft): 45.3
• Turning Diameter - Wall to Wall (ft): 50.2
• Summary
• Body Style: Tilt Chassis Cab

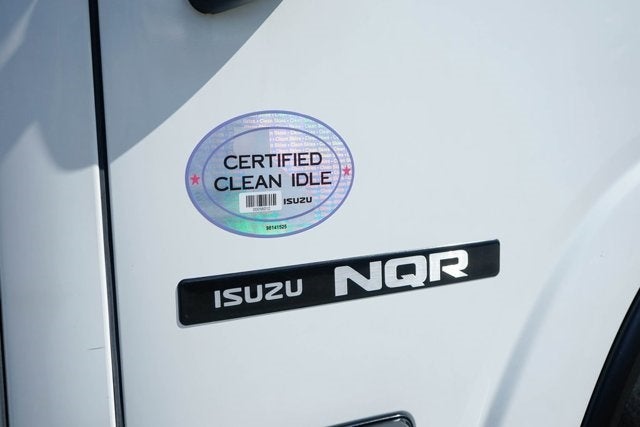

• Vehicle Name: Isuzu NQR DSL CREW
• Suspension
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 14550
• Axle Ratio (:1) - Rear: 5.125
• Axle Type - Front: Reverse I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42
• Shock Absorber Diameter - Rear (mm): 42
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 14550
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 6900
• Front Tire Order Code: I5H/I69

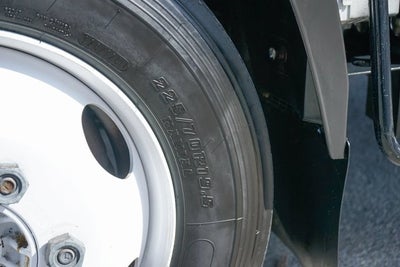

• Front Tire Size: 225/70R19.5F
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 12980
• Rear Tire Order Code: I5H/I34
• Rear Tire Size: 225/70R19.5F
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 4640
• Curb Weight - Rear (lbs): 2562
• Gross Axle Wt Rating - Front (lbs): 6830
• Gross Axle Wt Rating - Rear (lbs): 12980
• Gross Combined Wt Rating (lbs): 23950
• Gross Vehicle Weight Rating Cap (lbs): 17950
• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127.0
• Front Wheel Size (in): 19.5 x 6
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127.0
• Rear Wheel Size (in): 19.5 x 6
