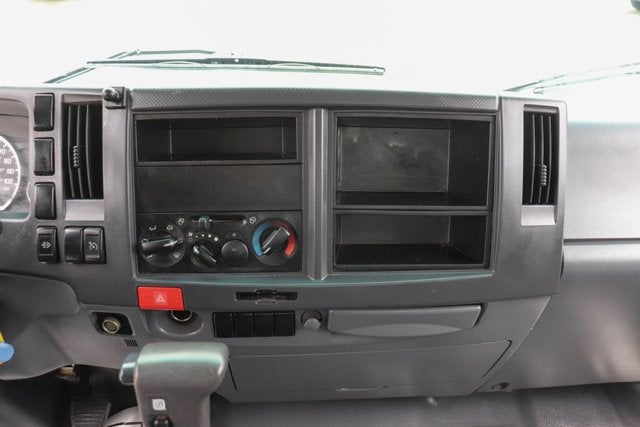

• AM/FM/CD stereo radio
• Cruise control
• Floor mats

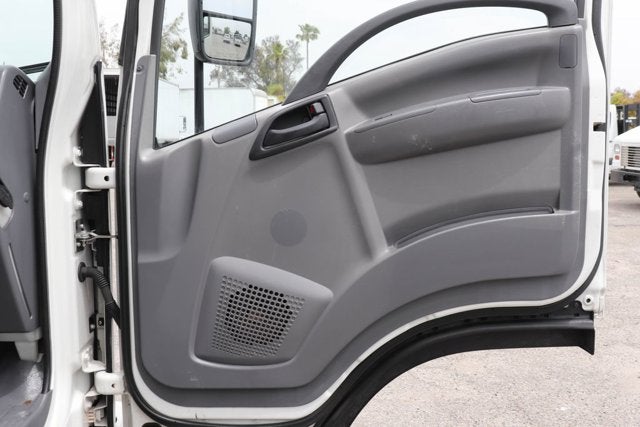

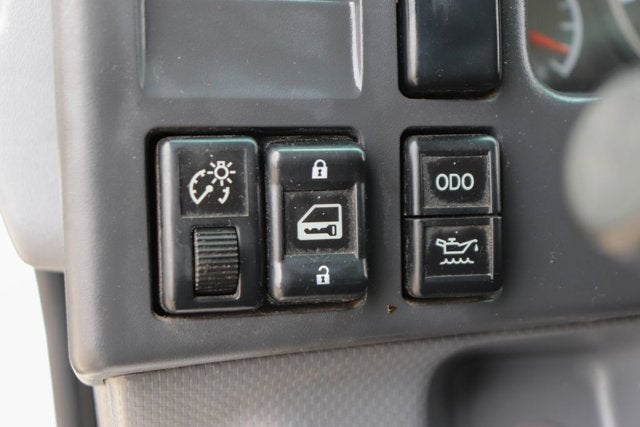

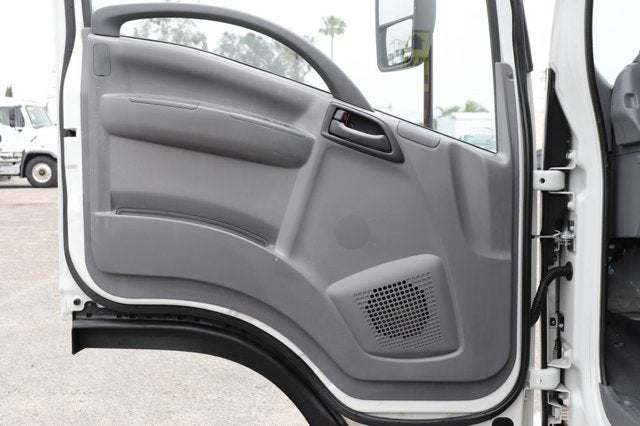

• Power windows & door locks

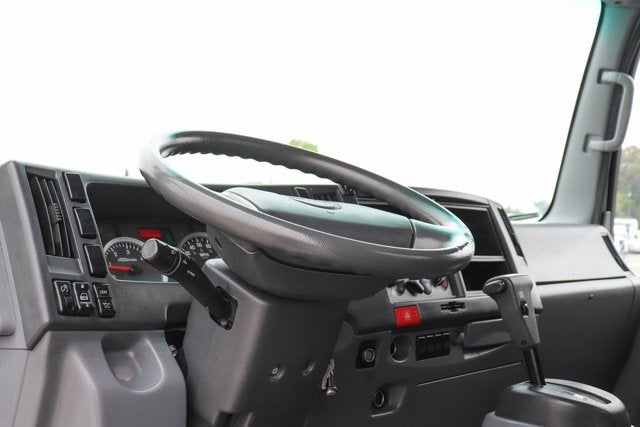

• Tilt and telescoping steering column

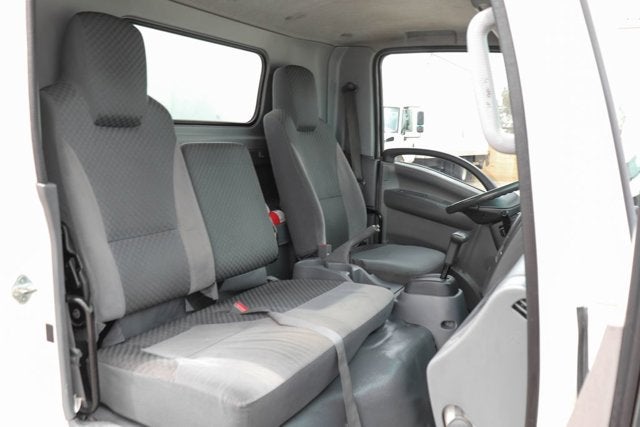

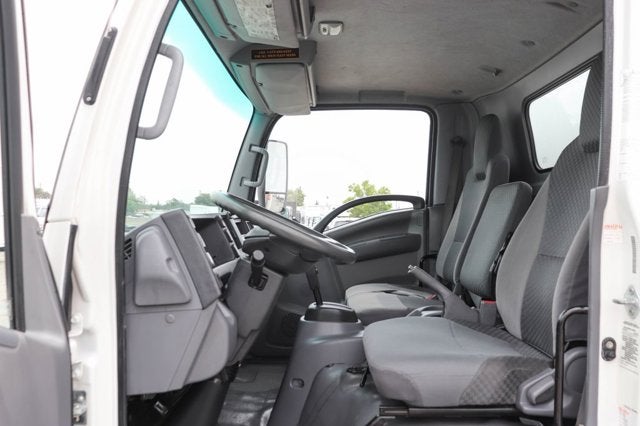

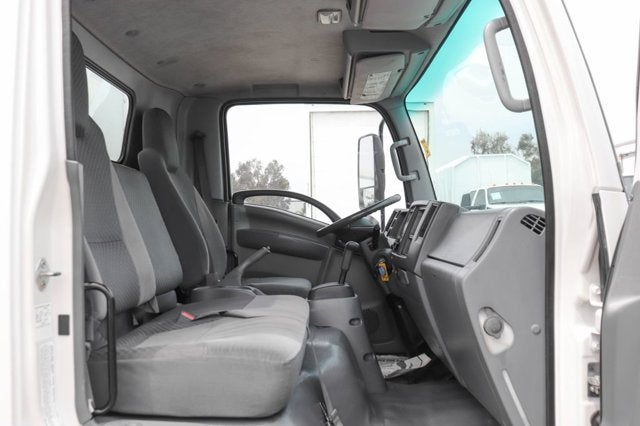

• Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat

• Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
• Alternator, 110 AMP with integral regulator
• Battery, Dual 12-V maintenance free, 750 CCA each

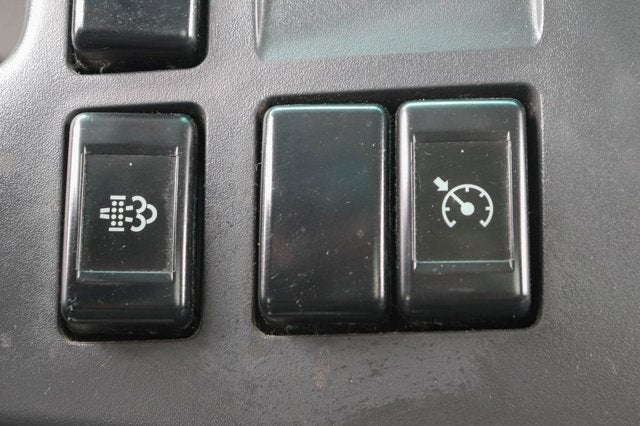

• Exhaust Brake, vacuum operated
• Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
• Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
• Front GAWR, 5360 lbs (2431 kg) capacity
• Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.

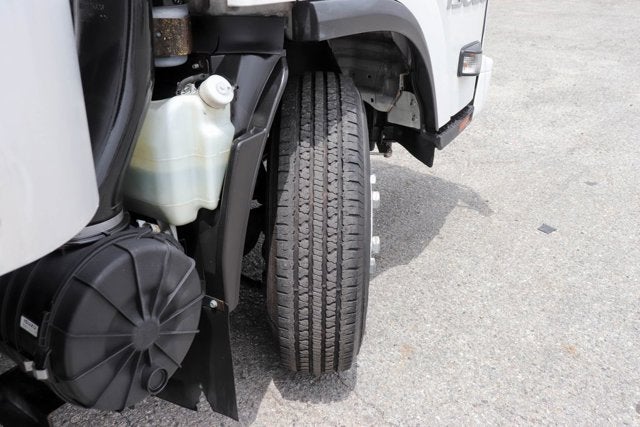

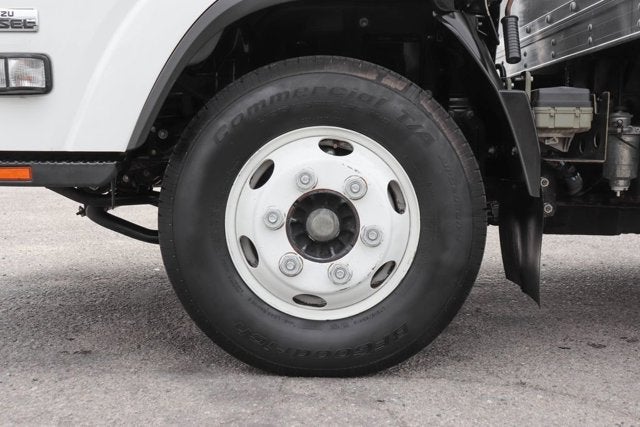

• Front tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial, all season
• Front Wheels, 16" x 6", 6-hole disc, painted white

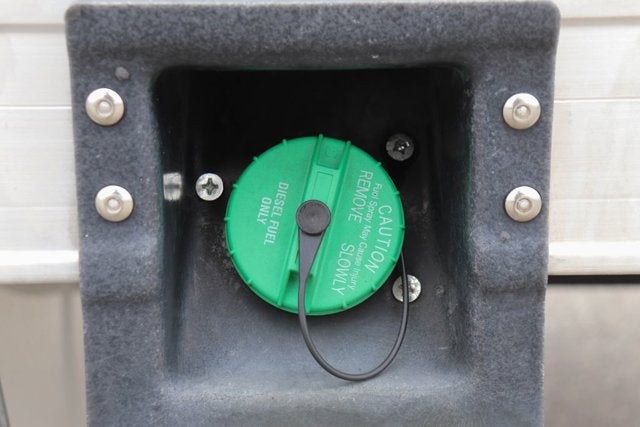

• Fuel Tank, 25-gallon (94.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.

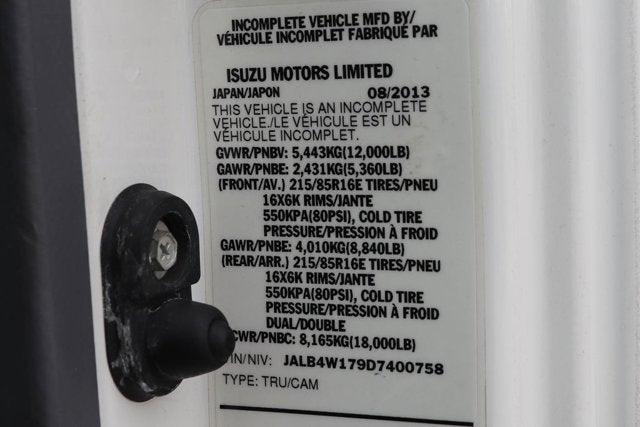

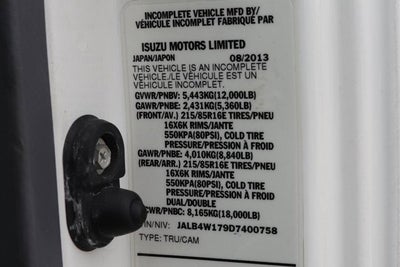

• GVWR, 12000 lbs (5443 kg) capacity
• Rear Axle Ratio, 5.125:1
• Rear Axle, R050, full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
• Rear GAWR, 8840 lbs capacity
• Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.

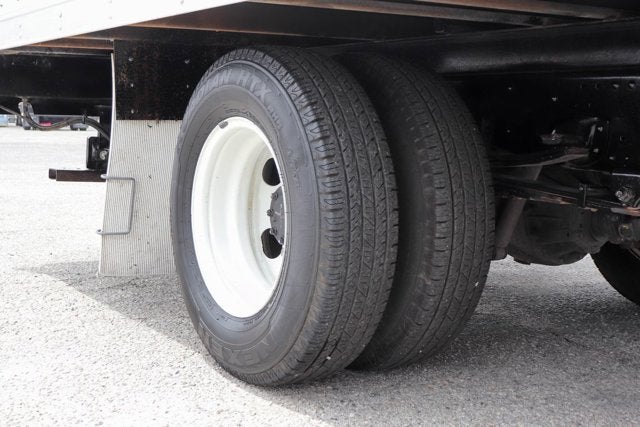

• Rear tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial, all season
• Rear wheel drive
• Rear Wheels, 16" x 6", 6-hole disc, painted white
• Truck Application
• Wheelbase, 110" (279.4 cm), includes ladder type channel frame. Full C section frame flaired forward of 3rd crossmember. 29.5 inches (74.9 cm) wide. Yield strength 44,000 psi; section modulus 6.07 cu.in. and RBM 267,080 lb/ft/in per rail

• 4 channel anti-lock brake system
• Daytime Running Lamps
• EBD (Electronic Brake Distribution)

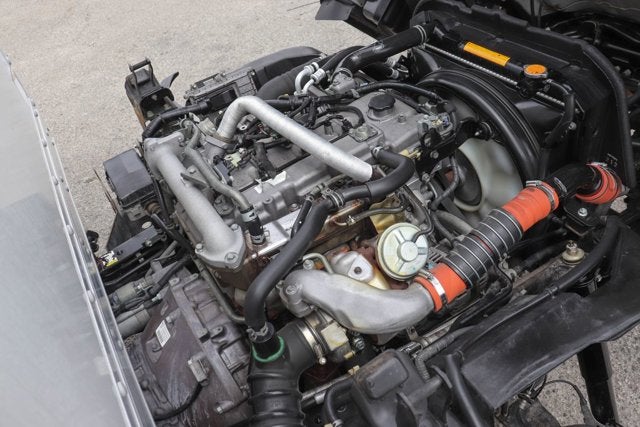

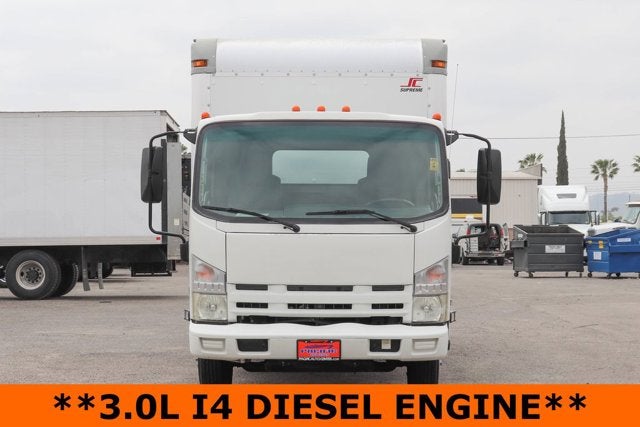

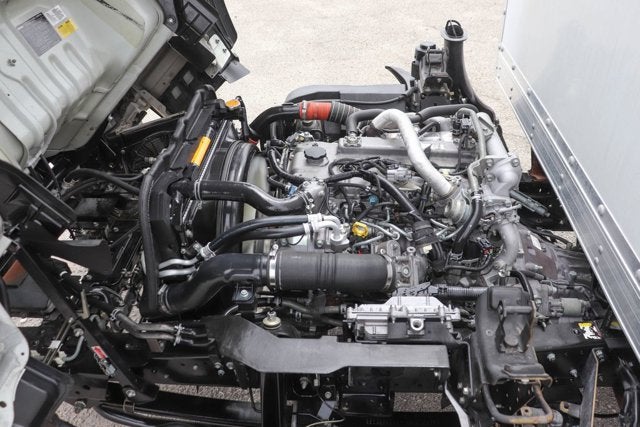

4JJ1-TC , DIESEL ENGINE 183 CID (3.0L), 150 HP AT 2800 RPM, 282 LB FT GROSS TORQUE AT 1600-2800 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, CHAIN-DRIVEN DUAL OVERHEAD CAMSHAFT VALVE TRAIN, A CAST IRON CYLINDER BLOCK, AND A CAST ALUMINUM CYLINDER HEAD. TURBOCHARGED, INTER-COOLED, WATER COOLED EGR, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.

• Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected. (STD)

• **CLEAN CARFAX**
• **RWD**
• **STANDARD CAB**
• **LONG BED**
• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

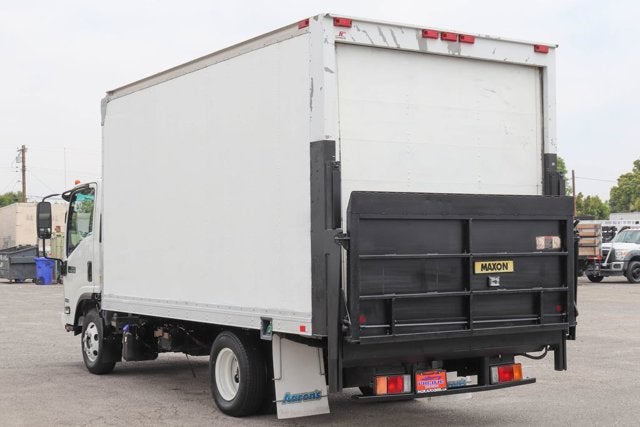

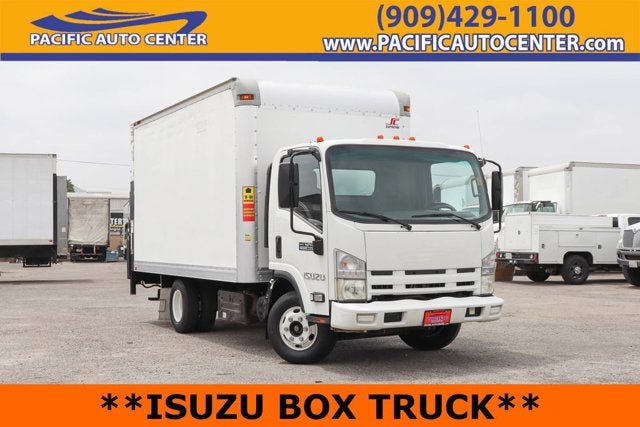

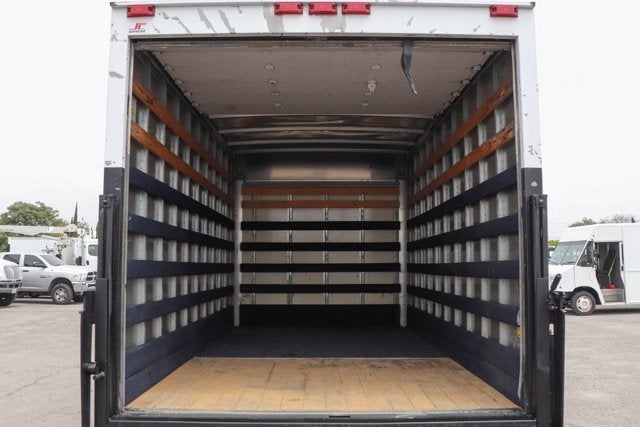

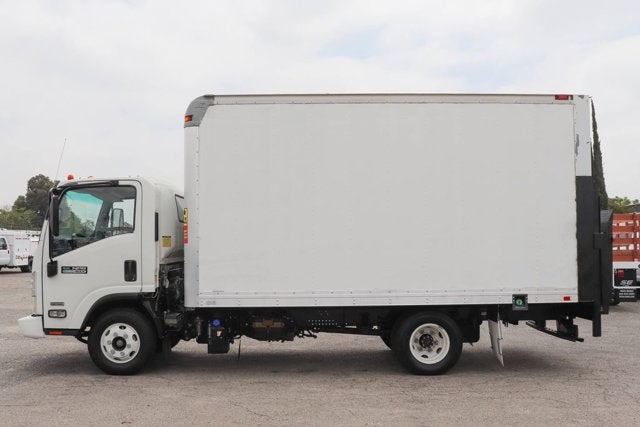

• **BOX TRUCK**

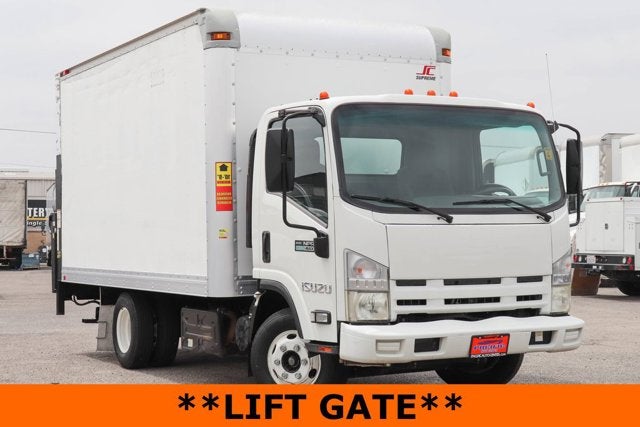

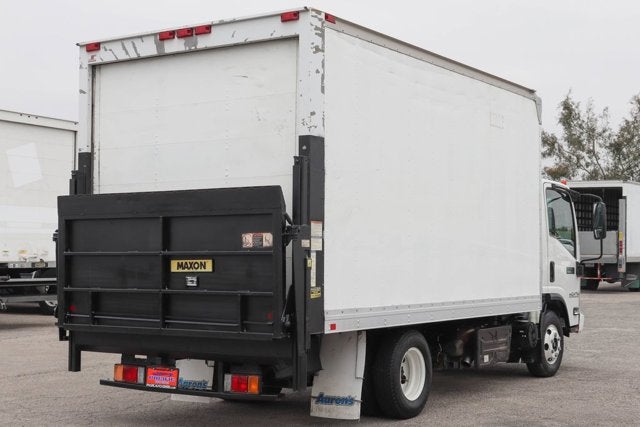

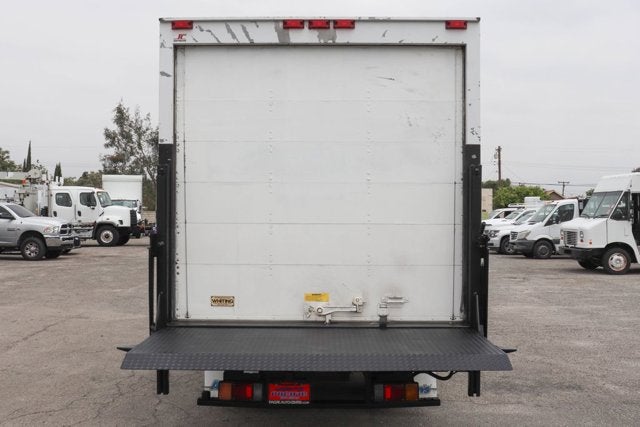

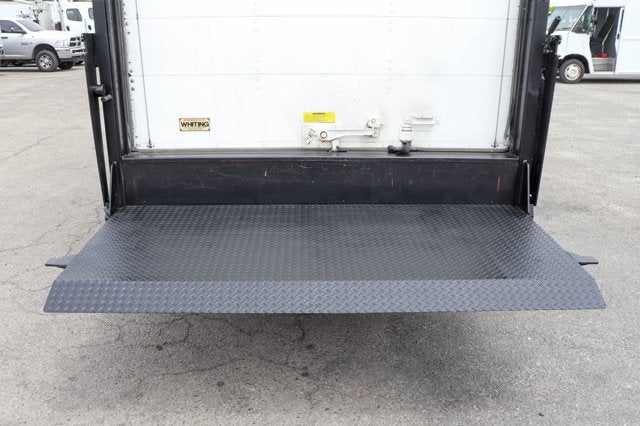

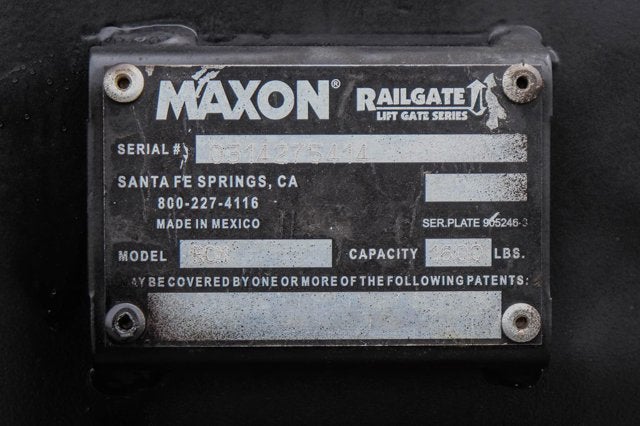

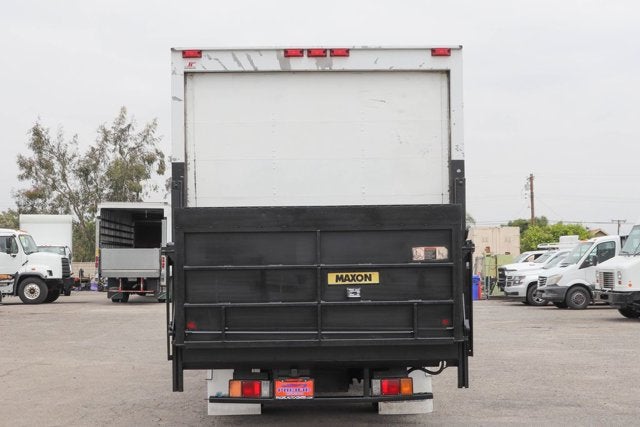

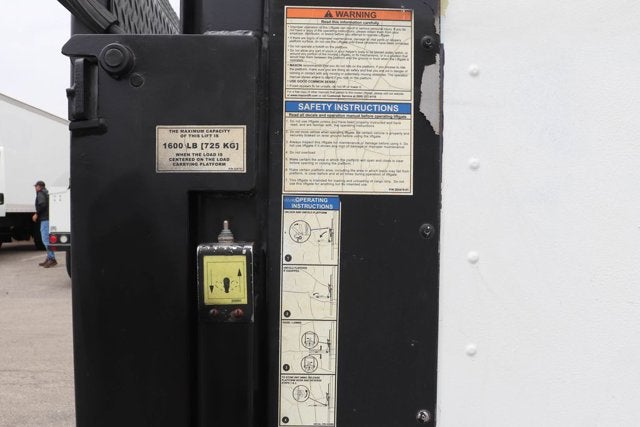

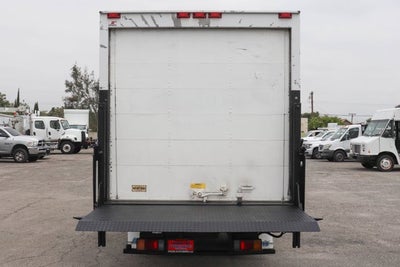

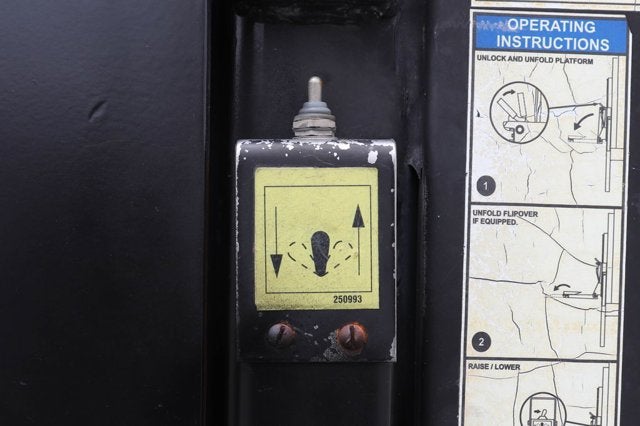

• **LIFTGATE**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x
• Rear Drum Diam x Width (in): 12.6 x 2.95
• Cooling System
• Total Cooling System Capacity (qts): 12.6
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1320
• Exterior Dimensions
• Body Length Default Value (ft): 12
• Cab to Axle (in): 87.6
• Cab to End of Frame (in): 129.8
• Frame Width, Rear (in): 29.5
• Front Bumper to Back of Cab (in): 70.7
• Ground to Top of Frame (in): 31.8
• Height, Overall (in): 90.8
• Length, Overall w/o rear bumper (in): 200.6
• Wheelbase (in): 110.0
• Frame
• Frame RBM (N/A): 267080
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.43 X 2.76 X 0.20
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 6.07
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Fuel Tank Location: In frame rail
• Interior Dimensions
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 74
• Static Loaded Radius (in): 14.3
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Type: Power
• Turning Diameter - Curb to Curb (ft): 32.2
• Turning Diameter - Wall to Wall (ft): 37.4
• Summary
• Body Style: Tilt Chassis Cab

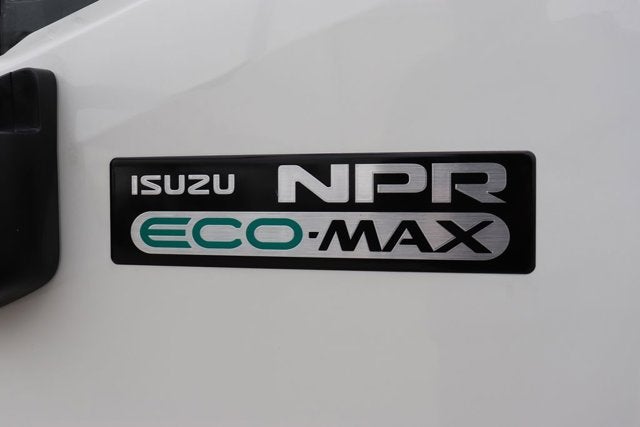

• Vehicle Name: Isuzu NPR DSL REG AT ECO-MAX
• Suspension
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 5.125
• Axle Type - Front: Reverse I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42
• Shock Absorber Diameter - Rear (mm): 42
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 9880
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 5360
• Front Tire Order Code: I53/I69

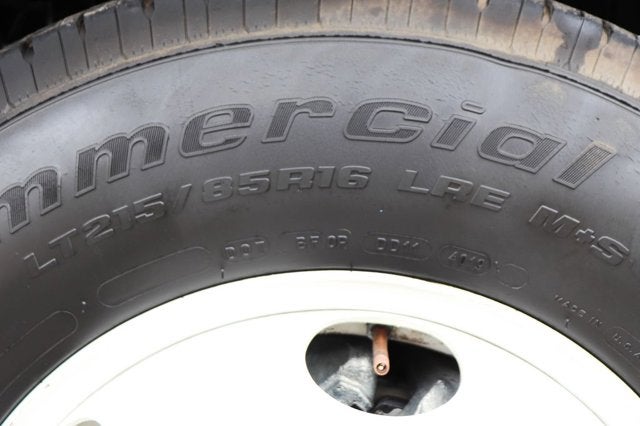

• Front Tire Size: 215/85R16E
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 9880
• Rear Tire Order Code: I53/I34
• Rear Tire Size: 215/85R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 3498
• Curb Weight - Rear (lbs): 1835
• Gross Axle Wt Rating - Front (lbs): 5360
• Gross Axle Wt Rating - Rear (lbs): 8840
• Gross Vehicle Weight Rating Cap (lbs): 12000
• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127.0
• Front Wheel Size (in): 16 x 6
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127.0
• Rear Wheel Size (in): 16 x 6
