• (2) aux pwr points

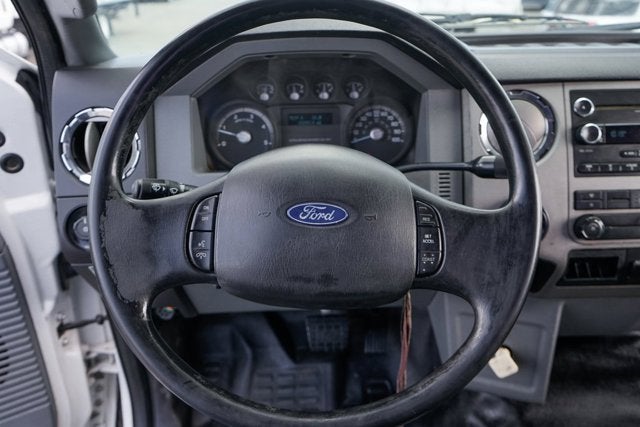

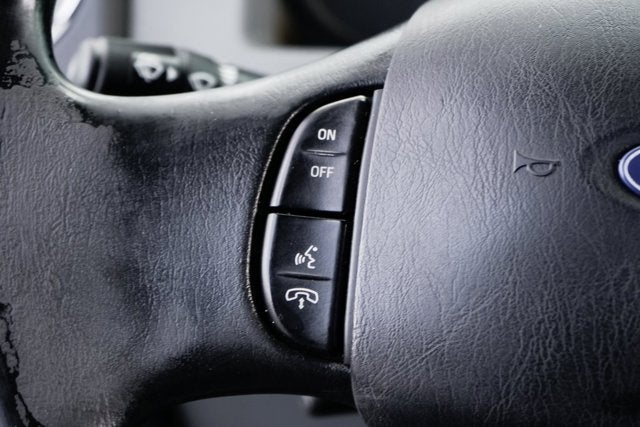

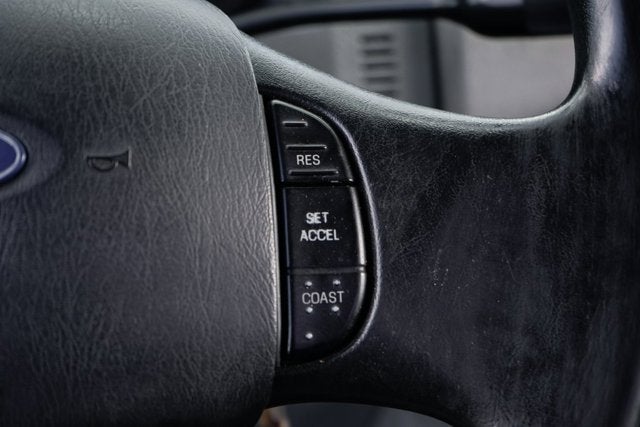

• Black two-spoke PVC steering wheel -inc: integral cruise control switches
• Black vinyl full floor covering
• Cigar lighter & ash tray

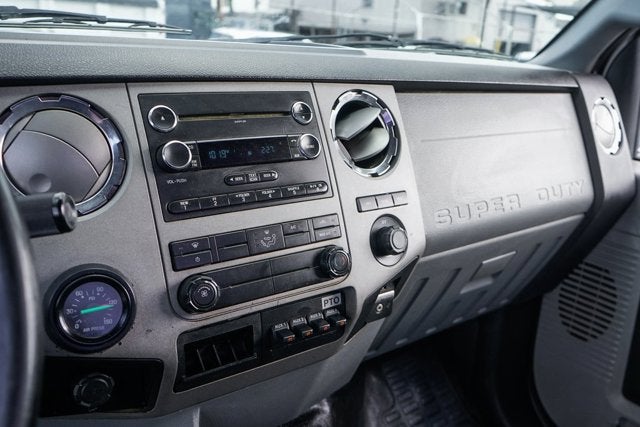

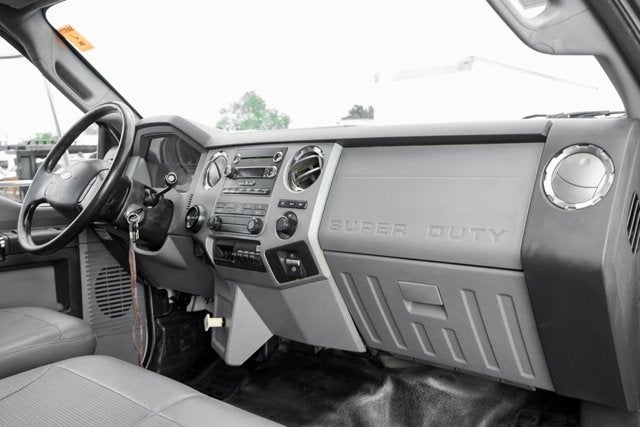

• Color-coordinated instrument panel
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Cruise control

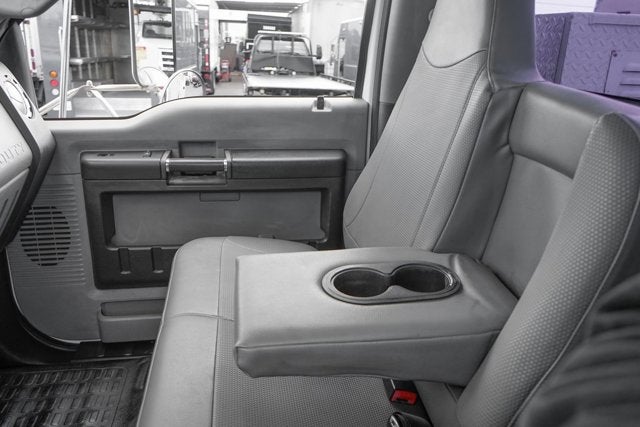

• Cup holder
• Door activated dome lamp
• Dual cloth covered sunvisors w/passenger mirror
• Instrumentation -inc: speedometer, trip meter, volt meter, oil pressure, coolant temp, DEF gauge, fuel gauge, tachometer, indicator light
• Interior A-pillar mounted grab handle

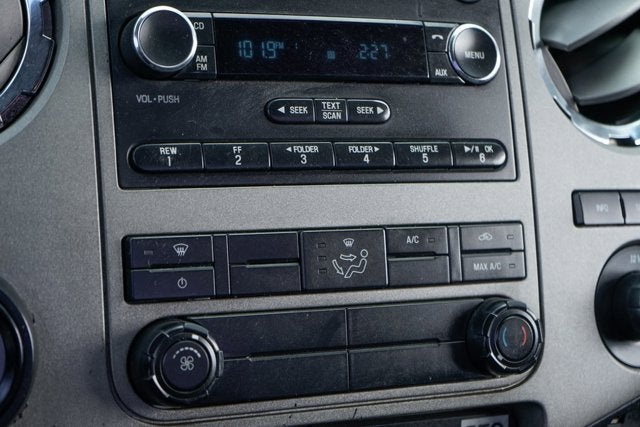

• Manual air conditioning-inc: integral heater & defroster

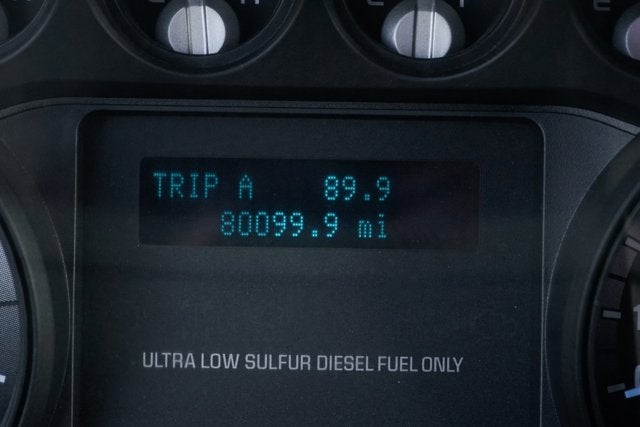

• Message center w/odometer, trip odometer, distance to empty, average fuel economy, warning messages
• Multifunction self canceling turn signal switch
• RH & LH color-coordinated coat hooks
• Tilt steering column

• 10000lb Cap. (MFS-10-122A) I-beam front axle
• 10000lb parabolic taper-leaf front springs-inc: double acting shock absorbers
• 12-volt Delco Remy 38T type 300 starting motor
• 12-volt, 185-amp Leece-Neville brushless-type pad mounted alternator
• 15.14 sm, 80000 psi straight C channel high strength low alloy steel frame
• 21000lb (Meritor MS-21-14X-3DLF) rear axle w/190 wheel ends
• 23500lb vari-rate multi-leaf rear springs-inc: 4500lb aux rubber springs
• Body builder wiring frame mount at back of cab
• Borg Warner SA75 viscous screw-on type fan clutch cooler
• Dana SPL100 driveshaft

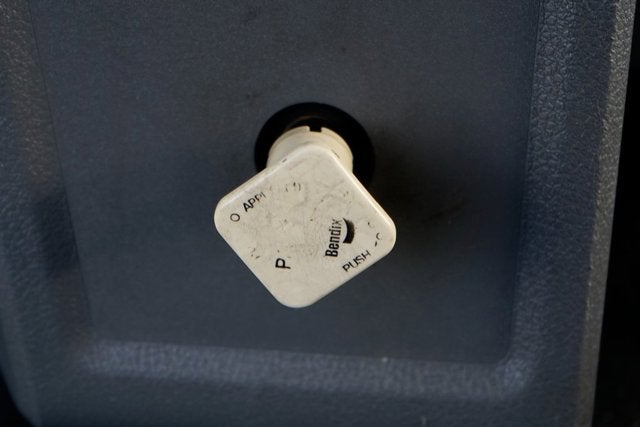

• DDSA type rear axle mounted 12" x 3" parking brake w/Orscheln control
• Donaldson single element air cleaner-inc: restriction indicator

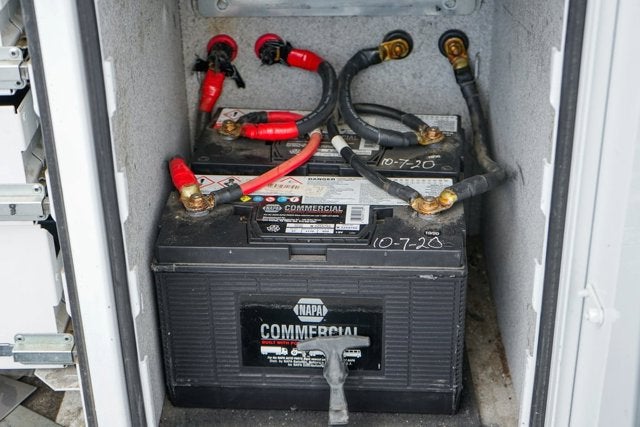

• Dual 625 CCA 12-volt Motorcraft batteries RH under cab step
• Extended life coolant *to -40 degrees F/-40 degrees C. freeze protection*
• Fleetguard FS19557 fuel & water separator w/electric type heater & primer pump
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Front Stemco wheel seals
• Gold Eagle cold weather anti-gel diesel fuel additive
• Rear Stemco wheel seals w/oil lubrication
• Rear wheel drive
• RH frame mounted single horizontal diesel particulate filter assembly w/horizontal tail pipe
• SAE blade type fuses

• Dual electric horns
• Emergency flasher
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Safety belts w/fixed D-rings

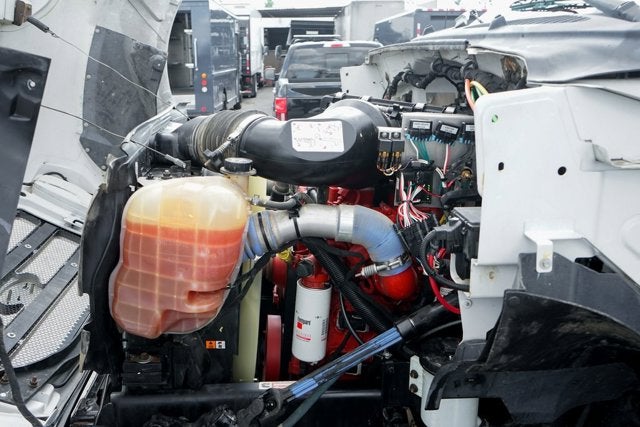

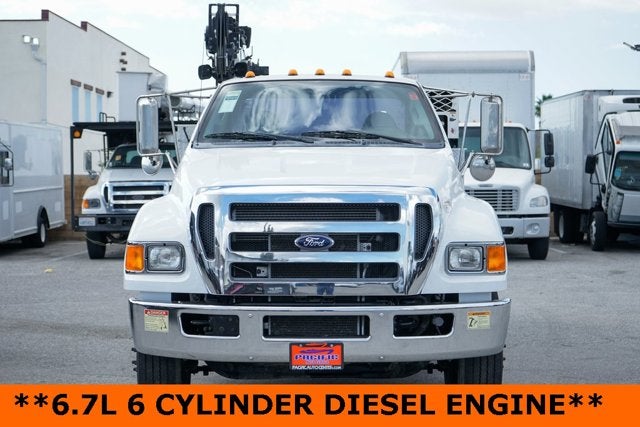

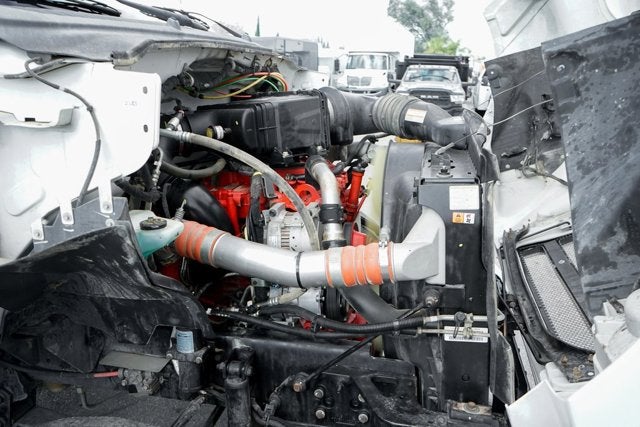

6.7L CUMMINS ISB 200 I6 DIESEL ENGINE 250 HP @ 2300 RPM, 660 LB-FT TORQUE @ 1600 RPM

• 2600 RPM governed speed
• 240 peak HP (max)
• Delco-Remy America Inc. 38MT type 300 starter
• Borg Warner SA75 viscous screw 5an clutch
• Donaldson air cleaner
• Fleetguard FS19557 fuel & water separator w/electric heater & primer pump
• extended life coolant

• **CLEAN CARFAX**
• **RWD**
• **STANDARD CAB**
• **LONG BED**
• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**
• **TOW PACKAGE**

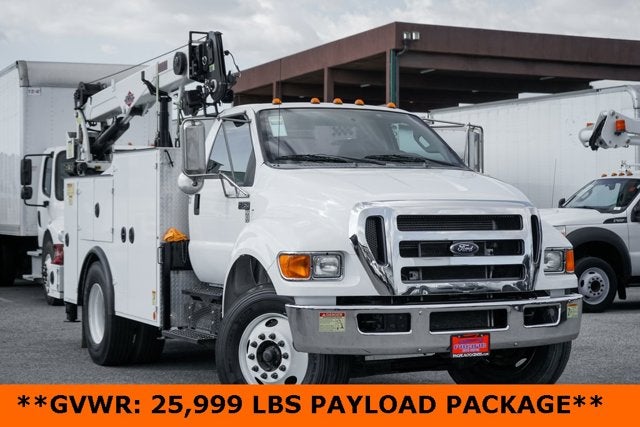

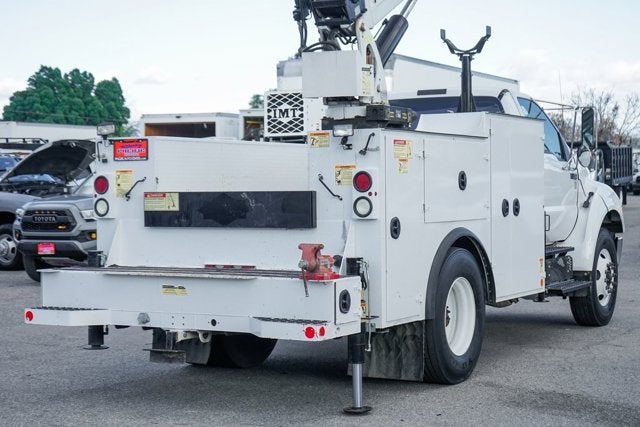

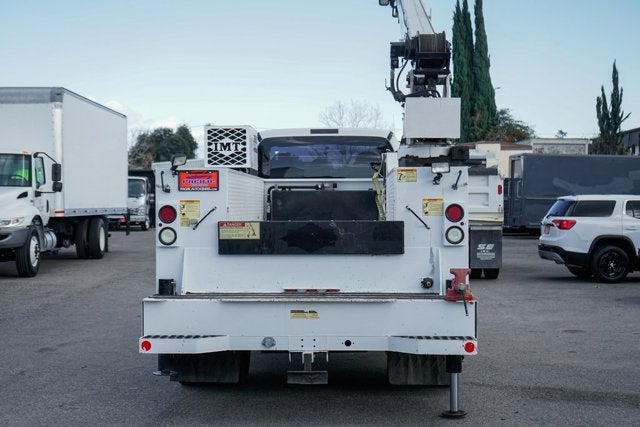

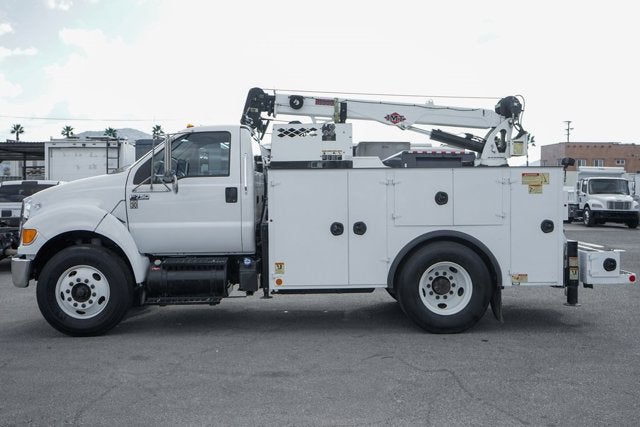

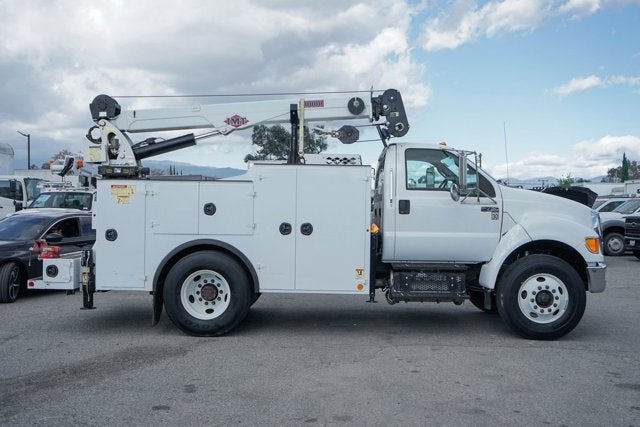

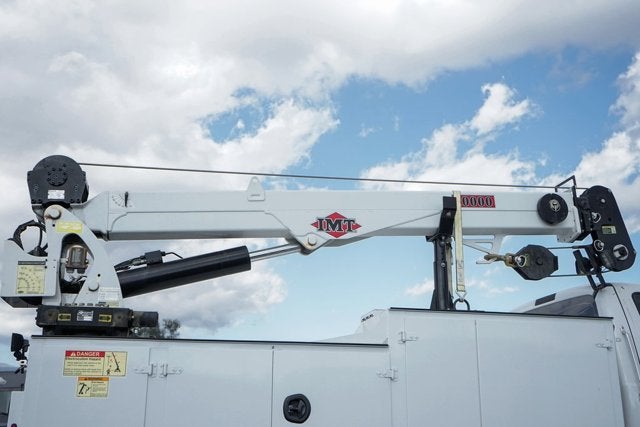

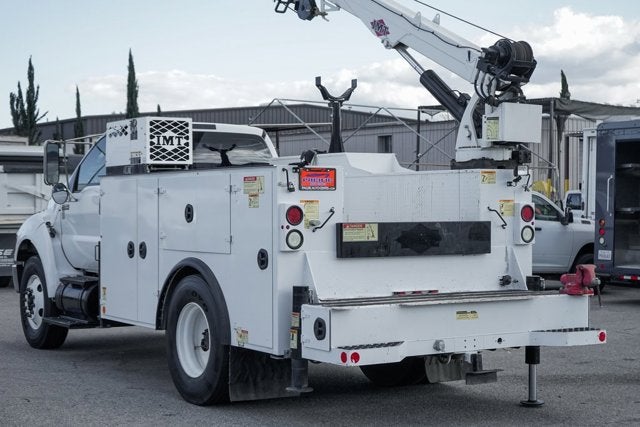

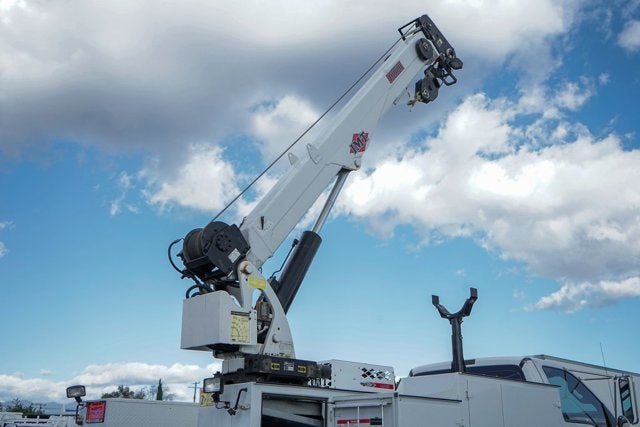

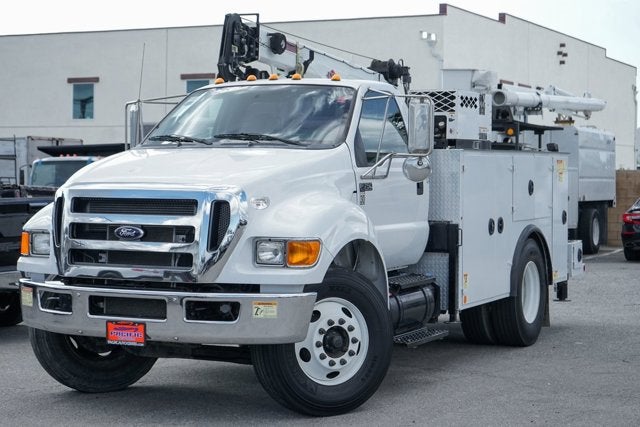

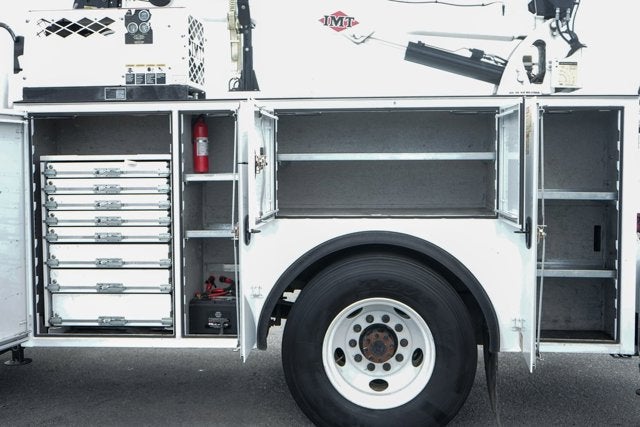

• **UTILITY/SERVICE TRUCK**

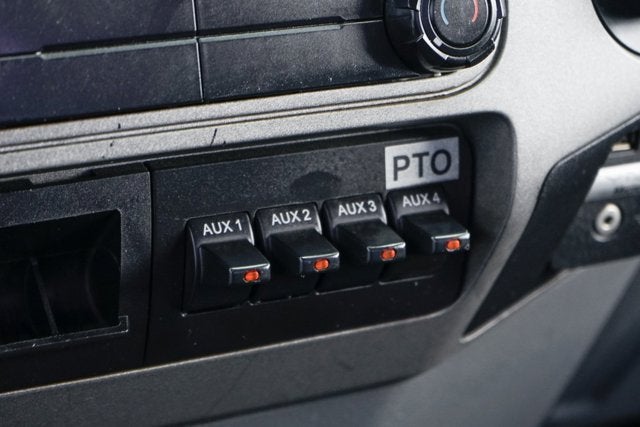

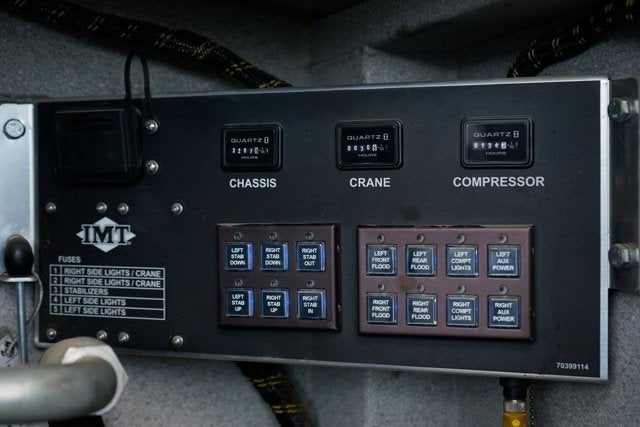

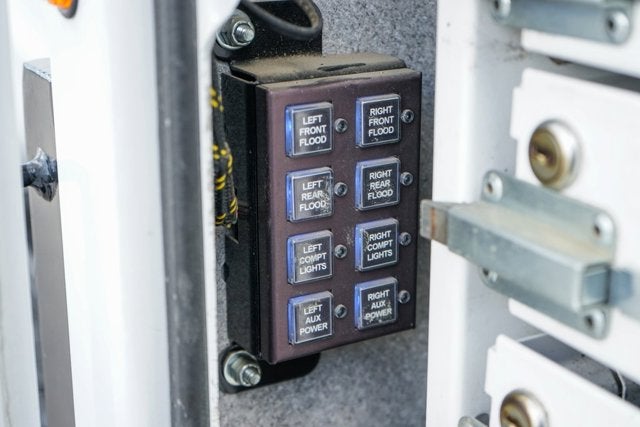

• **UPFITTER SWITCHES**

• Vehicle
• Front Frame Rating: - TBD -
• Axle Ratio - Low Rear (:1): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 625
• Cold Cranking Amps @ 0° F (2nd): 625
• Maximum Alternator Capacity (amps): 185
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 30.0
• Weight Information

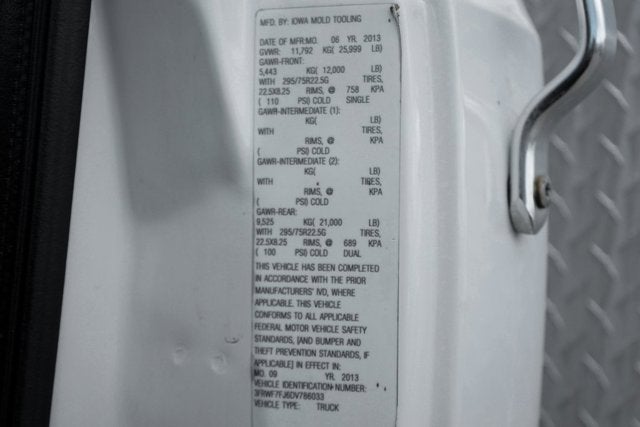

• Gross Axle Wt Rating - Front (lbs): 10000
• Gross Axle Wt Rating - Rear (lbs): 21000
• Curb Weight - Front (lbs): 5752
• Curb Weight - Rear (lbs): 3003
• Gross Vehicle Weight Rating Cap (lbs): 37000
• Suspension
• Spring Capacity - Front (lbs): 10000
• Spring Capacity - Rear (lbs): 23500
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-Speed
• Axle Capacity - Front (lbs): 10000
• Axle Capacity - Rear (lbs): 21000
• Axle Ratio (:1) - Rear: - TBD -
• Shock Absorber Diameter - Front (mm): 1.4
• Shock Absorber Diameter - Rear (mm): - TBD -
• Brakes
• Brake Type: Hydraulic
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Rear Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Tires
• Front Tire Order Code: TCT
• Rear Tire Order Code: RCT
• Spare Tire Order Code: - TBD -

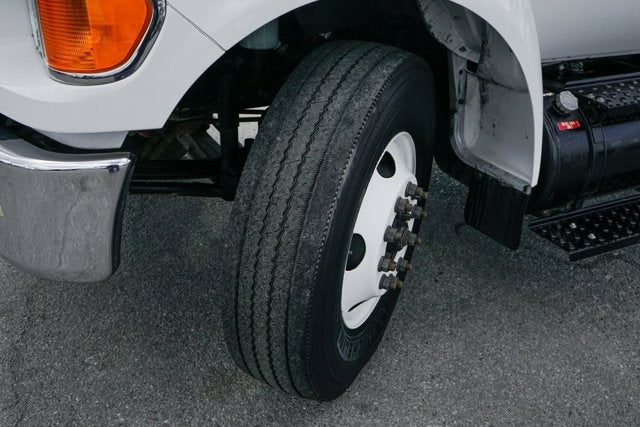

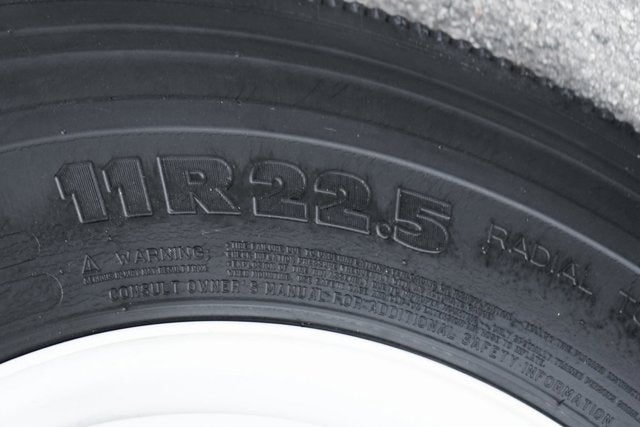

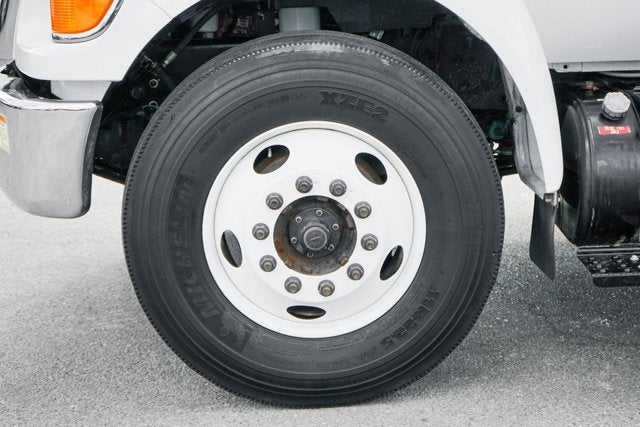

• Front Tire Size: 11R22.5G
• Rear Tire Size: 11R22.5G
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 22.5 x 7.5
• Rear Wheel Size (in): 22.5 x 7.5
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 10
• # of Bolt Holes - Rear: 10
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Pilot Mount
• Rear Wheel Description Cont.: Hub Pilot Mount
• Front Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Rear Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: Variable
• Turning Diameter - Curb to Curb (ft): 52.8
• Turning Diameter - Wall to Wall (ft): 56.2
• Frame
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 15.14
• Frame RBM (N/A): 1211200
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.38
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 45
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 194.0
• Length, Overall w/o rear bumper (in): 308.7
• Width, Max w/o mirrors (in): 96.7
• Height, Overall (in): 94.3
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 75.0
• Front Bumper to Back of Cab (in): 113.0
• Cab to Axle (in): 119.8
• Cab to End of Frame (in): 194.8
• Ground to Top of Frame (in): 40.4
• Frame Width, Rear (in): 34.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Body Length Default Value (ft): 0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.3
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Summary

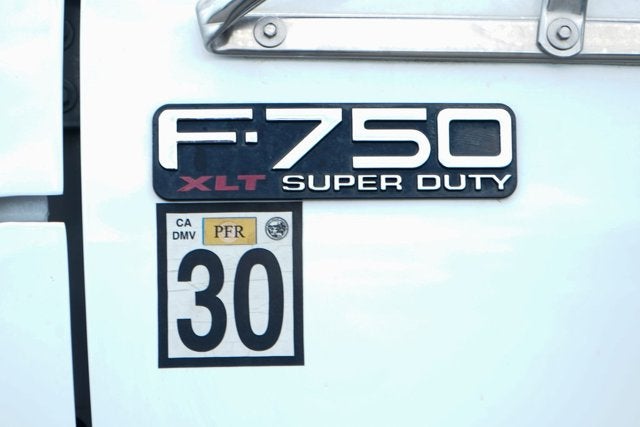

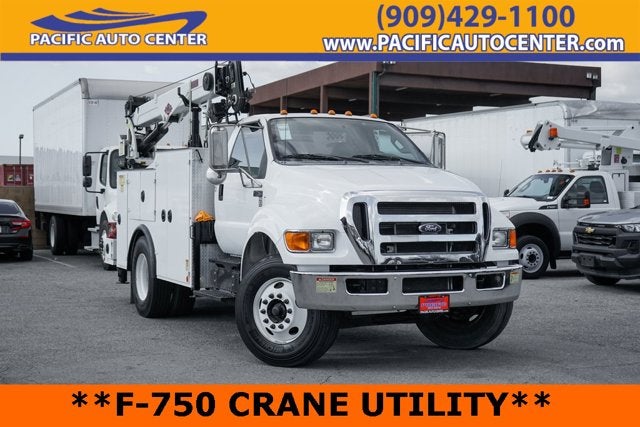

• Vehicle Name: Ford Super Duty F-750 Straight Frame
• Body Style: Chassis Cab
• Body Code: 194" WB
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
