• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player or (UL5) radio delete.)
• Defogger, side windows
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor

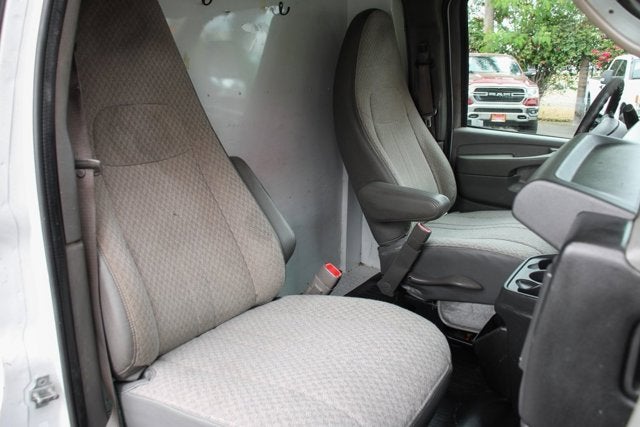

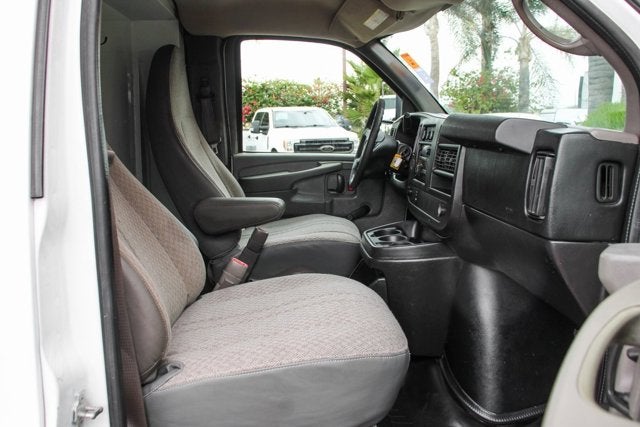

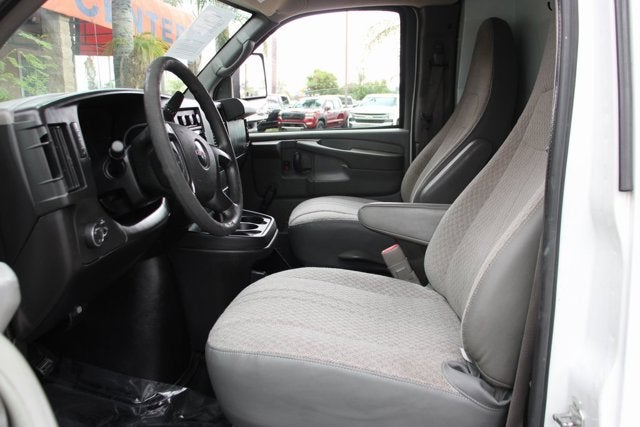

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Tire Pressure Monitor System (does not apply to spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with TG33803 models or TG33903 models.)

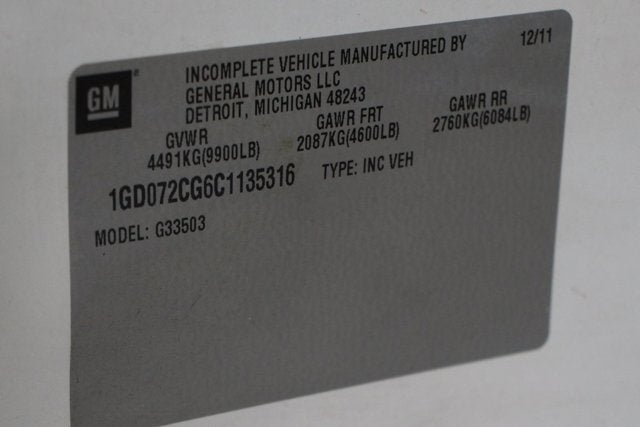

GVWR, 9900 LBS. (4490 KG)

• (STD)

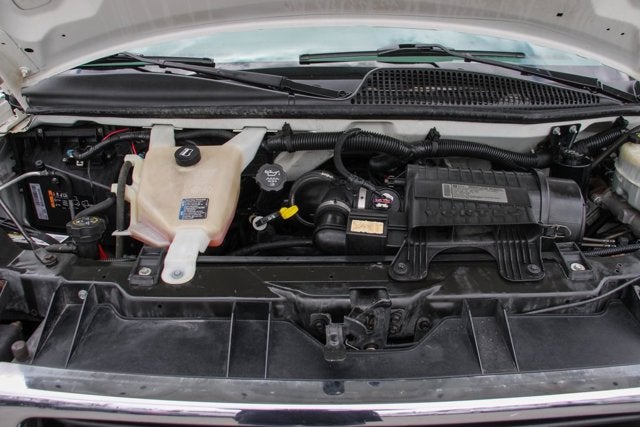

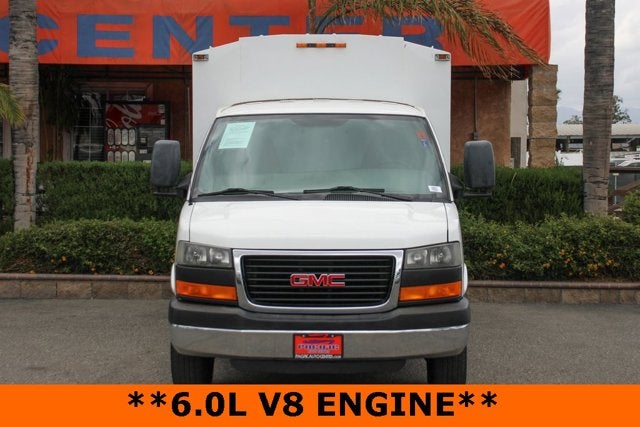

ENGINE, VORTEC 6.0L V8

• (324 hp [241.6 kW] @ 4700 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)

MIRRORS, OUTSIDE MID-STANCE SAIL PANEL MOUNTED

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a medium stance. Mirrors can be utilized with bodies that are up to 78 inches in width. Mirrors provides a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle.

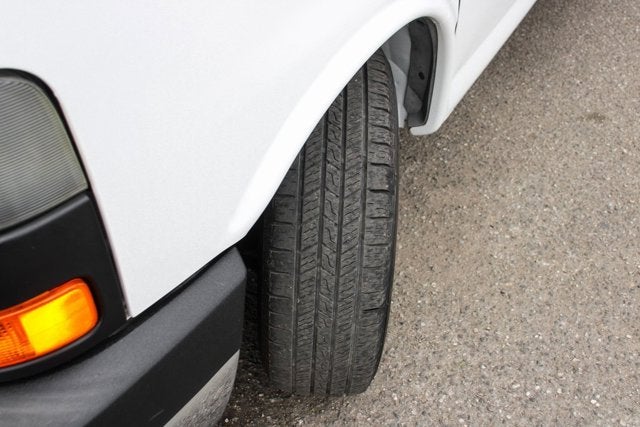

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

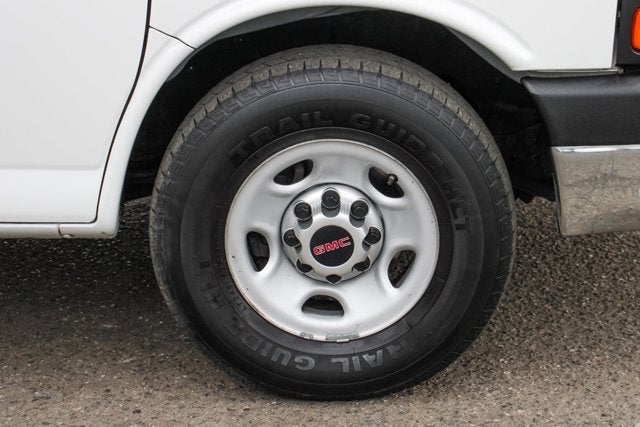

WHEELS 16" X 6.5" (40.6 CM X 16.5 CM) STEEL

• (STD)

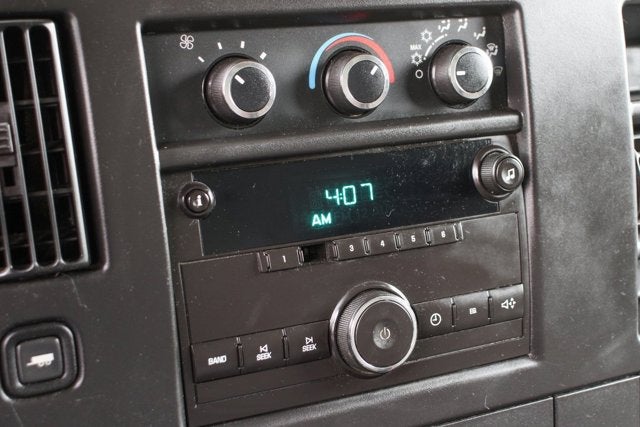

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

BODY, STANDARD

• (STD)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

• GVWR 9900 LBS. (4490 KG) (STD)
• ENGINE VORTEC 6.0L V8 (324 hp [241.6 kW] @ 4700 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)
• WHEEL CONFIGURATION REAR SINGLE
• MIRRORS OUTSIDE MID-STANCE SAIL PANEL MOUNTED Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a medium stance. Mirrors can be utilized with bodies that are up to 78 inches in width. Mirrors provides a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle.
• REAR AXLE 3.42 RATIO
• TIRES FRONT LT245/75R16E ALL-SEASON BLACKWALL (STD)
• WHEELS 16 X 6.5 (40.6 CM X 16.5 CM) STEEL (STD)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers

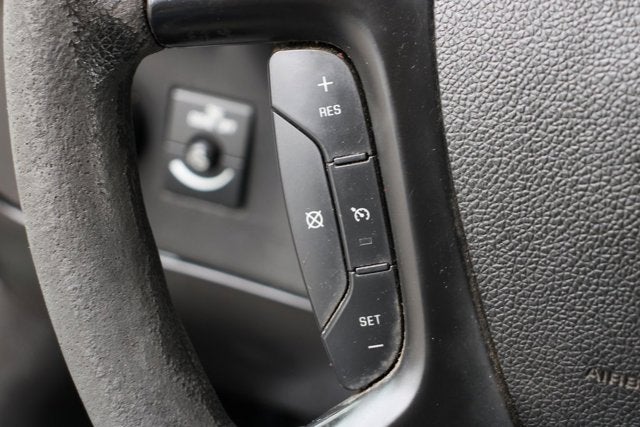

• CRUISE CONTROL
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• CONVENIENCE PACKAGE TILT-WHEEL AND CRUISE CONTROL
• TIRES REAR LT245/75R16E ALL-SEASON BLACKWALL (STD)
• BODY STANDARD (STD)
• 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• SUMMIT WHITE
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• GRILLE CHROME WITH DUAL COMPOSITE HALOGEN HEADLAMPS
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.
• Chrome Appearance Package
• Convenience Package
• Preferred Equipment Group 1WT
• 2 Speakers
• Air Conditioning
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front Chrome Bumper w/Step-Pad
• Front wheel independent suspension
• Low tire pressure warning
• Passenger cancellable airbag
• Delay-off headlights
• Dual Composite Halogen Headlamps

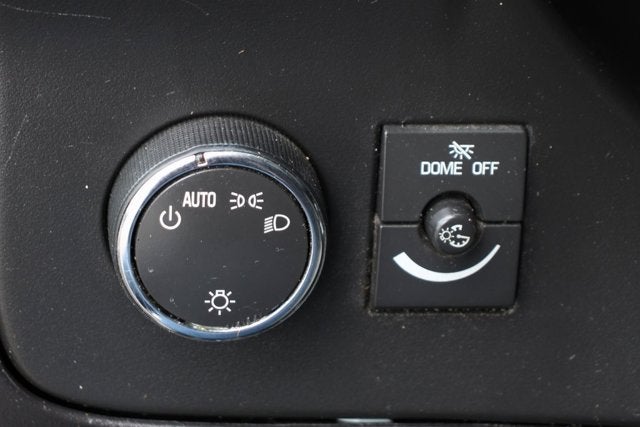

• Fully automatic headlights

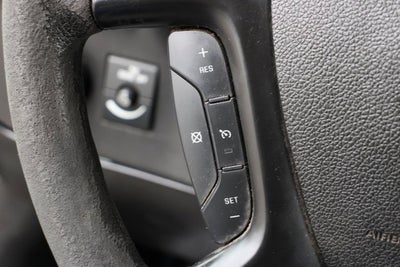

• Cruise Control
• Chrome Grille
• Single Rear Wheel Configuration

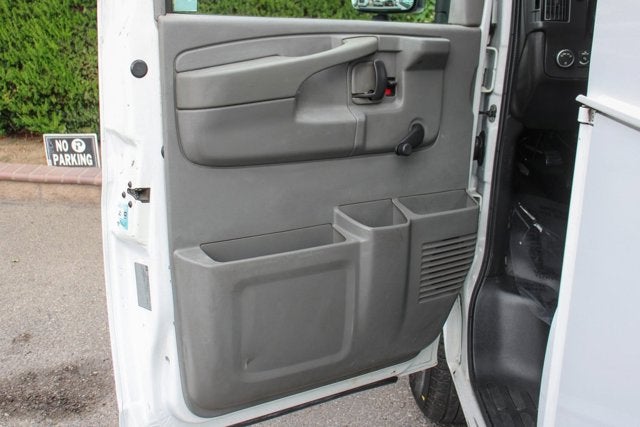

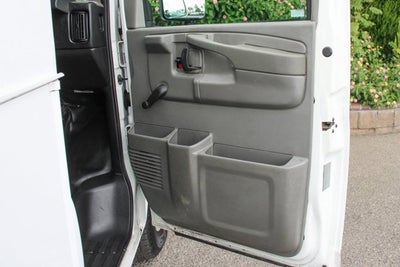

• Driver door bin
• Passenger seat mounted armrest
• Tachometer

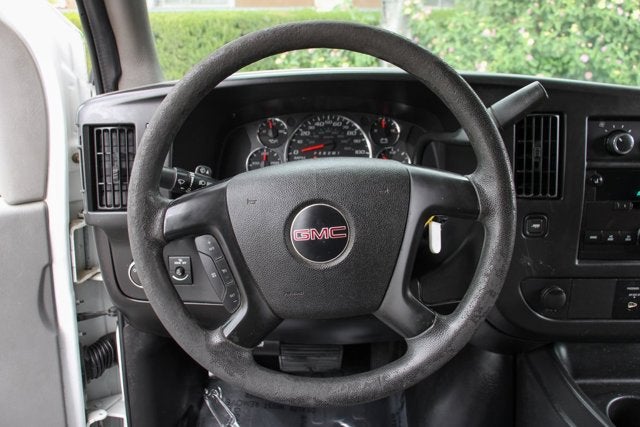

• Tilt Steering Wheel

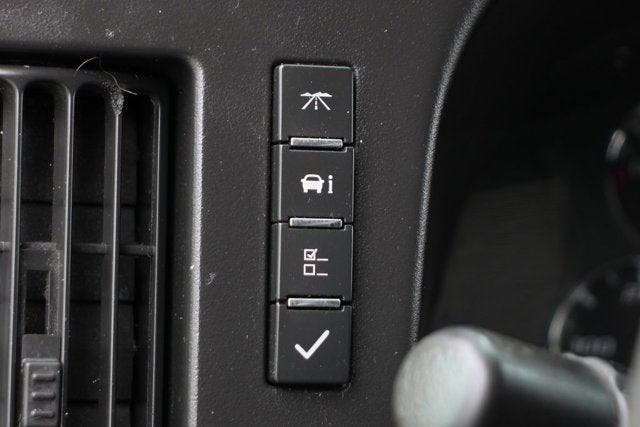

• Trip computer
• Voltmeter
• Driver & Front Passenger High-Back Bucket Seats
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Reclining High-Back Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim

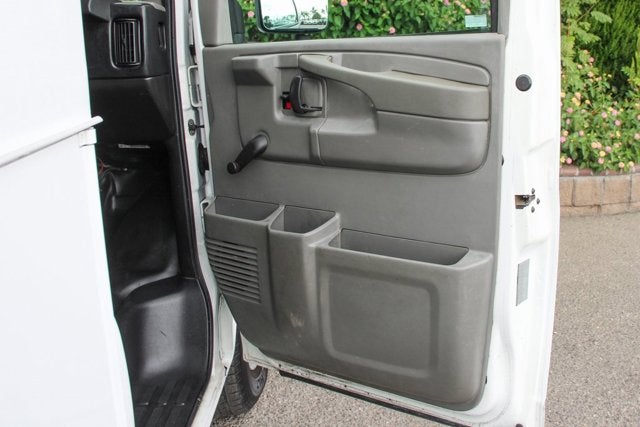

• Passenger door bin
• 16 x 6.5 Steel Wheels
• Variably intermittent wipers
• 3.42 Rear Axle Ratio
• **RWD**

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80.0
• Cab to End of Frame (in): 148.5
• Frame Width, Rear (in): 34.8
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 6.8
• Ground to Top of Frame (in): 23.3
• Height, Overall (in): 82.9
• Length, Overall w/o rear bumper (in): 246.7
• Overhang, Front (in): 39.7
• Wheelbase (in): 139.0
• Width, Max w/o mirrors (in): 79.1
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 40.2
• Front Hip Room (in): 65.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 43.4
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB

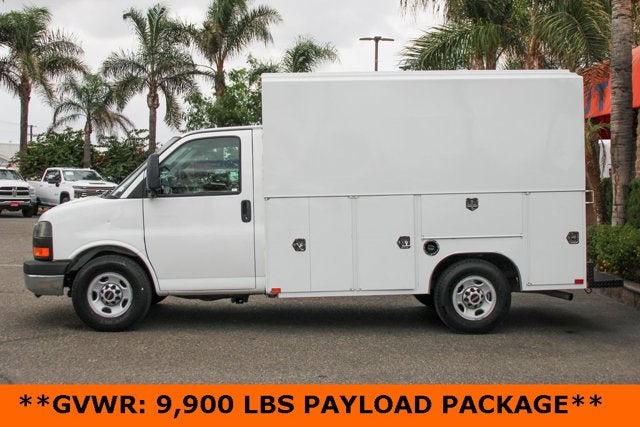

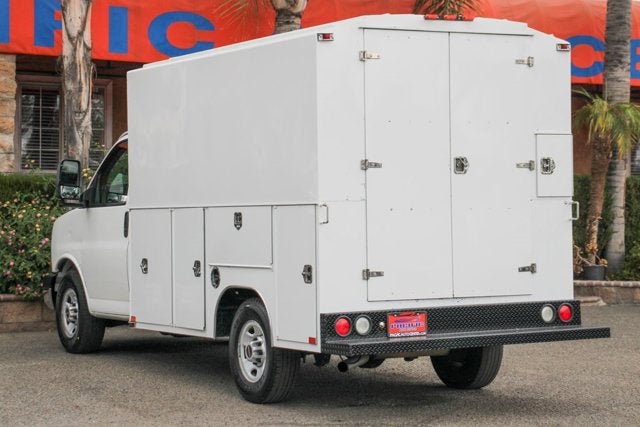

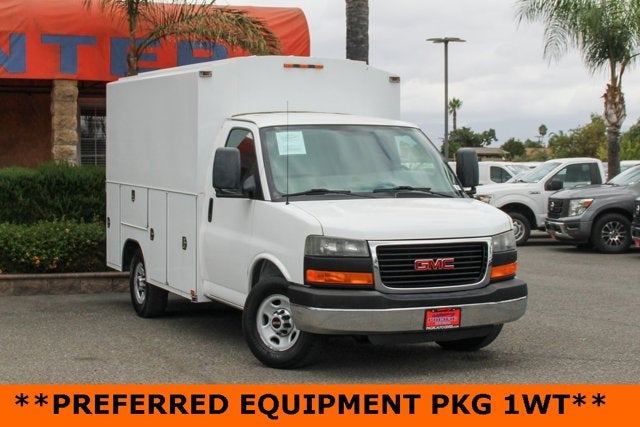

• Vehicle Name: GMC Savana Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP

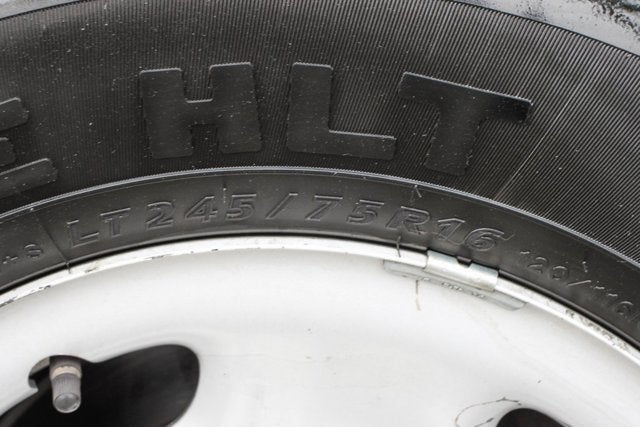

• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Weight Information
• Curb Weight - Front (lbs): 3057
• Curb Weight - Rear (lbs): 1439
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 16000

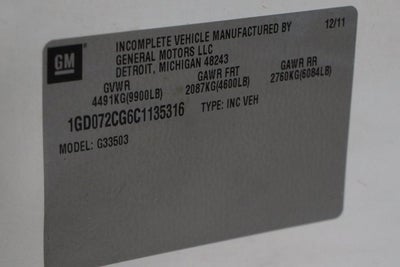

• Gross Vehicle Weight Rating Cap (lbs): 9900
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
