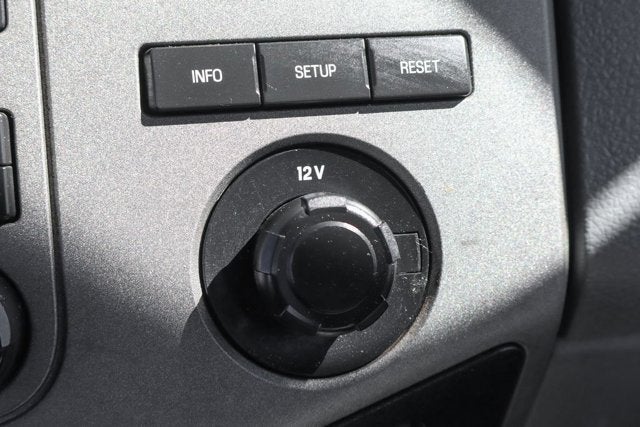

• (2) aux pwr points
• 12-volt electrical system
• A-pillar assist handles
• Back panel trim cover

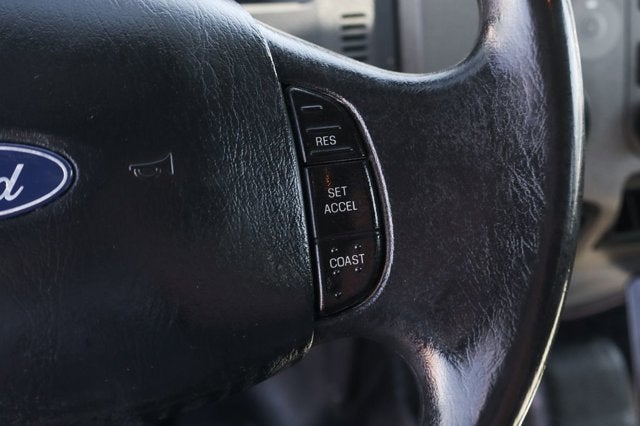

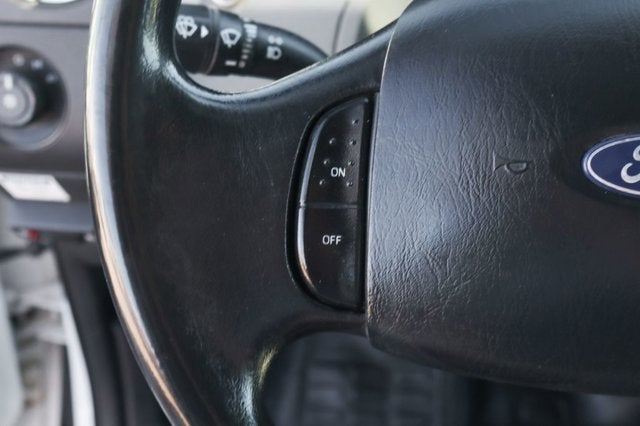

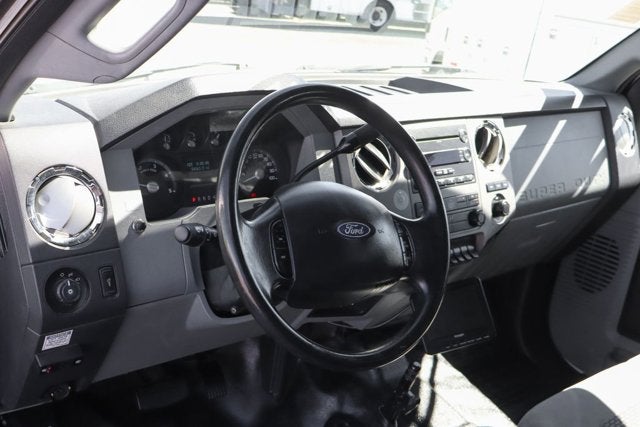

• Black two-spoke 15.5" PVC steering wheel w/cruise controls
• Black vinyl floor covering

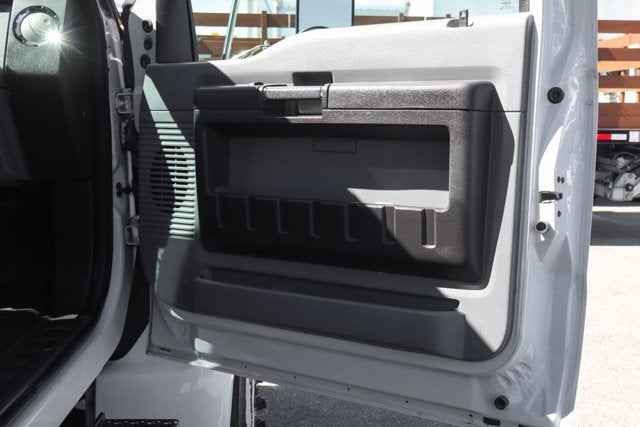

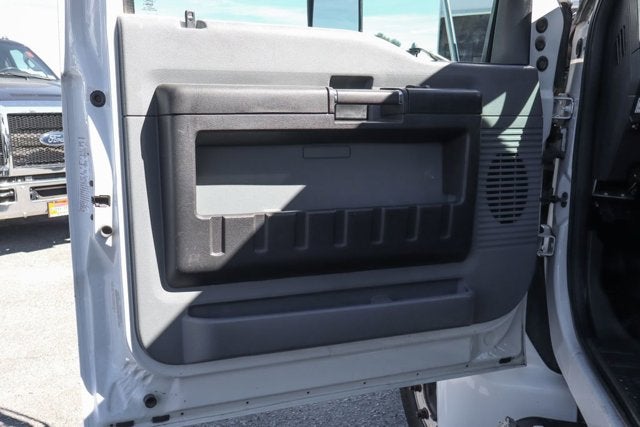

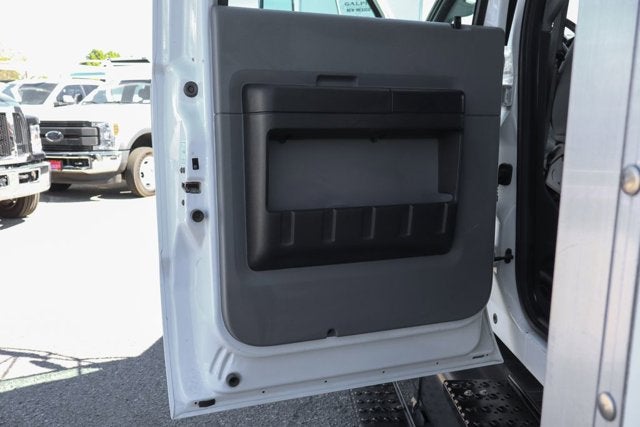

• Color-coordinated door trim w/soft arm rest, grab handle, reflector, map pocket w/carpet

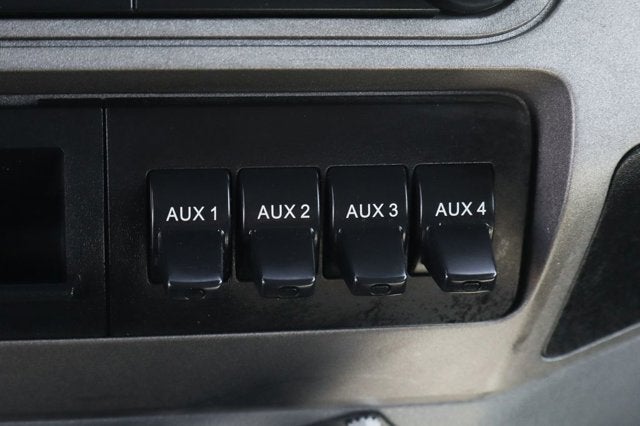

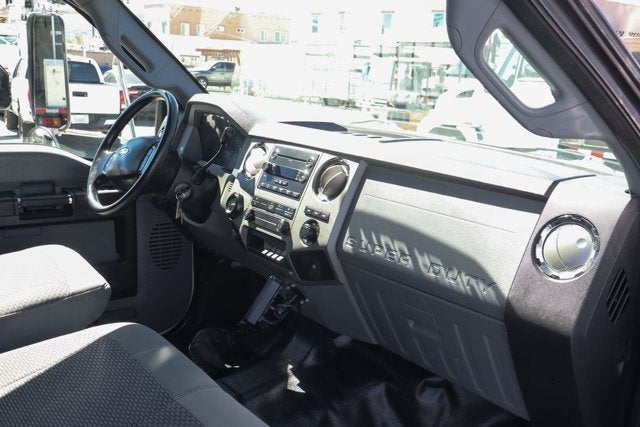

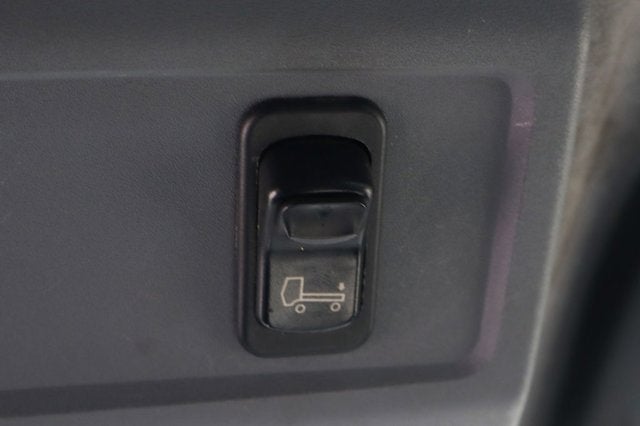

• Color-coordinated instrument panel -inc: (4) body builder switches w/10 amps per switch
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Cruise control
• Cup holder
• Door activated dome lamp -inc: rear reading lights
• Dual cloth covered sunvisors w/passenger mirror
• Front mounted overhead console -inc: dual bins, front reading lights
• Instrumentation -inc: speedometer, trip meter, voltmeter, oil pressure, coolant temp, fuel gauge, tachometer, indicator lights, DEF gauge, 3-button message center, distance to empty, fuel average
• Interior A-pillar mounted grab handle
• LH & RH color-coordinated coat hooks
• Multifunction self canceling turn signal switch

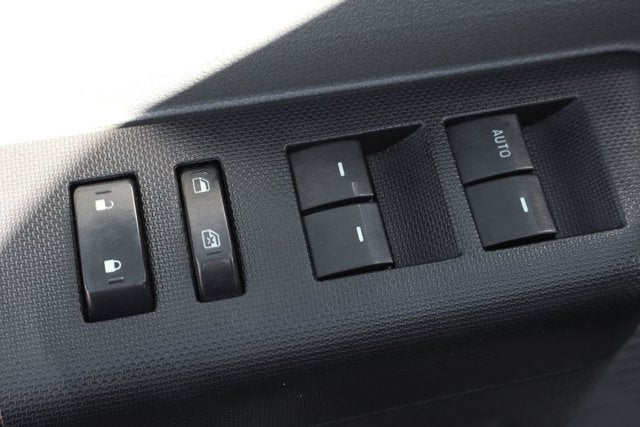

• Pwr door locks
• Pwr windows
• Tilt steering column

• (10) gallon urea tank

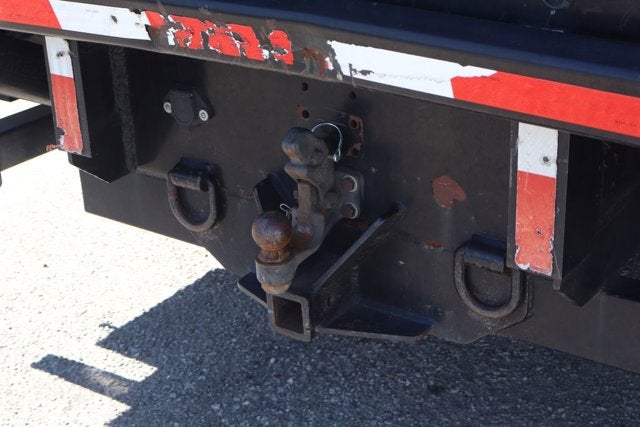

• (2) Inside rail frame mounted tow hooks
• 12-volt Delco Remy 38MT type 300 starting motor
• 12-volt, 185-amp Leece-Neville brushless type pad mounted alternator
• 13500lb Meritor MS-17-14X-3DLF single reduction single-speed rear axle w/190 wheel ends
• 17500lb vari-rate multi-leaf rear spring suspension -inc: 4500 lb auxiliary rubber spring
• 80000 psi high strength low alloy steel frame (straight truck use only) -inc: 9.125" x 3.062" x 0.312" w/transition to 6.500" x 3.062" x 0.312", 386.7" max OAL
• 8500lb parabolic taper-leaf front springs -inc: double acting shock absorbers
• Body builder wiring
• Body builder wiring at back of cab at frame
• Borg Warner SA75 viscous screw-on type fan clutch
• Dana SPL100 driveshaft
• DDSA type rear axle mounted 12" x 3" parking brake w/Orscheln control
• Donaldson single element air cleaner -inc: restriction indicator
• Dual 625 CCA 12-volt Motorcraft batteries RH under cab step
• Fleetguard FS19557 fuel & water separator w/electric type heater & primer pump
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Gold Eagle cold weather anti-gel diesel fuel additive
• Guardian lubricated front Stemco wheel seals
• Meritor MFS-08-153B 8500lb I-beam front axle -inc: Ross TAS-40 pwr steering
• Oil lubricated rear Stemco wheel seals
• Pwr steering
• Rear wheel drive
• SAE blade type fuses
• Single horizontal exhaust system w/horizontal tail pipe -inc: diesel particulate filter assembly, right side frame mounted under cab

• Dual electric horn
• Emergency flasher
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Safety belts w/adjustable D-rings

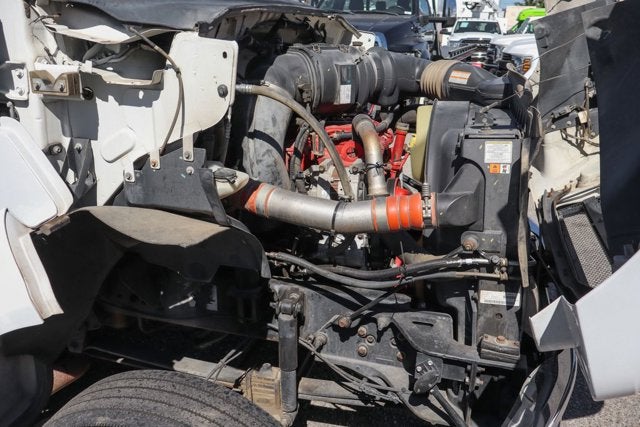

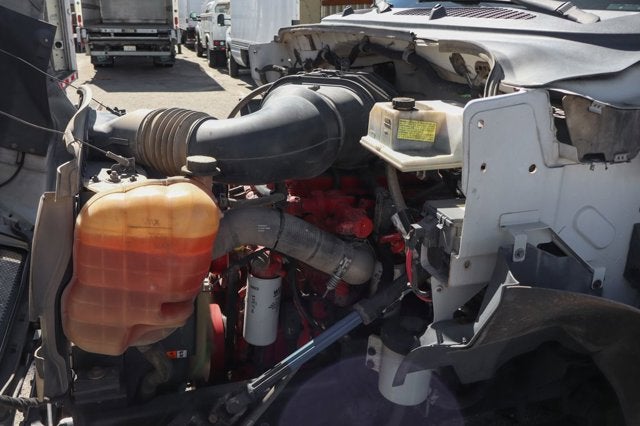

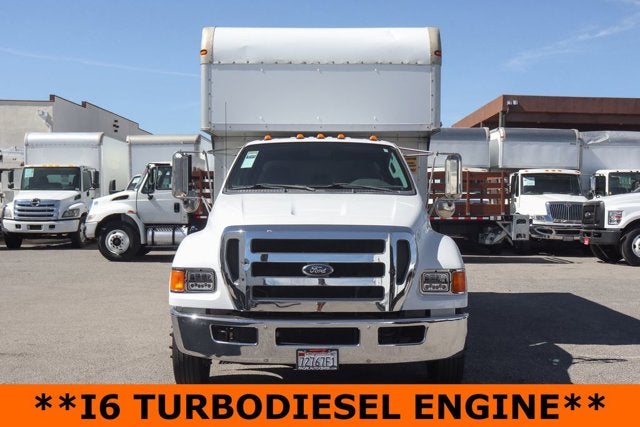

6.7L CUMMINS ISB 200 I6 DIESEL ENGINE 260 HP @ 2300 RPM, 660 LB-FT TORQUE @ 1600 RPM

• 2600 RPM governed speed
• 260 peak HP (max)
• Delco-Remy America Inc. 38MT type 300 starter
• Borg Warner SA85 viscous screw fan clutch
• Donaldson air cleaner
• Fleetguard FS19557 fuel & water separator w/electric heater & primer pump
• red extended life coolant

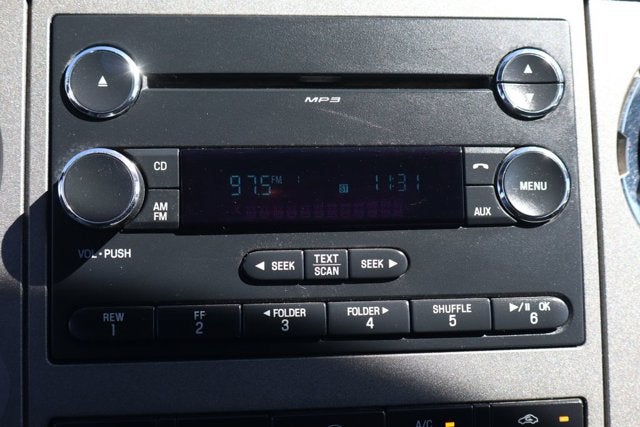

• AM/FM radio

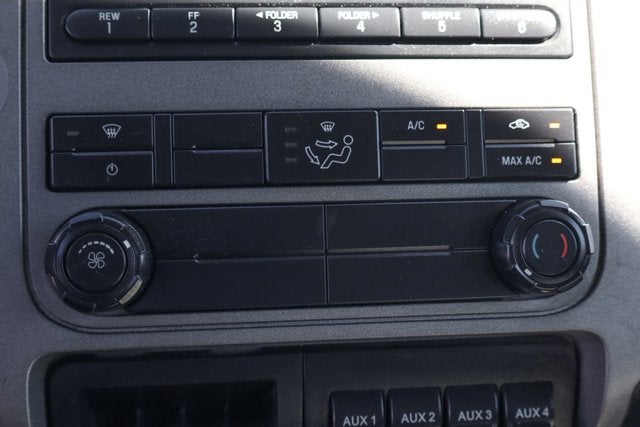

• Air Conditioning
• Power steering
• ABS brakes
• Speed control
• Dual rear wheels
• Bumpers: chrome
• Front reading lights
• Overhead console
• Passenger vanity mirror
• Tachometer
• Tilt steering wheel
• Trip computer
• Driver's Seat Mounted Armrest

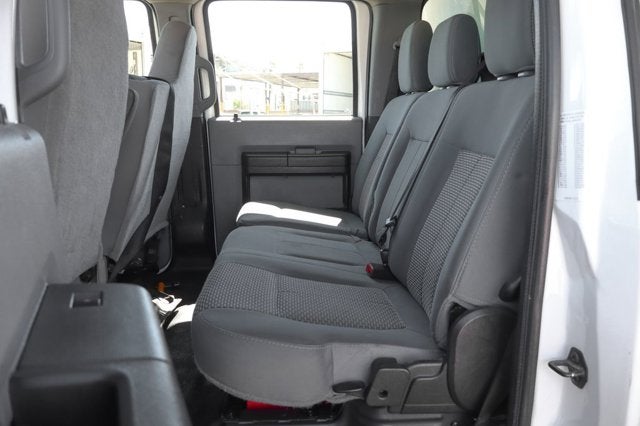

• Split folding rear seat
• Variably intermittent wipers

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Hydraulic
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Rear Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Cooling System
• Total Cooling System Capacity (qts): 30.0
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 185
• Exterior Dimensions
• Body Length Default Value (ft): 0
• Cab to Axle (in): 60.5
• Cab to End of Frame (in): 99.5
• Frame Width, Rear (in): 34.0
• Front Bumper to Back of Cab (in): 148.0
• Ground to Top of Frame (in): 33.6
• Height, Overall (in): 89.1
• Length, Overall w/o rear bumper (in): 248.4
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 39.0
• Wheelbase (in): 170
• Width, Max w/o mirrors (in): 96.7
• Frame
• Frame RBM (N/A): 860000
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.312
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 10.75
• Fuel Tank
• Fuel Tank Location: LH

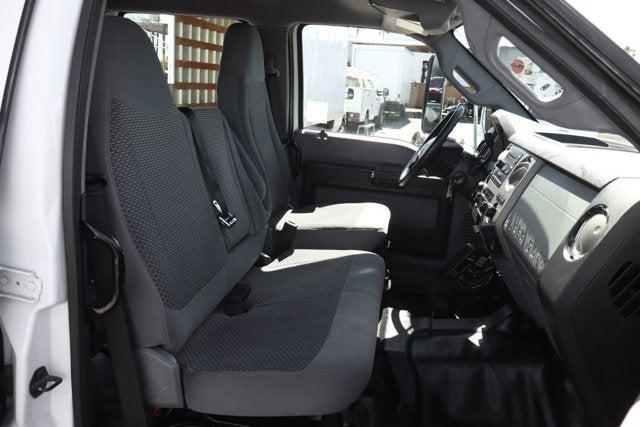

• Interior Dimensions
• Front Head Room (in): 41.5
• Front Hip Room (in): 67.4
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 68.0
• Passenger Capacity: 6
• Second Head Room (in): 41.0
• Second Hip Room (in): 67.3
• Second Leg Room (in): 42.8
• Second Shoulder Room (in): 66.9
• Medium Duty Performance
• Driver Ratio: .75
• Torque : Clutch Engage (ft-lbs)
• Steering
• Steering Ratio (:1), On Center: 20.4
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 24.6
• Turning Diameter - Wall to Wall (ft): 26.0
• Summary

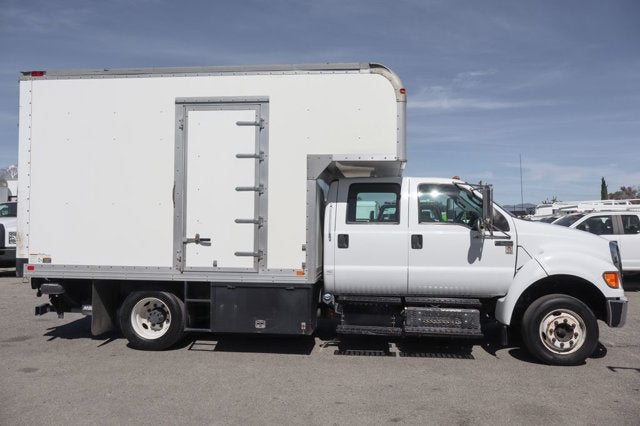

• Body Code: 194" WB
• Body Style: Crew Cab Chassis Cab

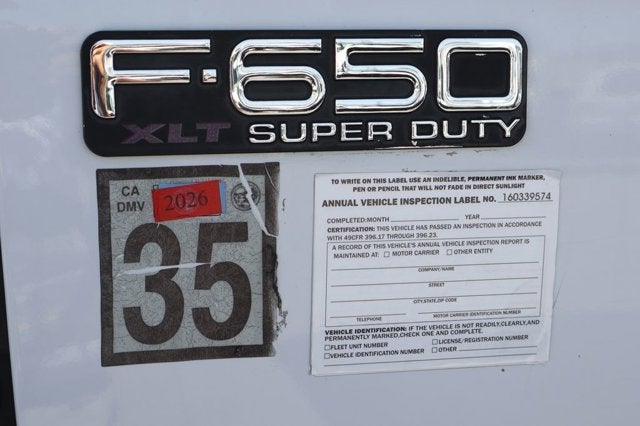

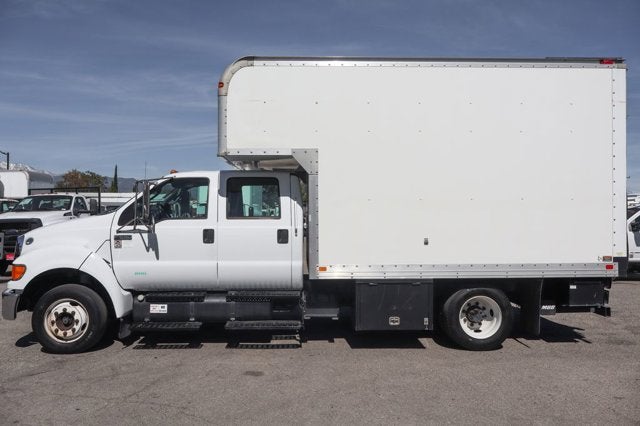

• Vehicle Name: Ford Super Duty F-650 Pro Loader
• Suspension
• Axle Capacity - Front (lbs): 8500
• Axle Capacity - Rear (lbs): 13500
• Axle Type - Front: I-Beam
• Shock Absorber Diameter - Front (mm): 34.9
• Spring Capacity - Front (lbs): 8500
• Spring Capacity - Rear (lbs): 18500
• Suspension Type - Front: Taper-Leaf
• Suspension Type - Rear: Multi-Leaf

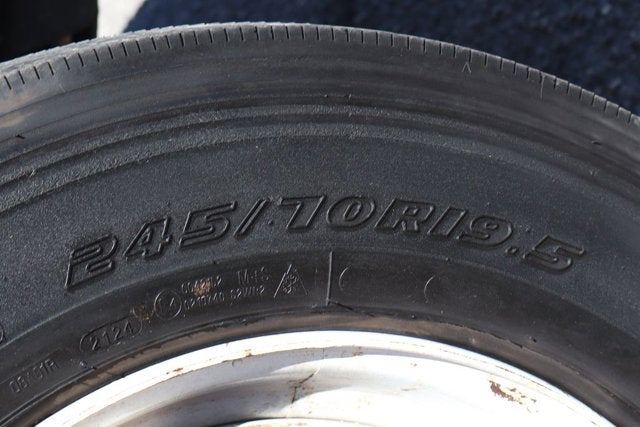

• Tires
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare

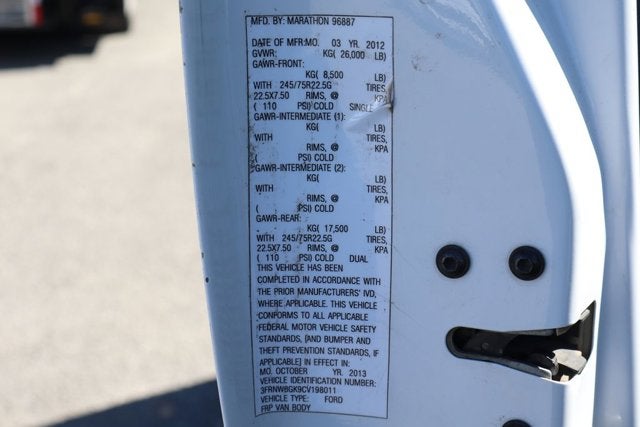

• Weight Information
• Curb Weight - Front (lbs): 5801
• Curb Weight - Rear (lbs): 2815
• Gross Axle Wt Rating - Front (lbs): 8500
• Gross Axle Wt Rating - Rear (lbs): 13500

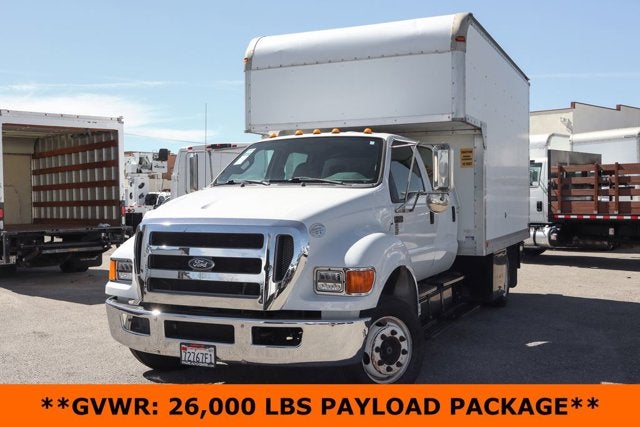

• Gross Vehicle Weight Rating Cap (lbs): 26000

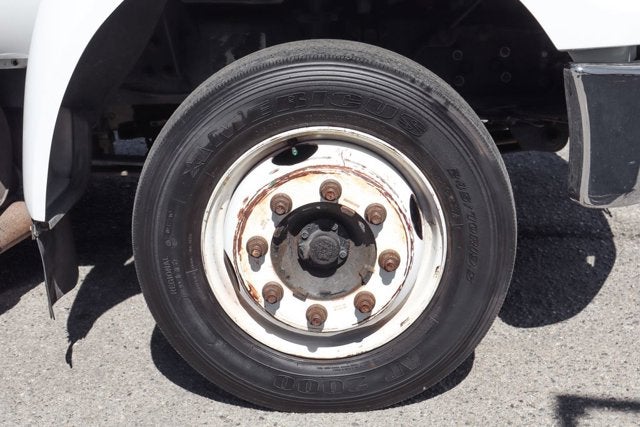

• Wheels
• # of Bolt Holes - Front: 10
• # of Bolt Holes - Rear: 10
• Front Wheel Description Cont.: Hub Pilot Mount
• Front Wheel Material: Steel
• Rear Wheel Description Cont.: Hub Pilot Mount
• Rear Wheel Material: Steel
