• (2) aux pwr outlets in instrument panel
• (4) air registers w/positive shut-off
• 3-blink lane change signal
• 4-way adjustable driver/passenger headrests

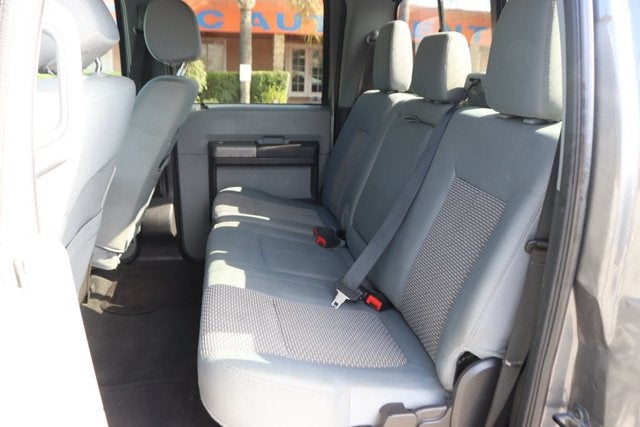

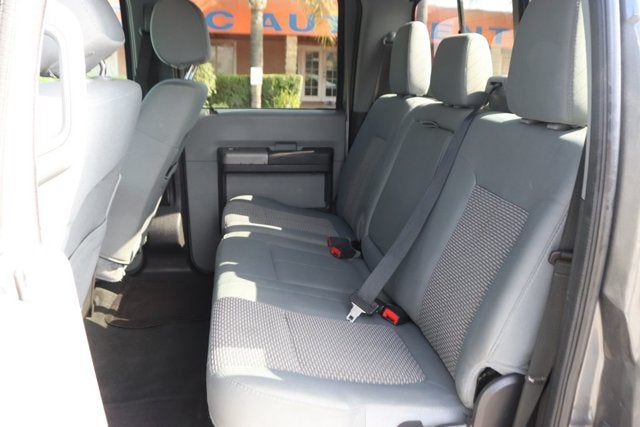

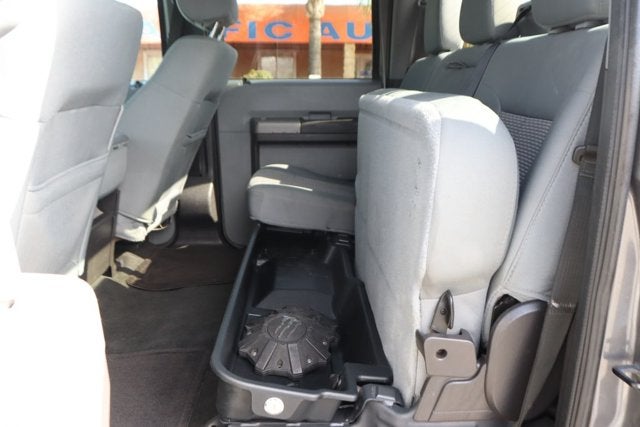

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Accessory delay
• Air conditioning w/chrome ringed black vents

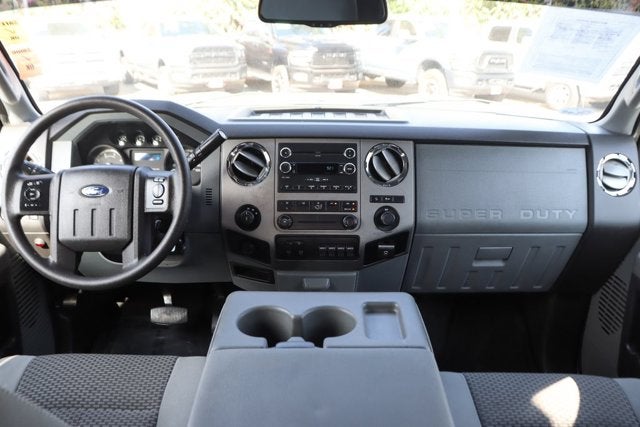

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack
• Cloth 40/20/40 split bench front seat -inc: center armrest, cupholder, storage, center underseat storage w/aux pwr outlet
• Color-keyed carpet full-floor covering
• Color-keyed cloth headliner

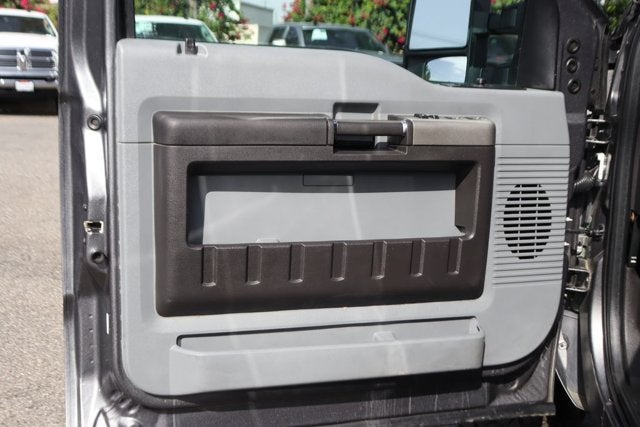

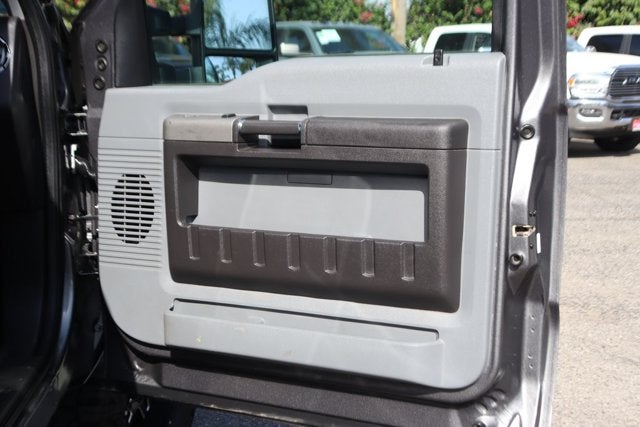

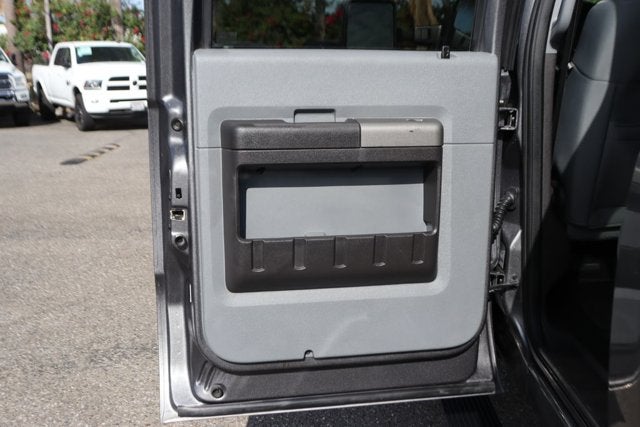

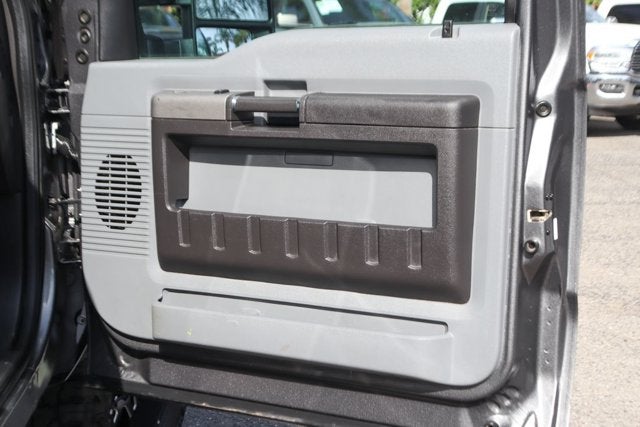

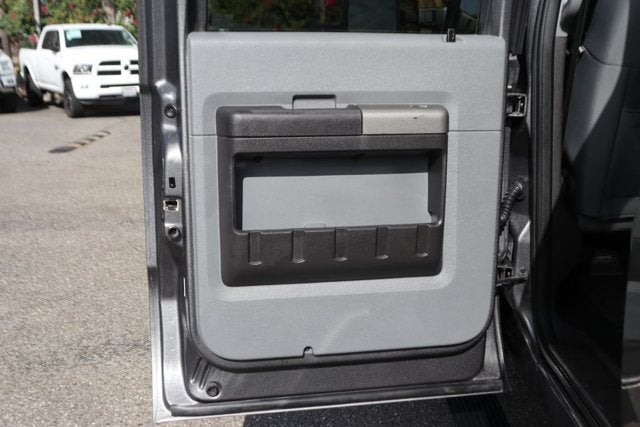

• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel, molded upper applique, upper & lower map pockets, grab handle & reflector
• Color-keyed scuff plates
• Cruise control
• Dash-top tray
• Driver & front passenger grab handles
• Driver manual lumbar support
• Dual color-keyed coat hooks
• Dual color-keyed vinyl sunvisors-inc: covered mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front passenger-side roof ride handle
• Front/rear color-keyed carpeted floor mats
• Front/rear map lamps
• Glove Box
• Instrument panel mounted storage

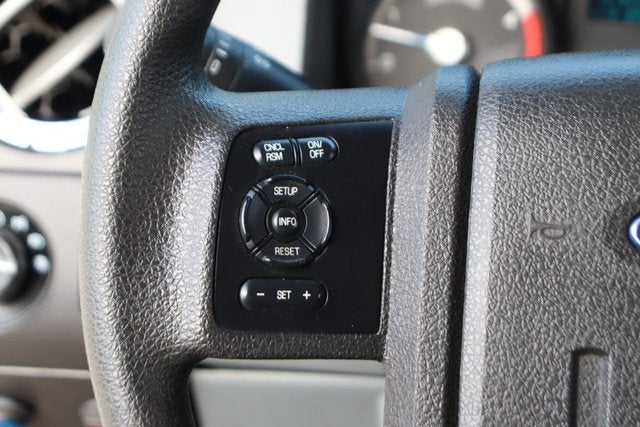

• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel, outside temp display
• Oil minder system
• Overhead console -inc: storage bins for garage door opener & sunglasses

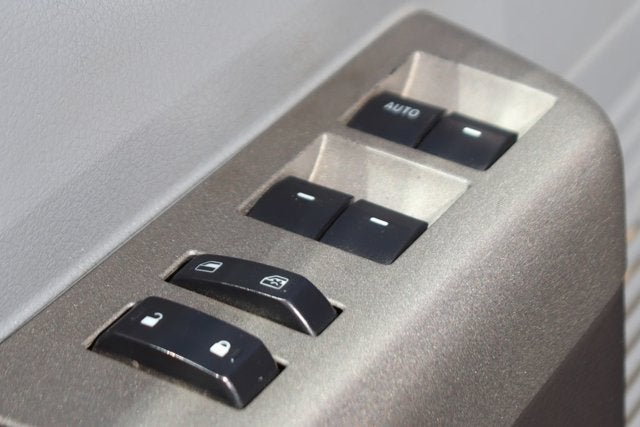

• Pwr door locks w/backlit switches

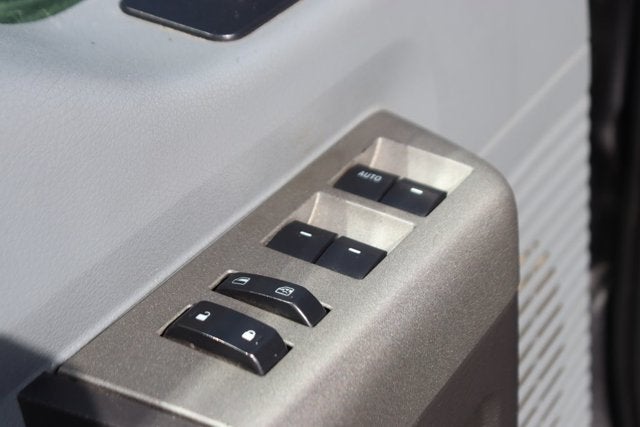

• Pwr windows w/driver one-touch-up/down & backlit switches
• Rear armrests w/cupholders
• Rear seating roof ride handles
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Tilt/telescoping steering column

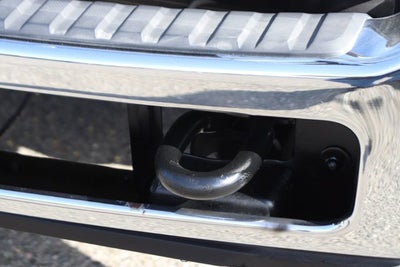

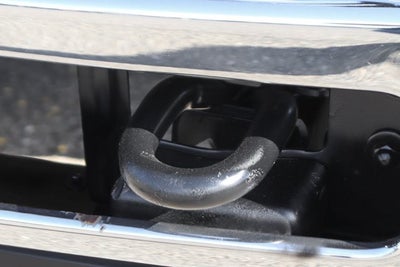

• (2) front tow hooks

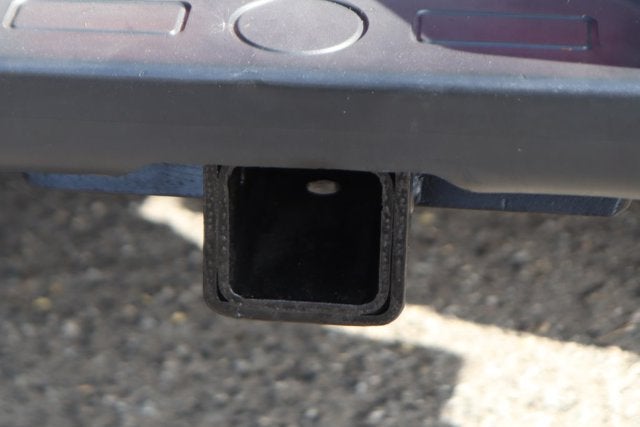

• 12.5K trailer hitch receiver -inc: 2" hitch
• 157-amp HD alternator
• 2-ton mechanical jack
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Front stabilizer bar
• HD gas shock absorbers
• Manual transfer case & hubs
• Mono-beam front axle w/coil spring suspension
• Pwr steering w/steering damper
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector

• AdvanceTrac w/roll stability control (RSC)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags
• Driver & front passenger side airbag/curtain
• Front center seat integrated restraints (SIR)
• Hill start assist control
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• Pwr 4-wheel disc anti-lock braking system (ABS)
• Rear door child safety locks
• Safety Canopy system
• SOS post crash alert system
• Tire Pressure Monitoring System
• Trailer sway control

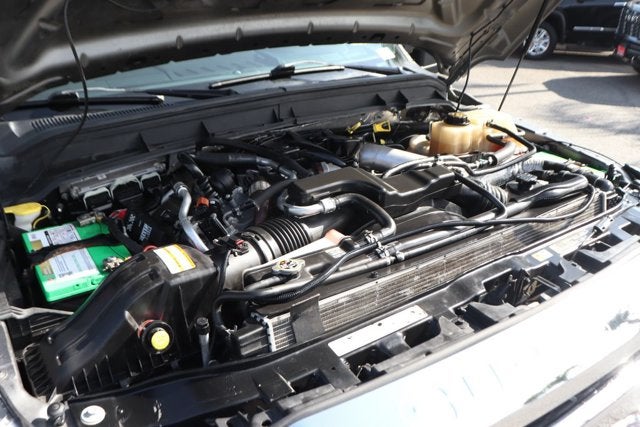

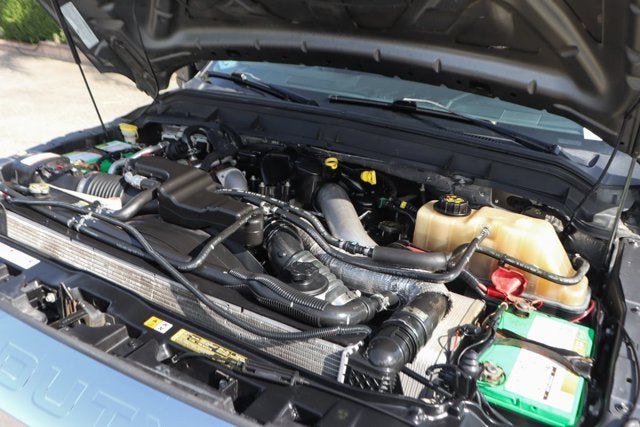

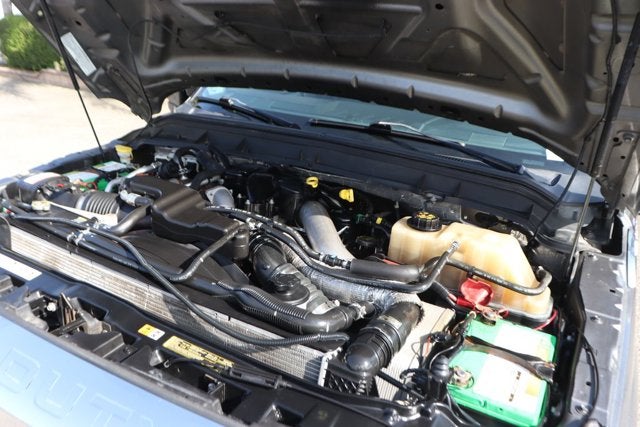

6.7L 32-VALVE PWR STROKE V8 TURBO DIESEL ENGINE

• 750 CCA 78-AH dual batteries
• intelligent oil life minder

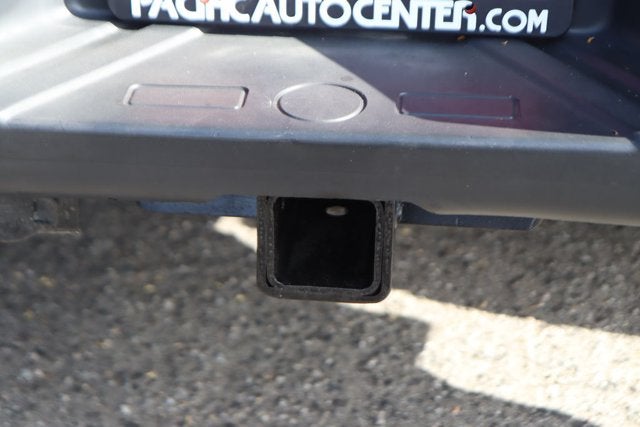

• 14K trailer hitch receiver w/2.5" trailer hitch & 2" sleeve reducer

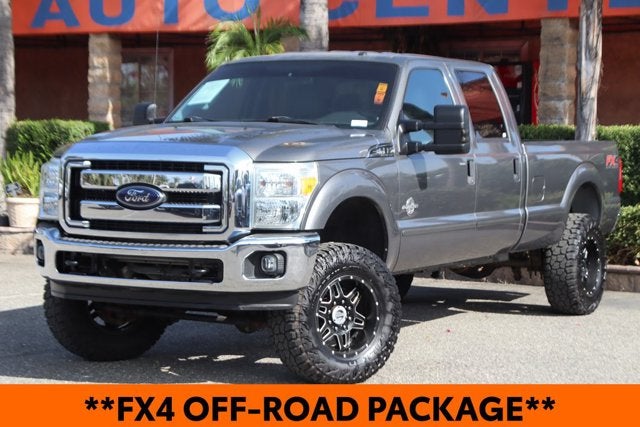

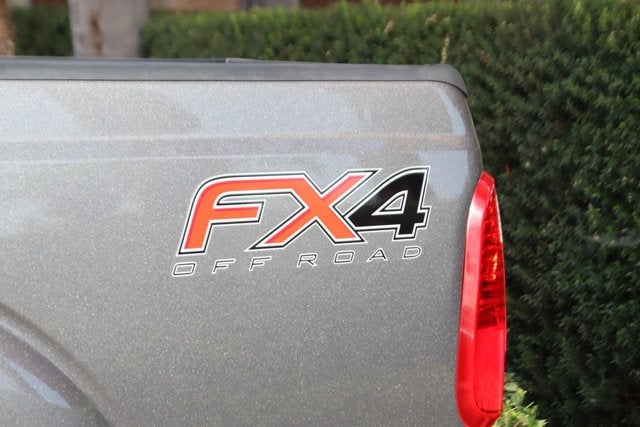

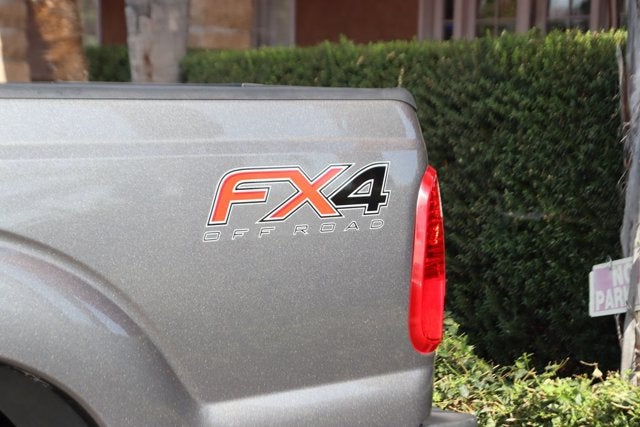

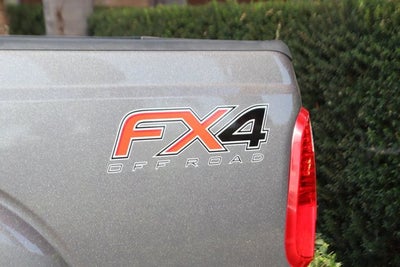

• FX4 Off-Road Package
• GVWR: 11
• 200 lb Payload Package
• Order Code 613A
• XLT Interior Package
• 4x4 Electric-Shift-On-The-Fly
• 4 Speakers
• AM/FM radio
• CD player
• Radio data system

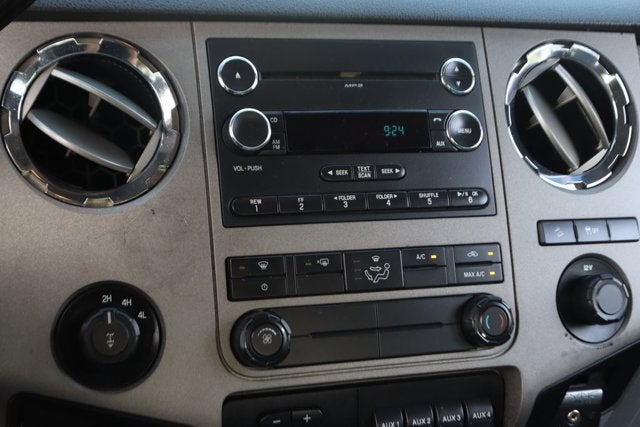

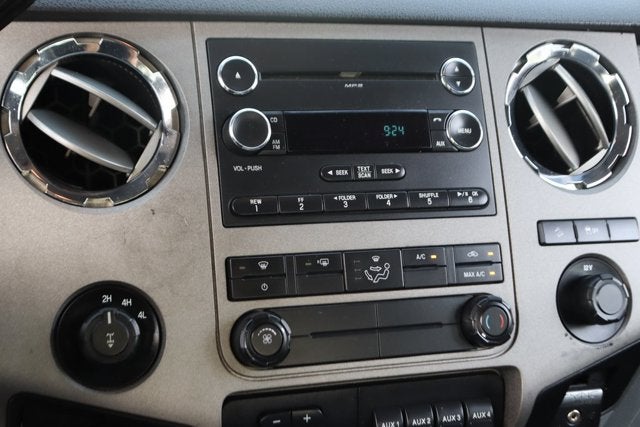

• Radio: AM/FM Stereo/Single CD/MP3 Player
• Satellite Radio

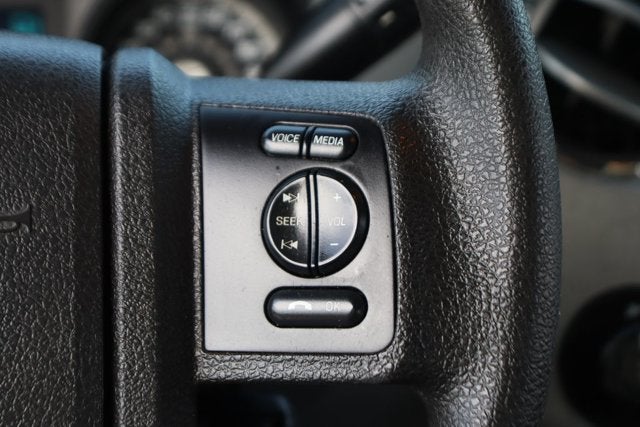

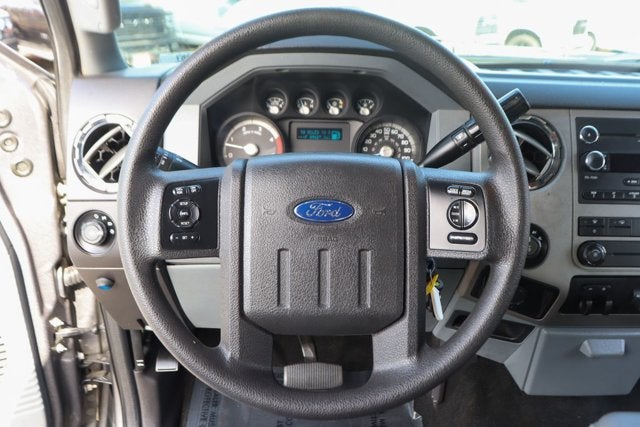

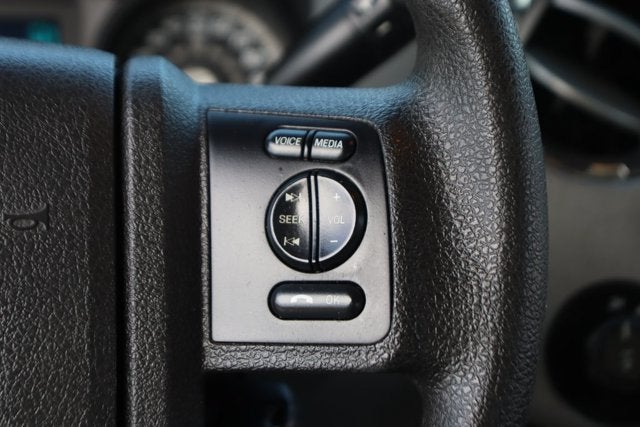

• Steering Wheel Audio Controls
• SYNC w/AppLink
• Air Conditioning
• Power steering
• Power windows
• Remote keyless entry

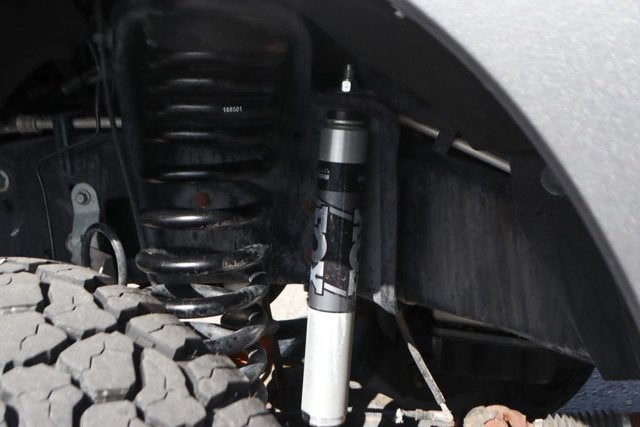

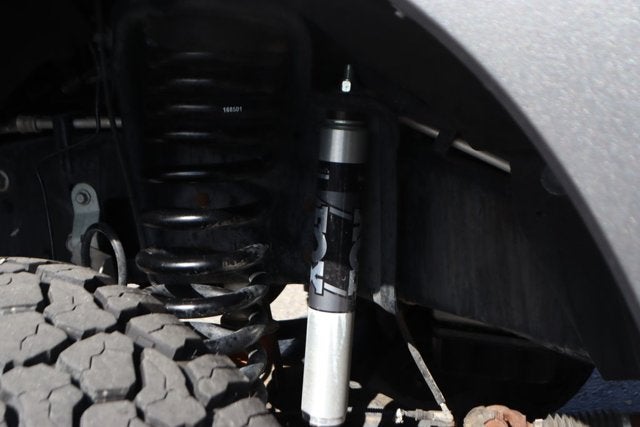

• Colored Front & Rear Rancho Branded Shocks
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Auto-Lock/Auto-Unlock
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Low tire pressure warning
• Overhead airbag
• SecuriCode Keyless Entry Keypad (Driver Side)
• Brake assist
• Electronic Stability Control
• Hill Descent Control
• Panic alarm
• Security system
• Speed control
• Engine Block Heater
• Extra Heavy Duty 200-Amp Alternator
• 5 Chrome Tubular Step Bars
• Auto-Lamp/Rainlamp
• Bodyside Molding
• Bumpers: chrome
• Heated door mirrors
• Power door mirrors
• PowerScope Trailer-Tow Mirrors
• Rear step bumper

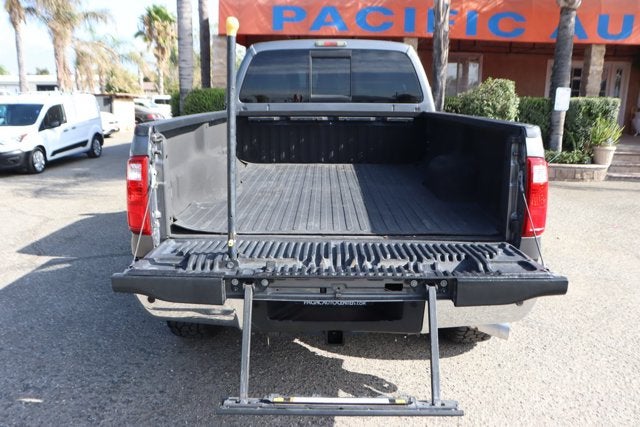

• Tailgate Step & Handle w/TailGate Assist
• Turn signal indicator mirrors
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Illuminated Driver & Passenger Sunvisor Mirrors
• Illuminated entry
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Power Adjustable Pedals
• Rear reading lights
• Rear seat center armrest

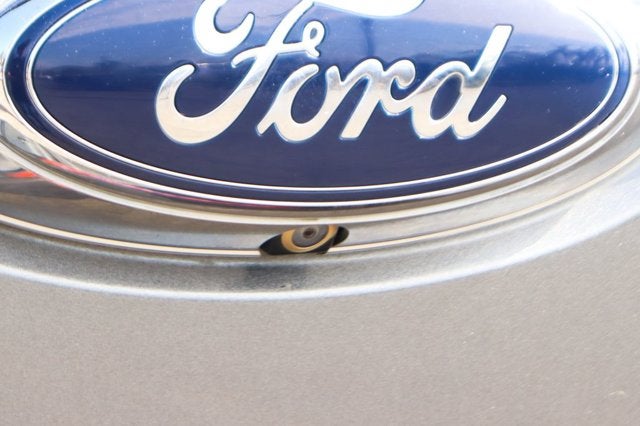

• Reverse Vehicle Aid Sensor
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel

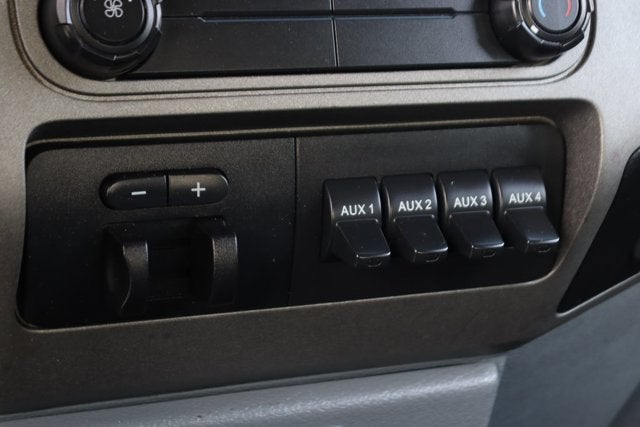

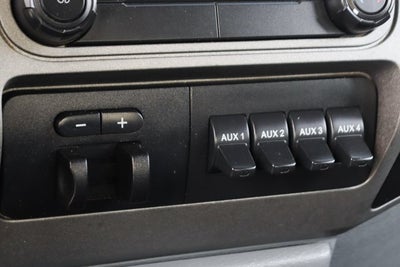

• Upfitter Switches (4)
• 6-Way Power Driver Seat

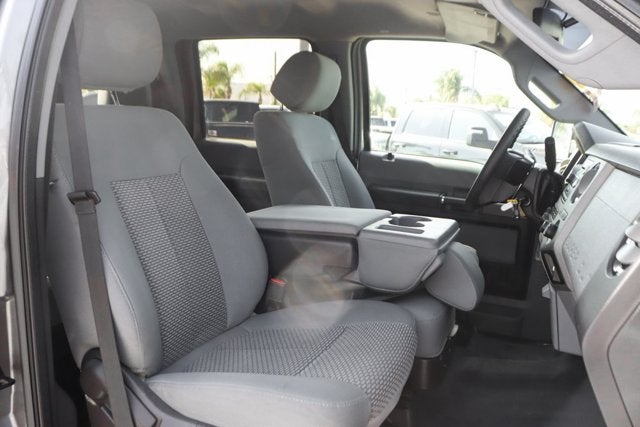

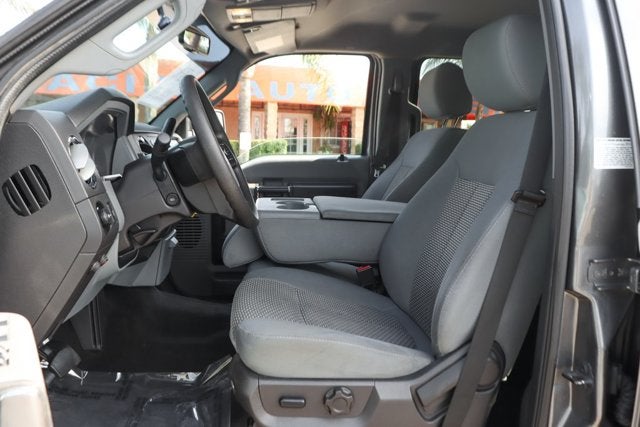

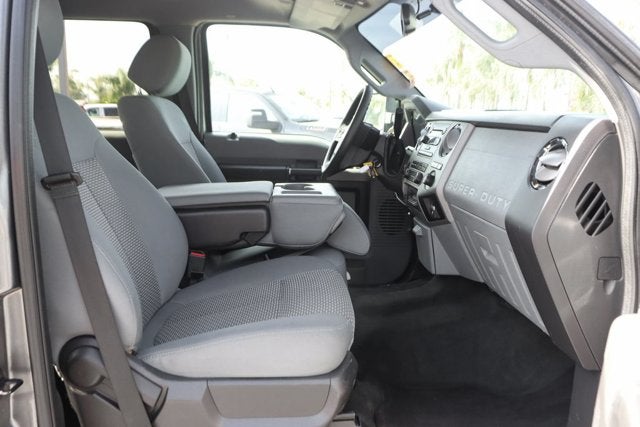

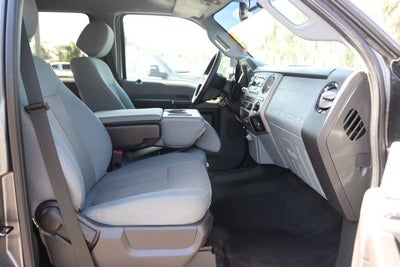

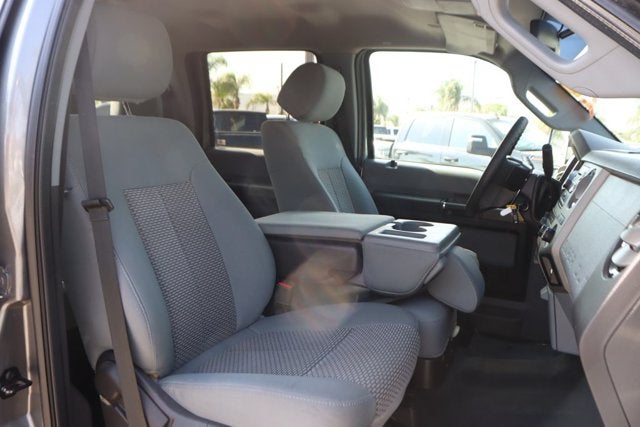

• Cloth 40/20/40 Split Bench Seat
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• 17 5-Spoke Cast Aluminum Wheels
• Alloy wheels
• Power Sliding Rear Window w/Privacy Glass/Defrost
• Variably intermittent wipers
• **CLEAN CARFAX**

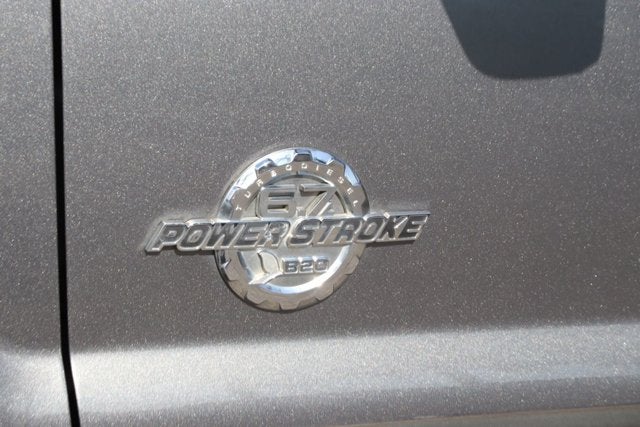

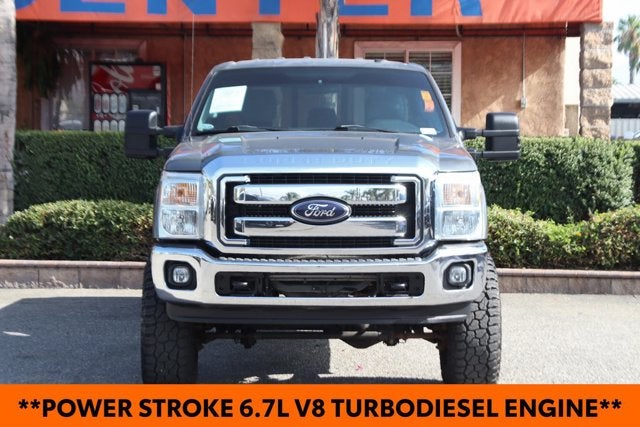

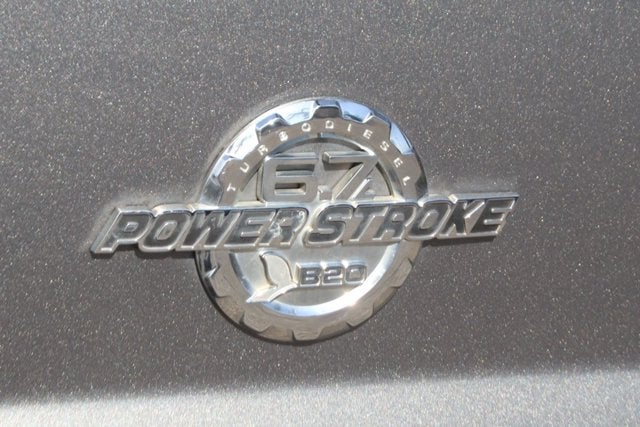

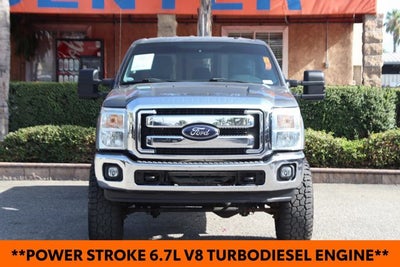

• **POWER STROKE 6.7L V8 TURBO-DIESEL**
• **4X4**
• **CREW CAB**
• **LONG BED**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**
• **ALLOY WHEELS**
• **TOW PACKAGE**
• **TRAILER BRAKE CONTROL**
• **UPFITTER SWITCHES**

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6290
• Curb Weight - Front (lbs): 4515
• Curb Weight - Front (lbs): 3941
• Curb Weight - Rear (lbs): 2966
• Curb Weight - Rear (lbs): 2884
• Gross Vehicle Weight Rating Cap (lbs): 11200
• Gross Vehicle Weight Rating Cap (lbs): 10600
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3925
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2975
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6290
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.8
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Ext'd Cab Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.6
• Summary

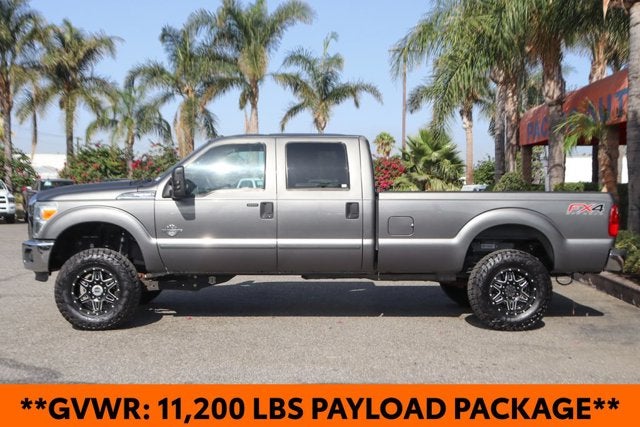

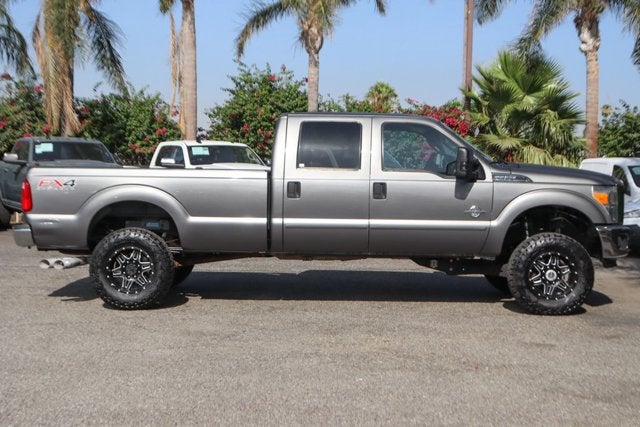

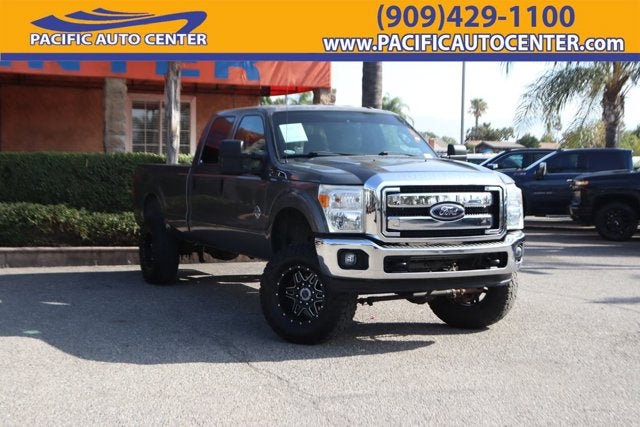

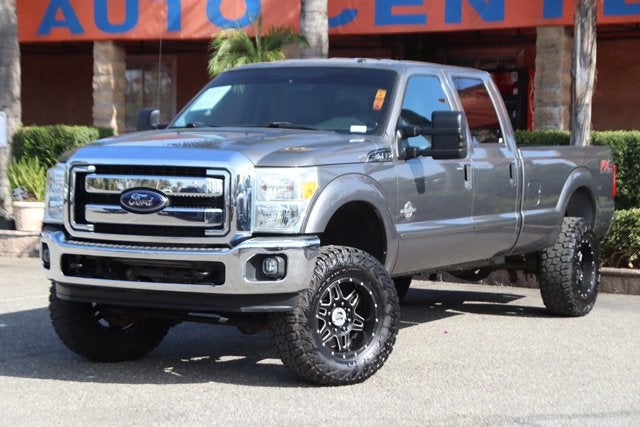

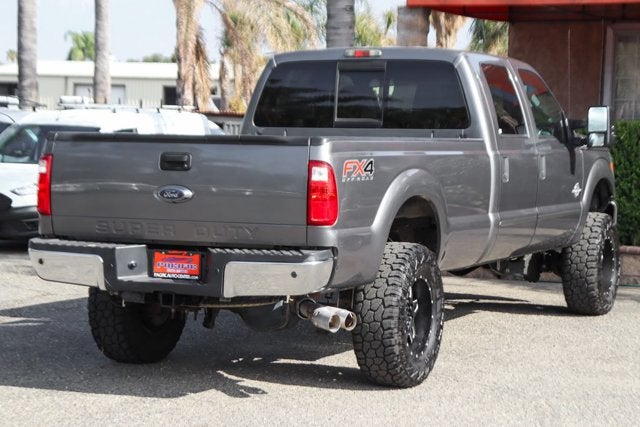

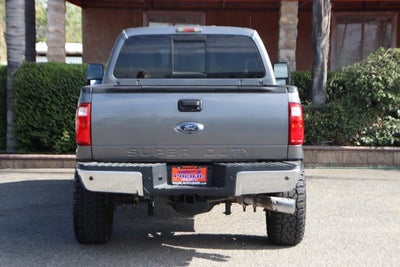

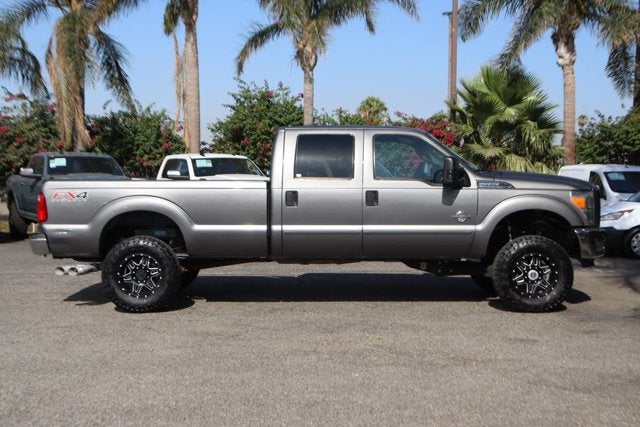

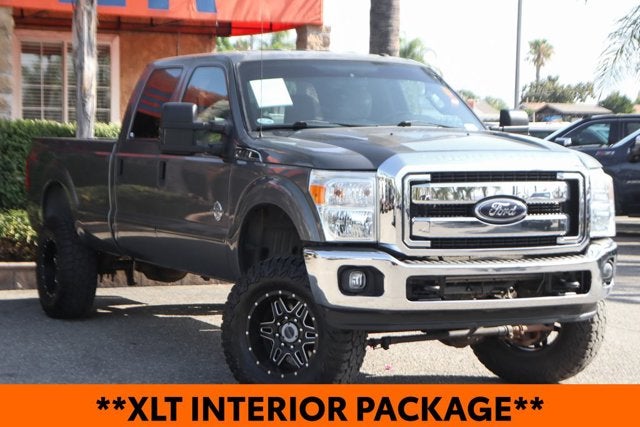

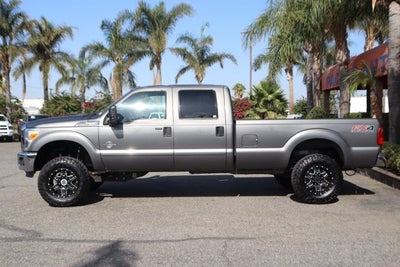

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab Pickup
• Body Code: 156" WB
