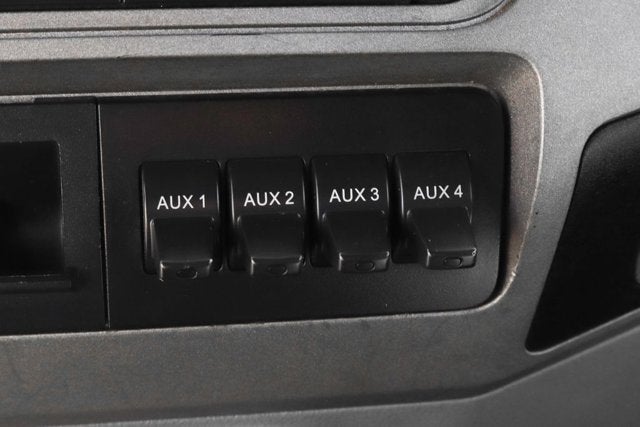

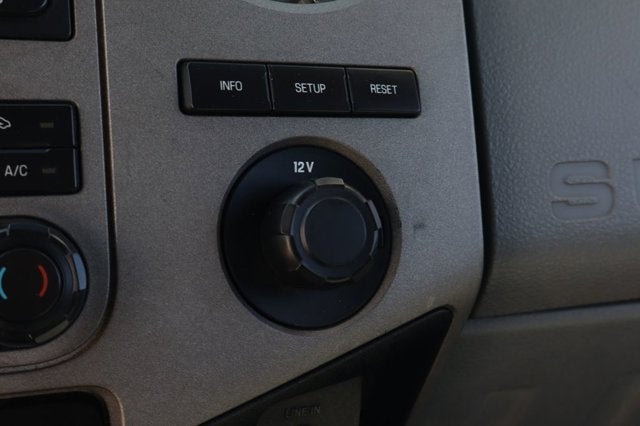

• (2) auxiliary pwr points
• Back panel trim cover

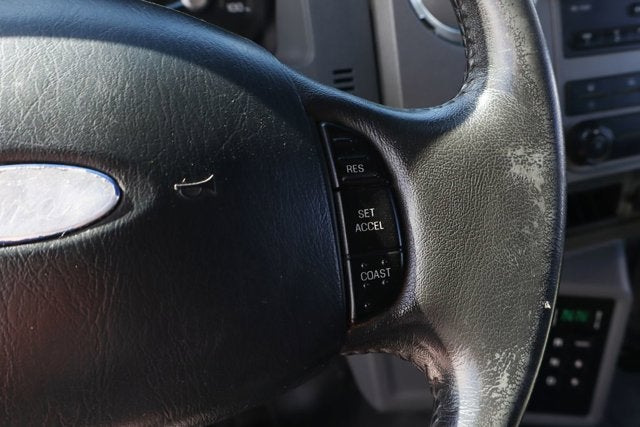

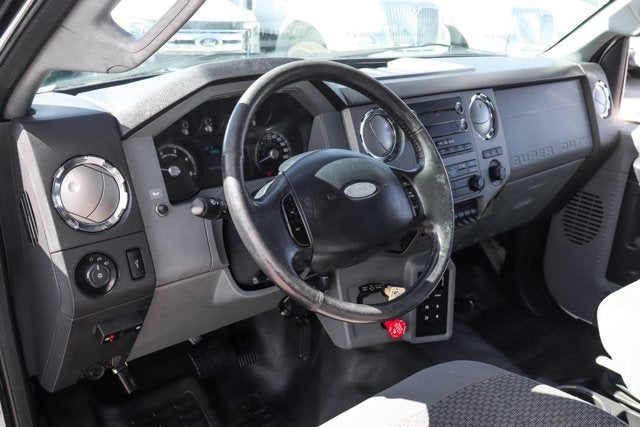

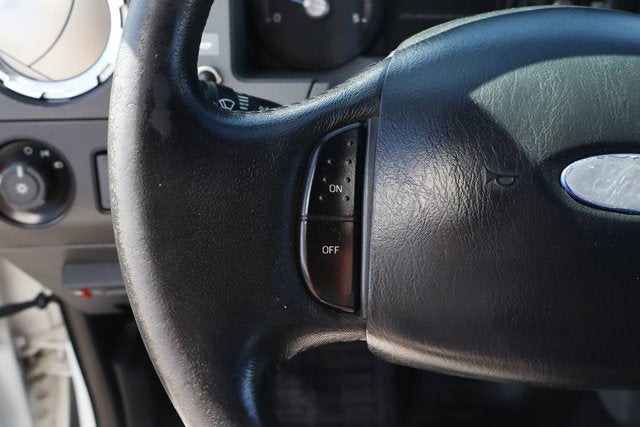

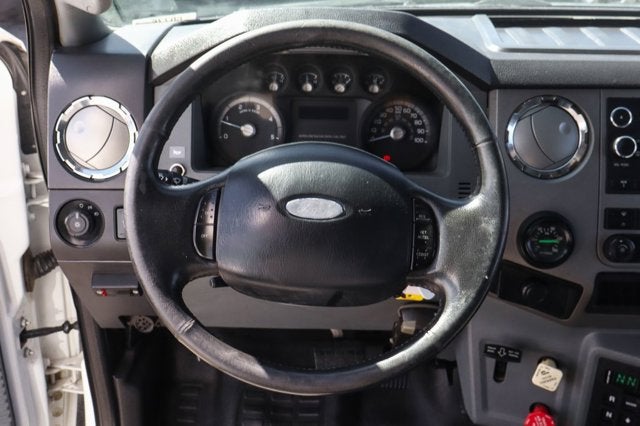

• Black two-spoke 15.5" PVC steering wheel w/cruise control switches
• Black vinyl full floor covering
• Color-coordinated coat hooks (LH & RH)

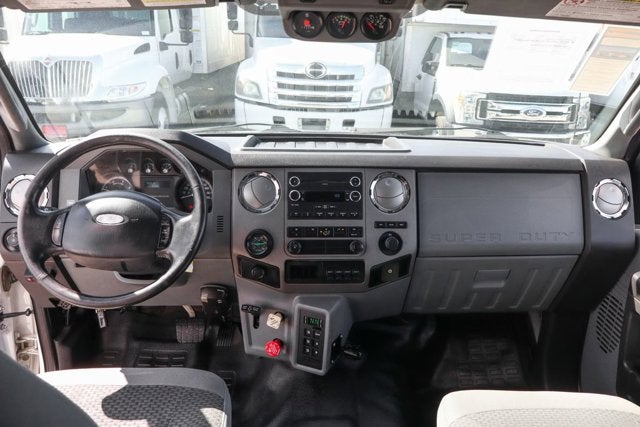

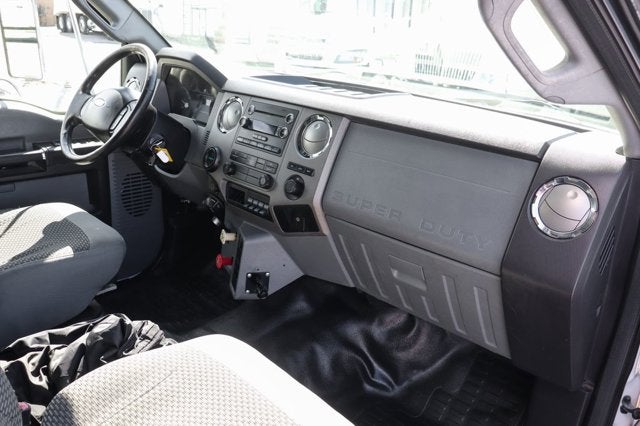

• Color-coordinated instrument panel
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Cruise control
• Cup holder
• Dome lamp w/map reading lights
• Dual vinyl covered sunvisors w/passenger mirror
• Glove Box

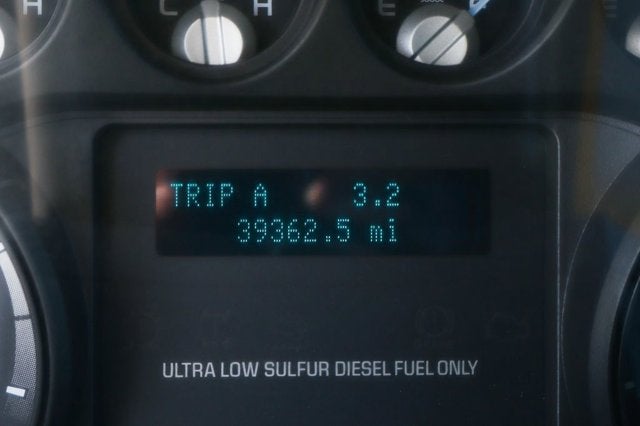

• Instrumentation -inc: speedometer, oil pressure, coolant temp, DEF gauge, fuel gauge, tachometer, indicator lights, trip odometer, distance-to-empty, average fuel economy, warning messages
• Interior A-pillar mounted grab handle
• Interior B-pillar mounted grab handle

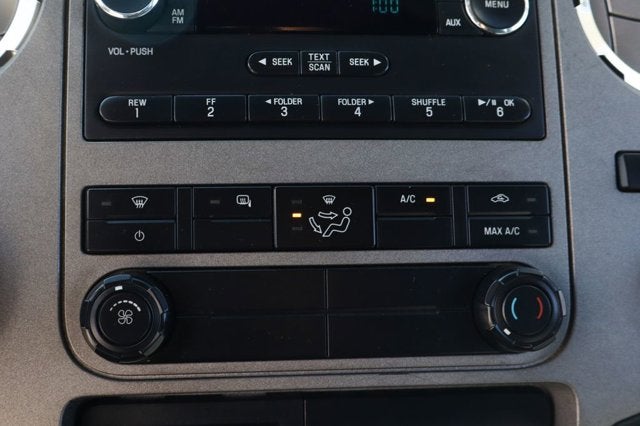

• Manual air conditioning -inc: integral heater & defroster
• Multifunction self canceling turn signal switch
• Overhead console -inc: dual bins, front map reading lights

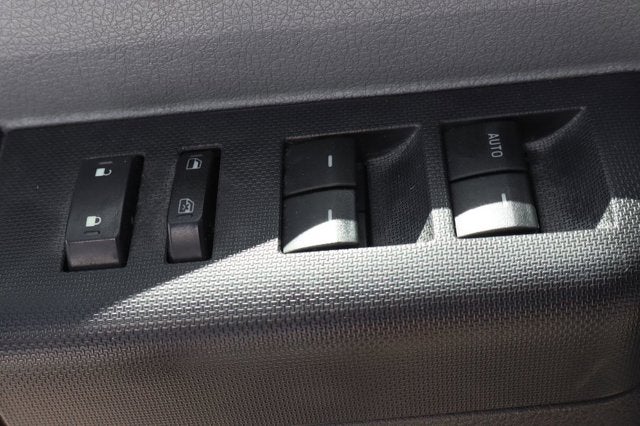

• Pwr door locks
• Pwr windows
• Side window demisters
• Tilt steering column

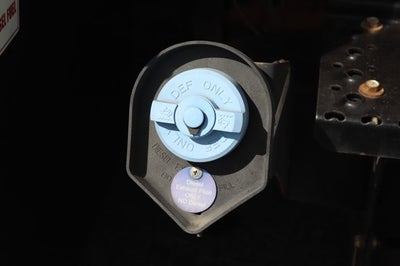

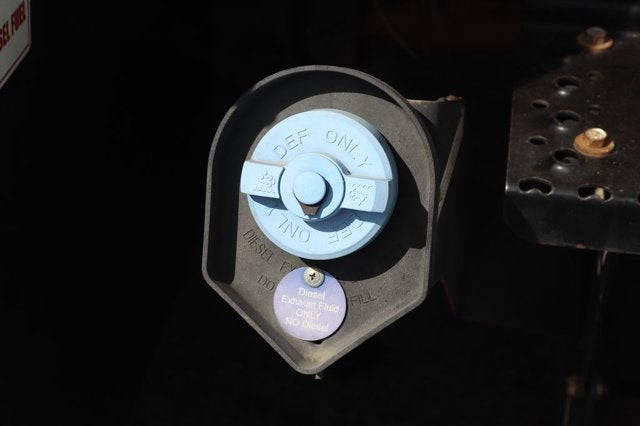

• (10) gallon urea tank

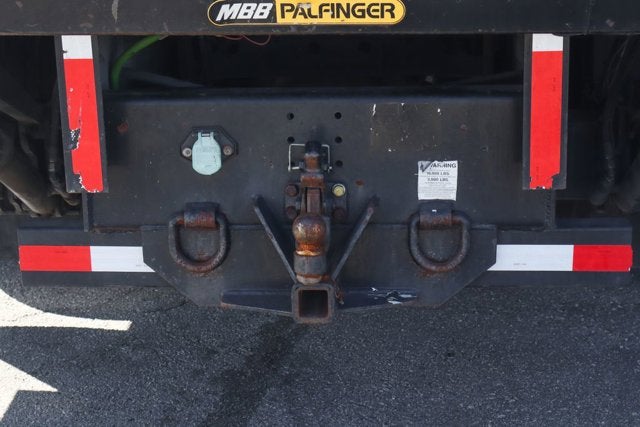

• (2) Inside rail frame mounted tow hooks
• 12-volt Delco Remy 38MT type 300 starting motor
• 12-volt, 185-amp Leece-Neville brushless alternator
• 12.64 sm, 50000 psi straight C channel frame
• 17500lb Dana S17-140 single reduction single-speed rear axle -inc: Gentech quiet gears, 190 wheel ends, synthetic lube
• 18500lb vari-rate multi-leaf rear springs -inc: 4500lb auxiliary rubber springs
• 717 sq in cross-flow aluminum radiator w/313 sq in charge air cooler
• 8500lb Cap. (Meritor MFS-08-153B) I-beam front axle -inc: Ross TAS-40 integral pwr steering & 15.5" steering wheel
• 8500lb parabolic taper-leaf front springs -inc: double acting shock absorbers
• Body builder wiring at back of cab at frame
• Borg Warner SA75 viscous screw-on type fan clutch
• DDSA type rear axle mounted 12" x 3" parking brake w/Orscheln control
• Donaldson single element air cleaner -inc: restriction indicator
• Double acting front shock absorbers
• Dual 625 CCA 12-volt Motorcraft batteries under RH cab step
• Fleetguard FS19557 fuel & water separator w/electric type heater & primer pump
• Front & rear hydraulic pwr disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Front Stemco wheel seals
• Gold Eagle cold weather anti-gel diesel fuel additive
• Rear Stemco wheel seals
• Rear wheel drive
• Red extended life anti-freeze coolant
• SAE blade type fuses
• Single horizontal exhaust system w/horizontal tail pipe -inc: diesel particulate filter assembly, right side frame mounted under cab, right side tail pipe outlet
• Single horizontal SCR assembly
• Spicer SPL100 driveshaft

• Dual electric horns
• Emergency flasher
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Safety belts w/adjustable D-rings

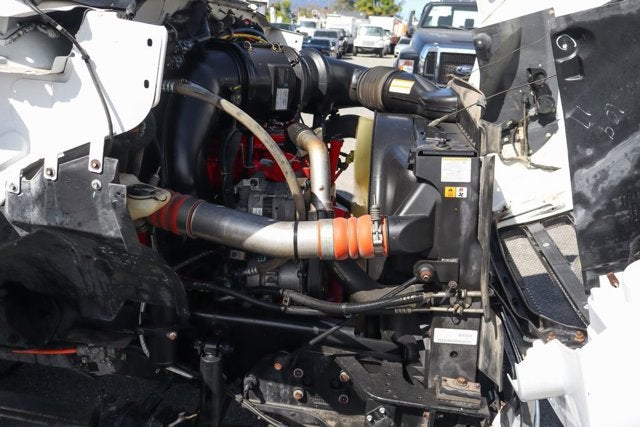

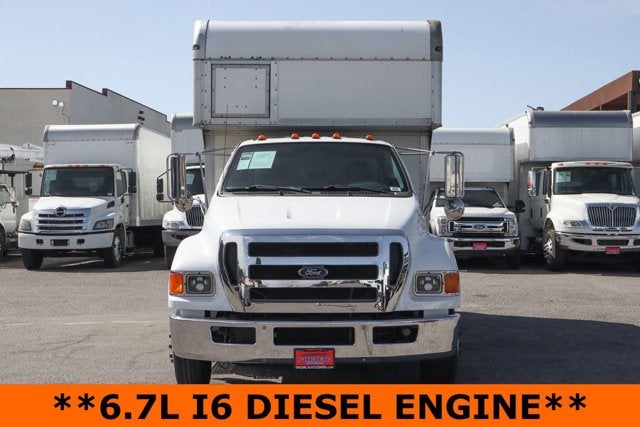

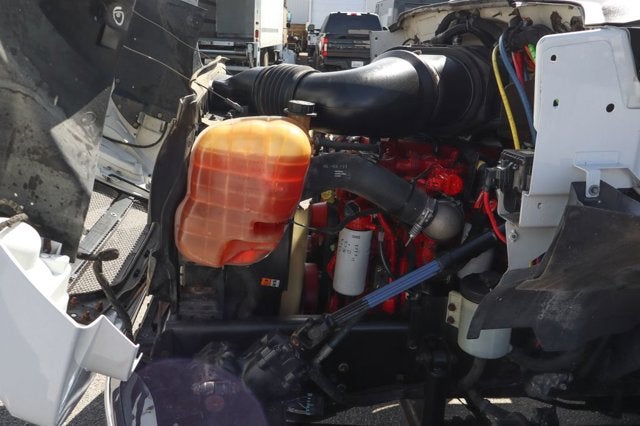

6.7L CUMMINS ISB 200 I6 DIESEL ENGINE 325 HP @ 2300 RPM, 750 LB-FT TORQUE @ 1800 RPM

• 2600 RPM governed speed
• 325 peak HP (max)
• Delco-Remy America Inc. 38MT type 300 starter
• Borg Warner SA75 viscous screw fan clutch
• Donaldson air cleaner
• Fleetguard FS19557 fuel & water separator w/electric heater & primer pump

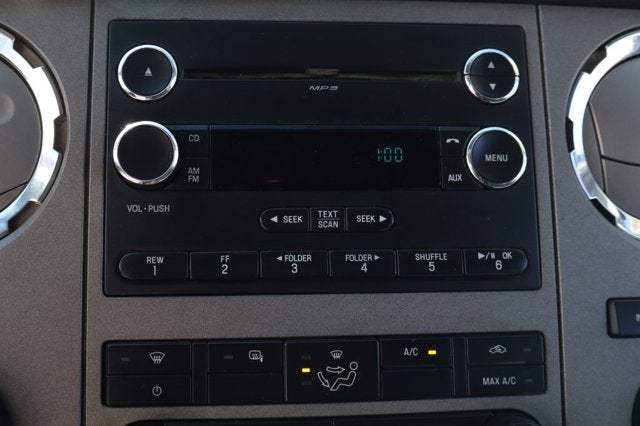

• AM/FM radio
• Air Conditioning
• Power steering
• ABS brakes
• Speed control

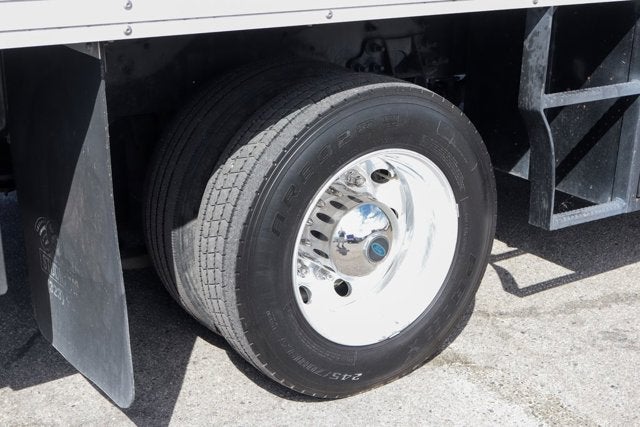

• Dual rear wheels
• Bumpers: chrome
• Passenger vanity mirror
• Tachometer
• Tilt steering wheel

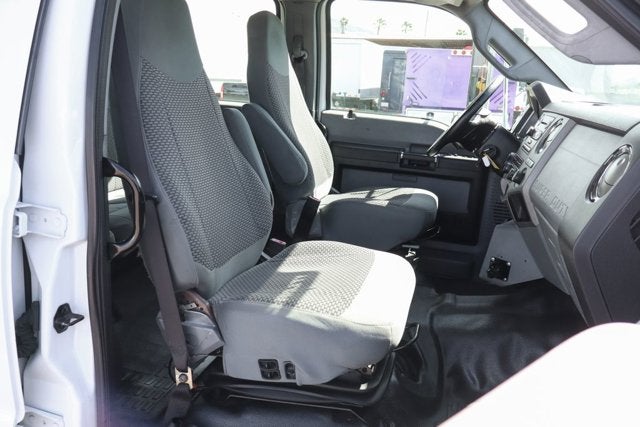

• Driver's Seat Mounted Armrest

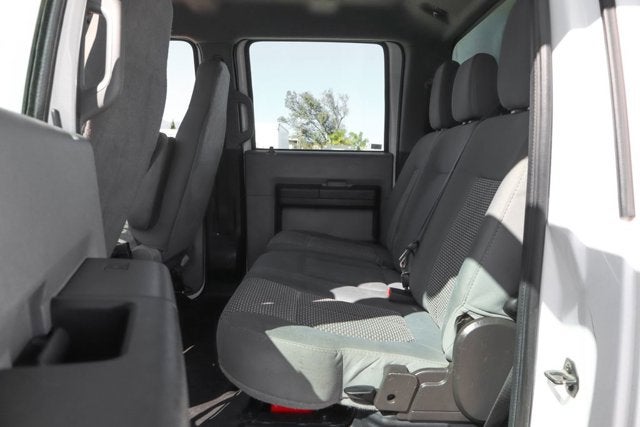

• Split folding rear seat
• Variably intermittent wipers

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Hydraulic
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Drum - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Drum Diam x Width (in): 15.0 x 4.0
• Rear Drum Diam x Width (in): 15.0 x 8.63
• Cooling System
• Total Cooling System Capacity (qts): 30.0
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 185
• Exterior Dimensions
• Body Length Default Value (ft): 0
• Cab to Axle (in): 84.0
• Cab to End of Frame (in): 123.0
• Frame Width, Rear (in): 34.0
• Front Bumper to Back of Cab (in): 148.0
• Ground to Top of Frame (in): 39.4
• Height, Overall (in): 93.6
• Length, Overall w/o rear bumper (in): 272.0
• Overhang, Front (in): 39.0
• Overhang, Rear w/o bumper (in): 39.0
• Wheelbase (in): 194.0
• Width, Max w/o mirrors (in): 96.7
• Frame
• Frame RBM (N/A): 632000
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.312
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 12.64

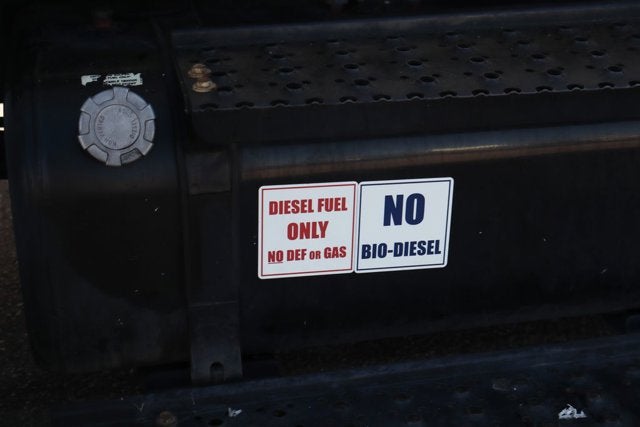

• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 45
• Fuel Tank Location: LH
• Interior Dimensions
• Front Head Room (in): 41.5
• Front Hip Room (in): 67.4
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 68.0
• Passenger Capacity: 6
• Second Head Room (in): 41.0
• Second Hip Room (in): 67.3
• Second Leg Room (in): 42.8
• Second Shoulder Room (in): 66.9
• Medium Duty Performance
• Driver Ratio: .75
• Torque : Clutch Engage (ft-lbs)
• Steering
• Steering Ratio (:1), On Center: 20.4
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 26.0
• Turning Diameter - Wall to Wall (ft): 27.4
• Summary
• Body Code: W6F

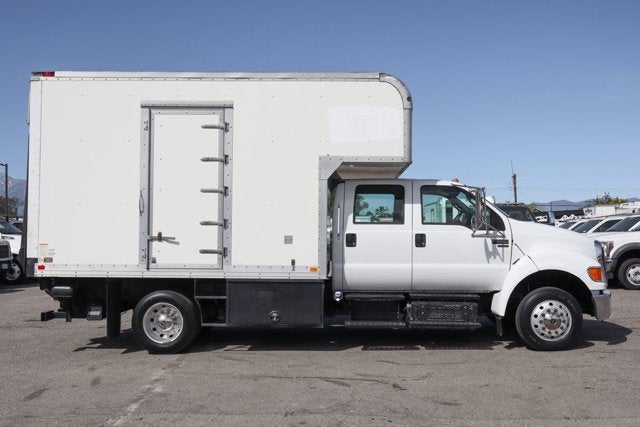

• Body Style: Medium Duty Chassis Cab

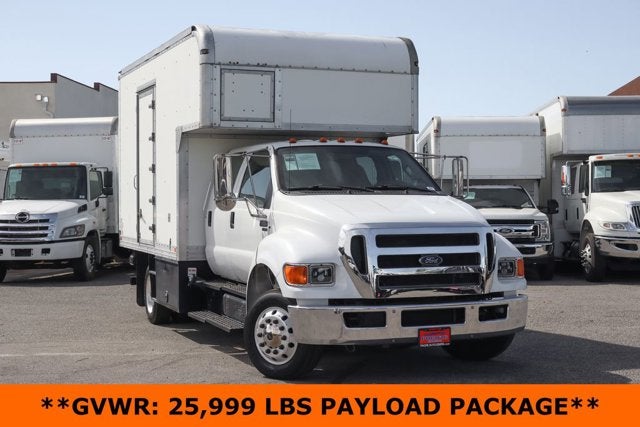

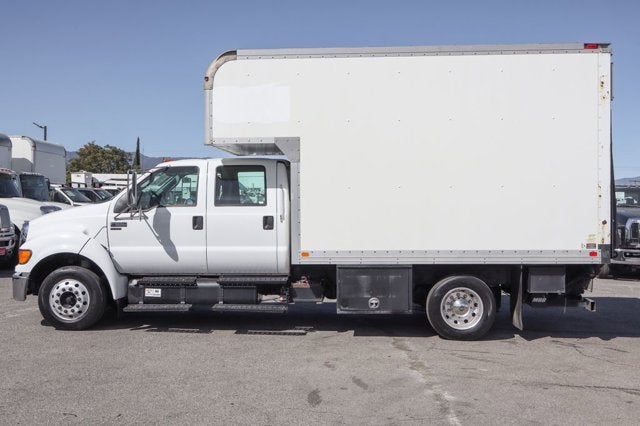

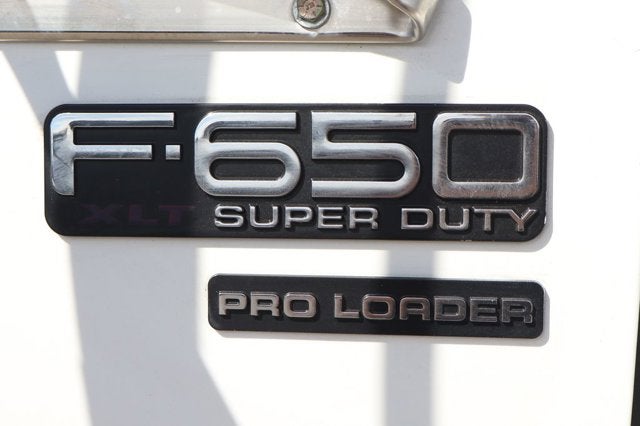

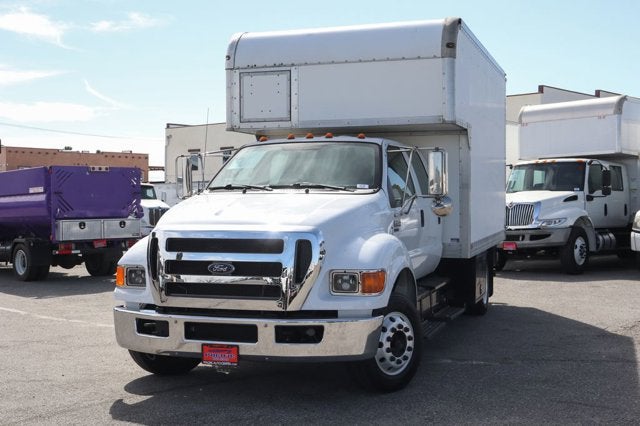

• Vehicle Name: Ford Super Duty F-650 Straight Frame
• Suspension
• Axle Capacity - Front (lbs): 8500
• Axle Capacity - Rear (lbs): 17500
• Axle Ratio (:1) - Rear: 2.64
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-Speed
• Shock Absorber Diameter - Front (mm): 1.375
• Spring Capacity - Front (lbs): 8500
• Spring Capacity - Rear (lbs): 18500
• Suspension Type - Front: Taper-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 12400
• Front Tire Order Code: TDB

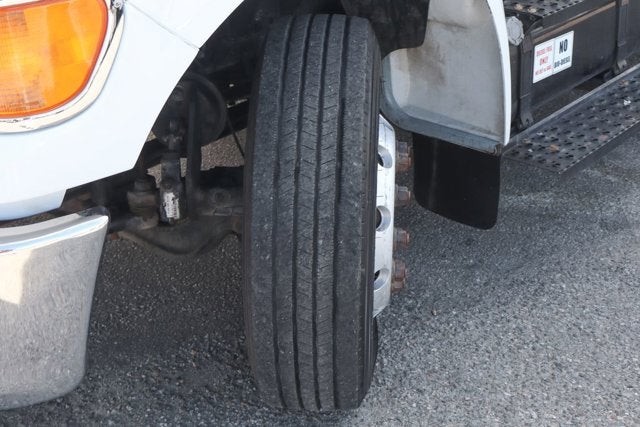

• Front Tire Size: 11R22.5H
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 23200
• Rear Tire Order Code: RDB
• Rear Tire Size: 11R22.5H
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 6377
• Curb Weight - Rear (lbs): 3407
• Gross Axle Wt Rating - Front (lbs): 8500
• Gross Axle Wt Rating - Rear (lbs): 17500
• Gross Combined Wt Rating (lbs): 33000-70000

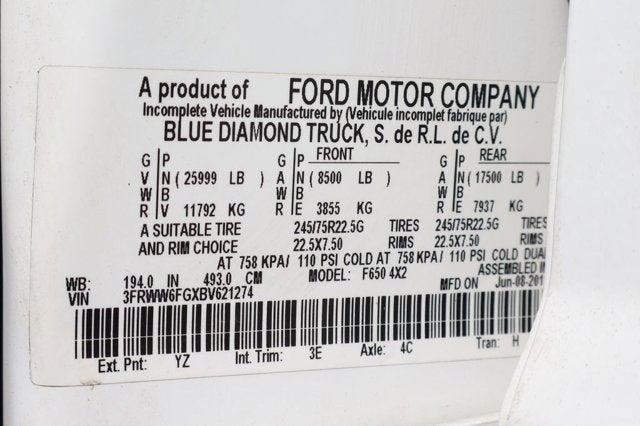

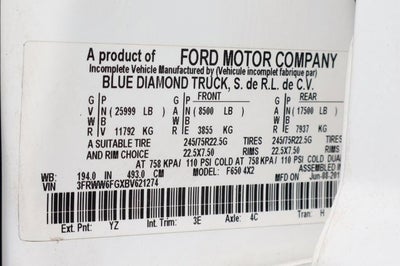

• Gross Vehicle Weight Rating Cap (lbs): 29000
• Wheels
• # of Bolt Holes - Front: 10
• # of Bolt Holes - Rear: 10
• Front Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Front Wheel Description Cont.: Hub Pilot Mount
• Front Wheel Material: Steel

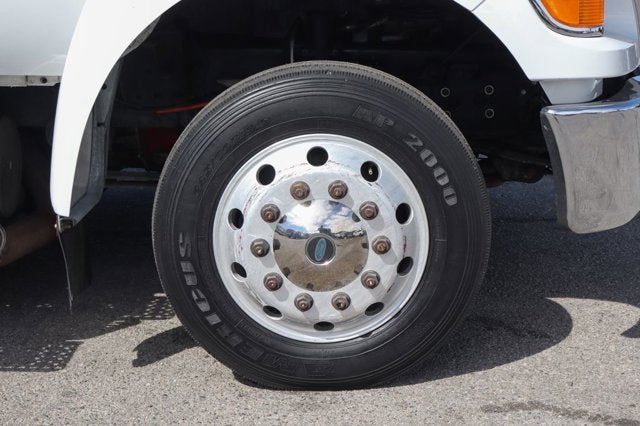

• Front Wheel Size (in): 22.5 x 7.5
• Rear Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Rear Wheel Description Cont.: Hub Pilot Mount
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 22.5 x 7.5
