• 11.5" day/night rearview mirror

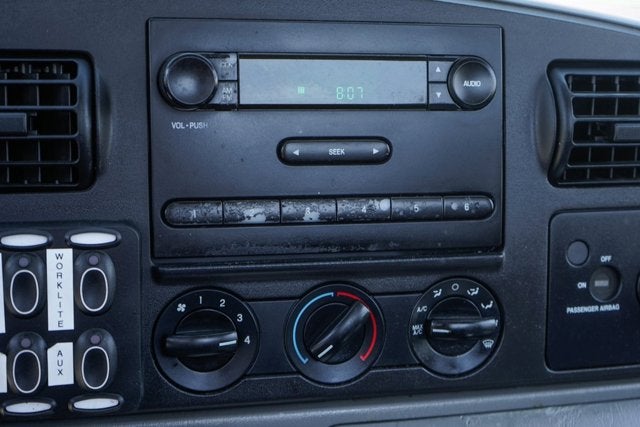

• AM/FM stereo-inc: digital clock, (2) speakers
• Auxiliary pwr point
• Behind seat storage trays

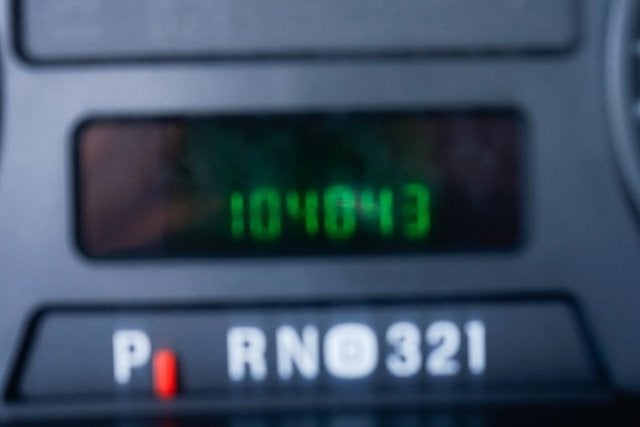

• Black instrument cluster w/black gauges & white graphics
• Black vinyl full floor covering

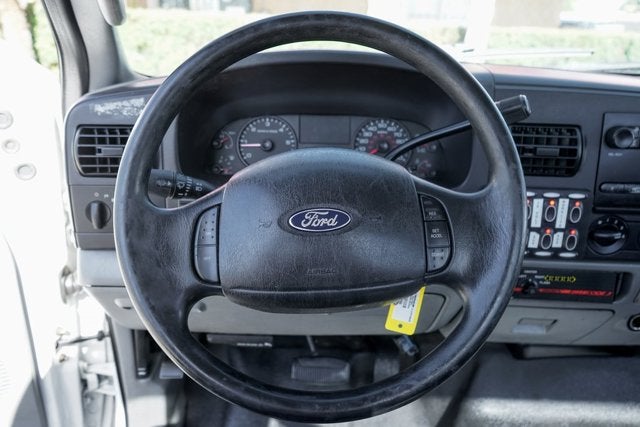

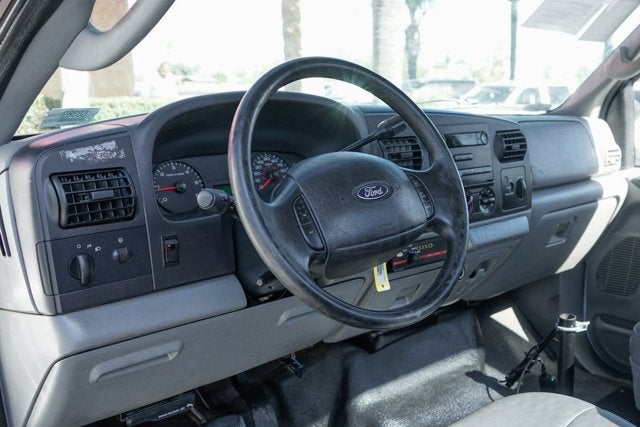

• Black vinyl steering wheel
• Color-coordinated cloth sun visors-inc: LH map strap, RH vanity mirror

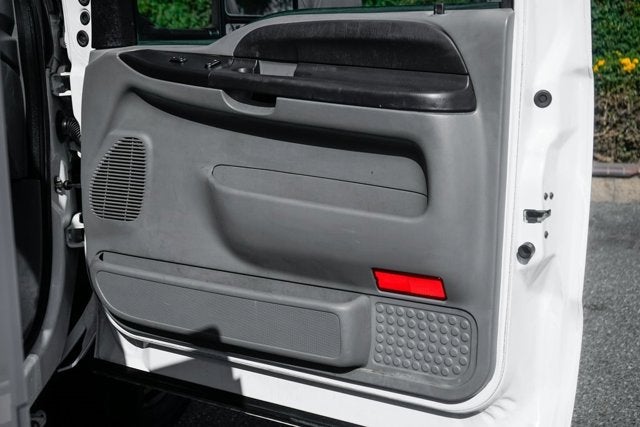

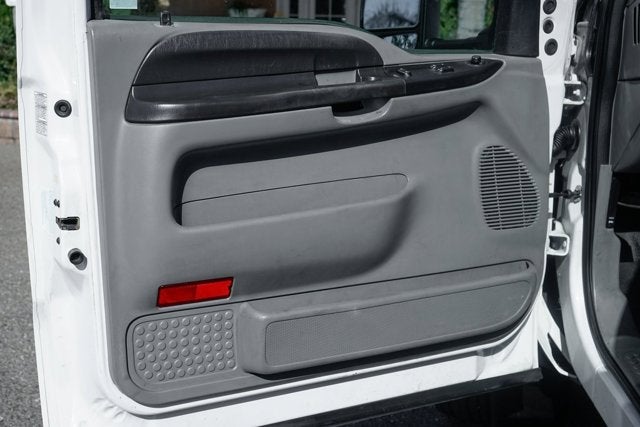

• Color-coordinated door trim panel-inc: armrest, grab handle, reflector

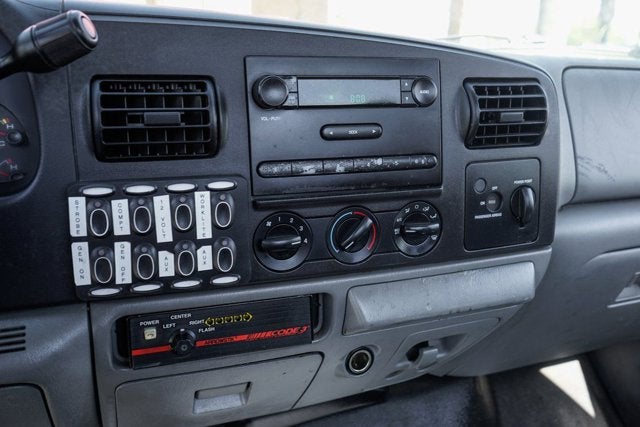

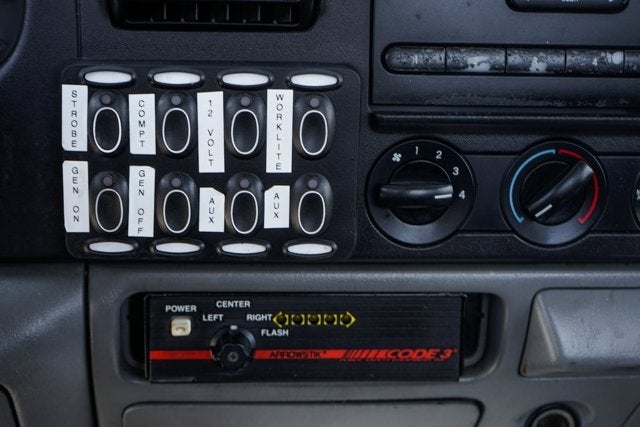

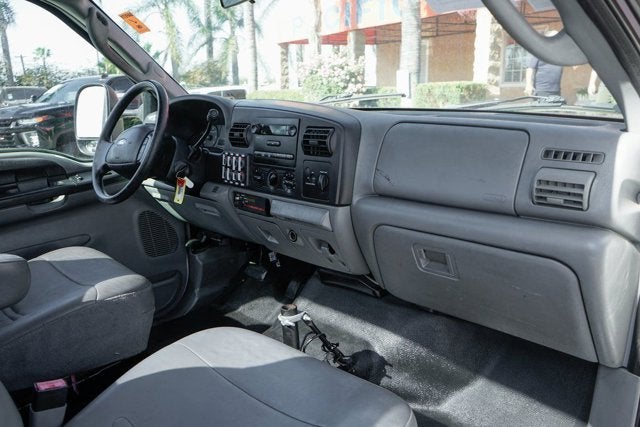

• Color-coordinated instrument panel w/glove box, (4) air registers w/positive shutoff, ashtray & cigar lighter & (4) upfitter switches
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Dome lamp w/dual map lights
• Dual front color-coordinated coat hooks
• Dual front grab handles

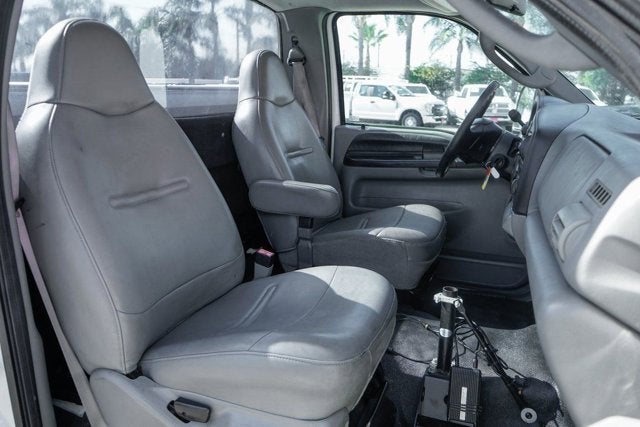

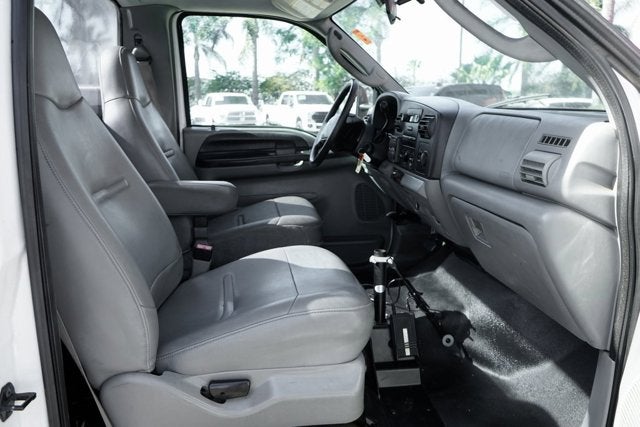

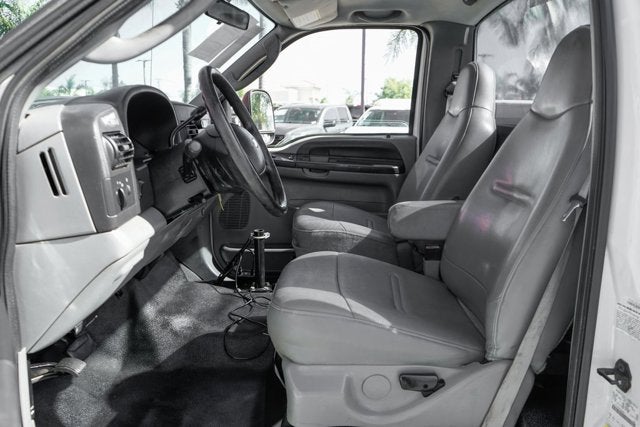

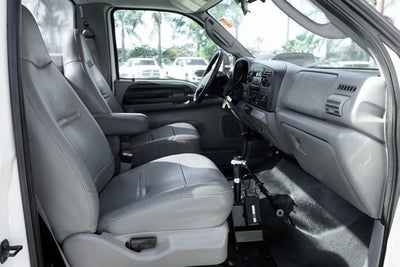

• HD vinyl bench seat w/recline
• Inside hood release
• Roof ride handles

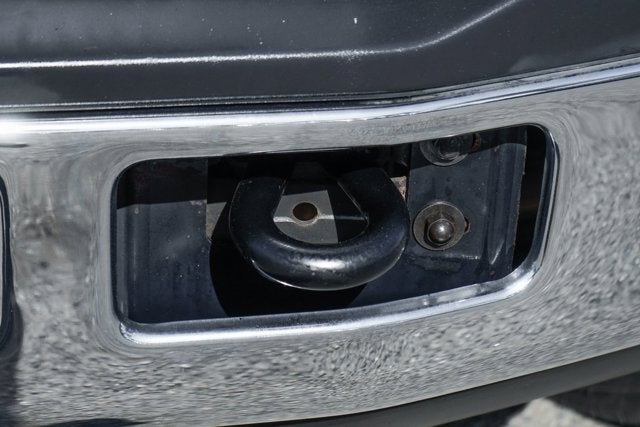

• (2) front tow hooks

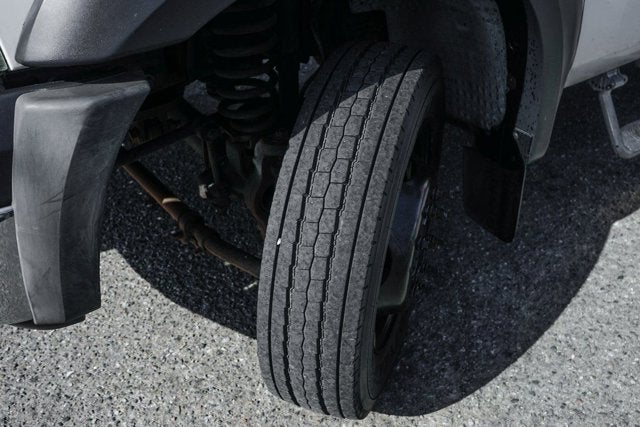

• (6) 225/70R19.5F all-season BSW Continental tires
• 115-amp HD alternator
• 19.5" argent steel wheels
• 4-wheel anti-lock brakes
• 4.88 Axle Ratio

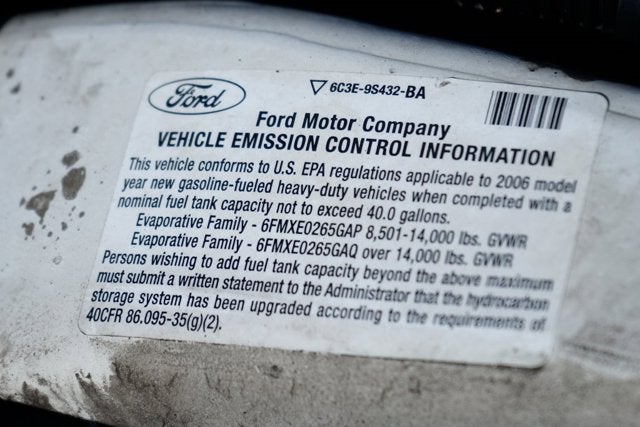

• 40 gallon aft-axle fuel tank
• 7-wire trailer tow harness w/relays, blunt cut & labeled
• 78 amp/hr maintenance-free battery
• Front/rear stabilizer bars
• HD gas shock absorbers
• Pwr 4-wheel disc brakes w/hydro-boost
• Pwr steering w/steering damper
• Rear wheel drive
• Stationary elevated idle control (SEIC)
• Wide-axle twin-coil mono-beam front suspension

• 4-wheel anti-lock brakes
• Child tethers on all passenger seats
• Color-coordinated safety belts w/front outboard seat height adjustment
• Driver/front passenger airbag
• Dual-note electric horn
• Passenger side airbag deactivation switch

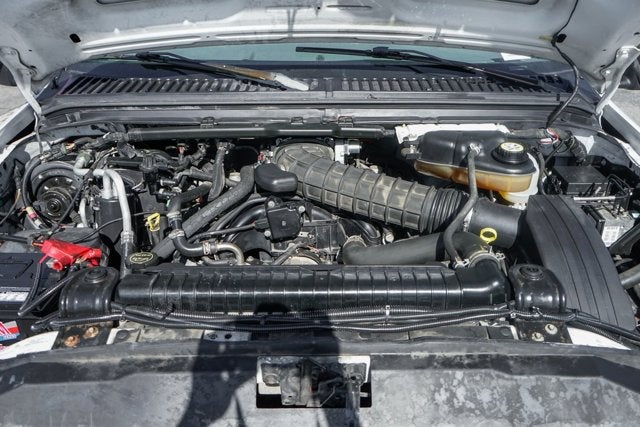

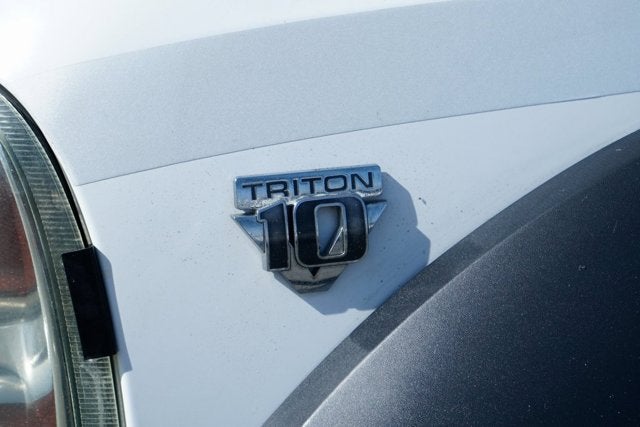

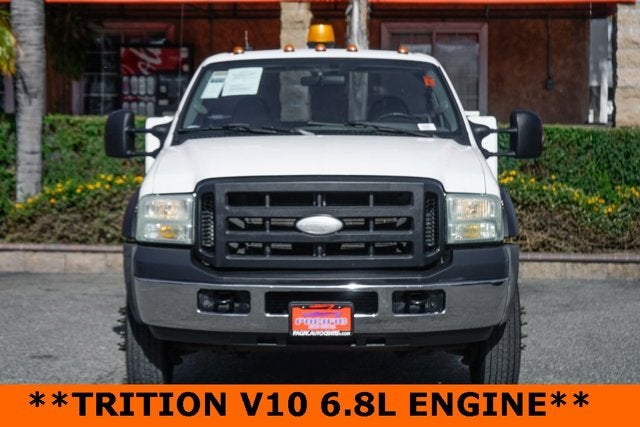

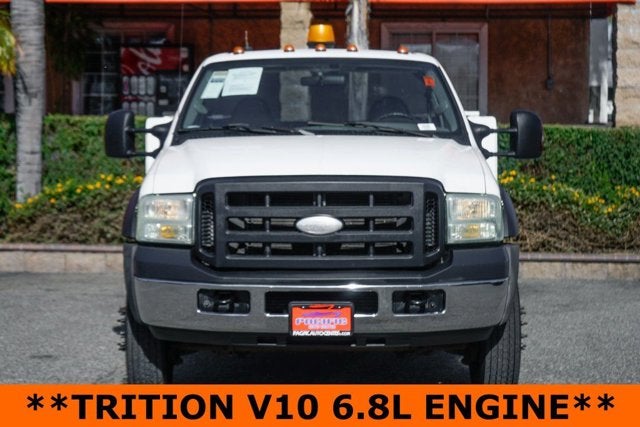

6.8L 30-VALVE SOHC EFI TRITON V10 ENGINE

• (STD)

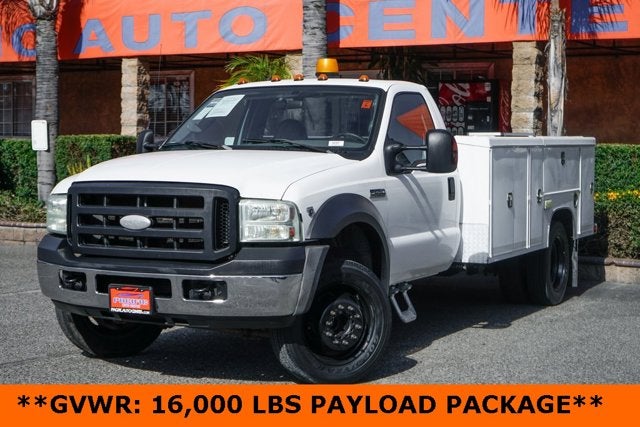

• GVWR: 16
• 000 lb Payload Package
• AM/FM radio
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Passenger cancellable airbag
• Rear anti-roll bar
• Dual rear wheels
• Front reading lights
• Passenger vanity mirror
• Tachometer
• Voltmeter

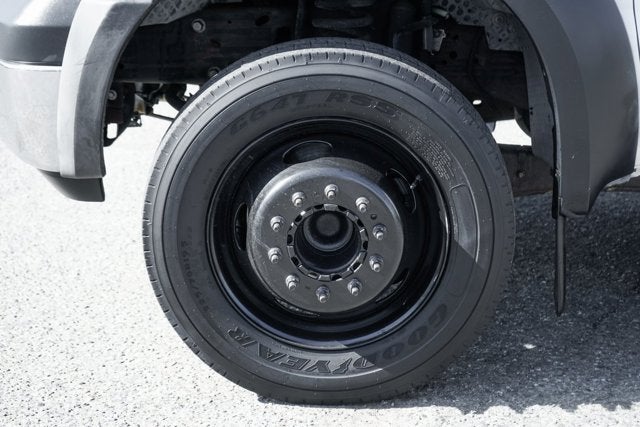

• 19.5 Argent Steel Wheels
• Variably intermittent wipers
• 4.88 Axle Ratio
• **RWD**
• **STANDARD CAB**
• **LONG BED**
• **DUALLY**

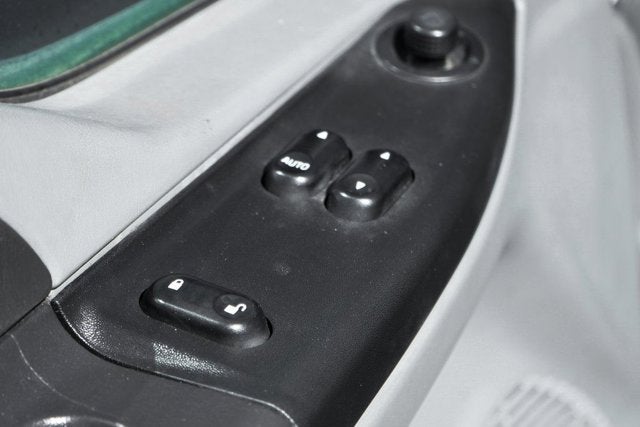

• **POWER WINDOWS**
• **POWER DOOR LOCKS**

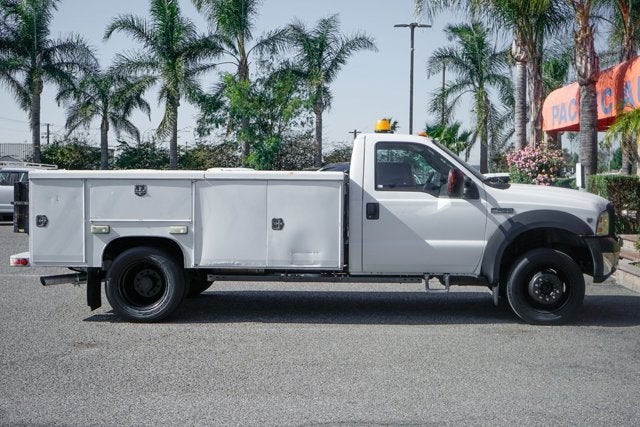

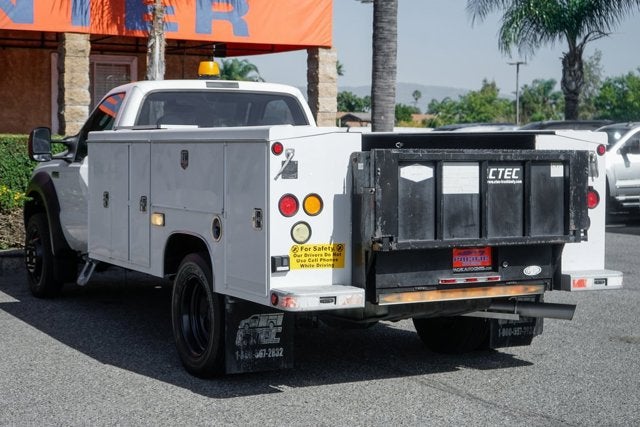

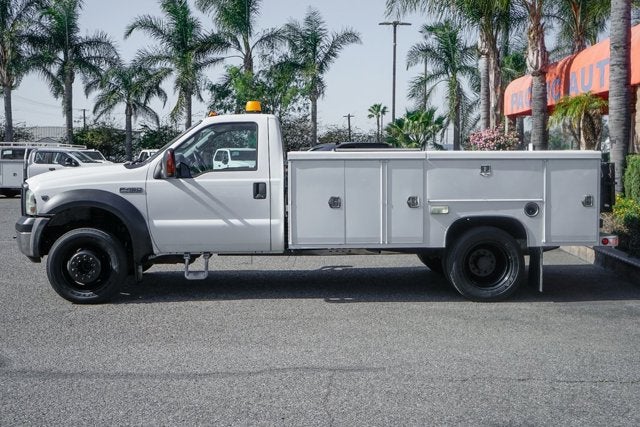

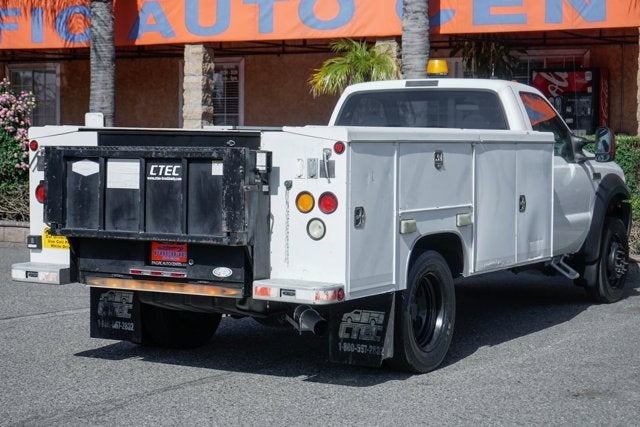

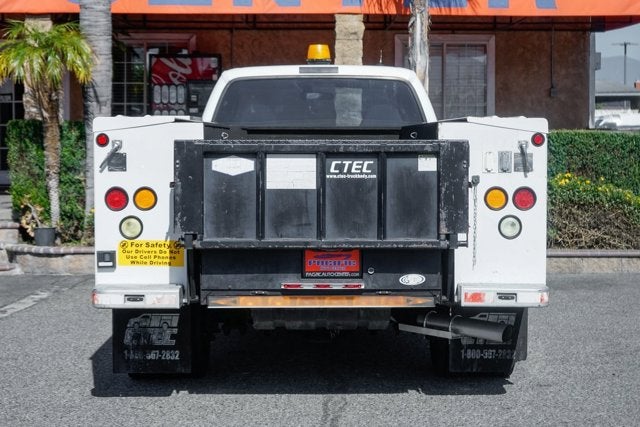

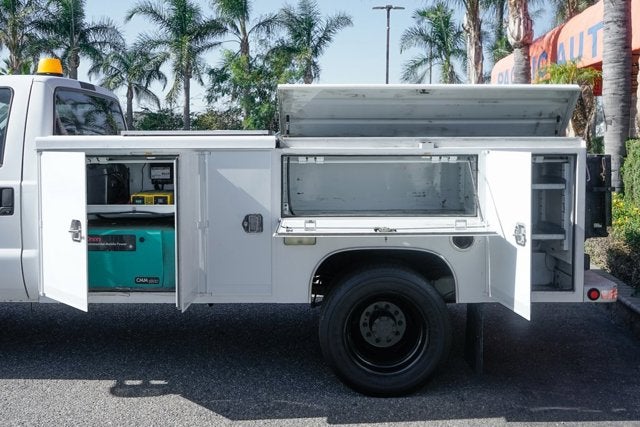

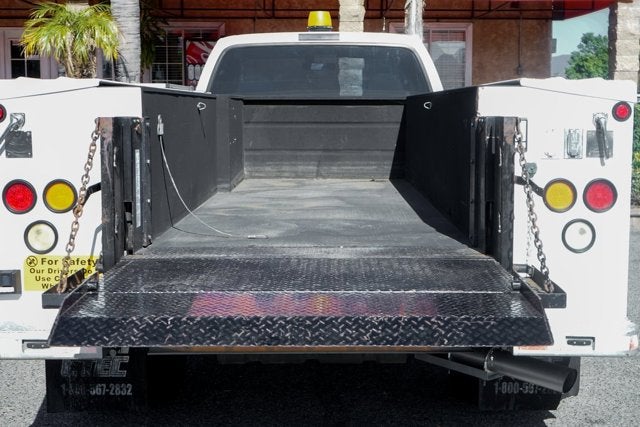

• **UTILITY/SERVICE TRUCK**

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 12,000
• Curb Weight - Front (lbs): 3610
• Curb Weight - Rear (lbs): 2806

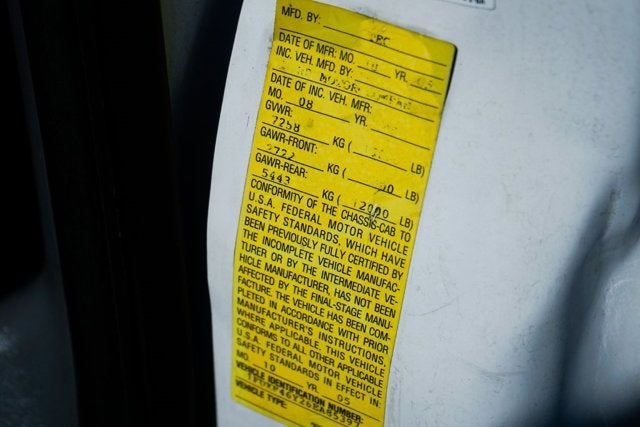

• Gross Vehicle Weight Rating Cap (lbs): 16,000
• Gross Combined Wt Rating (lbs): 26,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1,600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18,400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1840
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 12,000
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 12,000
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: T91
• Rear Tire Order Code: T91

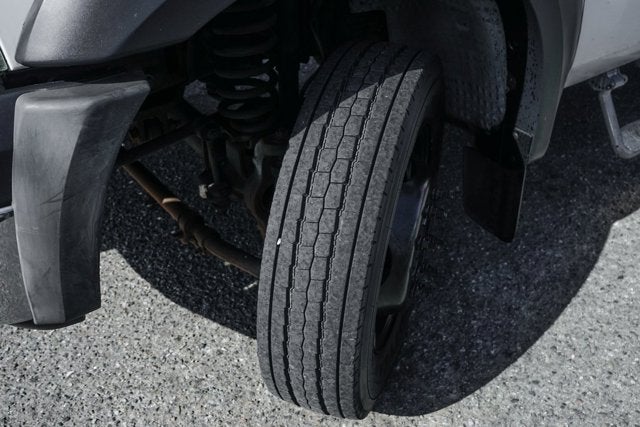

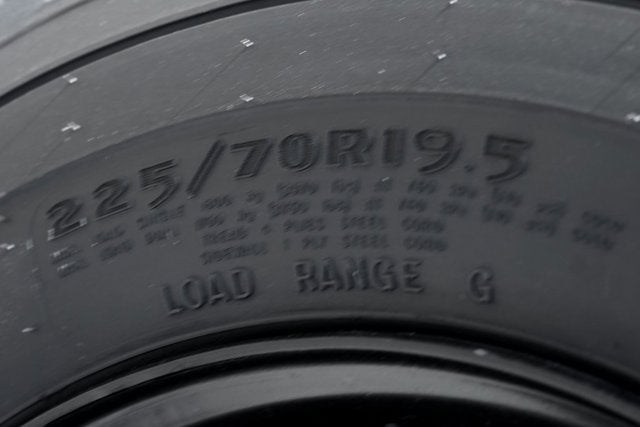

• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6
• Rear Wheel Size (in): 19.5 x 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: 18.0
• Turning Diameter - Curb to Curb (ft): 42.3
• Turning Diameter - Wall to Wall (ft): 44.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 225.6
• Width, Max w/o mirrors (in): 93.6
• Height, Overall (in): 80.6
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 118.2
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.5
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): 32.3
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Summary

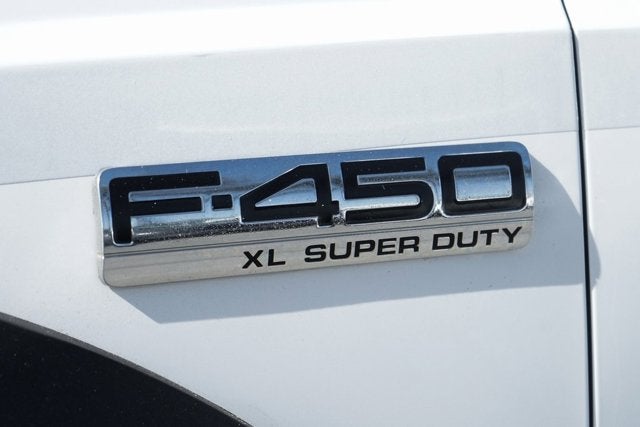

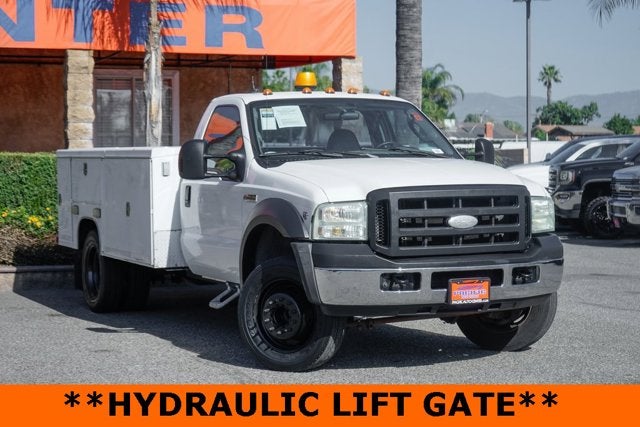

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Reg Cab
• Body Code: 141" WB
